Western Wave® Rigid Wall Panel - Speckled Blue Copper®

Product Data

Material Type: Western Wave

Panel Width: 16"

Rib Distance (Pitch):
4" Pitch

Rib Height: 7/8"

Available Gauges: 24

Substrate:
AZ50 Minimum (Galvalume®/Zincalume®)

Finishes:
PVDF Resin Based

Fasteners: Concealed

Panel Length: 6' to 45' max

Installation:

Horizontal or Vertical Installation.

PRODUCT DOCUMENTS

Installation Guide (Horizontal)

Installation Guide (Vertical)

Solar Reflectivity Index

CAD Details (Horizontal)

CAD Details (Vertical)

Fastener Placement

Care & Maintenance

Product Info

western-wave-speckled-blue-copper-alt

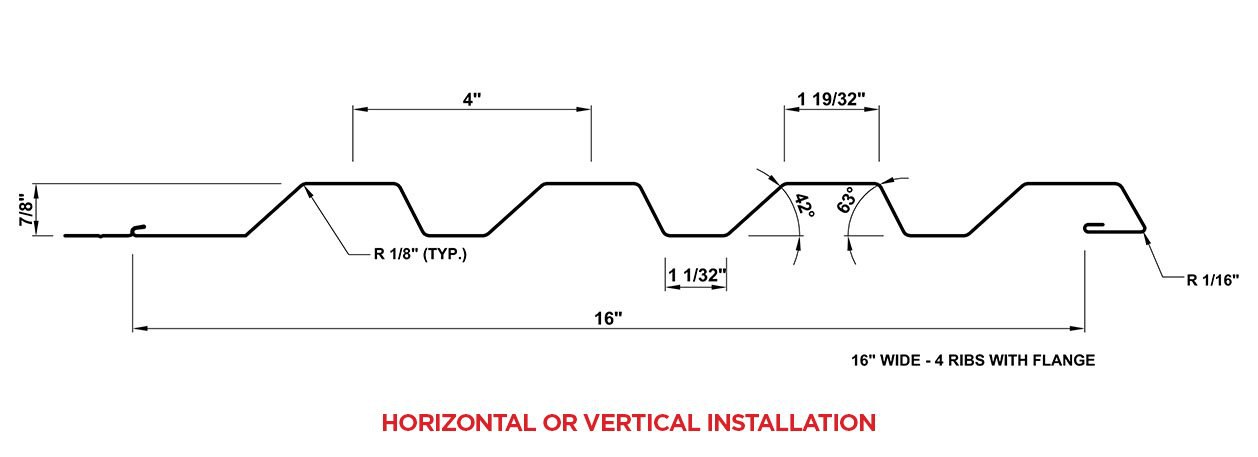

INSTALLED VERTICALLY OR HORIZONTALLY

Western States’ Western Wave® structural wall panel is a fixed concealed fastener panel that requires no clips for installation. Western Wave panel is installed horizontally or vertically only over any solid substrate or open framing. This remarkable rigid wall panel offers a distinctive look with bold shadow effects that emphasize the panels unique rib profile making it ideal for mansards, equipment screens and walls.

western-wave-speckled-blue-copper-alt

Features and Benefits

Corrosion and Rust Resistant – Our metal roofing and siding panels and sheet steel products are coated with Galvalume®/Zincalume® - an aluminum-zinc alloy coating with extraordinary outdoor corrosion resistance.
Durable - Metal Roofing coated with Galvalume®/Zincalume® will have an exceptionally long life expectancy.
Rot Resistant - Since metal is an inorganic material, unlike wood, it does not rot - making it the best choice in roofing material by builders and architects alike.
Pest and Termite Resistant - Bugs, pests, and termites cannot penetrate through metal materials making a corrugated metal roofing system your best defense against unwanted creatures.
Fire Resistant - Metal roofs are noncombustible and have a Class A fire rating. Class C rating when applied over a combustible material such as a wood substrate.
Lightweight - Lightens the load in installation and reduces the load bearing weight on support walls and beams.
Stylish - If specifications call for a textured wall design without visible fasteners, the Western Wave panel makes an excellent selection. The Western Wave panel is installed horizontally utilizing a concealed fastening system, resulting in a monolithic and aesthetically pleasing appearance.
Energy Efficient - Metal roofs with a "Cool" paint finish reflect solar radiant heat, which can help reduce cooling costs.
Eco-Friendly - Metal roofing is made from recycled content. Corrugated roofing panels are also recyclable at the end of their life as a roof. In contrast, most shingle tear-off waste ends up as part of the building-related waste stream - up to 20 billion pounds per year.
Versatile – Can be installed either vertically or horizontally as a wall application.
