Western Wave® Rigid Wall Panel - Copper Patina

Product Data

Material Type: Western Wave

Panel Width: 16"

Rib Distance (Pitch):
4" Pitch

Rib Height: 7/8"

Available Gauges: 24

Substrate:
AZ50 Minimum (Galvalume®/Zincalume®)

Finishes:
PVDF Resin Based

Fasteners: Concealed

Panel Length: 6' to 45' max

Installation:

Horizontal or Vertical Installation.

PRODUCT DOCUMENTS

Installation Guide (Horizontal)

Installation Guide (Vertical)

Solar Reflectivity Index

CAD Details (Horizontal)

CAD Details (Vertical)

Fastener Placement

Care & Maintenance

Product Info

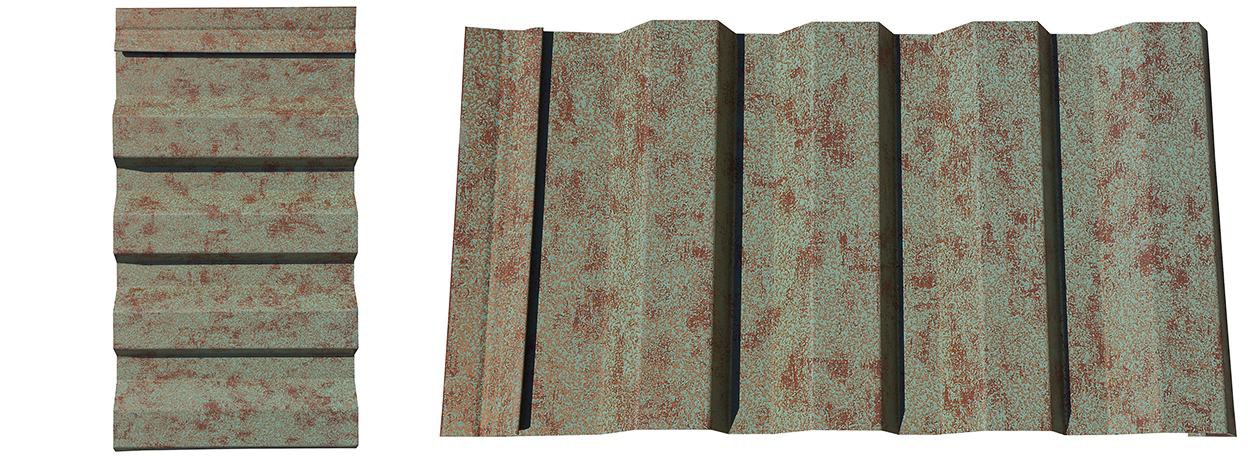

western-wave-siding-panel-copper-patina-alt

INSTALLED VERTICALLY OR HORIZONTALLY

Western States’ Western Wave® structural wall panel is a fixed concealed fastener panel that requires no clips for installation. Western Wave panel is installed horizontally or vertically only over any solid substrate or open framing. This remarkable rigid wall panel offers a distinctive look with bold shadow effects that emphasize the panels unique rib profile making it ideal for mansards, equipment screens and walls.

western-wave-siding-panel-copper-patina-alt

Features and Benefits

Corrosion and Rust Resistant – Our metal roofing and siding panels and sheet steel products are coated with Galvalume®/Zincalume® - an aluminum-zinc alloy coating with extraordinary outdoor corrosion resistance.
Durable - Metal Roofing coated with Galvalume®/Zincalume® will have an exceptionally long life expectancy.
Rot Resistant - Since metal is an inorganic material, unlike wood, it does not rot - making it the best choice in roofing material by builders and architects alike.
Pest and Termite Resistant - Bugs, pests, and termites cannot penetrate through metal materials making a corrugated metal roofing system your best defense against unwanted creatures.
Fire Resistant - Metal roofs are noncombustible and have a Class A fire rating. Class C rating when applied over a combustible material such as a wood substrate.
Lightweight - Lightens the load in installation and reduces the load bearing weight on support walls and beams.
Stylish - If specifications call for a textured wall design without visible fasteners, the Western Wave panel makes an excellent selection. The Western Wave panel is installed horizontally utilizing a concealed fastening system, resulting in a monolithic and aesthetically pleasing appearance.
Energy Efficient - Metal roofs with a "Cool" paint finish reflect solar radiant heat, which can help reduce cooling costs.
Eco-Friendly - Metal roofing is made from recycled content. Corrugated roofing panels are also recyclable at the end of their life as a roof. In contrast, most shingle tear-off waste ends up as part of the building-related waste stream - up to 20 billion pounds per year.
Versatile – Can be installed either vertically or horizontally as a wall application.

Ordering Information

Installation Guide (Horizontal)

Installation Guide (Vertical)

Trim and Flashing

Color Charts

Metal Roofing Learning Center

Field Cutting and Touch-Up Paint

Care and Maintenance

Standard Colors (PVDF)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Regal Blue
Royal Blue
Slate Blue
Regal Red
Colonial Red
Terra Cotta
Classic Green
Matte Black
Dark Bronze
Medium Bronze
Mansard Brown
Burnished Slate
Silver Metallic†
Zinc Metallic†
Charcoal Gray
Gun Metal Gray
Slate Gray
Dolphin Gray
Dove Gray
Ash Gray
Copper Penny†
Desert Tan
Champagne†
Sandstone
Almond
Bone White
Regal White

View Color Page

Matte Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

*Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Matte Regal White*
Matte Sandstone*
Matte Desert Tan*
Matte Slate Gray*
Matte Musket Gray
Matte Zinc Metallic
Matte Patina
Matte Charcoal Gray
Matte Burnished Slate*
Matte Mansard Brown*
Matte Medium Bronze*
Matte Dark Bronze
Matte Midnight Black
Matte Black
Matte Classic Green*
Matte Colonial Red*
Matte Orange*

View Color Page

Special Order Colors (500 Sq. Ft. Minimum)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Solar White
Stone White
Surrey Beige
Sierra Tan
Aged Patina
Sage Green
Hemlock Green
Hartford Green
Evergreen
Burgundy
Pre-Weathered Galvalume

View Color Page

Additional Finishes

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Galvalume®/ Zincalume®
Galvanized G90
A606-4 (aka Corten®)
Bare Cold Rolled
Bonderized
Black Phosphate®
Rezibond®
Copper
Stainless Steel
Aluminum - Mill Finish

View Color Page

View Available Panels

Black Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Black Zinc Matte®
Black Ore Matte®
Matte Black
Matte Midnight Black
Dark Bronze
Matte Dark Bronze
Medium Bronze
Blackened Steel Matte®
Speckled Blackened Rust®
Blackened Copper®
Vintage®
Burnt Wood®

View Color Page

Copper Colors

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Speckled Copper®
Speckled Blue Copper®
Copper Patina®
Green Copper®
Aged Copper®
Black Copper Matte®
Speckled Blackened Copper®
Blackened Copper®
Burnished Slate
Weathered Metallic®
Copper Penny†

View Color Page

Gray Colors

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Burnished Slate
Charcoal Gray
Gun Metal Gray
Patina
Slate Gray
Dolphin Gray
Dove Gray
Ash Gray
Matte Burnished Slate**
Matte Charcoal Gray
Matte Patina
Matte Zinc Metallic
Matte Musket Gray
Matte Slate Gray**
Silver Metallic†
Zinc Metallic†
Vintage®
Black Zinc Matte®
Gray Zinc Matte®
Silver Zinc Matte®
Blue Zinc Matte®
Bonder-Paint® Light
Bonder-Paint® Dark
Bonderized*

View Color Page

Rusted Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Speckled Rust®
Fresh Rust®
Corten AZP Raw®
Rustic Rawhide®
Weathered Rustic®
Weathered Metallic®
Reclaimed Metal Rust®
Speckled Galvanized Rust®
Speckled Blackened Copper®
Blackened Copper®

View Color Page

View Available Panels

View Color Page

Zinc Series

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Gray Zinc Matte®
Silver Zinc Matte®
Blue Zinc Matte®
Black Zinc Matte®
Vintage®
Zinc Patina®
Zinc Metallic†®
Matte Musket Gray®
Bonder-Paint® Light
Bonder-Paint® Dark
Bonderized®*
Rezibond®*

View Color Page

Aluminum (Standard Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Aluminum - Mill Finish
Matte Black
Dark Bronze
Charcoal Gray
Almond
Regal White
Fresh Rust®

View Available Panels

Aluminum (Special Order Colors)

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Regal Blue
Slate Blue
Regal Red
Colonial Red
Terra Cotta
Aged Patina
Evergreen
Hartford Green
Medium Bronze
Mansard Brown
Slate Gray
Dove Gray
Ash Gray
Pre-Weathered Galvalume
Sierra Tan
Surrey Beige
Sandstone
Solar White
Stone White
Copper Metallic†
Silver Metallic†

View Available Panels

Copper (20oz/16oz)

Real Copper

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Copper

View Color Page
