Head Trim - # WS-609

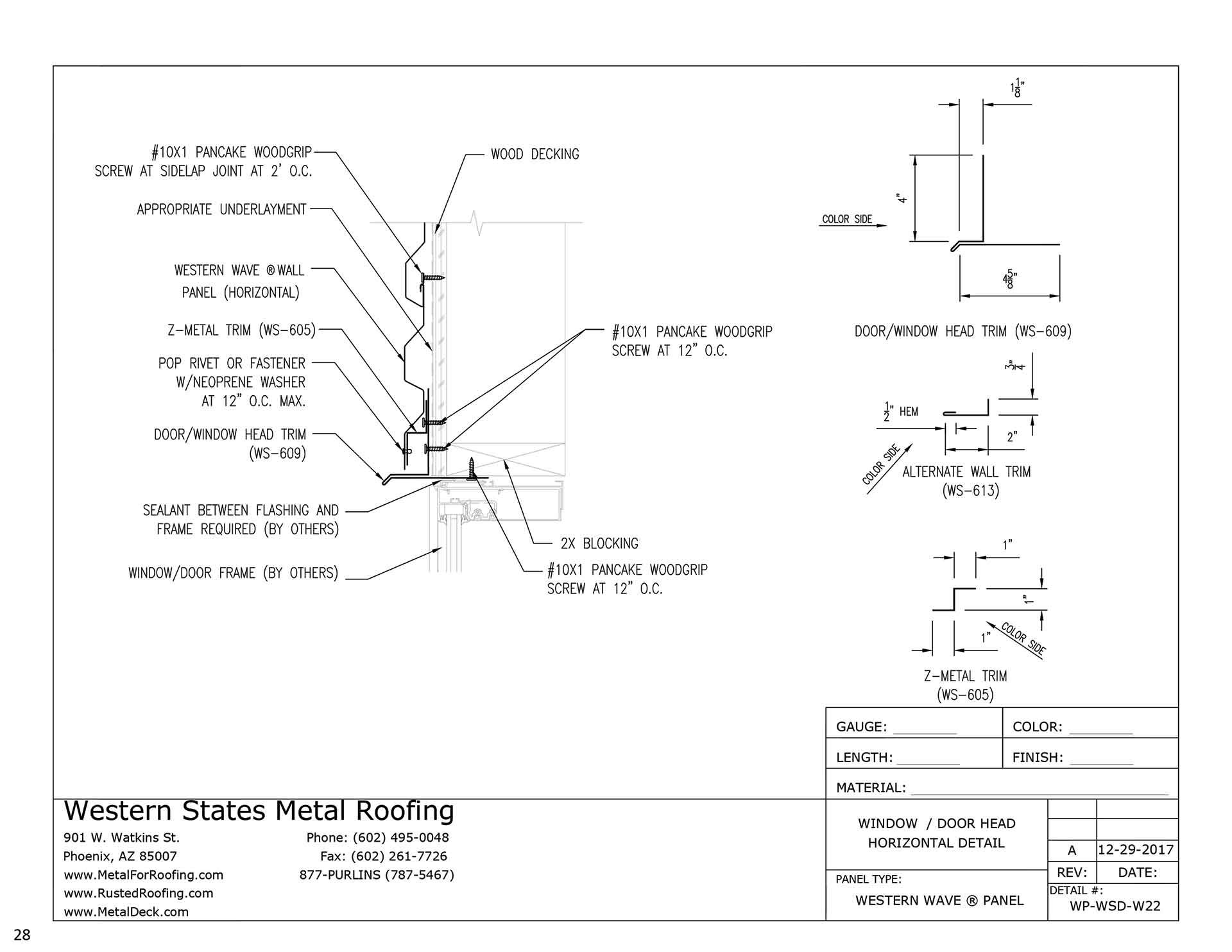

Window/Door Head Trim - Horizontal Installation

Alternate Detail #WP-WSD-W22

Use this detail when you have a Western Wave panel that's been cut. It's different than WP-WSD-W11 which is intended for an uncut Western Wave panel.

Head trim will be installed along the top of a window or door opening. This installation detail is different when the panels are installed vertically versus horizontally. This installation detail is for a horizontal wall panel only.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-w22-window-door-head-horizontal-detail.jpg

Alternate Window/Door Head Trim Detail - Horizontal Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/door-window-head-trim-ws-609-western-wave-panel-trim-flashing-1.jpg

WS-609 Head Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/alternate-wall-trim-ws-613-western-wave-panel-trim-flashing-1.jpg

WS-613 Alternate Wall Trim Dimensions

For every 10' of head trim, you will need 10' of alternate wall trim.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/z-metal-trim-ws-605-western-wave-panel-trim-flashing-1.jpg

WS-605 Z Metal

For every 10' of head trim, you will need 10' of z metal.

Click To Enlarge

HEAD TRIM DETAIL - HORIZONTAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Head Trim - WS-609
  • 1 Piece Alternate Wall Trim - WS-613
  • 1 Piece Z Metal - WS-605
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Rivets
