Head Trim - # WS-609

Window/Door Head Trim - Horizontal Installation

Detail #WP-WSD-W11

Use this detail when you have a Western Wave panel that has not been cut. It's different than WP-WSD-W22 which is intended for a Western Wave panel that has been cut.

Head trim will be installed along the top of a window or door opening. This installation detail is different when the panels are installed vertically versus horizontally. This installation detail is for a horizontal wall panel only.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-w11-door-window-head-detail.jpg

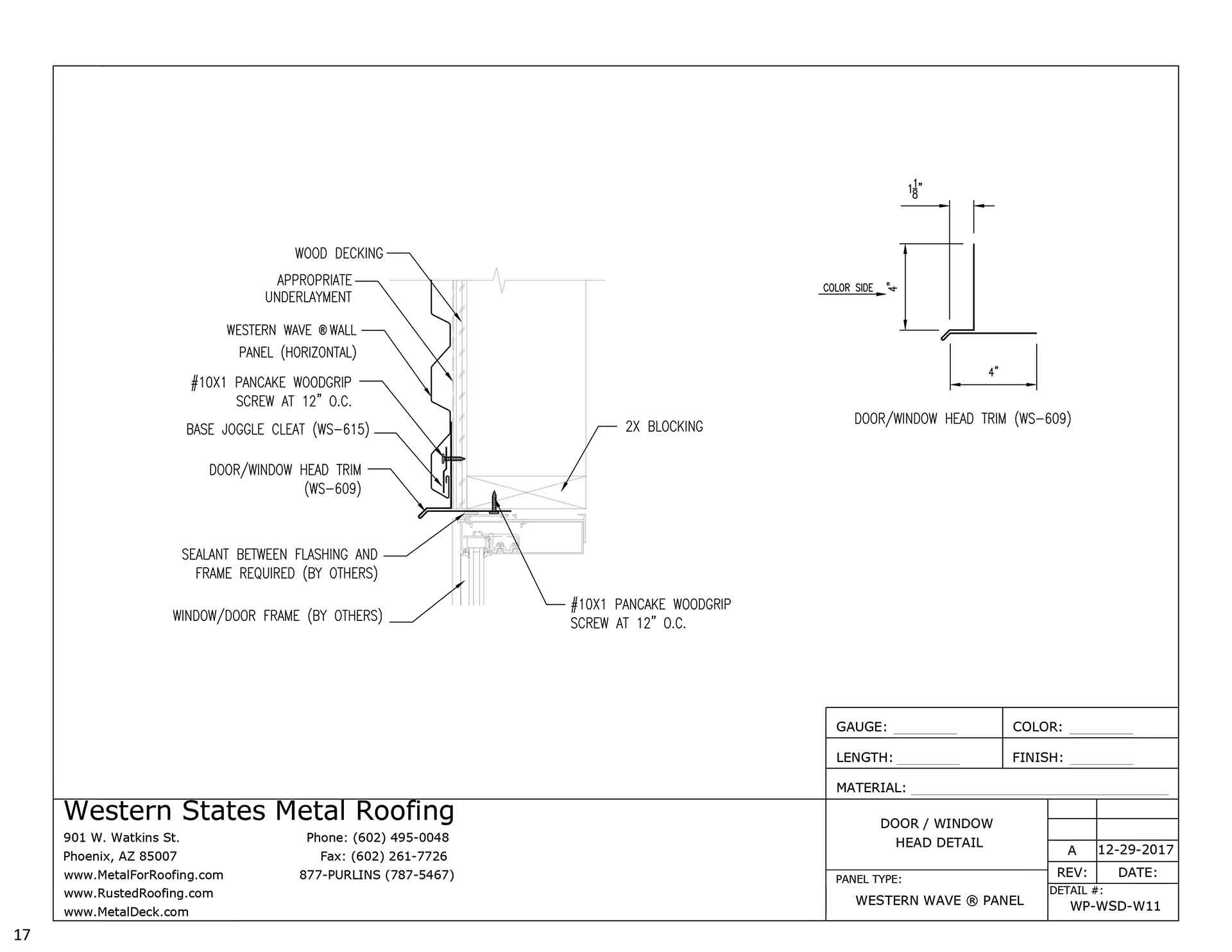

Window/Door Head Trim Detail - Horizontal Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/door-window-head-trim-ws-609-western-wave-panel-trim-flashing-1.jpg

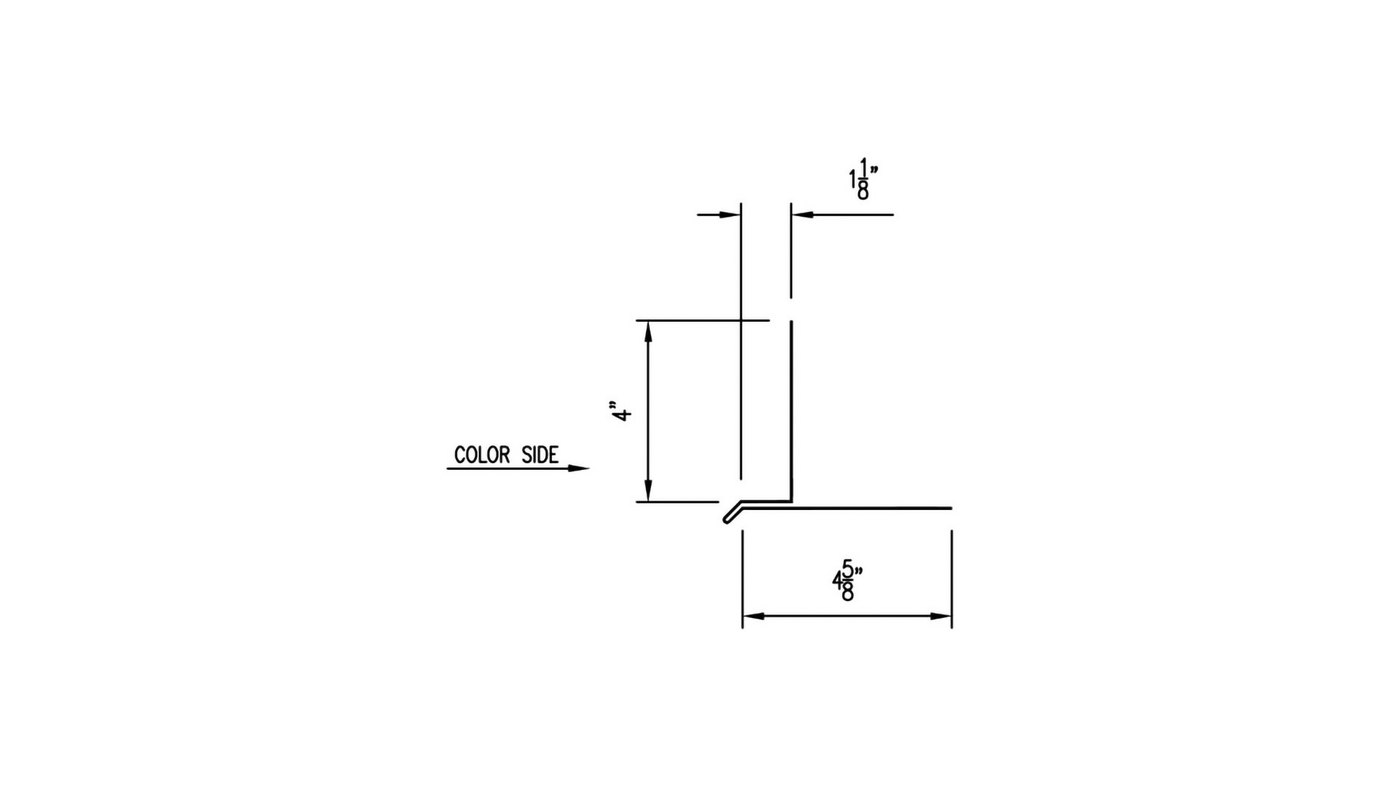

WS-609 Head Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-joggle-cleat-ws-615-western-wave-panel-trim-flashing-1.jpg

WS-615 Base Joggle Cleat Dimensions

For every 10' of head trim, you will need 10' of base joggle cleat.

Click To Enlarge

HEAD TRIM DETAIL - HORIZONTAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Head Trim - WS-609
  • 1 Piece Base Joggle Cleat - WS-615
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood

DOWNLOAD INSTALLATION GUIDE
