Wave - 8.0
Metal Siding Panel

Wave - 8.0 has one large eight inch metal rib. It can be mixed and matched with a 12" or 16" wave panel.  Wave panels are the perfect way to add texture to a wall and make it the focal point of your building.



Product Data Available Colors

New 12" and 8" Wave Panels
How To Install Western Wave®

Find out what your product will look like.

view product visualizer

Wave 8.0 Metal Wall Panels

8" Wide Single Wave Panel

Wave panels have a distinctive look with bold shadow effects that highlight the unique look of the panel ribs. They are perfect as an accent wall because the different textures create depth and break up the look of a large exterior wall. Wave panels can be installed horizontally or vertically over any solid substrate or open framing.  There are no visible fasteners so it has a sleek and ultramodern appearance that will complement your buildings features and architecture.

What Makes A Wave Panel So Unique?

What makes them so attractive is their unique rib shape. The front of the panel rib is sloped and less steep than the back rib so that it resembles an ocean wave. Wave panels are considered less obstructive because the ribs are not symmetrical and appear smoother when compared with traditional box rib panels.

Wave panels can be mixed and matched. You can combine all three panel widths of 16", 12", and 8" as they are designed to interlock with each other.

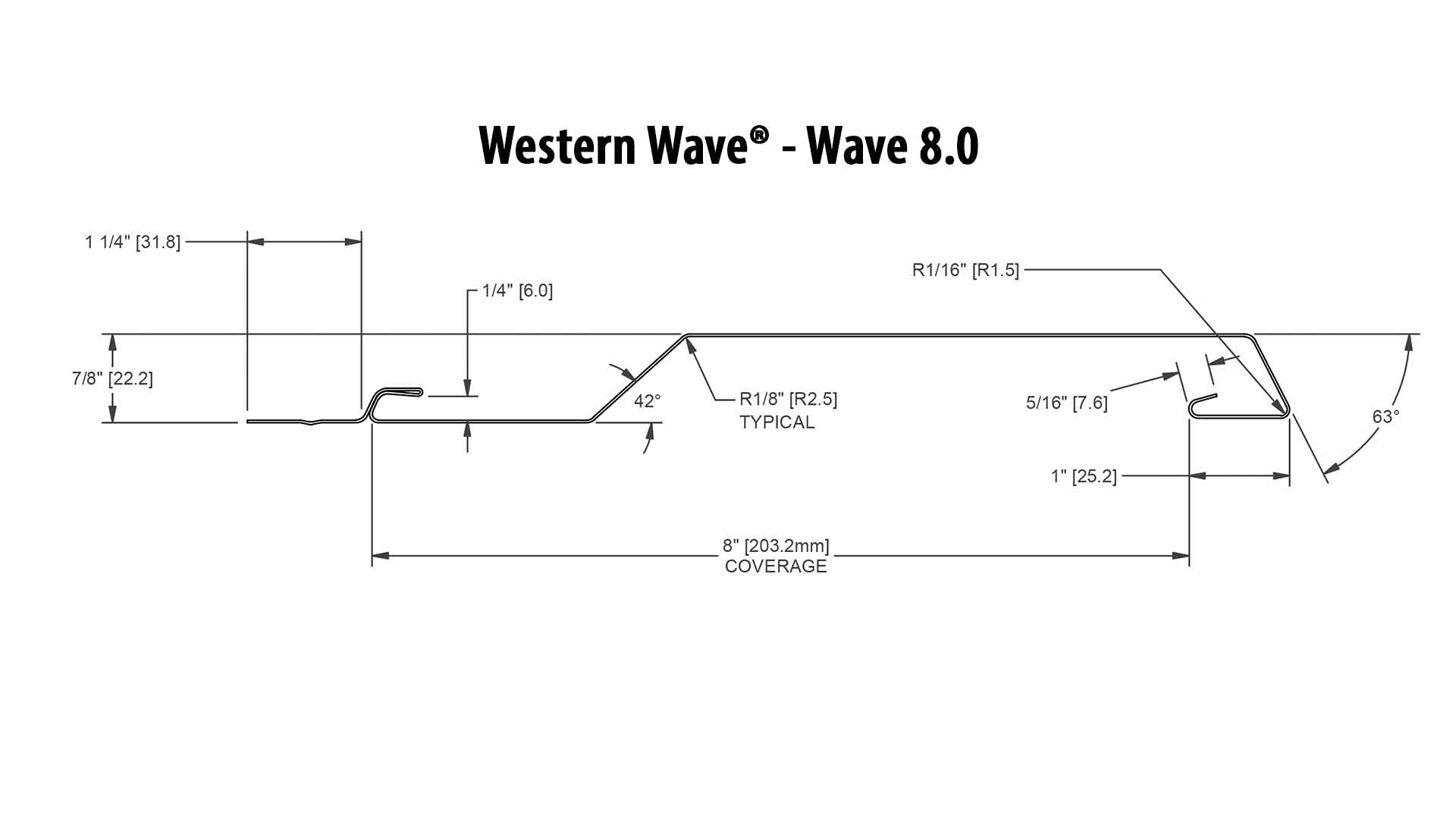

Dimensions

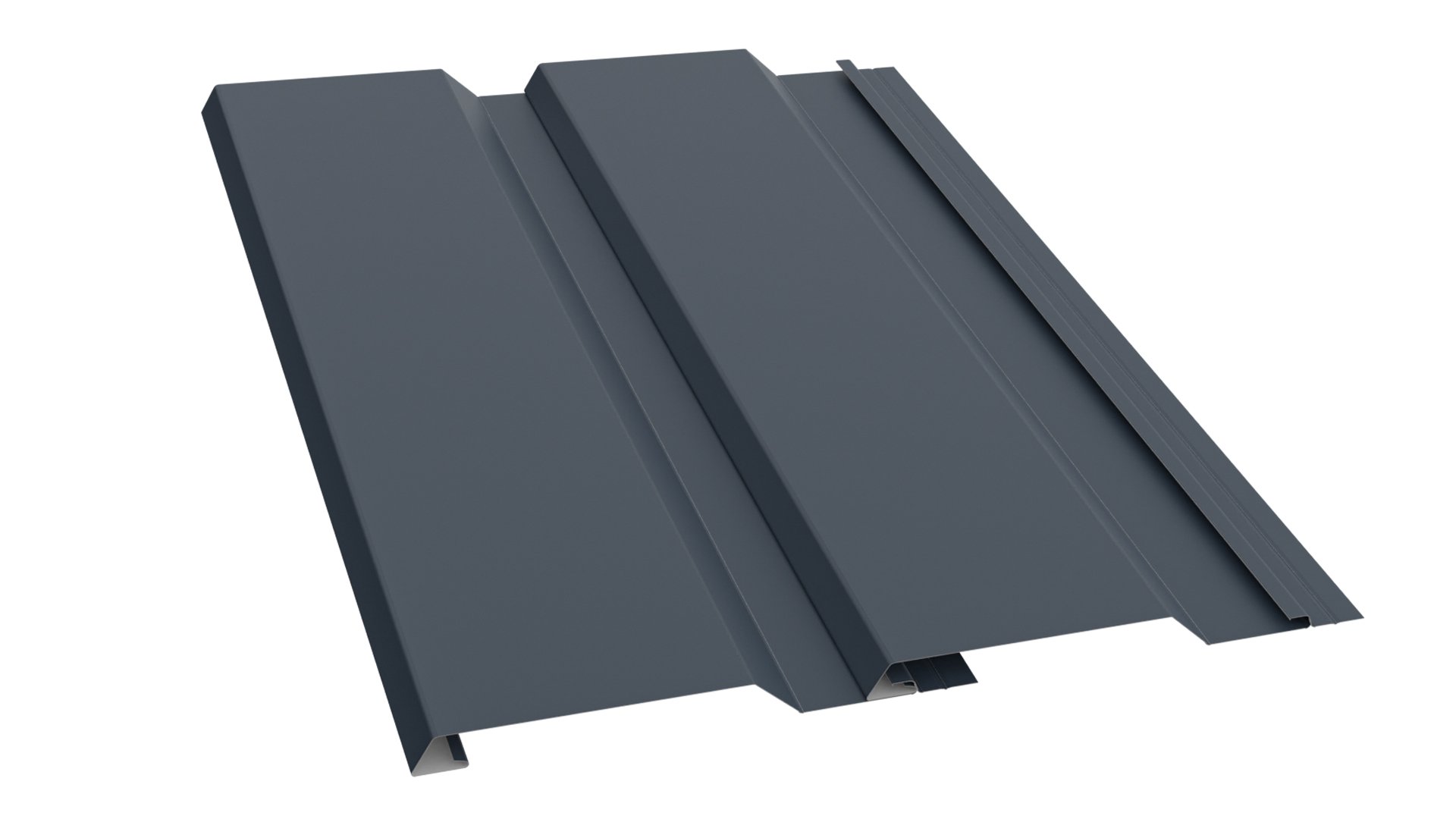

wave-8-inch-panel View Panel Dimensions Installation Details

Product Data

Material Type:
Wave - 8.0

Available Gauges: 24

Panel Width: 8" Coverage

Rib Height: 7/8"

Panel Length: 6' to 45' max

Substrate: AZ50 Minimum (AKA Galvalume®/Zincalume®)

Finishes:
PVDF Resin Based

Fasteners:
Concealed

Installation:
Horizontal or Vertical Installation

Product Documents

Trim And Flashings

CAD Details (Horizontal)

CAD Details (Vertical)

Care & Maintenance

Field Cutting & Touch Up Paint

Installation Guide (Horizontal)

Installation Guide (Vertical)

Paint Warranties

Product Data Sheets

Product Specifications

Solar Reflectivity Index

More Than 100 colors to choose from in Western Wave metal

Western Wave® Metal Panel Colors

Besides the typical solid colors found almost everywhere else, we are best known for our specialty paint prints. These are colors that have been painted repeatedly giving the finish depth, texture, and a one of a kind design. The drop down menu has grouped these metal roofing colors and styles into categories - making it easier for you to find.



Quick Links

Color Charts

Color Visualizer

Metal Color Samples

Metal Siding Color Guide

Paint Warranties

Standard Colors (PVDF)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Regal Blue Image
  • Royal Blue Image
  • Slate Blue Image
  • Regal Red Image
  • Colonial Red Image
  • Terra Cotta Image
  • Classic Green Image
  • Matte Black Image
  • Dark Bronze Image
  • Medium Bronze Image
  • Mansard Brown Image
  • Burnished Slate Image
  • Silver Metallic† Image
  • Zinc Metallic† Image
  • Charcoal Gray Image
  • Gun Metal Gray Image
  • Slate Gray Image
  • Dolphin Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Copper Penny† Image
  • Desert Tan Image
  • Champagne† Image
  • Sandstone Image
  • Almond Image
  • Bone White Image
  • Regal White Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Matte Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

*Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Matte Regal White* Image
  • Matte Sandstone* Image
  • Matte Desert Tan* Image
  • Matte Slate Gray* Image
  • Matte Musket Gray Image
  • Matte Zinc Metallic Image
  • Matte Patina Image
  • Matte Charcoal Gray Image
  • Matte Burnished Slate* Image
  • Matte Mansard Brown* Image
  • Matte Medium Bronze* Image
  • Matte Dark Bronze Image
  • Matte Midnight Black Image
  • Matte Black Image
  • Matte Classic Green* Image
  • Matte Colonial Red* Image
  • Matte Orange* Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Special Order Colors (500 Sq. Ft. Minimum)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Solar White Image
  • Stone White Image
  • Surrey Beige Image
  • Sierra Tan Image
  • Aged Patina Image
  • Sage Green Image
  • Hemlock Green Image
  • Hartford Green Image
  • Evergreen Image
  • Burgundy Image
  • Pre-Weathered Galvalume Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Additional Finishes

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Galvalume®/ Zincalume® Image
  • Galvanized G90 Image
  • A606-4 (aka Corten®) Image
  • Bare Cold Rolled Image
  • Bonderized Image
  • Black Phosphate® Image
  • Rezibond® Image
  • Copper Image
  • Stainless Steel Image
  • Aluminum - Mill Finish Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Available Panels

Black Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Black Zinc Matte® Image
  • Black Ore Matte® Image
  • Matte Black Image
  • Matte Midnight Black Image
  • Dark Bronze Image
  • Matte Dark Bronze Image
  • Medium Bronze Image
  • Blackened Steel Matte® Image
  • Speckled Blackened Rust® Image
  • Blackened Copper® Image
  • Vintage® Image
  • Burnt Wood® Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Copper Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Speckled Copper® Image
  • Speckled Blue Copper® Image
  • Copper Patina® Image
  • Green Copper® Image
  • Aged Copper® Image
  • Black Copper Matte® Image
  • Speckled Blackened Copper® Image
  • Blackened Copper® Image
  • Burnished Slate Image
  • Weathered Metallic® Image
  • Copper Penny† Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Gray Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

* Not A Paint Finish

** Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Burnished Slate Image
  • Charcoal Gray Image
  • Gun Metal Gray Image
  • Patina Image
  • Slate Gray Image
  • Dolphin Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Matte Burnished Slate** Image
  • Matte Charcoal Gray Image
  • Matte Patina Image
  • Matte Zinc Metallic Image
  • Matte Musket Gray Image
  • Matte Slate Gray** Image
  • Silver Metallic† Image
  • Zinc Metallic† Image
  • Vintage® Image
  • Black Zinc Matte® Image
  • Gray Zinc Matte® Image
  • Silver Zinc Matte® Image
  • Blue Zinc Matte® Image
  • Bonder-Paint® Light Image
  • Bonder-Paint® Dark Image
  • Bonderized* Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Rusted Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Speckled Rust® Image
  • Fresh Rust® Image
  • Corten AZP Raw® Image
  • Rustic Rawhide® Image
  • Weathered Rustic® Image
  • Weathered Metallic® Image
  • Reclaimed Metal Rust® Image
  • Speckled Galvanized Rust® Image
  • Speckled Blackened Copper® Image
  • Blackened Copper® Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Available Panels
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Zinc Series

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Gray Zinc Matte® Image
  • Silver Zinc Matte® Image
  • Blue Zinc Matte® Image
  • Black Zinc Matte® Image
  • Vintage® Image
  • Zinc Patina® Image
  • Zinc Metallic†® Image
  • Matte Musket Gray® Image
  • Bonder-Paint® Light Image
  • Bonder-Paint® Dark Image
  • Bonderized®* Image
  • Rezibond®* Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Aluminum (Standard Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Aluminum - Mill Finish Image
  • Matte Black Image
  • Dark Bronze Image
  • Charcoal Gray Image
  • Almond Image
  • Regal White Image
  • Fresh Rust® Image
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels

Aluminum (Special Order Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Regal Blue Image
  • Slate Blue Image
  • Regal Red Image
  • Colonial Red Image
  • Terra Cotta Image
  • Aged Patina Image
  • Evergreen Image
  • Hartford Green Image
  • Medium Bronze Image
  • Mansard Brown Image
  • Slate Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Pre-Weathered Galvalume Image
  • Sierra Tan Image
  • Surrey Beige Image
  • Sandstone Image
  • Solar White Image
  • Stone White Image
  • Copper Metallic† Image
  • Silver Metallic† Image
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels

Copper (20oz/16oz)

Real Copper

Click the dropdown menu to explore more color options for this panel type.

Download Color Card





Hide List of Colors Show Colors as List

  • Copper Image
Image View Color Page
Additional Building Components

Don't Forget To Order The Accessories!

Find Everything You Need Under One Roof...No Pun Intended!

We really mean it when we say you can find all the metal roofing and metal siding parts you need, saving you time and making it a hassle-free ordering experience. Buy everything you need to get the job done without having to shop at multiple stores and coordinate multiple deliveries. We make sure you have everything you need, all delivered together at once at your job site.


Synthetic Underlayment

Is your metal siding being installed over wood? If so, you will need underlayment.

Synthetic underlayment provides an extra barrier of protection from water penetration and will protect your home from the elements.

  • Sharkskin Comp
  • Sharkskin Ultra
  • Sharkskin Ultra SA

Learn More


Accessories

  • Fasteners/Clips
  • Foam Closures
  • Fiberglass Panels
  • Galvanized Square Tube
  • Trim & Flashings
  • Snow Retention & Solar Systems
  • Much More

Learn More


Metal Purlins and Channel

C Purlins, Z Purlins, and Channel

  • Galvanized
  • Primed - Red
  • 4” to 12” Deep
  • 14 Gauge - In Stock
  • Custom Gauges Upon Request

Learn More

Western States Metal Roofing

Finishes like you’ve never seen before.

When design and performance are at the top of the list for your next building project, look no further. Find all the painted metal roofing and wall panels you need to make your job stand out.

See All Available Colors
