Alternate End Wall Trim - # WS-814

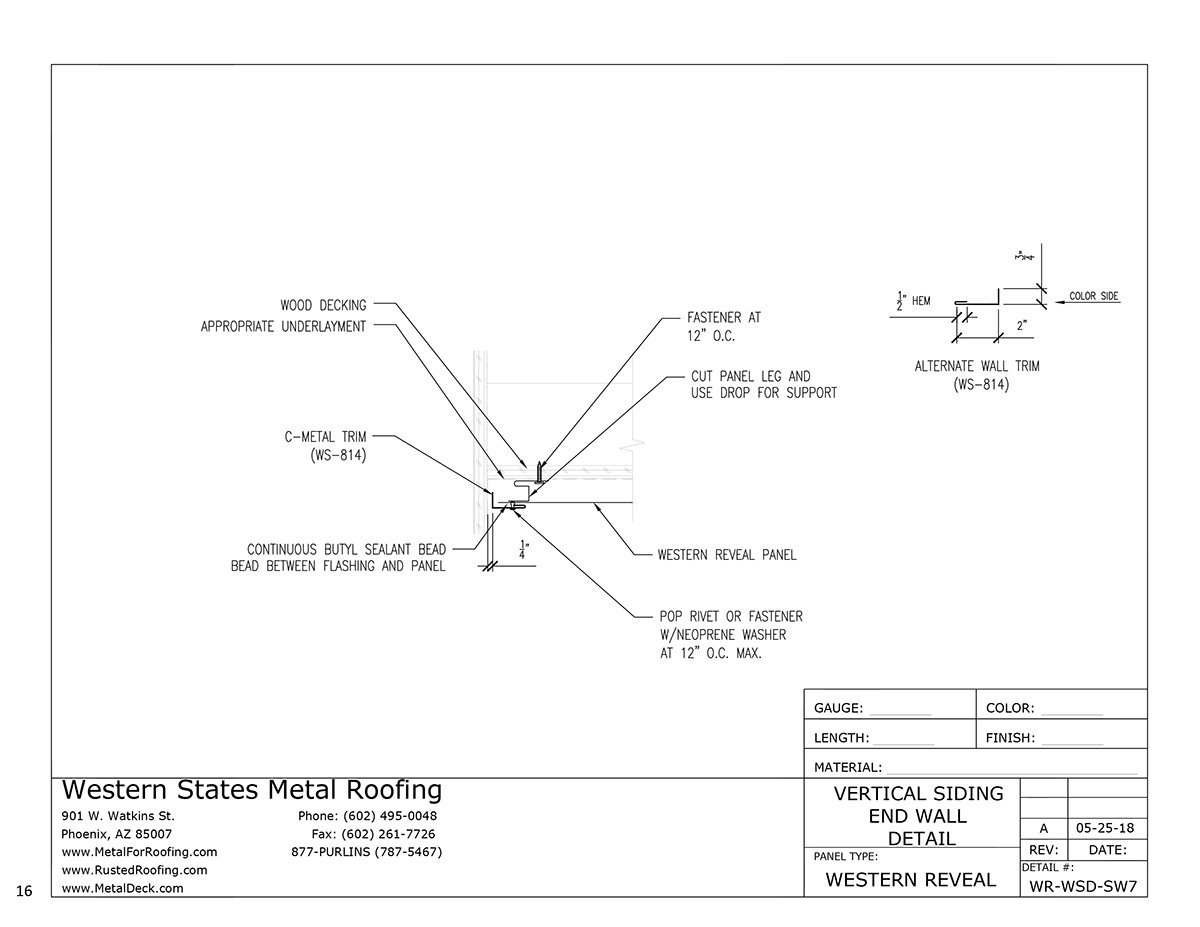

End Wall For Metal Wall Panels - Vertical Installation

Detail WR-WSD-SW7

You will need to use this detail when your metal siding panels end at an end wall. This installation detail is for a vertical metal wall panel only. It should not be used for metal soffit panels.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-reveal/wr-wsd-sw7.jpg

End Wall For Wall Panels - Vertical Installation - Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-reveal/western-reveal-alternate-wall-trim-ws-814-1.jpg

WS-814 Alternate Wall Trim Dimensions

CLICK TO ENLARGE

END WALL - VERTICAL WALL PANELS - DETAIL - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Alternate Wall Trim - WS-814
  • 10 Rivets
  • 10 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 1 Tube Of Butyl Sealant

DOWNLOAD INSTALLATION GUIDE
