C-Metal Trim - # WS-801

End Wall For Metal Soffit Panels - Horizontal Installation

Detail # WR-WSD-S3

You will need to use this detail when your metal soffit panels end at an end wall. This installation detail is for a metal soffit panel only. It should not be used for metal wall panels.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-reveal/wr-wsd-s3.jpg

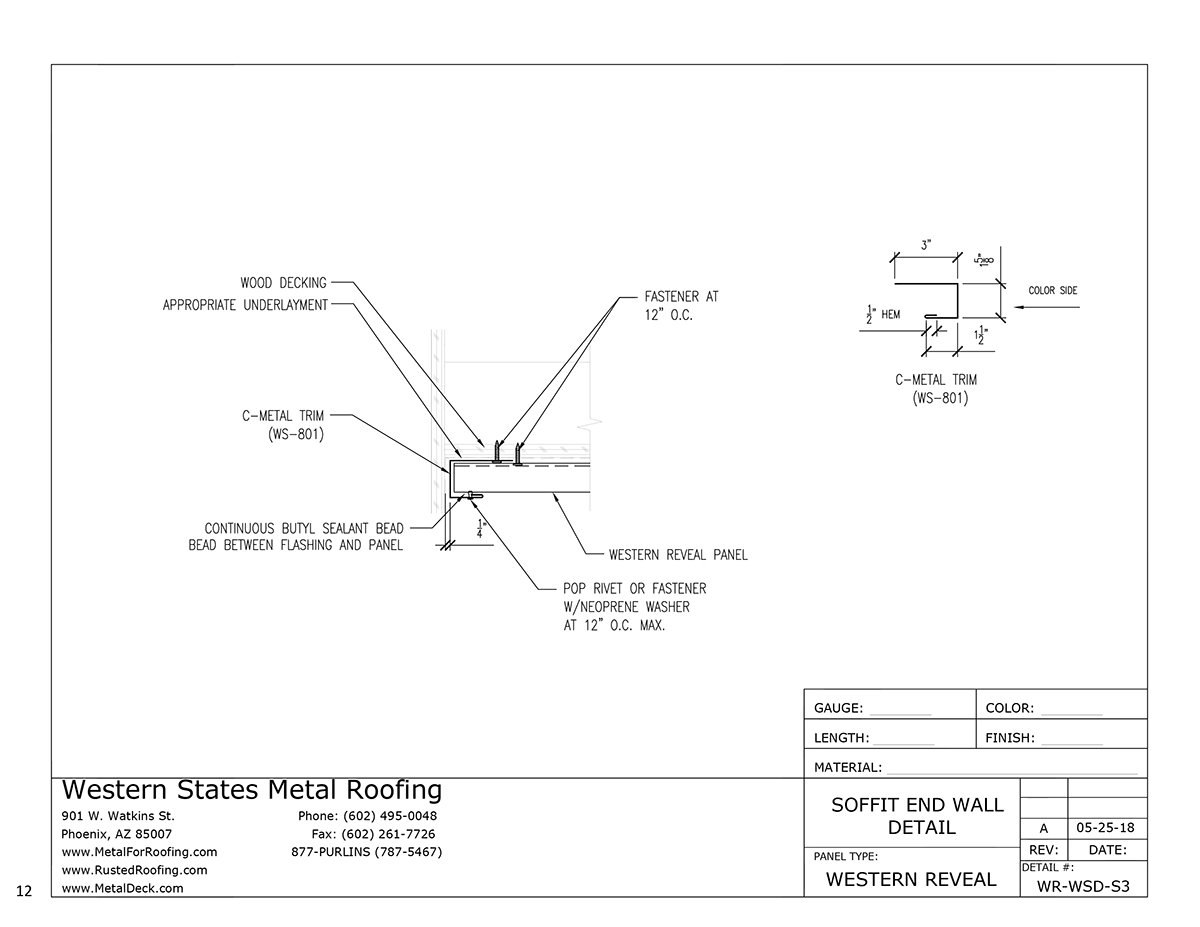

Soffit End Wall Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-reveal/western-reveal-c-metal-j-trim-ws-801-1.jpg

WS-801 C-Metal Trim Dimensions

CLICK TO ENLARGE

END WALL DETAIL - SOFFIT - HORIZONTAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece C-Metal Trim - WS-801
  • 10 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Rivets
  • 1 Tube Of Butyl Sealant

DOWNLOAD INSTALLATION GUIDE
