Outside Corner Trim - # WS-607

Outside Corner Trim - Vertical Installation

Detail #WP-WSD-W26

We offer two different types of outside corner trim, but this is the easiest one to install. The trade-off is that it has exposed rivets. This installation detail is different when the panels are installed horizontally versus horizontally. This installation detail is for a vertical wall panel only.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-w26-outside-corner-vertical-detail.jpg

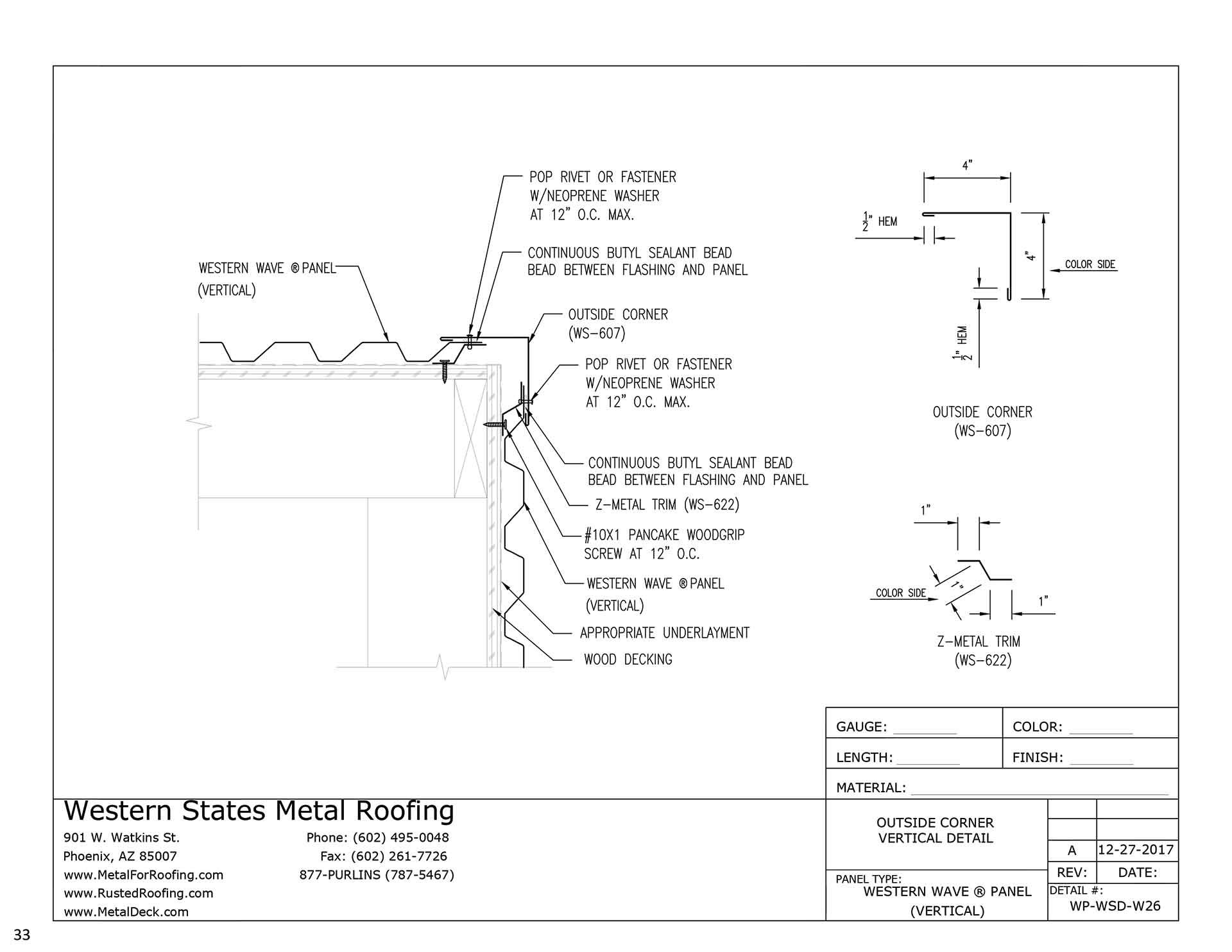

Outside Corner Trim Detail - Vertical Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/outside-corner-trim-ws-607-western-wave-panel-trim-flashing-1.jpg

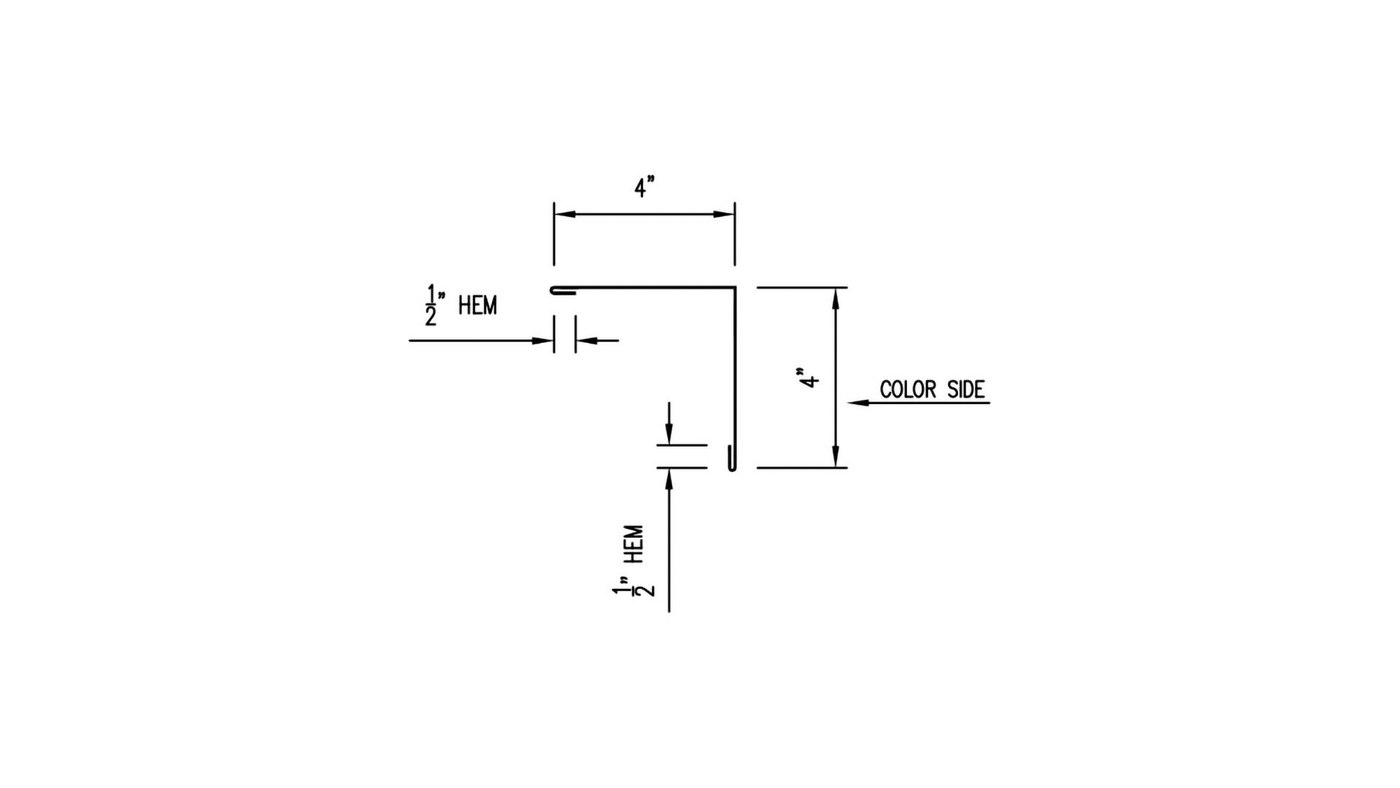

WS-607 Outside Corner Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/z-metal-trim-ws-622-western-wave-panel-trim-flashing-vertical-1.jpg

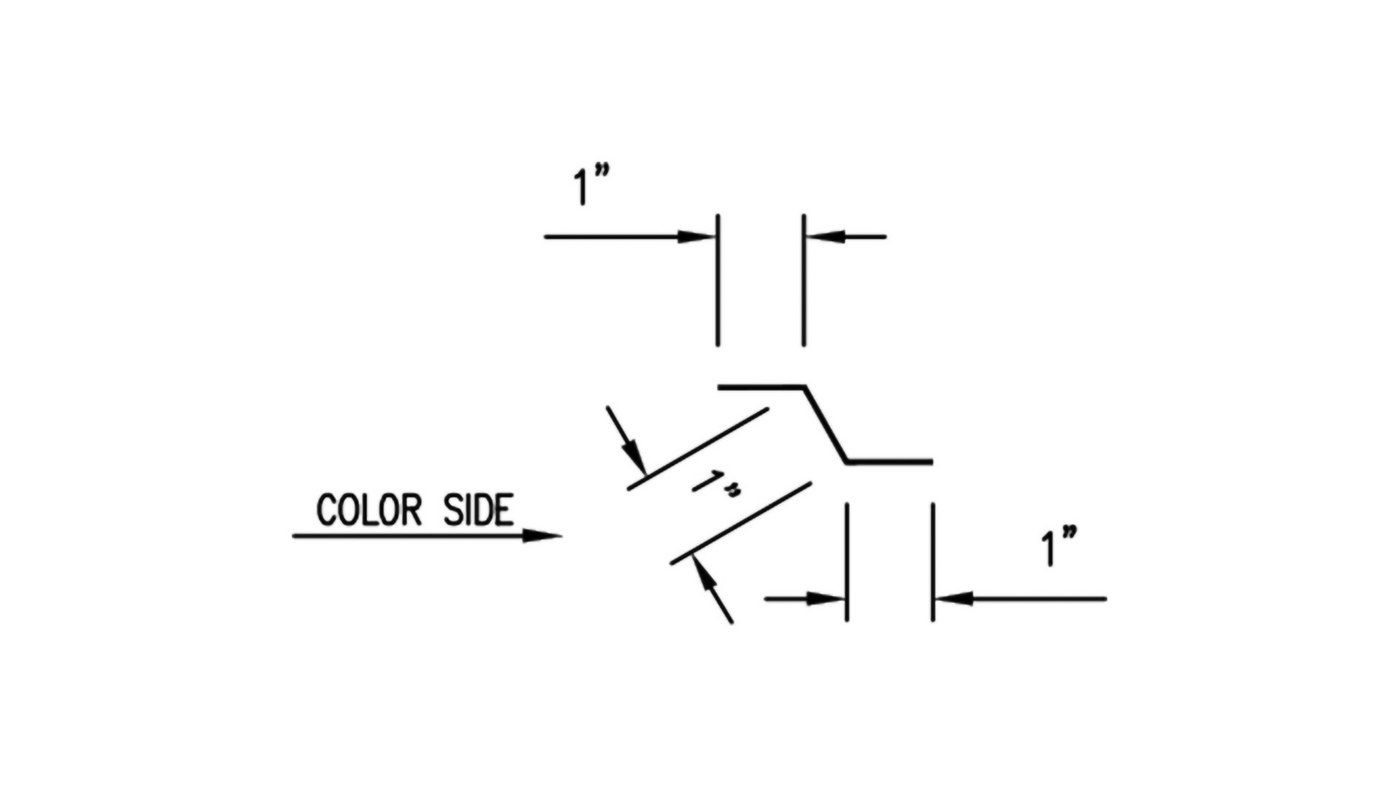

WS-622 Z-Metal Dimensions

For every 10' of corner trim, you will need 20' of z-metal.

Click To Enlarge

OUTSIDE CORNER TRIM DETAIL - VERTICAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.
