Outside Corner Trim - # WS-607

Outside Corner Trim - Horizontal Installation

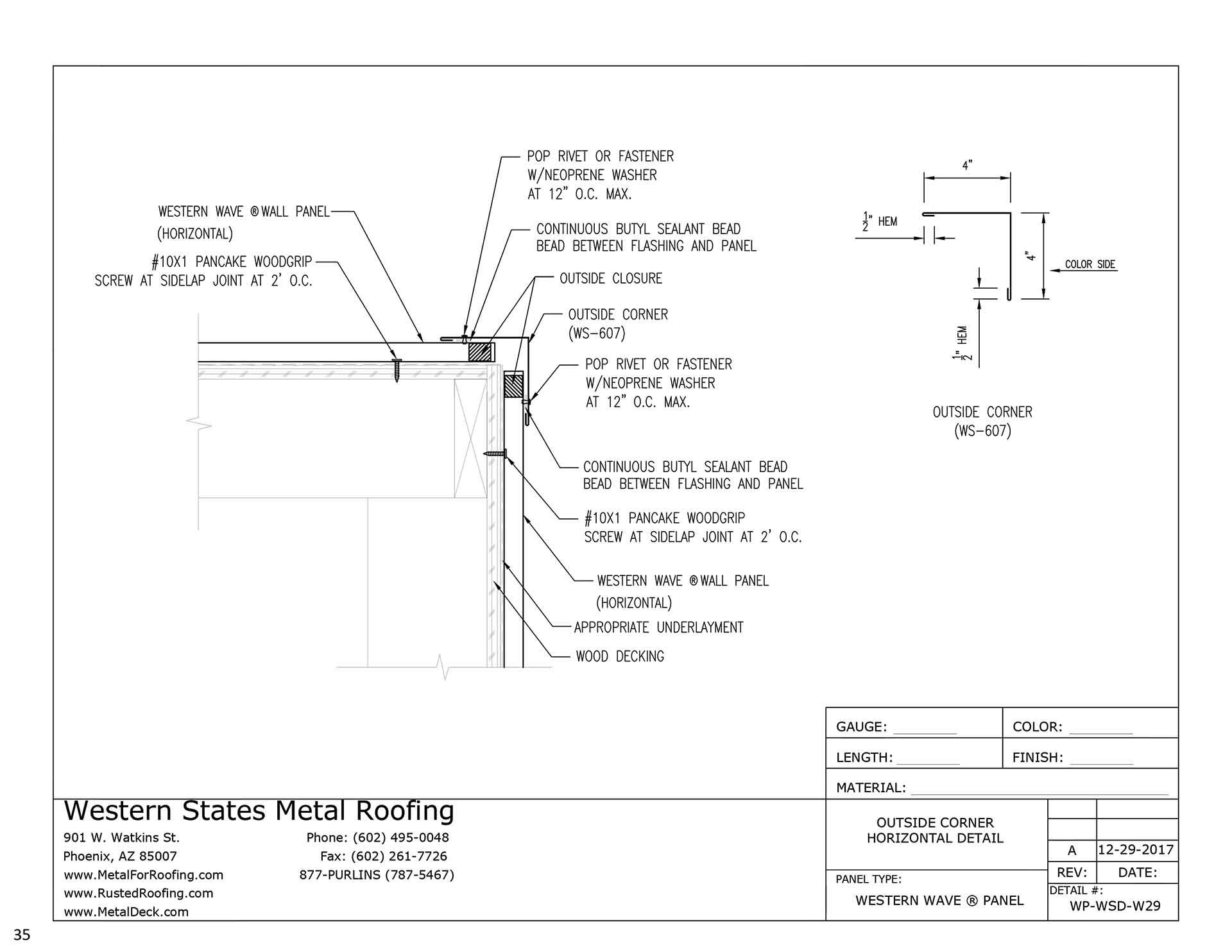

Detail #WP-WSD-W29

We offer two different types of outside corner trim, but this is the easiest one to install. The trade-off is that it has exposed rivets. This installation detail is different when the panels are installed vertically versus horizontally. This installation detail is for a horizontal wall panel only.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-w29-outside-corner-horizontal-detail.jpg

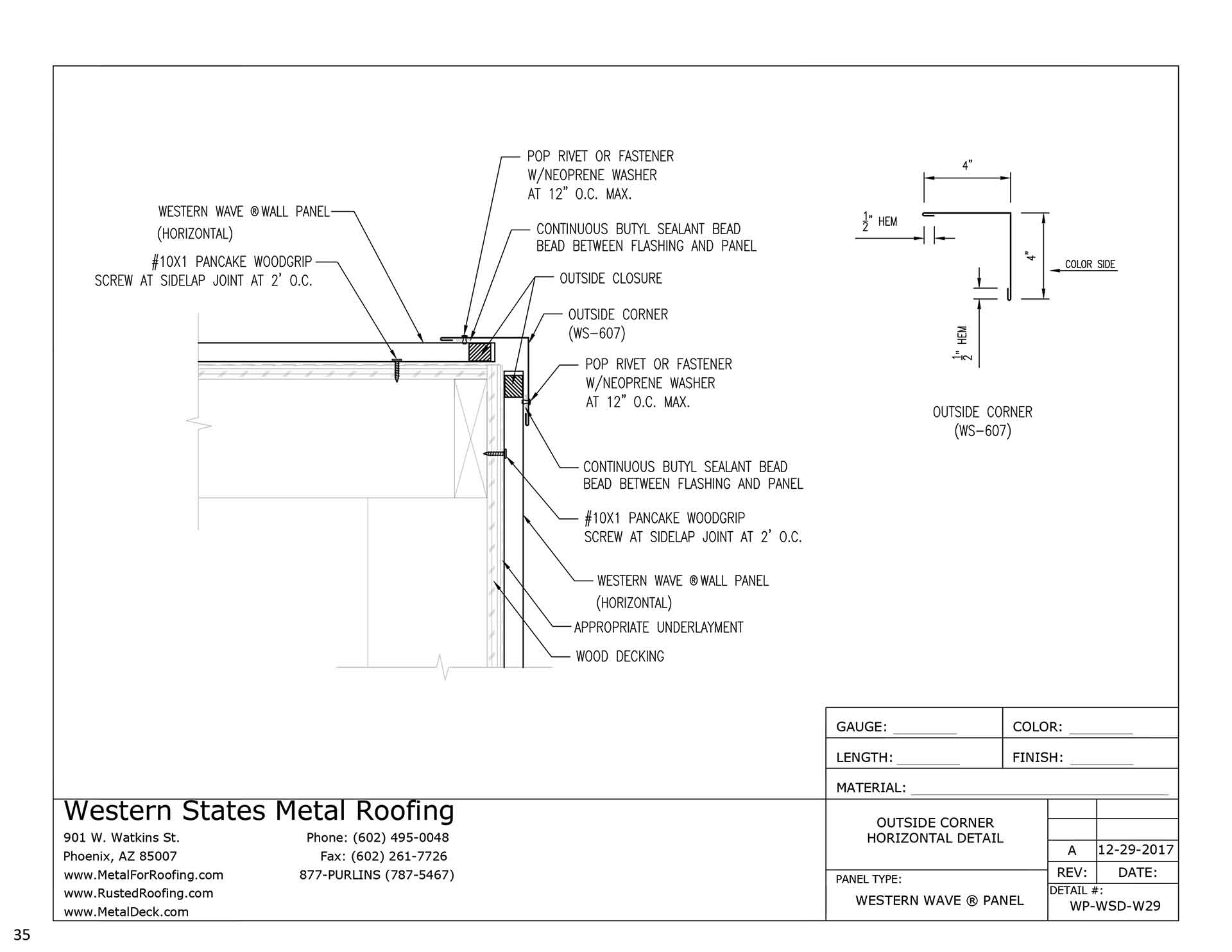

Outside Corner Trim Detail - Horizontal Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/outside-corner-trim-ws-607-western-wave-panel-trim-flashing-1.jpg

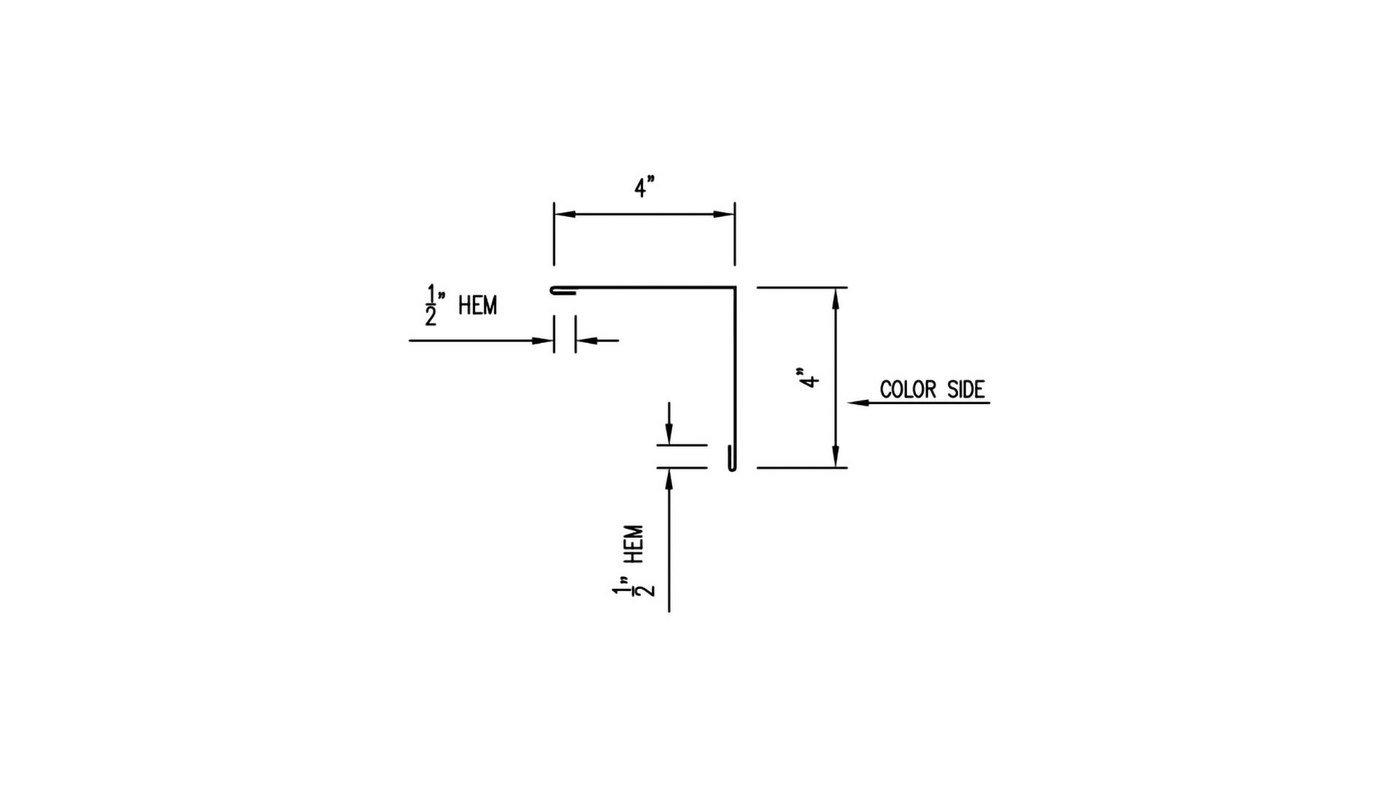

WS-607 Outside Corner Trim Dimensions

CLICK TO ENLARGE

OUTSIDE CORNER TRIM DETAIL - HORIZONTAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Outside Corner Trim - WS-607
  • 20 Rivets
  • 8 Pieces Of Outside Foam Closures
  • 2 Tubes Of Butyl Sealant

DOWNLOAD INSTALLATION GUIDE

Outside Corner Trim Installation

Western Wave Outside Corner Trim Installation

Step By Step Installation Instructions For Western Wave® Metal Wall Panels

western-wave-corner-trim-install-thumb
How To Install Metal Corner Trim

Corner Trim Installation Videos

Corner trim is the typically the last pieces of flashing that's installed for a metal siding job. If the panels are installed horizontally, then it will require foam closure strips. If it's installed vertically foam closure is not required.
