Jamb Trim - # WS-610

Window/Door Jamb Trim - Vertical Installation

Detail #WP-WSD-W12/W22

Jamb trim will be installed along both sides of a window or door opening. This installation detail is different when the panels are installed horizontally versus horizontally. This installation detail is for a vertical wall panel only.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-w12-window-door-jamb-detail.jpg

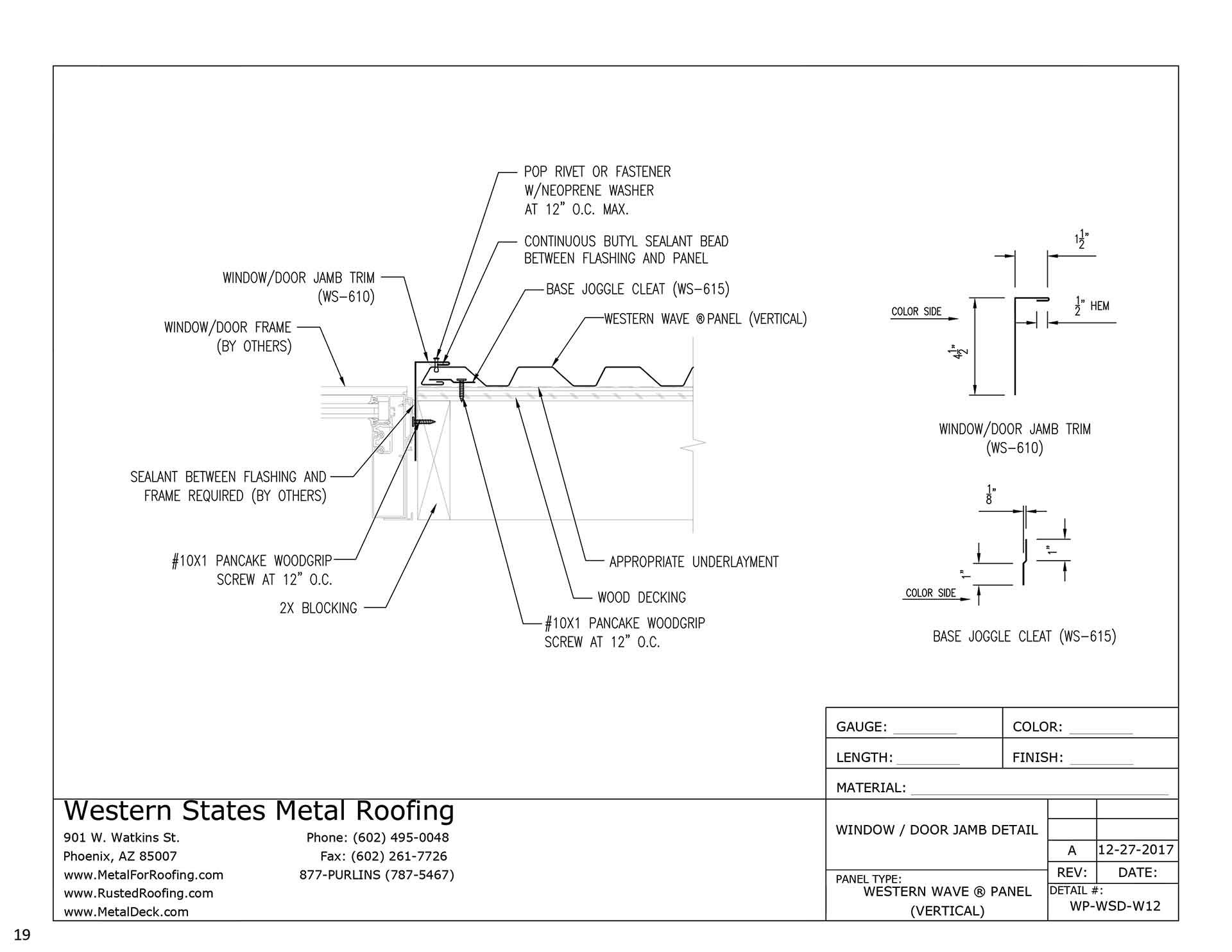

Window/Door Jamb Trim Detail - Vertical Installation

Use this detail when you have a Western Wave panel that has NOT been cut. It's different than WP-WSD-W22 which is intended for a Western Wave panel that has been cut.

This detail will require part numbers WS-610 & WS-615

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-w22-window-door-sill-vertical-detail.jpg

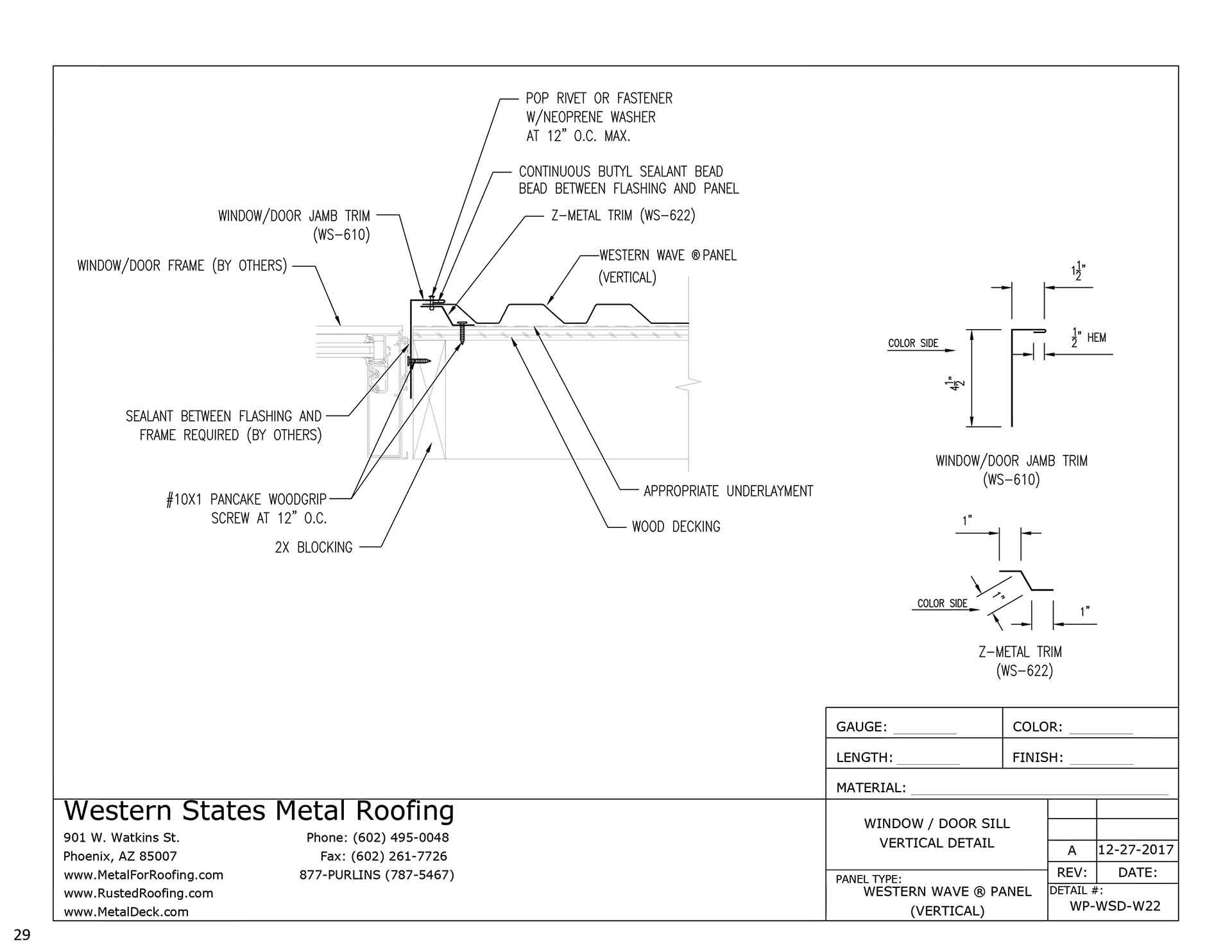

Alternate Detail - Window/Door Jamb Trim - Vertical Installation

Alternate Detail

Use this detail when you have a Western Wave panel that's been cut. It's different than WP-WSD-W12 which is intended for a Western Wave panel that has not been cut.

This detail will require part numbers WS-610 & WS-622

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/door-window-jamb-trim-ws-610-western-wave-panel-trim-flashing-1.jpg

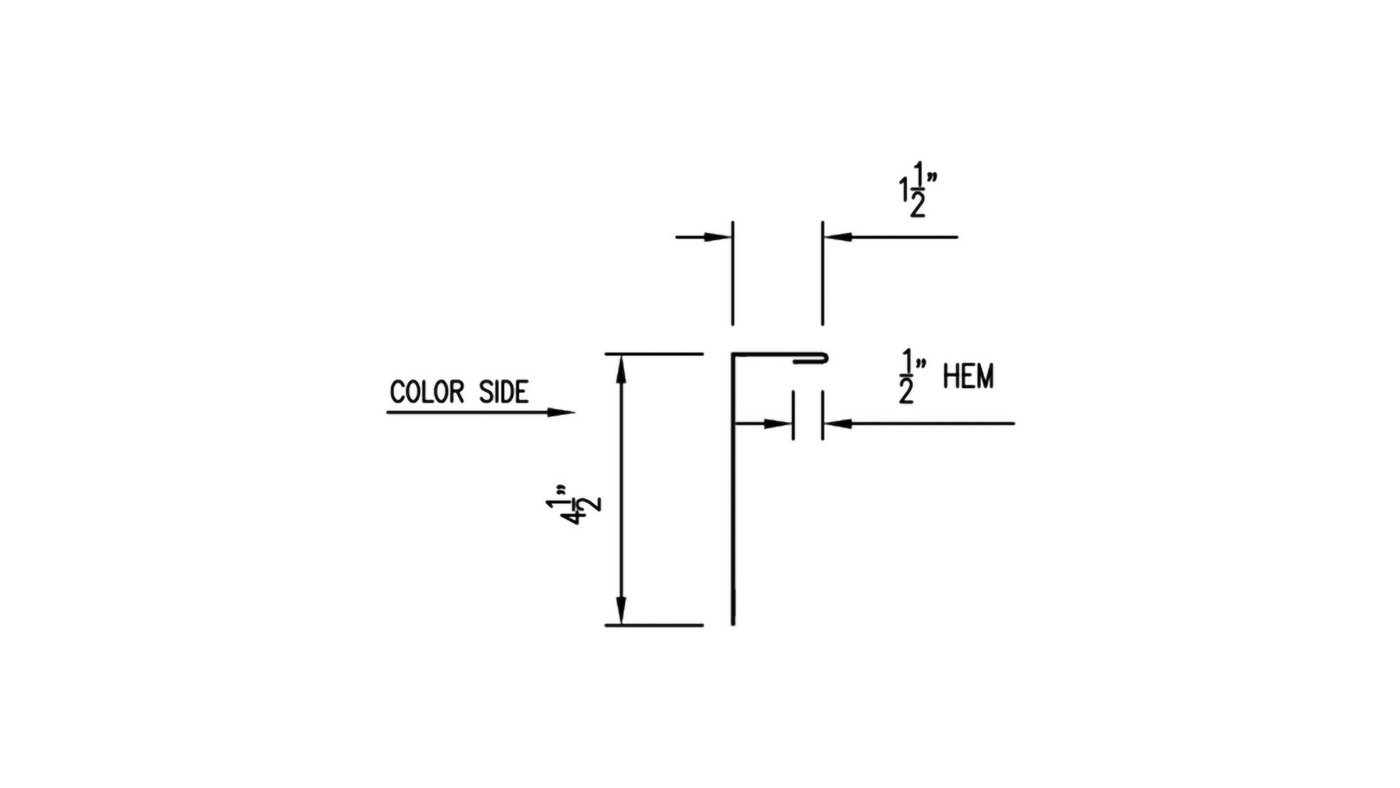

WS-610 Jamb Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-joggle-cleat-ws-615-western-wave-panel-trim-flashing-1.jpg

WS-615 Base Joggle Cleat Dimensions

WS-615 will be used for detail # WP-WSD-W12 Only

For every 10' of jamb trim, you will need 10' of base joggle cleat.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/z-metal-trim-ws-622-western-wave-panel-trim-flashing-vertical-1.jpg

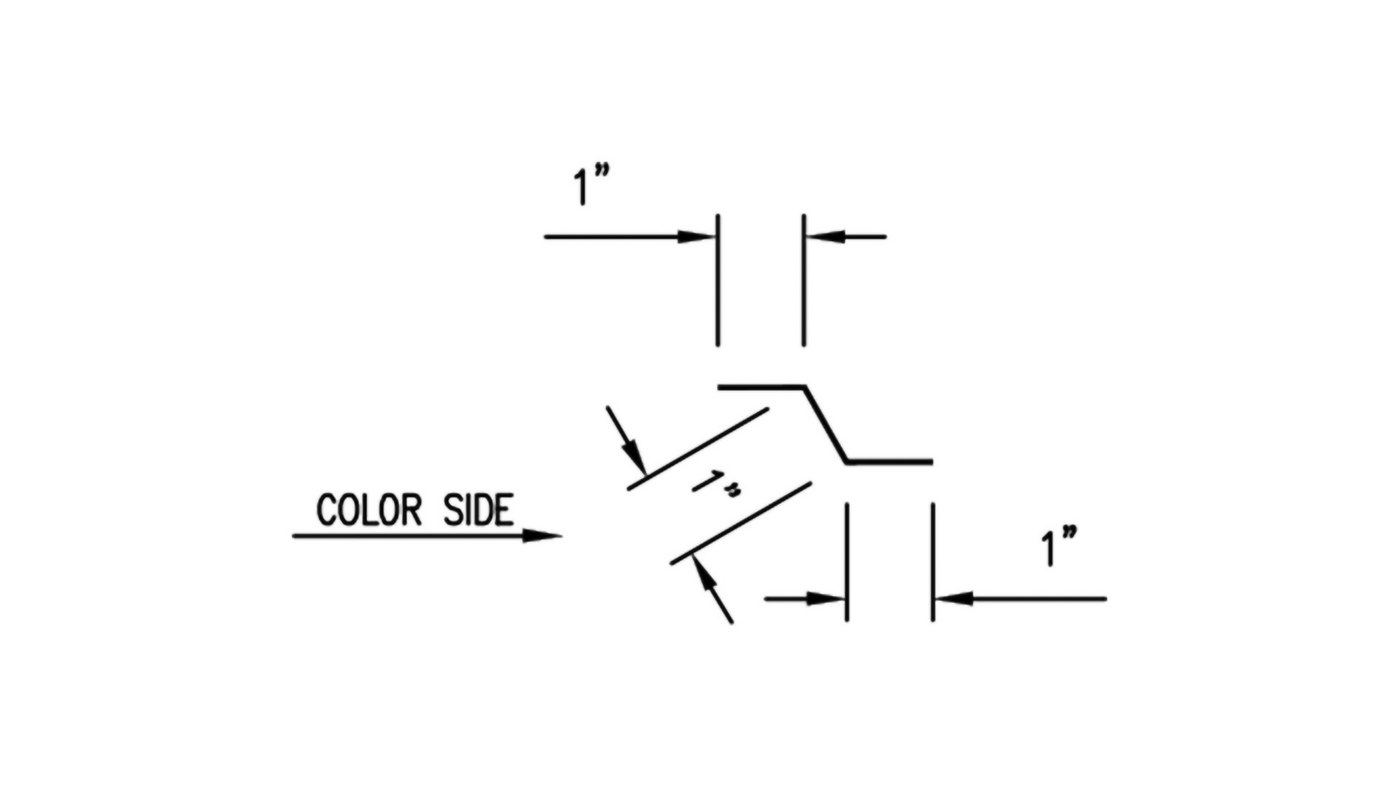

WS-622 Z-Metal Dimensions

WS-622 will be used for detail # WP-WSD-W22 Only

For every 10' of jamb trim, you will need 10' of z-metal.

Click To Enlarge

JAMB TRIM DETAIL - VERTICAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.
