Jamb Trim - # WS-610

Window/Door Jamb Trim - Horizontal Installation

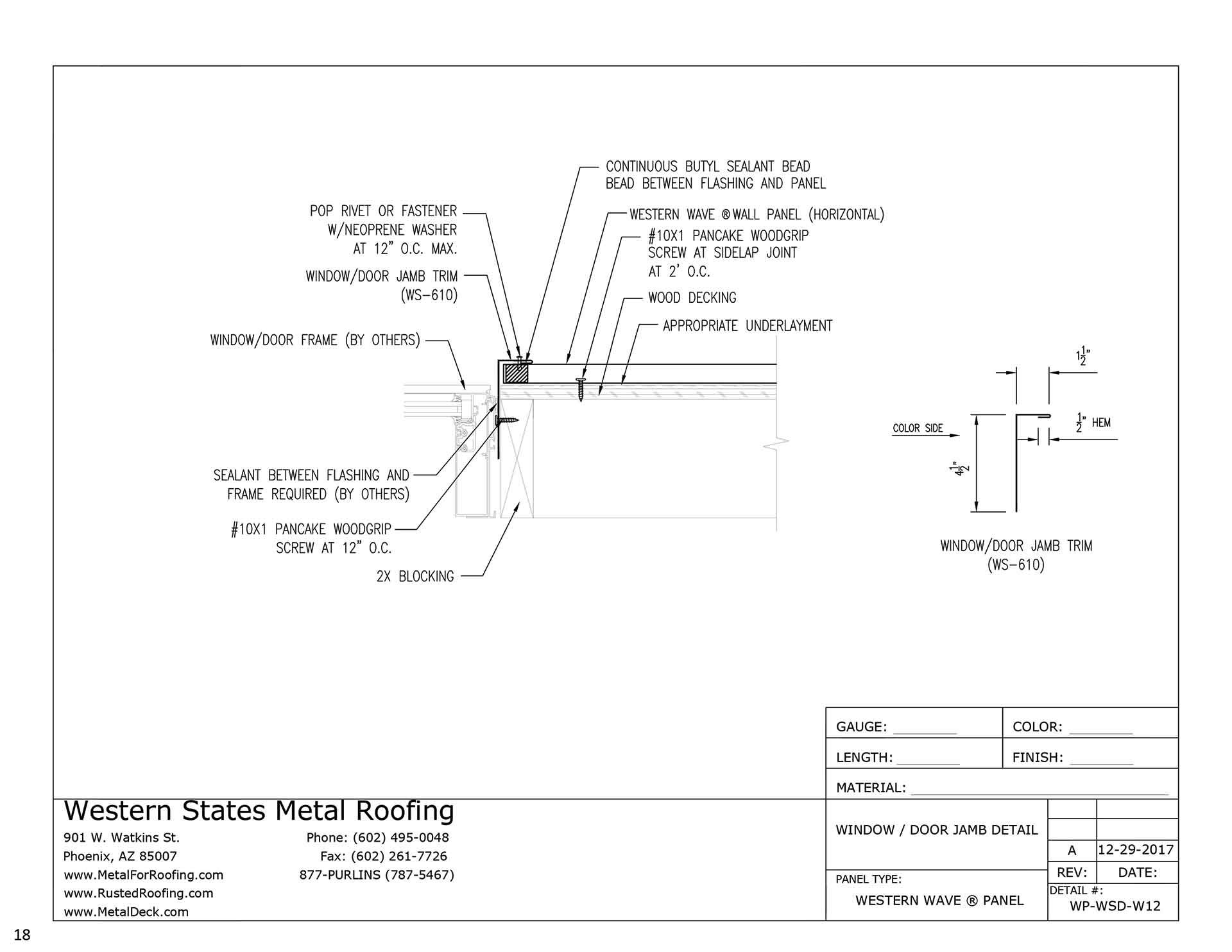

Detail #WP-WSD-W12

Jamb trim will be installed along both sides of a window or door opening. This installation detail is different when the panels are installed vertically versus horizontally. This installation detail is for a horizontal wall panel only.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-w12-window-door-jamb-detail.jpg

Window/Door Jamb Trim Detail - Horizontal Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/door-window-jamb-trim-ws-610-western-wave-panel-trim-flashing-1.jpg

WS-610 Jamb Trim Dimensions

CLICK TO ENLARGE

JAMB TRIM DETAIL - HORIZONTAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Jamb Trim - WS-610
  • 10 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Rivets
  • 4 Pieces Of Outside Foam Closures
  • 1 Tube Of Butyl Sealant

DOWNLOAD INSTALLATION GUIDE
