T-Groove®-3.0: Metal Wall Panels With A Three Inch Reveal

T-Groove®-3.0 is a metal wall panel that's also used for ceilings, fascia, and soffits. There is a 3" gap or reveal between the panel side laps. The reveal adds depth and texture to the panels.





Get A Quote Interactive Color Chart

T-Groove Pros & Cons
How To Install T-Groove® Metal Siding Panels

Find out what your product would look like.

View Product Visualizer

METAL WALL PANELS, CEILINGS, FASCIA, AND SOFFITS

T-Groove®-3.0 is a one inch deep metal wall panel that has concealed fasteners. The "3.0" stands for 3" reveal which means there's there's a 3" gap between the panel side laps. The reveal gives the panels depth and it looks similar to board and batten panels.

T-Groove® - 3.0

Dimensions

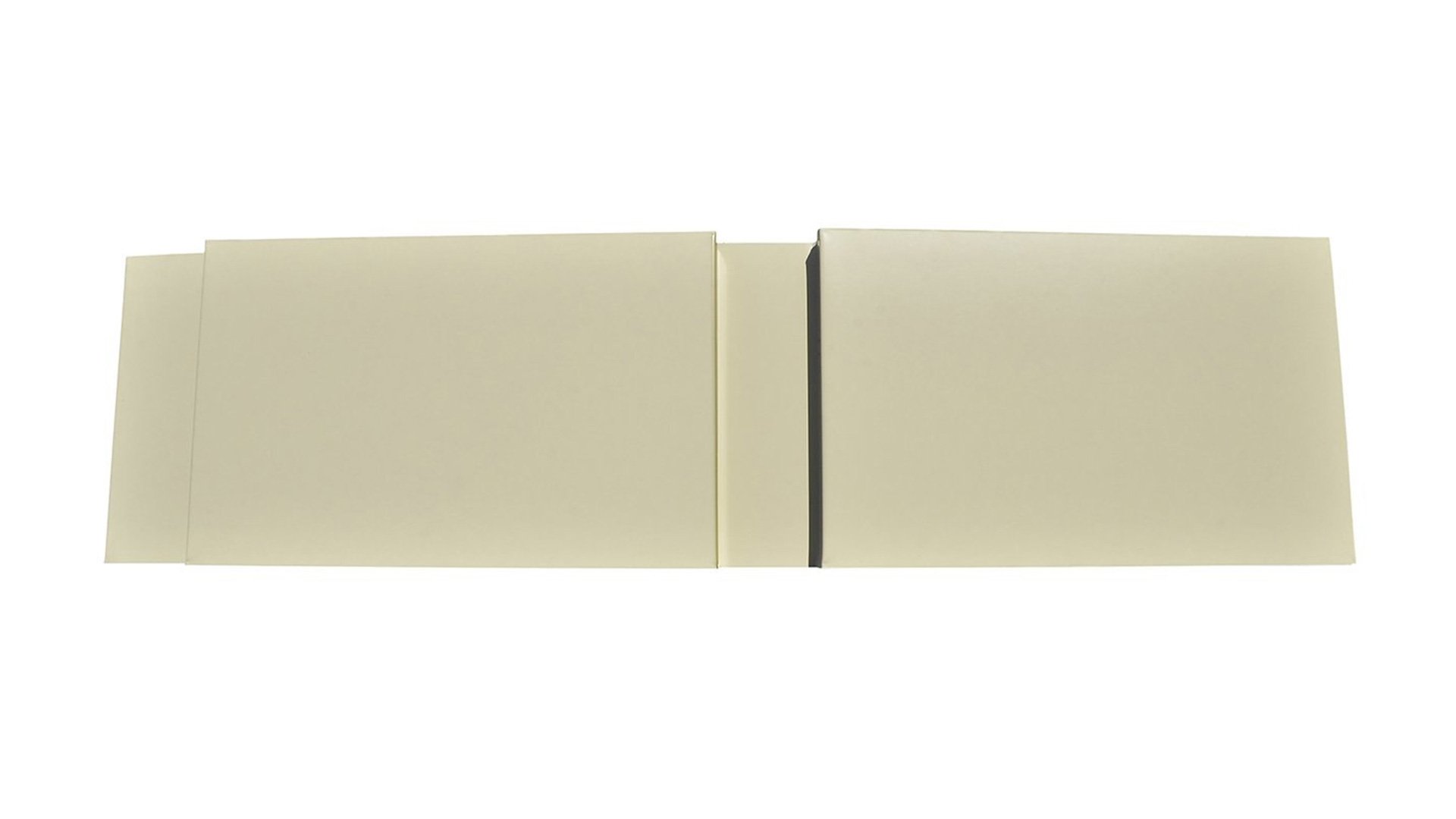

western-reveal-three-inch-metal-siding-panels Download Dimensions

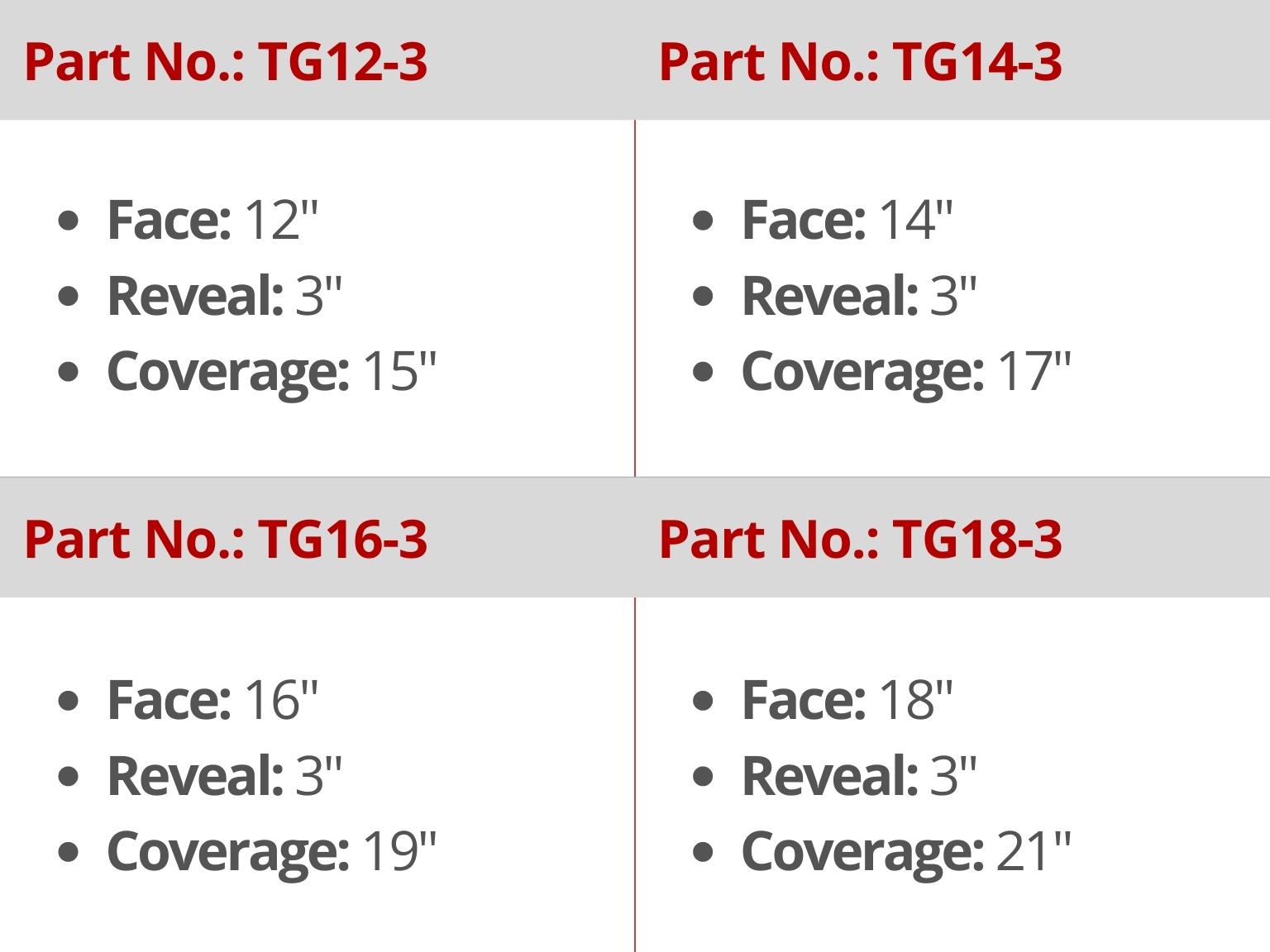

t-groove-part-numbers-3



Product Data

Material Type:
T-Groove® - 3.0
Metal Fascia, Soffit, And Wall Panel

Available Gauges: 22, 24

Fastening Type: Concealed

Overall Coverage: 12"-20”

Standard Face Sizes: 12", 14", 16", 18”, 20"

Custom Face Sizes: 13", 15", 17", 19”

Panel Length: 1' to 45' max

Reveal: 3"

Rib Height: 1"

Substrate: AZ50 Minimum (AKA Galvalume®/Zincalume®)

Stiffening Ribs or Pencil Ribs: Available Upon Request

Single or Double Vent Strips: Available Upon Request

Installation: Installation Over A Solid Substrate (Vertical or Horizontal)

Applications: Residential, Commercial, Agricultural, Interior

Product Documents

Trim And Flashings

Installation Guide

CAD Details

Panel Sizes/Line Drawings

Care & Maintenance

Field Cutting & Touch Up Paint

Paint Warranties

Product Data Sheets

Product Specifications

Solar Reflectivity Index

Stiffening Ribs & Vent Strips

More Than 100 colors to choose from

Metal Wall Panel Colors

Besides the typical solid colors found almost everywhere else, we are best known for our specialty paint prints. These are colors that have been painted repeatedly giving the finish depth, texture, and a one of a kind design. The drop down menu has grouped these metal roofing colors and styles into categories - making it easier for you to find.
