Alternate Rake/Sidewall With Zee Closures Detail - Part #WS-455

This detail is rarely used. We recommend our most popular sidewall/rake installation detail, Sidewall/Rake/D16

Sidewall flashing is installed on a vertical wall on the gable side of a metal roof. The purpose of sidewall trim is to keep the water from dripping down the wall and leaking into the roof.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d16b-2.jpg

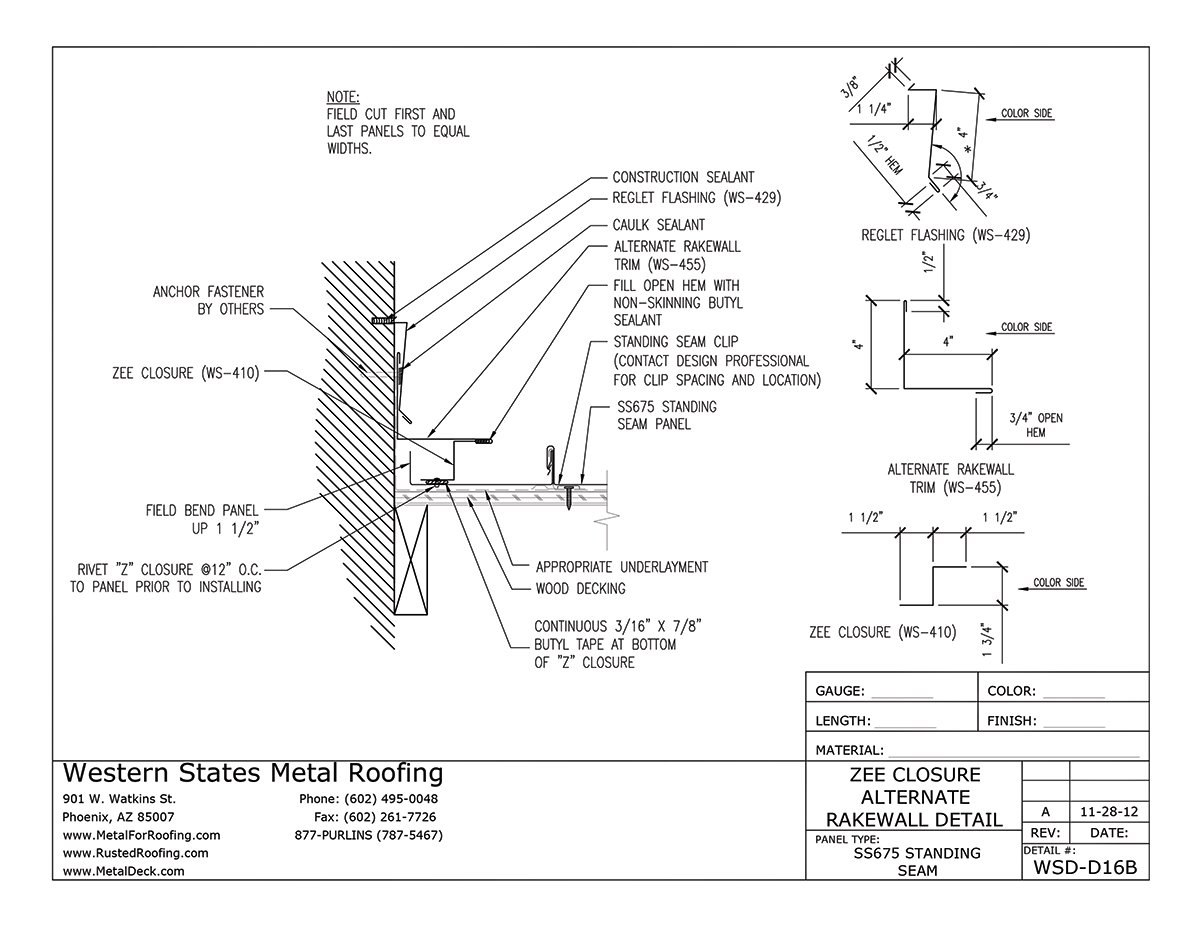

WS-455 - Alternate Rake/Sidewall Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-455-alternate-rakewall-trim-1.jpg

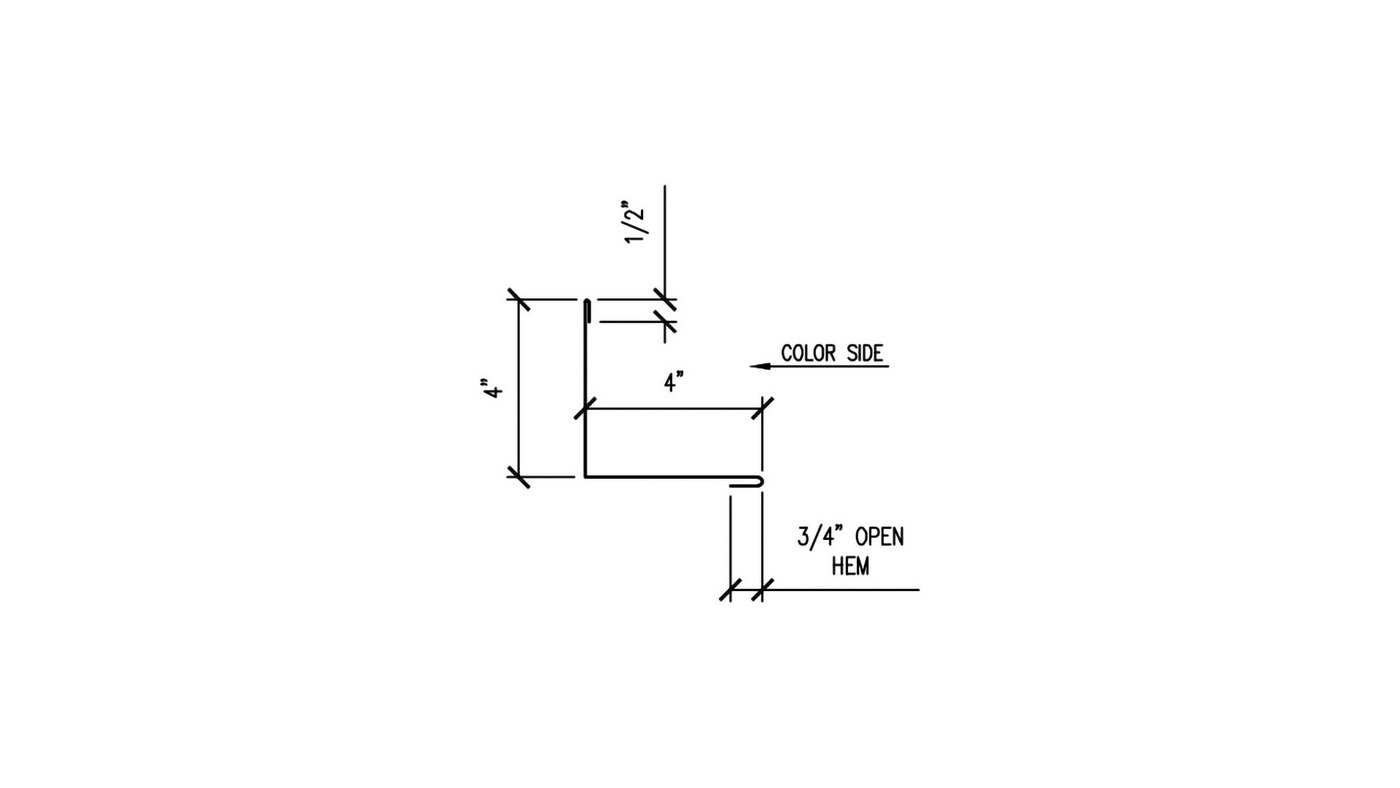

WS-455 Alternate Rake/Sidewall Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-429-reglet-flashing-1.jpg

WS-429 Reglet Trim Dimensions

For every 10' of rake/sidewall trim, you will need 10' of reglet trim.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-410-zee-closure-1.jpg

WS-410 Zee Closure Dimensions

For every 10' of rake/sidewall trim, you will need 10' of zee closure.

Click To Enlarge

WS-455 - ALTERNATE RAKE/SIDEWALL WITH ZEE CLOSURES DETAIL - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

1 Piece Sidewall/Rake Trim - WS-455
1 Piece Reglet Trim - WS-429
1 Piece Zee Closure - WS-410
20 Rivets
10 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
2 Tubes Butyl Sealant
1/4 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.
