Rake/Sidewall - Part #WS-432

This is our most popular sidewall/rake detail.

Sidewall flashing is installed on a vertical wall on the gable side of a metal roof. The purpose of sidewall trim is to keep the water from dripping down the wall and leaking into the roof.

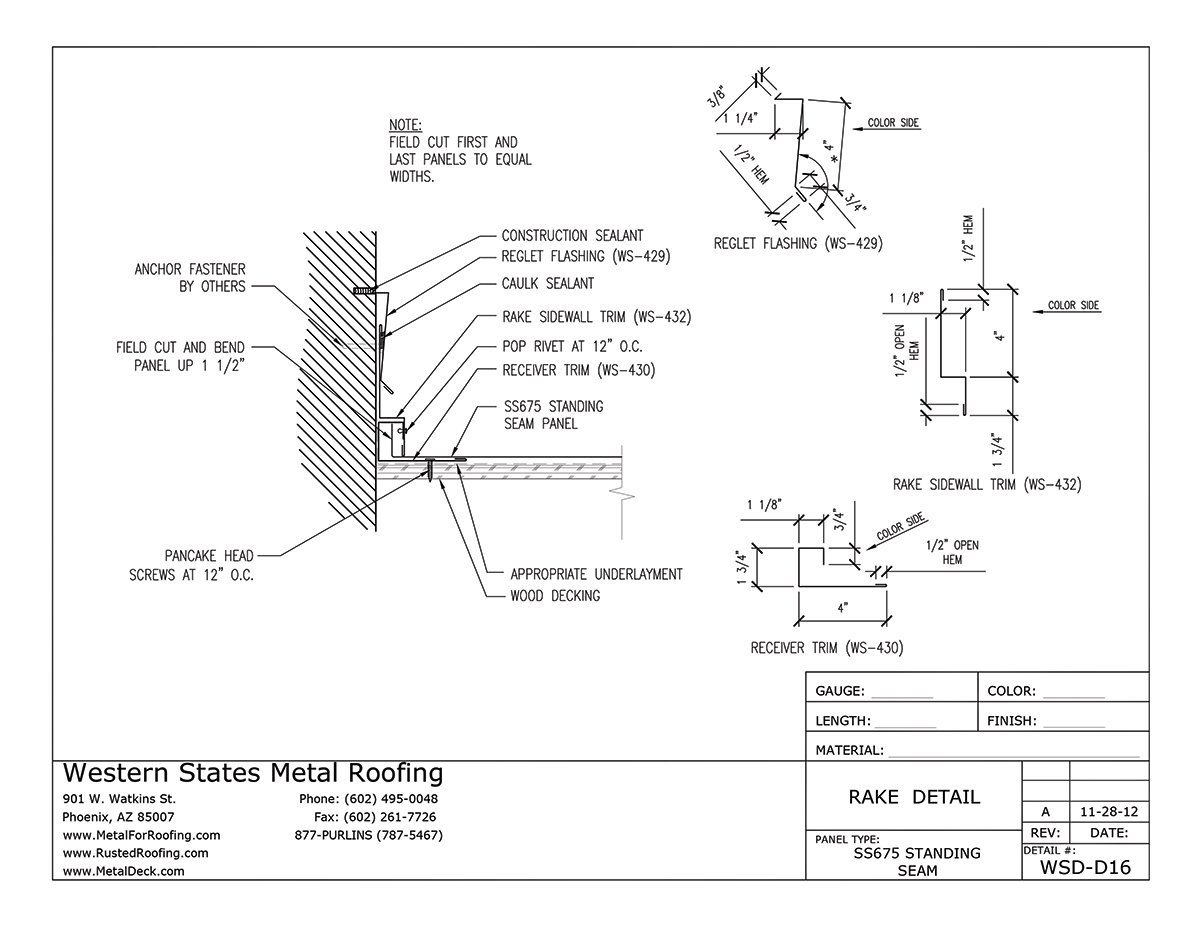

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d16.jpg

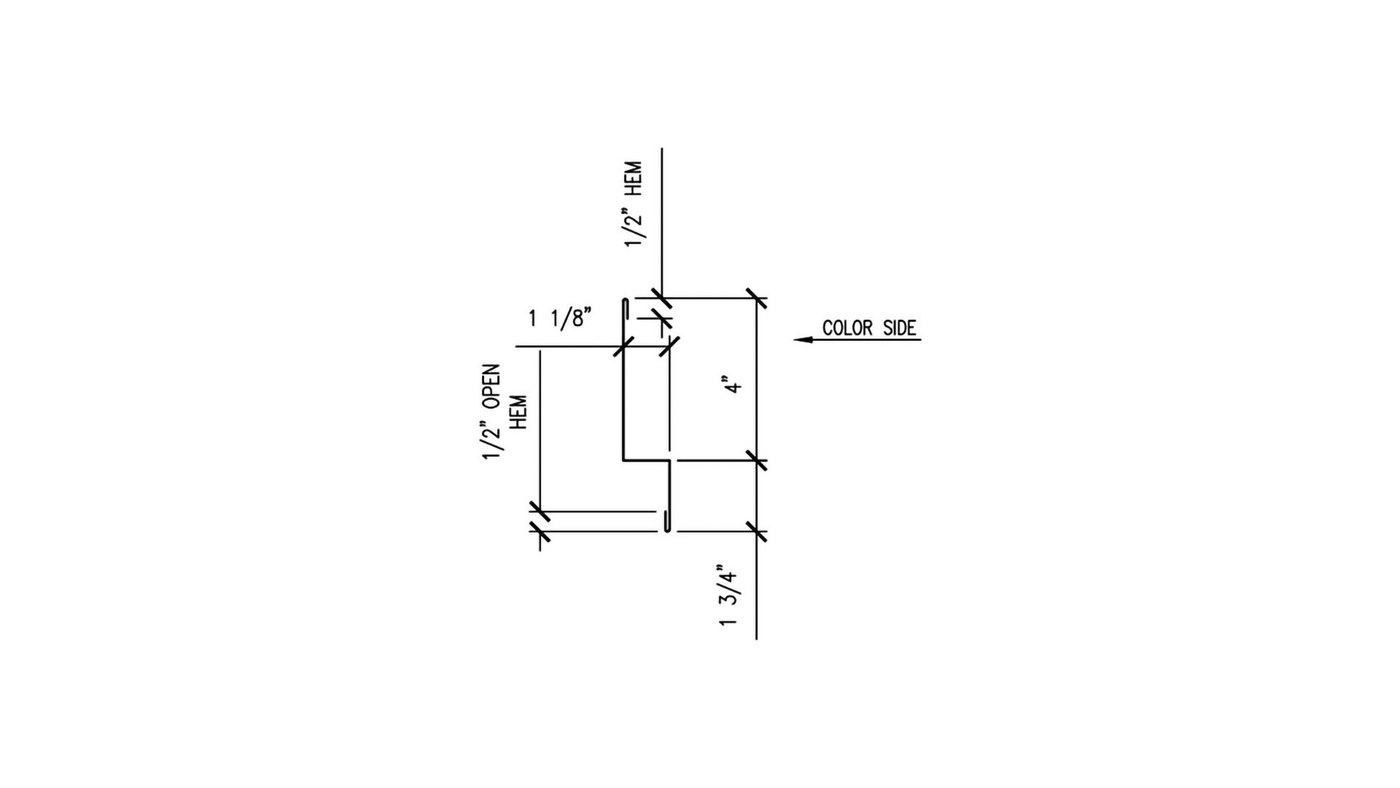

WS-432 Rake/Sidewall Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-430-receiver-trim-1.jpg

WS-430 Receiver Trim Dimensions

For every 10' of rake/sidewall trim, you will need 10' of receiver trim.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-429-reglet-flashing-1.jpg

WS-429 Reglet Trim Dimensions

For every 10' of rake/sidewall trim, you will need 10' of reglet trim.

Click To Enlarge

WS-432 - RAKE/SIDEWALL DETAIL - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

1 Piece Sidewall/Rake Trim - WS-432
1 Piece Reglet Trim - WS-429
1 Piece Receiver Trim - WS-430
10 Pancake Head Screws (#10X1") NO Washer
Verify Metal To Wood
10 Rivets
1 1/4 Tube Butyl Sealant
1/4 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.

We recommend:

DOWNLOAD INSTALLATION GUIDE

Side Wall Installation Video

Side Wall With Receiver Trim Installation

Step by step instructions to install a side wall trim for standing seam metal roofing panels.
