WESTERN LOCK® STANDING SEAM METAL ROOFING

Transition Flashing - High To Low - Detail - Part #WS-436

Transition flashing is used when you have a roof that has two different pitches. The transition trim is located where the two different pitches meet so the metal roof does not leak. Transition flashing is also referred to as pitch break trim and comes high to low or low to high.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d19.jpg

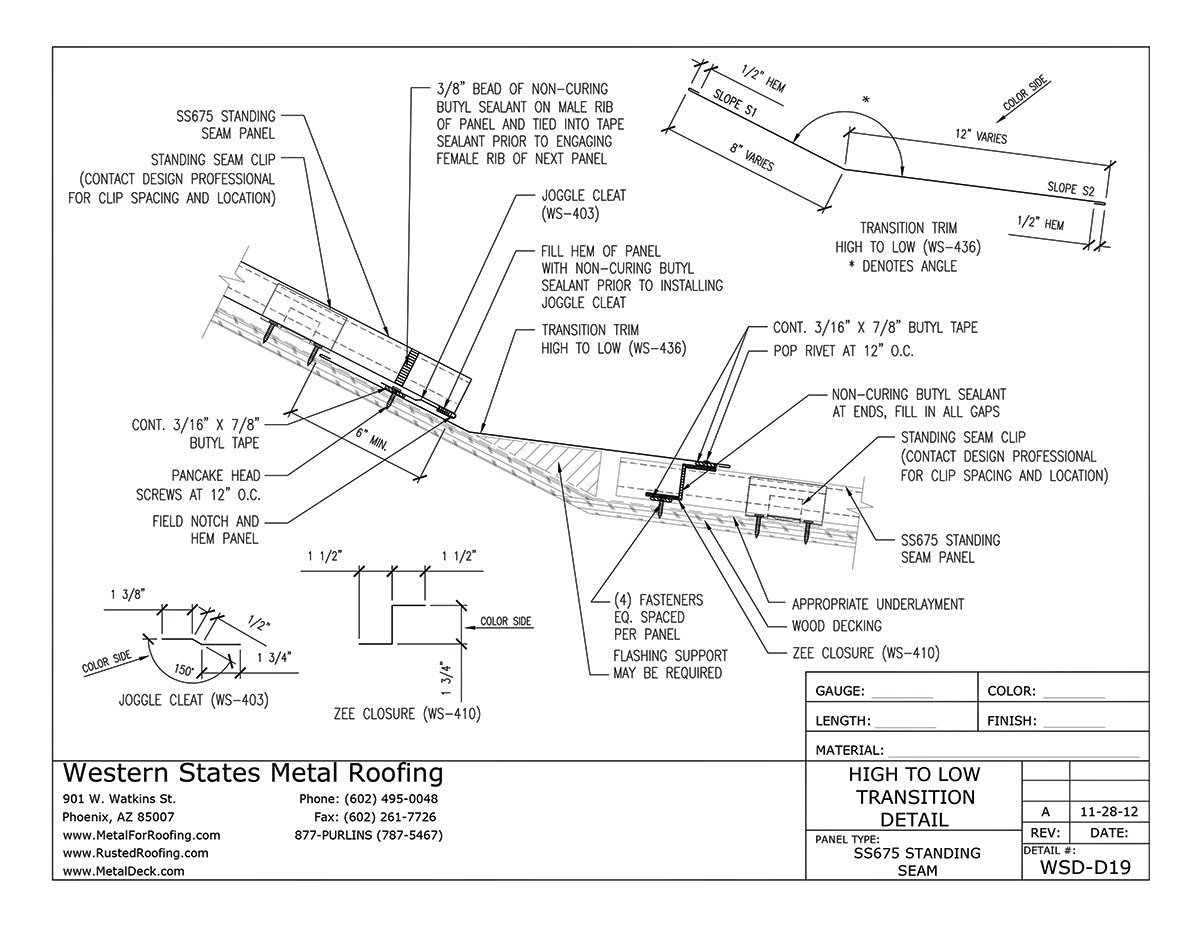

WS-436 - Transition Flashing Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-436-transition-trim-high-to-low-1.jpg

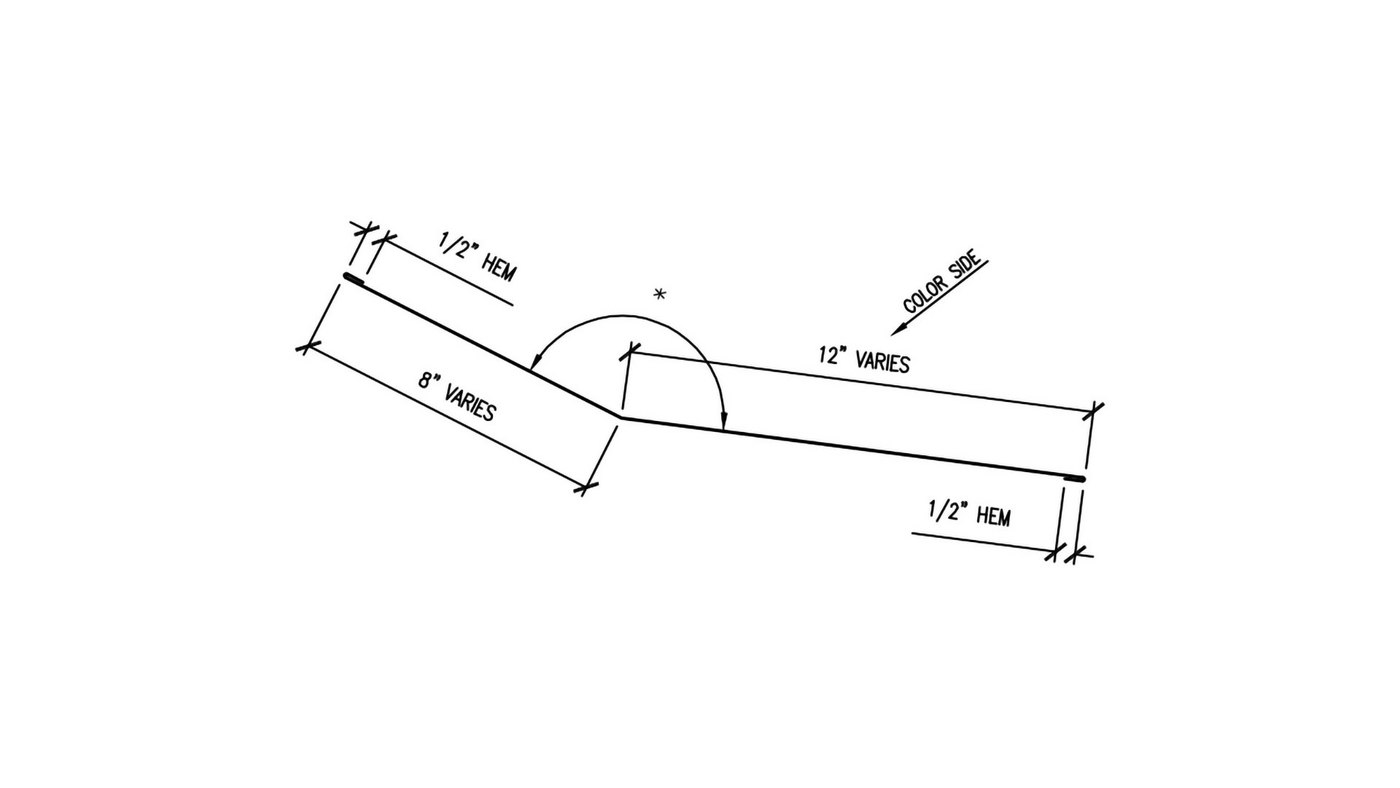

WS-436 Transition Flashing Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-410-zee-closure-1.jpg

WS-410 Zee Closure Dimensions

For every 10' of transition flashing, you will need 10' of zee closure.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-403-joggle-cleat-1.jpg

WS-403 Joggle Cleat Dimensions

For every 10' of transition flashing, you will need 10' of joggle cleat.

Click To Enlarge

WS-436 - TRANSITION FLASHING - HIGH TO LOW DETAIL - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List



Download Installation Guide Here

  • 1 Piece Transition Flashing - WS-436
    Roof Pitch Required (Both Sides)
  • 1 Piece Joggle Cleat - WS-403
  • 1 Piece Zee Closure - WS-410
  • 56 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Rivets
  • 30 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
  • 2 1/4 Tube Butyl Sealant
  • 1/4 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.

We recommend:



Download Installation Guide Here

Installation Videos For Standing Seam Trim

How To Install Transition Trim

Below are two videos to help you better understand the recommended installation process when installing transitions trim. For more video about installing trim and flashing for standing seam, please visit the Standing Seam Series Installation Video Page.


Standing Seam Metal Roofing: How To Install Transition Trim - High To Low

Discover how to install transition trim on a standing seam metal roof. Step by step standing seam metal roofing installation instructions that explain all of the steps. After you watch this video you will be able to install transition flashing like a pro.

Watch Now


How To Install Z Metal On A Standing Seam Metal Roof. Step By Step Zee Bar Installation Instructions

Z metal closure is used when metal trim needs to be attached to the top of a standing seam metal roofing panel. The zee bar provides the trim with something to attach to and creates a fixed point of contact. It's used most frequently at the ridge, peak, transition, and endwall.

Watch Now
