Fixed Peak Flashing/High Side Eave - Part #WS-419

Fixed peak trim means that the standing seam panels will be pinned in place at the peak/high eave. If you have a fixed point at the peak, you will need a floating connection at the other end of the standing seam panel. In most instances, this will mean using an eave with a bullnose drip edge or eave with a joggle cleat.

Peak flashing is a metal cap for a single slope roof condition that caps off the high end of the slope. Peak trim acts like a ridge cap to keep water, snow, and ice from getting under the roof. It’s also referred to as high side eave trim.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d13.jpg

WS-419 Fixed Peak Flashing Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-419-peak-high-eave-1.jpg

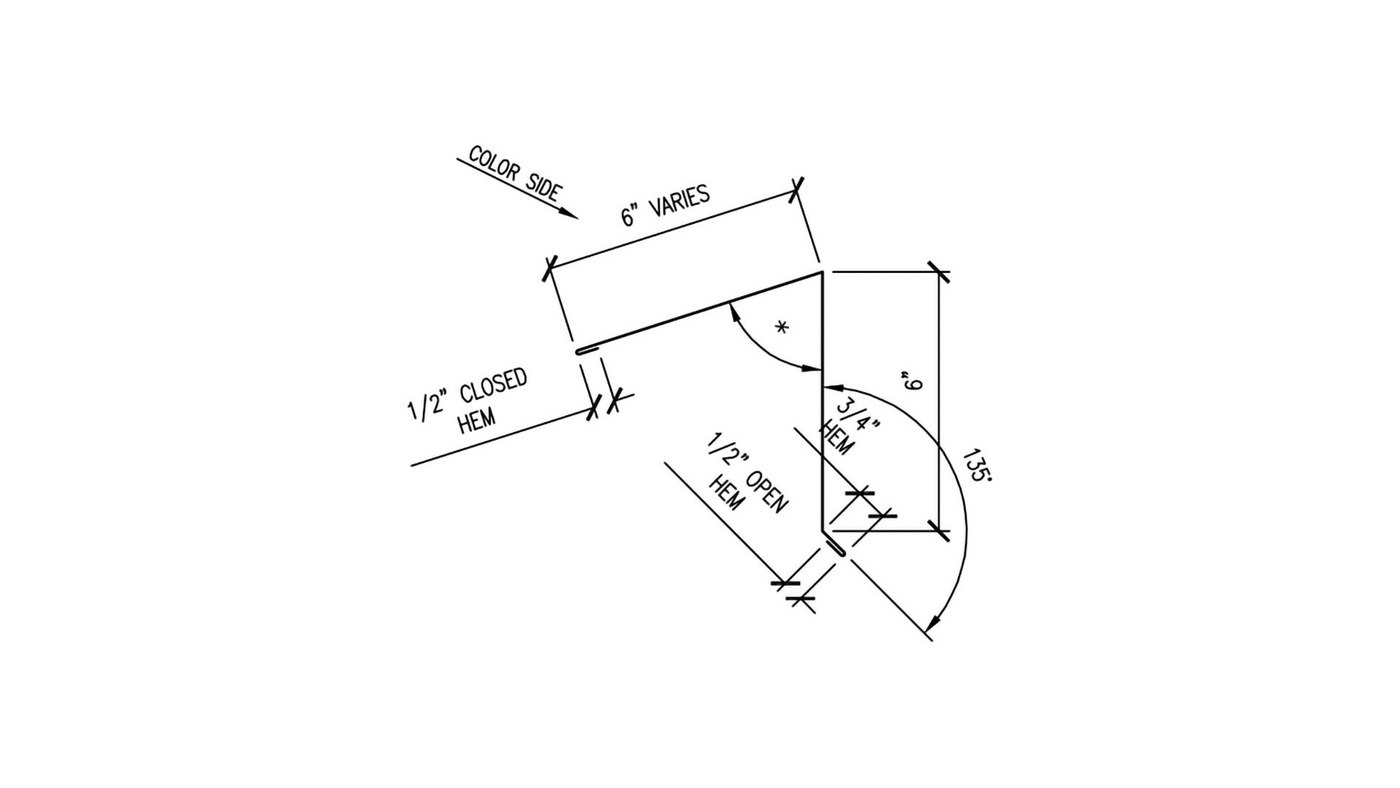

WS-419 Peak Flashing Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-410-zee-closure-1.jpg

WS-410 Zee Closure Dimensions

For every 10' of peak flashing, you will need 10' of zee closures.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-401-trim-cleat-1.jpg

WS-401 Trim Cleat Dimensions

For every 10' of peak flashing, you will need 10' of trim cleat.

Click To Enlarge

WS-419- FIXED PEAK FLASHING - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

1 Piece Peak Trim - WS-419
Roof Pitch Required
1 Piece Trim Cleat - WS-401
1 Piece Zee Closure - WS-410
38 Pancake Head Screws (#10X1") NO Washer
Verify Metal To Wood
10 Rivets
20 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
1 1/4 Tube Butyl Sealant
1/4 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.

We recommend:

DOWNLOAD INSTALLATION GUIDE

Standing Seam

Installation Videos

How To Install High Side Peak Trim - Standing Seam Metal Roofing Installation

Step by step standing seam metal roofing installation instructions for a high side peak trim. In this video we will explain all the finer points of peak flashing. By the time that you're done watching, you will see how the pros install peak trim.

Watch Now

How To Install Z Metal On A Standing Seam Metal Roof. Step By Step Zee Bar Installation Instructions

Z metal closure is used when metal trim needs to be attached to the top of a standing seam metal roofing panel. The zee bar provides the trim with something to attach to and creates a fixed point of contact. It's used most frequently at the ridge, peak, transition, and endwall.

Watch Now
