LOOKING FOR STANDING SEAM METAL ROOFING INSTALLATION VIDEOS?

INSTALL LIKE A PRO

WESTERN LOCK® STANDING SEAM METAL ROOFING

Eave Trim With Joggle Cleat - Part #WS-404

The standing seam panels with bend over and hook into the joggle cleat. This detail requires more parts than a bullnose drip edge. Unlike a bullnose drip edge it can be used on a roof that has a pitch that's greater than 6" in 12"

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d3-1.jpg

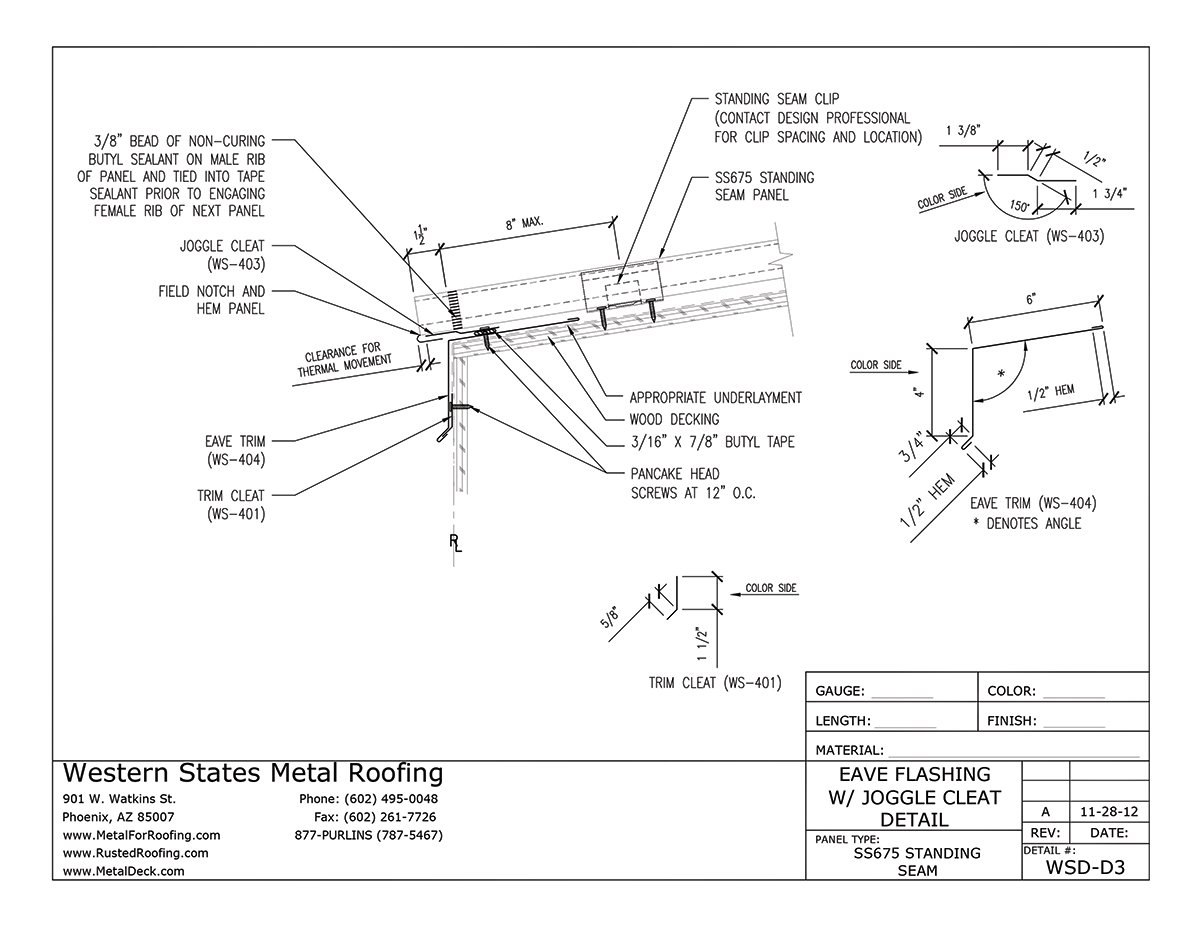

WS-404 Eave Trim With Joggle Cleat Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-404-standard-eave-trim-1.jpg

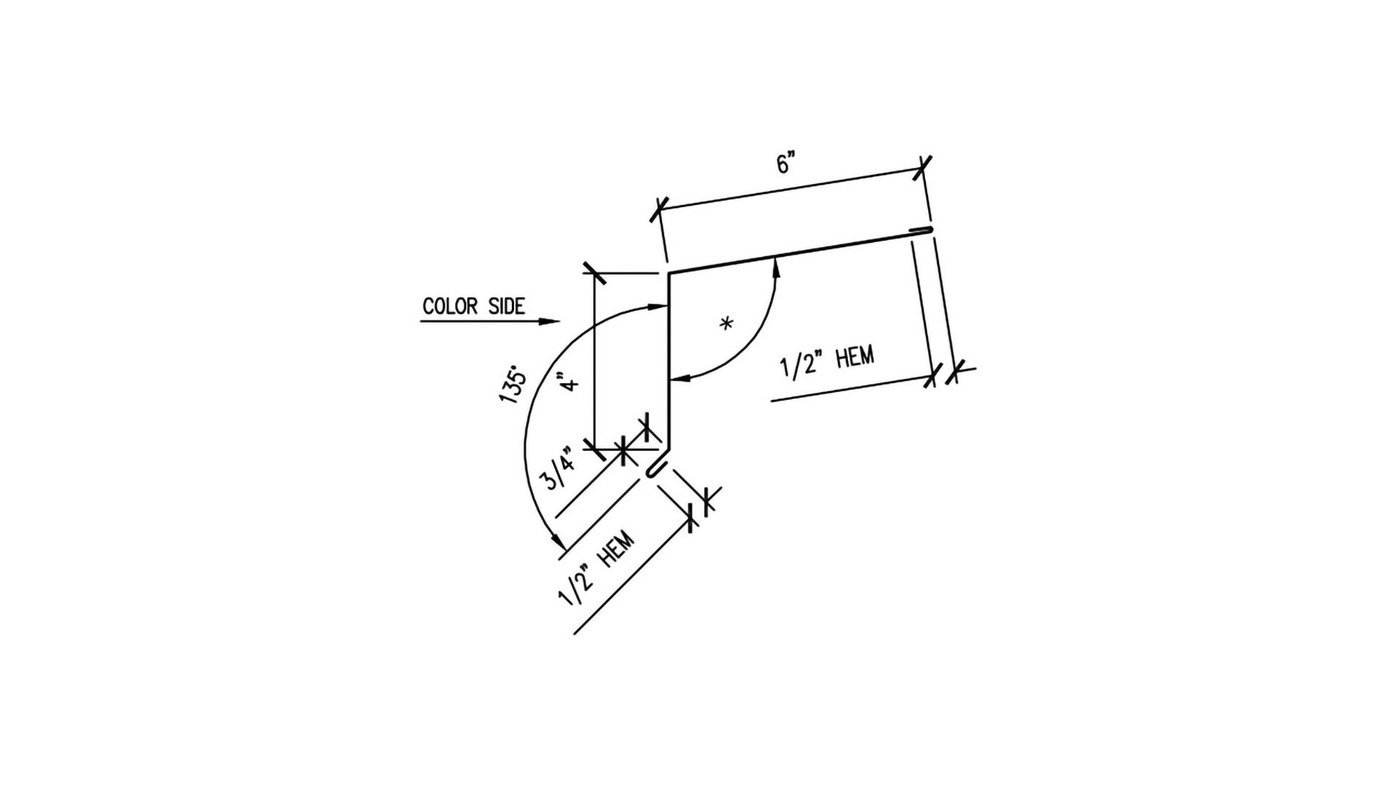

WS-404 Eave Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-403-joggle-cleat-1.jpg

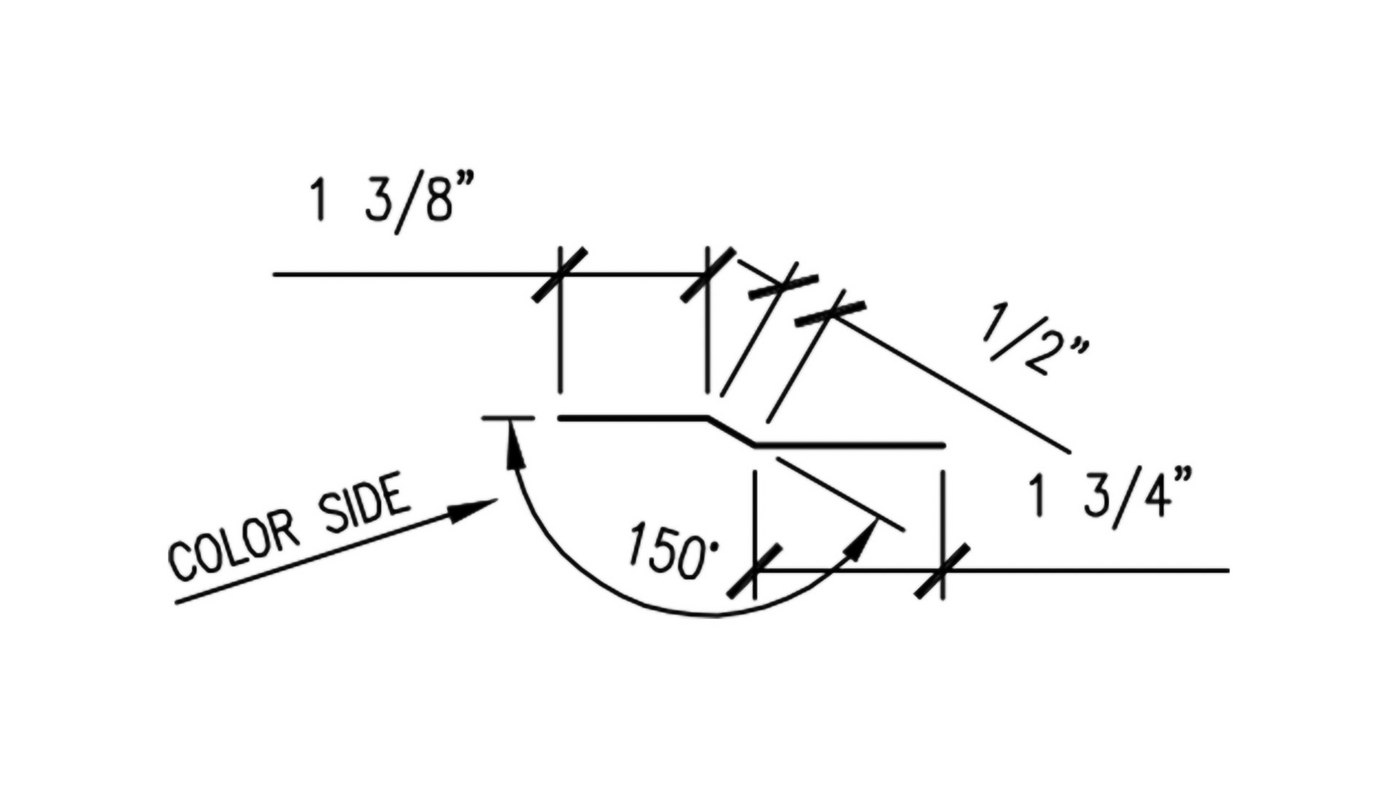

WS-403 Joggle Cleat Dimensions

For every 10' of eave trim, you will need 10' of joggle cleat.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-401-trim-cleat-1.jpg

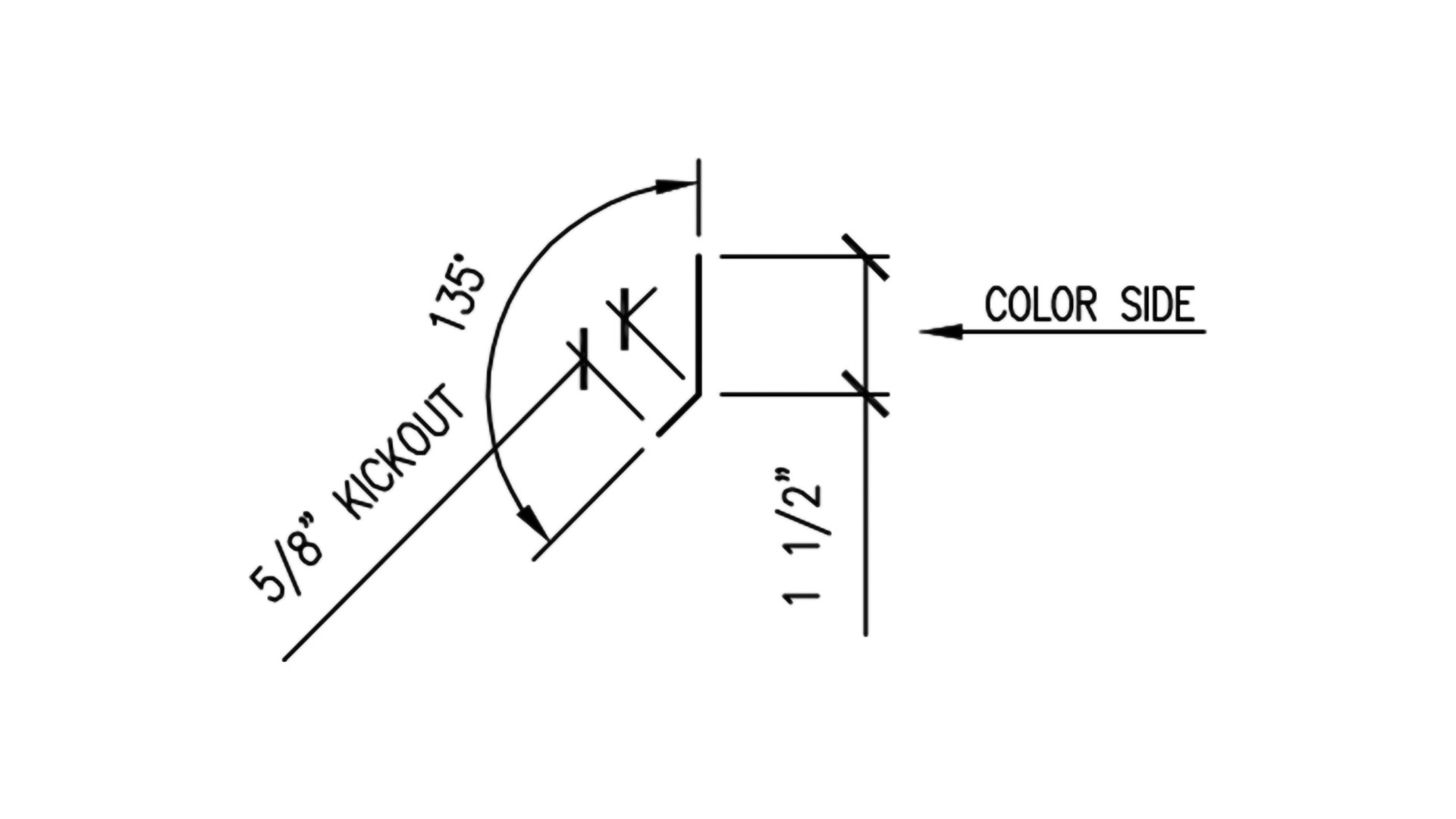

WS-401 Trim Cleat Dimensions

For every 10' of eave trim, you will need 10' of trim cleat.

Click To Enlarge

WS-404 - EAVE TRIM WITH JOGGLE CLEAT - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List



  • 1 Piece Bullnose Eave Trim - WS-404
    Roof Pitch Required
  • 1 Piece Trim Cleat - WS-401
  • 1 Piece Joggle Cleat - WS-403
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
  • 1/4 Tube Of Butyl Sealant
  • 1/4 Tube Silicone Sealant
  • 10 Linear Feet Of 8" Wide Sharkskin Ultra SA - Self Adhesive Roofing Underlayment

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.

We recommend:



DOWNLOAD INSTALLATION GUIDE

STANDING SEAM METAL ROOFING INSTALLATION VIDEOS

EAVE TRIM INSTALLATION VIDEOS


How To Install A Bullnose Eave Trim

Step by step video with installation instructions that includes: cutting and finishing the eave trim at the gable ends ends, trim cleat installation, overlaps, and fastening.

This video specifically covers bullnose eave trim installation for snap lock and clip fastened standing seam metal roofing panel.

Watch Now


How To Install Eave Trim With Joggle Cleat

Step by step video with installation instructions that includes: cutting and finishing the eave trim at the gable ends ends, joggle cleat and trim cleat installation, overlaps, and fastening.

This video specifically covers eave trim with joggle cleat installation for snap lock and clip fastened standing seam metal roofing panel.

Watch Now
