LOOKING FOR STANDING SEAM METAL ROOFING INSTALLATION VIDEOS?

INSTALL LIKE A PRO

WESTERN LOCK® STANDING SEAM METAL ROOFING

Gutter Splice - Part #WS-413

A gutter splice is used when you have to connect two pieces of gutter together. It's a small twelve inch section of gutter that's slightly wider than the actual gutter pieces. Both ends of the gutter will meet in the middle and lap into the gutter splice by six inches.

View the gutter with eave detail.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d5.jpg

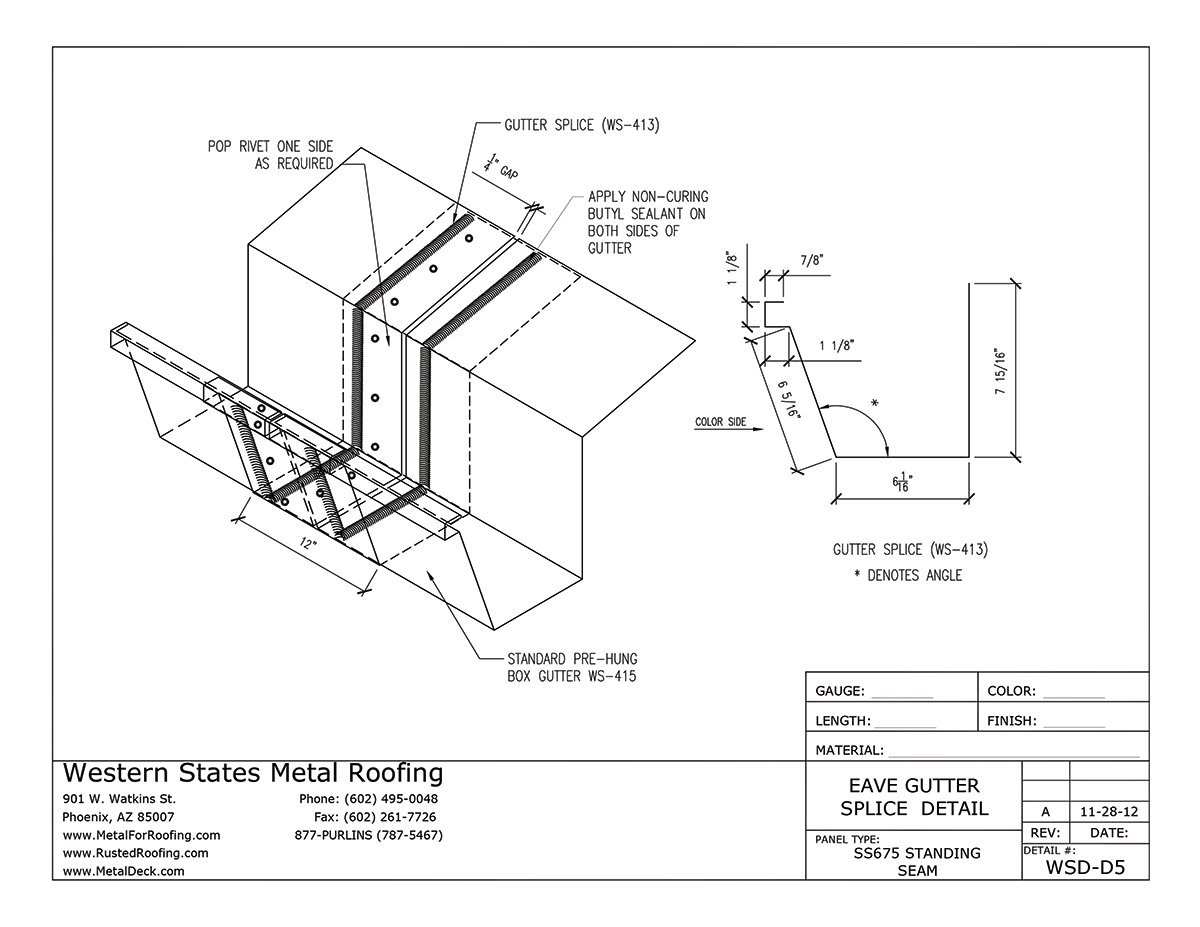

WS-413 Gutter Splice Detail

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-413-gutter-splice-1.jpg

WS-413 Gutter Splice Dimensions

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d3-1.jpg

Gutter With Eave Trim Detail

Click To Enlarge

STANDING SEAM METAL ROOFING INSTALLATION VIDEOS

GUTTER SPLICE INSTALLATION VIDEOS


How To Install Gutter Splice

If you have a gutter that is longer about twenty feet then you will have to overlap the gutter with a gutter splice. It's a simple installation that requires a small piece of gutter splice to be installed where the two pieces of gutter meet.

Watch Now
