Gutter With Eave Trim - Part #WS-415

A pre-hung gutter is a gutter that’s installed before the installation of the metal panels. Its purpose is to divert water off the roof and away from the walls and foundation of a building.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d4.jpg

WS-415 Gutter With Eave Trim Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-415-standard-pre-hung-box-gutter-1.jpg

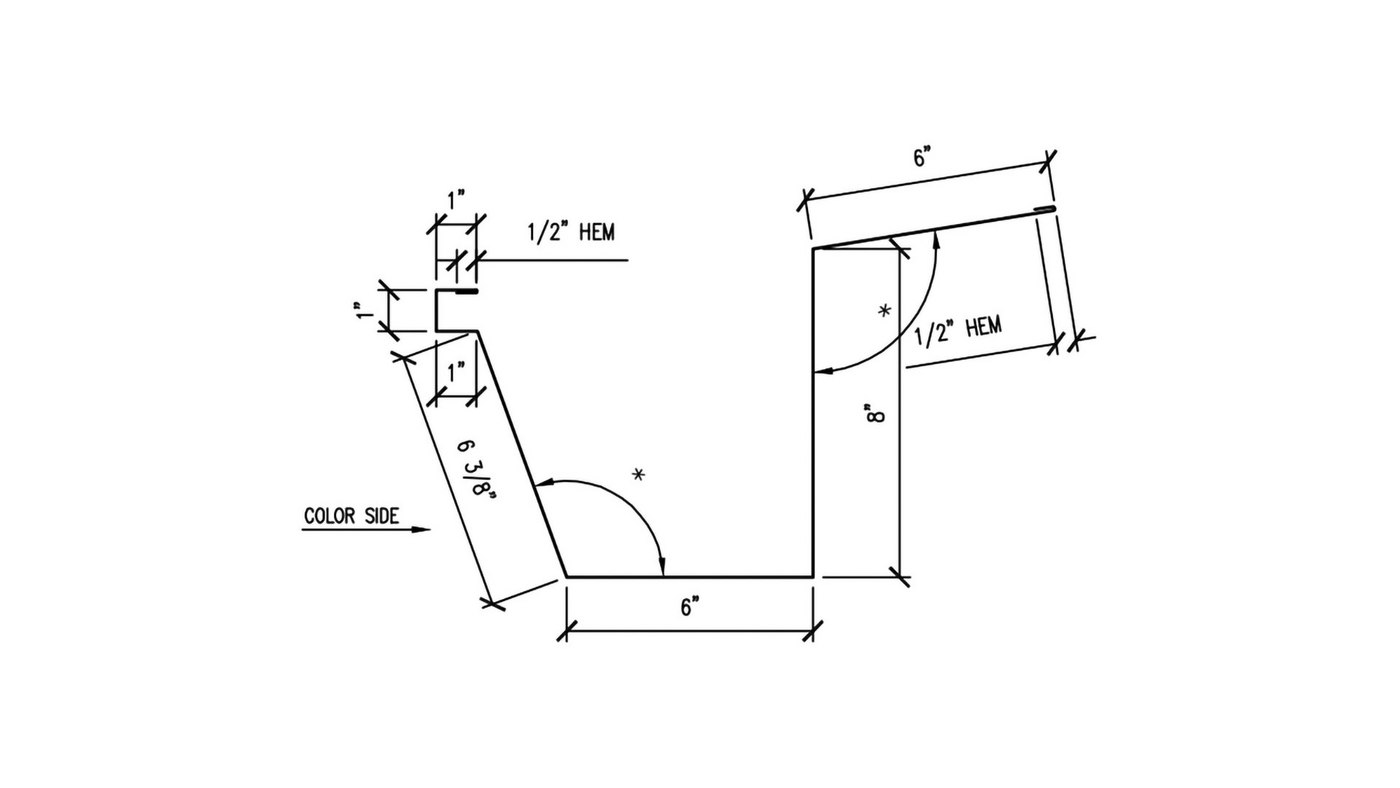

WS-415 Gutter Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-408-gutter-eave-trim-1.jpg

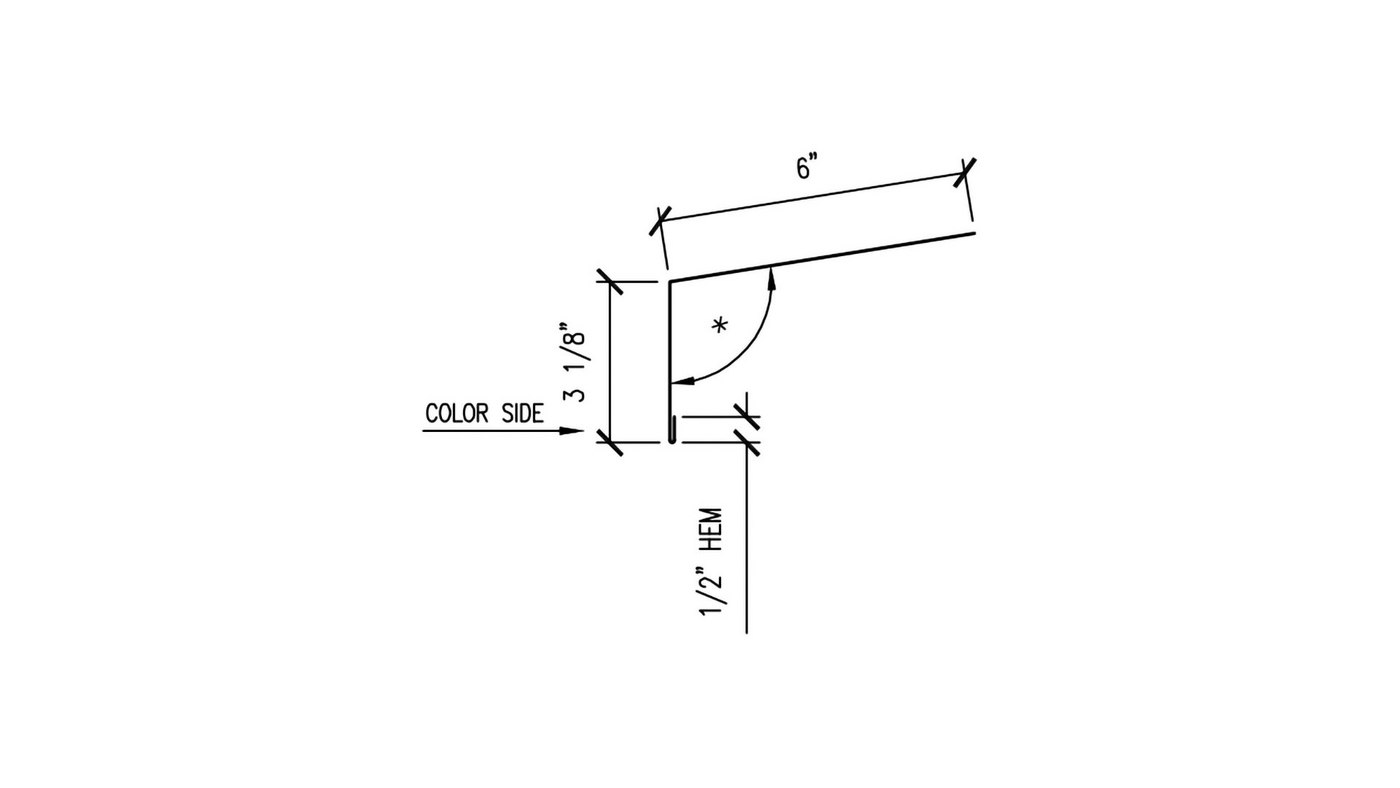

WS-408 Eave Trim (Optional) - Dimensions

This is an optional piece of trim. It's only needed if the inside of the gutter is visible.

If you have a painted gutter the inside color of the gutter will not match the color of the metal roof. The only purpose of this eave trim is to match the colors.

For every 10' of gutter you will need 10' of eave trim.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-403-joggle-cleat-1.jpg

WS-403 Joggle Cleat Dimensions

For every 10' of gutter, you will need 10' of joggle cleat.

Click To Enlarge

Gutter Accessories

WS-412 Gutter Strap Dimensions

You will need gutter strap to connect the gutters. Most jobs require gutter strap at 24"-36" O.C. Every job is different so we recommend consulting an engineer for local building codes and rain water loads.

Click To Enlarge

WS-413 Gutter Splice Dimensions

You will need a gutter splice to connect the gutter together when your gutter run is longer then one piece of gutter.

Click To Enlarge

WS-414 Gutter End Cap Dimensions

You will need 2 gutter end caps at the ends of each gutter run. It will require a left and a right gutter end cap.

Click To Enlarge

WS-415 - GUTTER WITH EAVE TRIM - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

1 Piece Pre-Hung Box Gutter - WS-415
Roof Pitch Required
1 Piece Joggle Cleat - WS-403
1 Piece Gutter Eave Trim - WS-408
5 Pieces Gutter Strap- WS-412
2 Pieces Gutter End Caps - WS-414
You Will Need 1 Left & 1 Right At Gutter Ends
10 Pancake Head Screws (#10X1") NO Washer
Verify Metal To Wood
16 Rivets
20 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
1/4 Tube Of Butyl Sealant
1/4 Tube Silicone Sealant
10 Linear Feet Of 8" Wide Sharkskin Ultra SA - Self Adhesive Roofing Underlayment

If you have more than one piece of gutter for each gutter run then it will require the following additional pieces:

Gutter Splice - WS-413
12 Rivets
1/4 Tube Of Butyl Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.

We recommend:

DOWNLOAD INSTALLATION GUIDE

Pre-Hung Box Gutter

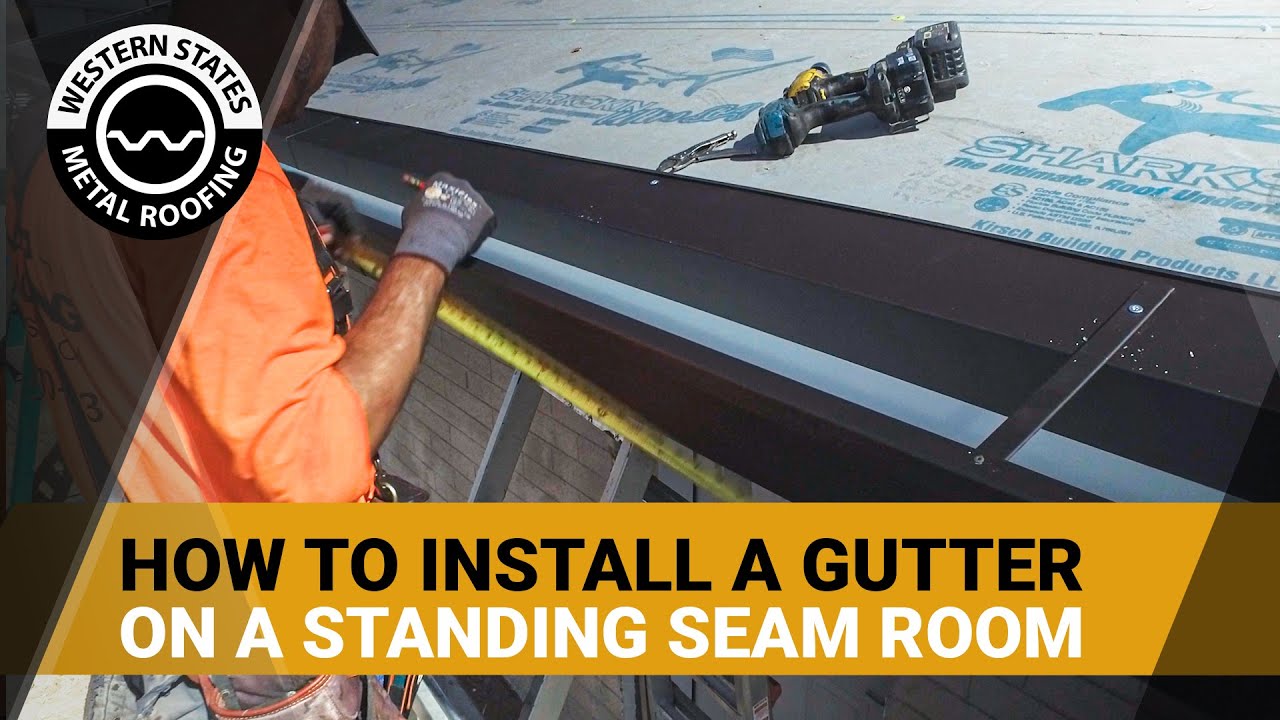

Gutter Installation For Standing Seam

Step by step pre-hung box gutter installation instructions for standing seam metal roofing.

End Caps
Gutter Splice
Optional Gutter Eave Trim
Gutter Straps

Learn More

how-to-install-a-gutter-on-a-standing-seam-roof
