WESTERN LOCK® STANDING SEAM METAL ROOFING

Gutter Eave Trim - Part #WS-408

The eave trim that sits inside the gutter is only needed if the inside of the gutter will be visible. If you don't install the eave on the inside of the gutter, then the inside color of the gutter will be different from the outside color of the gutter.

Pre-hung box gutter detail

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d4.jpg

WS-415 Gutter With Eave Trim Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-408-gutter-eave-trim-1.jpg

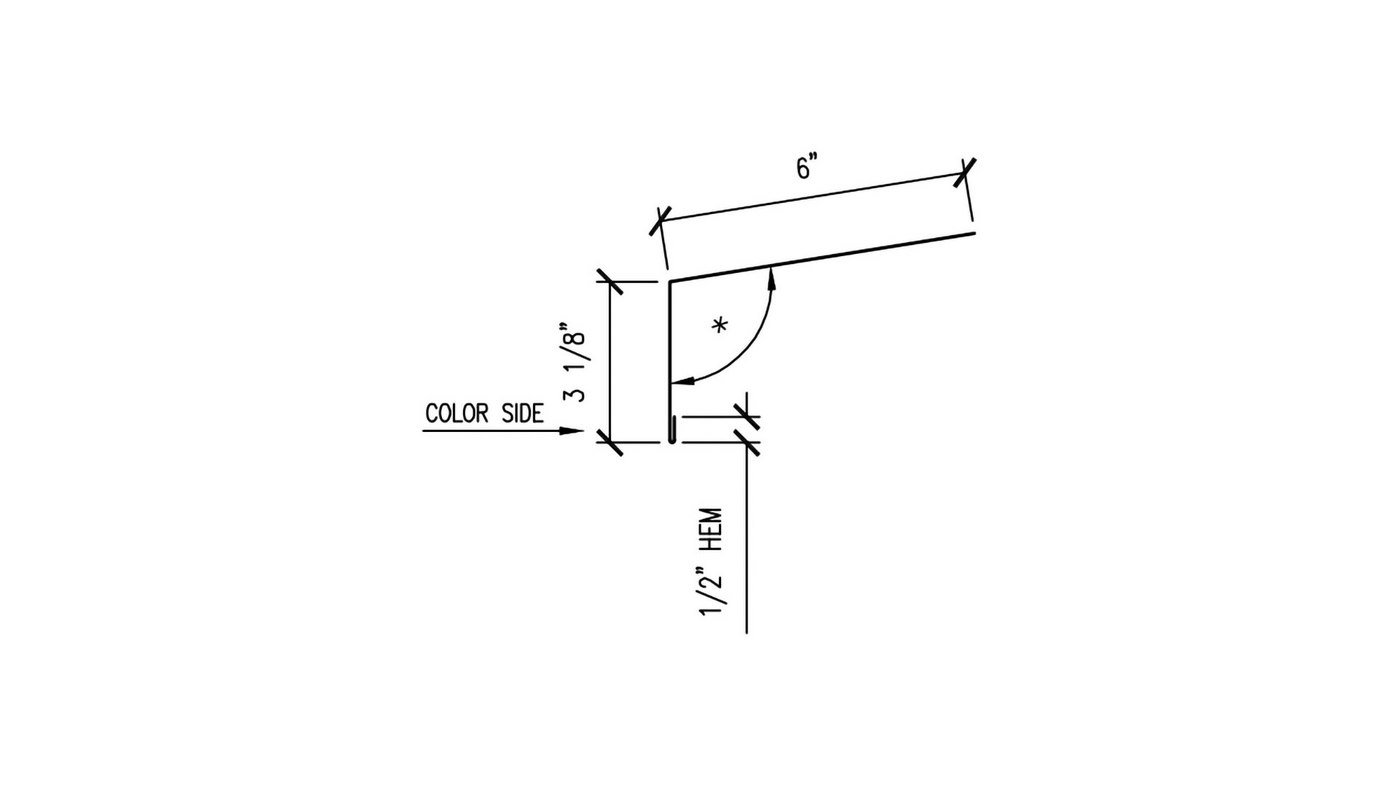

WS-408 Eave Trim Dimensions

For every 10' of gutter you will need 10' of eave trim.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-415-standard-pre-hung-box-gutter-1.jpg

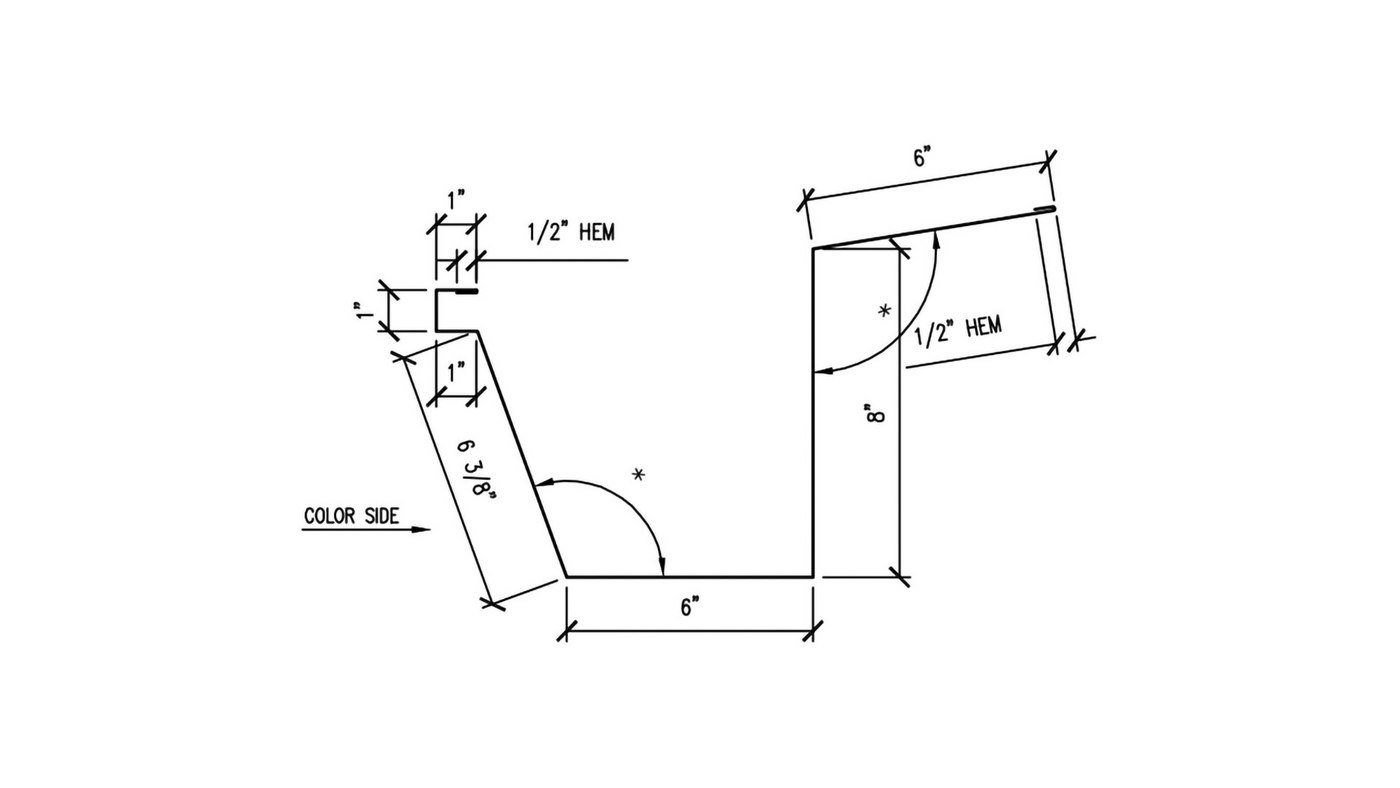

WS-415 Gutter Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-403-joggle-cleat-1.jpg

WS-403 Joggle Cleat Dimensions

For every 10' of gutter, you will need 10' of joggle cleat.

Click To Enlarge

Gutter Accessories

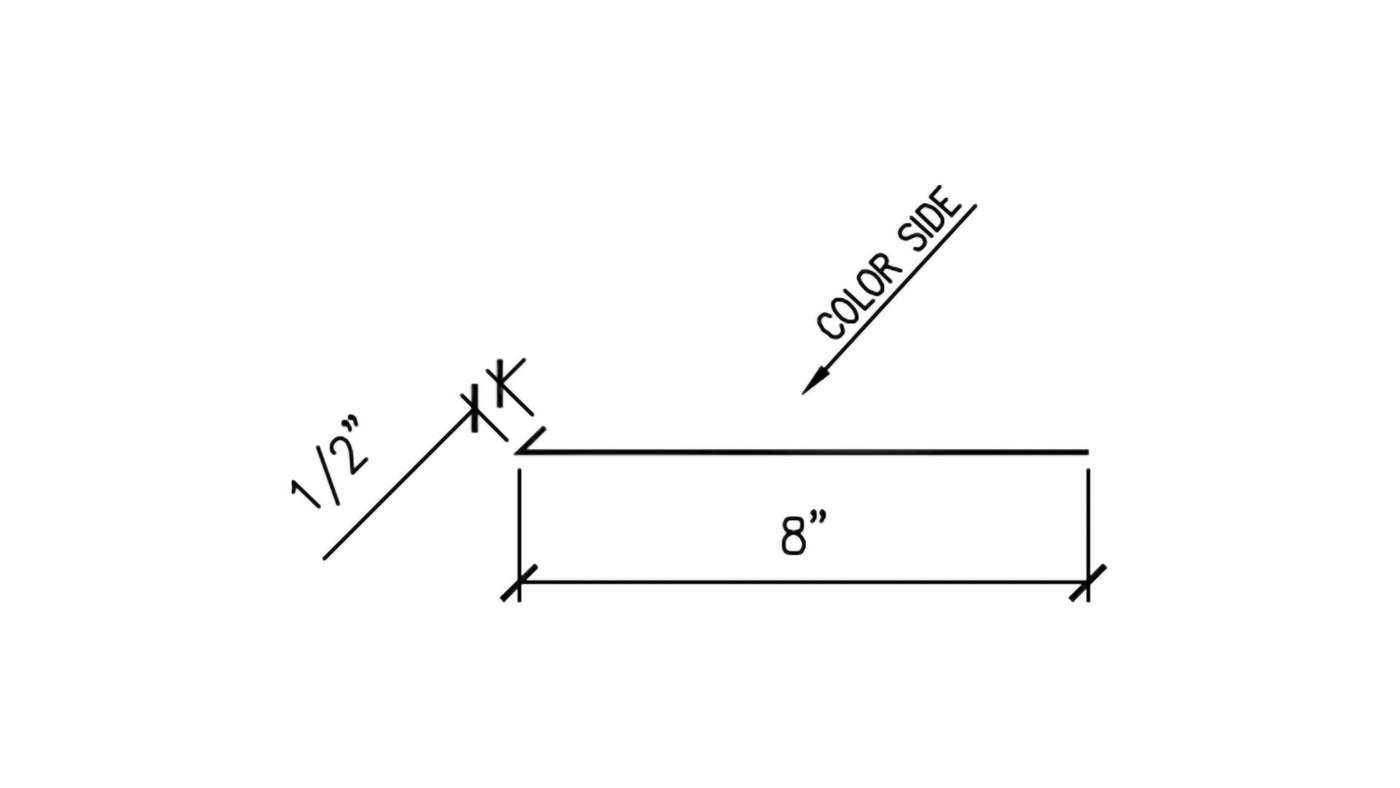

WS-412 Gutter Strap Dimensions

You will need gutter strap to connect the gutters. Most jobs require gutter strap at 36" O.C. Every job is different so we recommend consulting an engineer for local building codes and rain water loads.

Click To Enlarge

WS-413 Gutter Splice Dimensions

You will need a gutter splice to connect the gutter together when your gutter run is longer then one piece of gutter.

Click To Enlarge

WS-414 Gutter End Cap Dimensions

You will need 2 gutter end caps at the ends of each gutter run. It will require a left and a right gutter end cap.

Click To Enlarge

WS-415 - GUTTER WITH EAVE TRIM - PARTS LIST

Components List

1 Piece Pre-Hung Box Gutter - WS-415
Roof Pitch Required
1 Piece Joggle Cleat - WS-403
1 Piece Gutter Eave Trim - WS-408
5 Pieces Gutter Strap- WS-412
2 Pieces Gutter End Caps - WS-414
You Will Need 1 Left & 1 Right At Gutter Ends
10 Pancake Head Screws (#10X1") NO Washer
Verify Metal To Wood or Metal To Metal
16 Rivets
20 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
1/4 Tube Of Butyl Sealant
1/4 Tube Silicone Sealant
10 Linear Feet Of 8" Wide Sharkskin Ultra SA - Self Adhesive Roofing Underlayment

If you have more than one piece of gutter for each gutter run then it will require the following additional pieces:

Gutter Splice - WS-413
12 Rivets
1/4 Tube Of Butyl Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.

We recommend:

DOWNLOAD INSTALLATION GUIDE

Optional Gutter Eave Trim

Gutter Installation For Standing Seam

Step by step pre-hung box gutter installation instructions for standing seam metal roofing.

End Caps
Gutter Splice
Optional Gutter Eave Trim
Gutter Straps

Learn More

how-to-install-a-gutter-on-a-standing-seam-roof
