Soffit End Splice Trim - # WS-500

End Splice Trim - Metal Soffit Panels - Horizontal Installation - Part #WS-500

Detail # T8-WSD-S1

If you have a soffit that's too long for one metal panel, then you will need to use two panels and splice them together.

This installation detail is for a metal soffit panel only. It should not be used for metal wall panels.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/tg-wsd-s1-sofffit-splice-detail.jpg

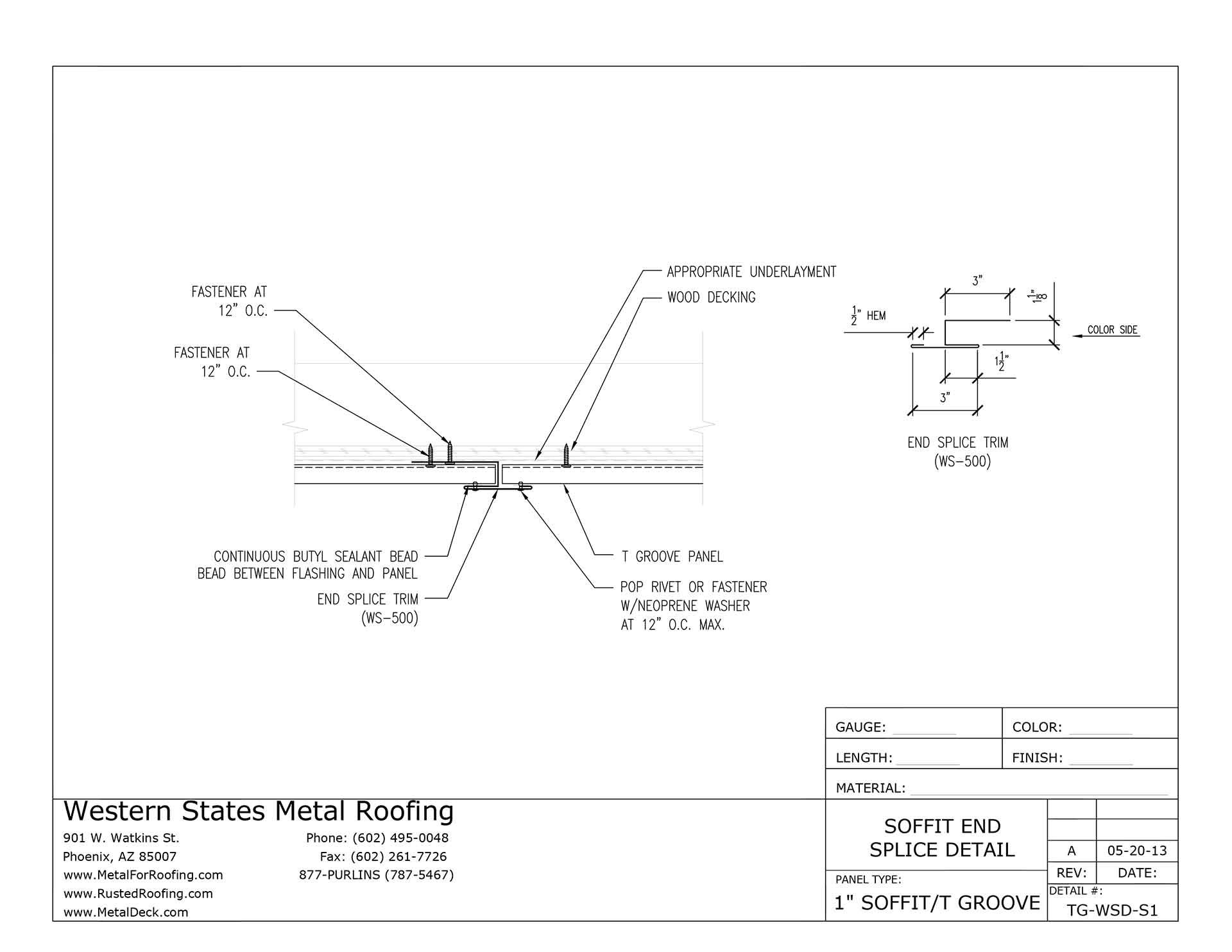

Soffit End Splice Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/part-ws-500-end-splice-1.jpg

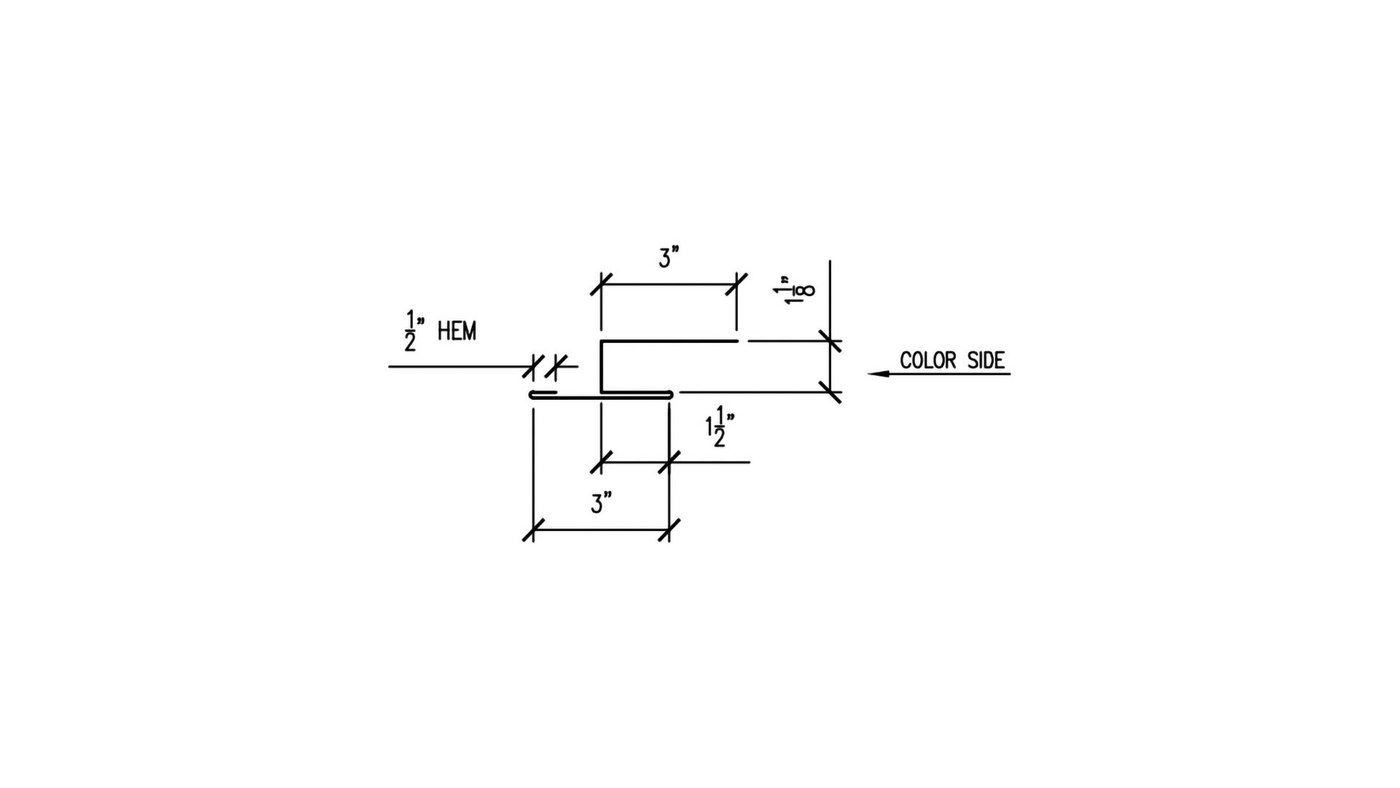

WS-500 End Splice Trim Dimensions

CLICK TO ENLARGE

SOFFIT END SPLICE DETAIL - HORIZONTAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece End Splice Trim - WS-500
  • 10 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 20 Rivets
  • 2 Tubes Of Butyl Sealant

DOWNLOAD INSTALLATION GUIDE
