Reveal Flashing # WS-502/C-Metal # WS-501

End Splice For Metal Wall Or Soffit Panels - Horizontal Installation

Detail # TG-WSD-SW2

If you have a wall that's too long for one metal panel, then you will need to use two panels and splice them together.

The end splice detail is different when the panels are installed horizontally versus vertically. This installation detail shows a 1" gap between both pieces of C-Metal, but it can be increased or decreased based upon your desired aesthetic.

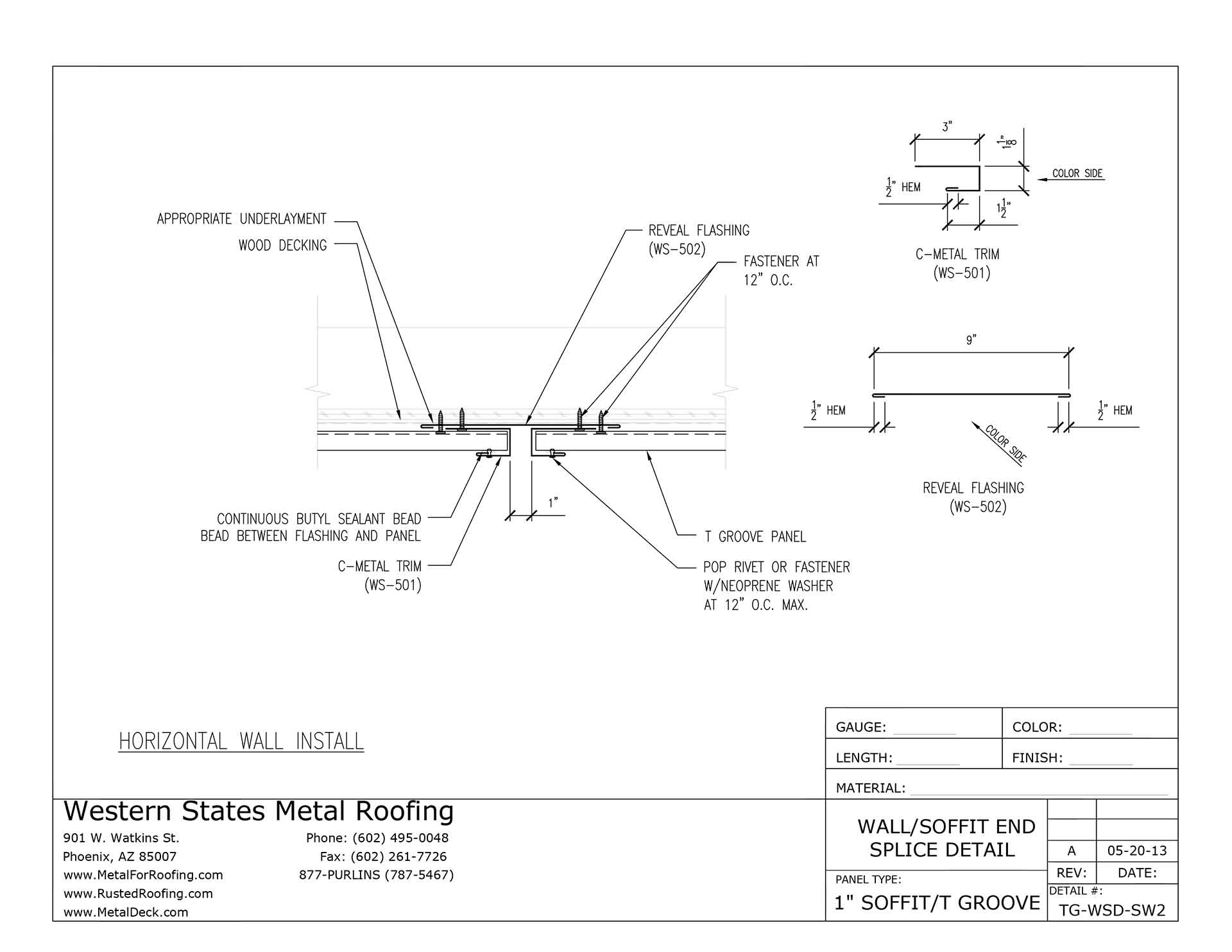

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/tg-wsd-sw2-wall-soffit-end-splice-detail.jpg

Wall/Soffit End Splice Detail

CLICK TO ENLARGE

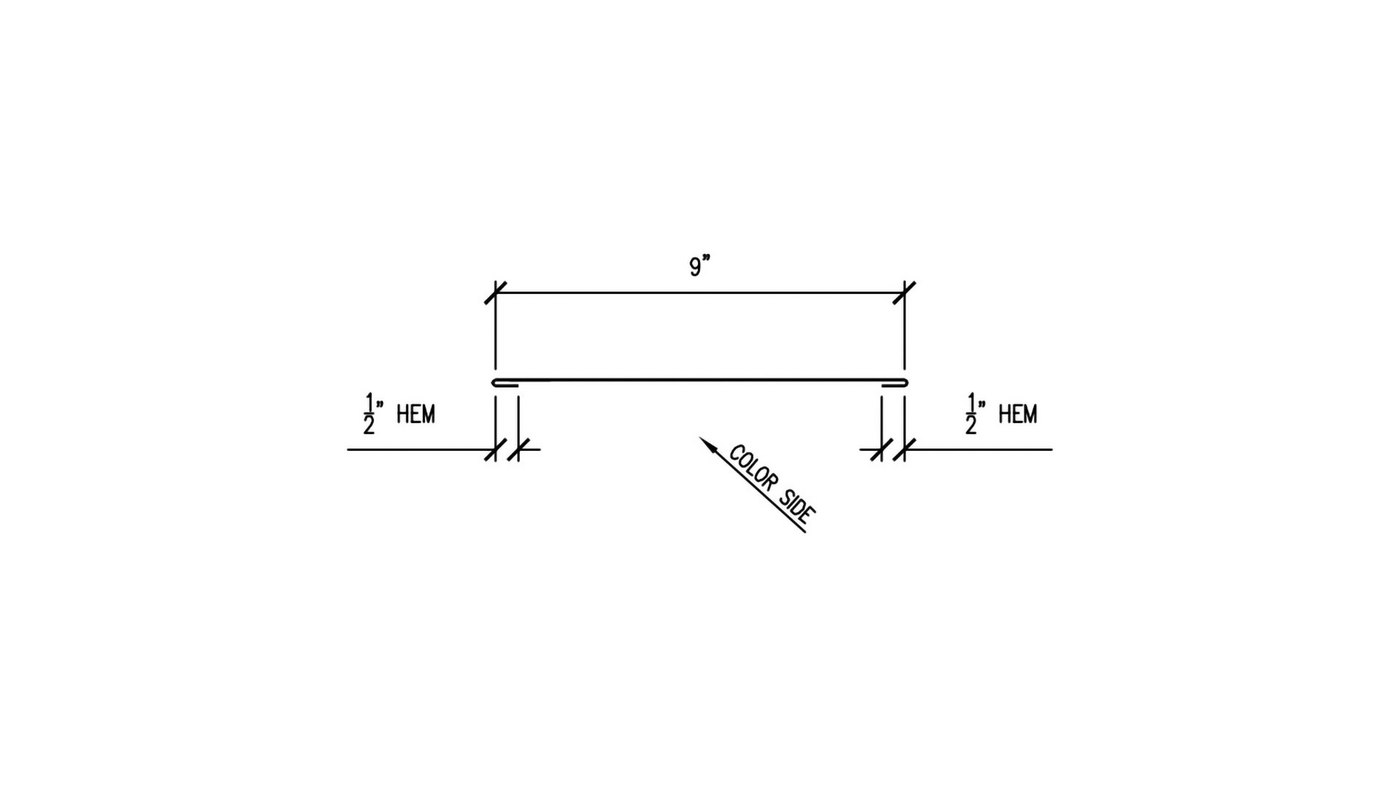

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/part-ws-502-reveal-flashing-1.jpg

WS-502 Reveal Flashing Dimensions

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/part-ws-501-c-metal-j-trim-1.jpg

WS-501 C-Metal Trim Dimensions

For every 10' of reveal flashing, you will need 20' of C-Metal.

CLICK TO ENLARGE

WALL/SOFFIT END SPLICE DETAIL - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 2 Pieces C-Metal Trim - WS-501
  • 1 Piece Reveal Flashing - WS-502
  • 40 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 20 Rivets
  • 2 Tubes Of Butyl Sealant

DOWNLOAD INSTALLATION GUIDE
