1.5" Nail Strip - Western Seam®-1.5 Standing Seam

Western Seam is a 1.5" deep standing seam metal roofing panel. It's a concealed fastener snap lock panel that does not have clips. It's fastened through the fastening flange and directly to the roof deck.

Get a Quote interactive color chart

Nail Strip: Pros & Cons, Cost, Colors
Color Visualizer - Choose A Color And See How It Looks On Your House

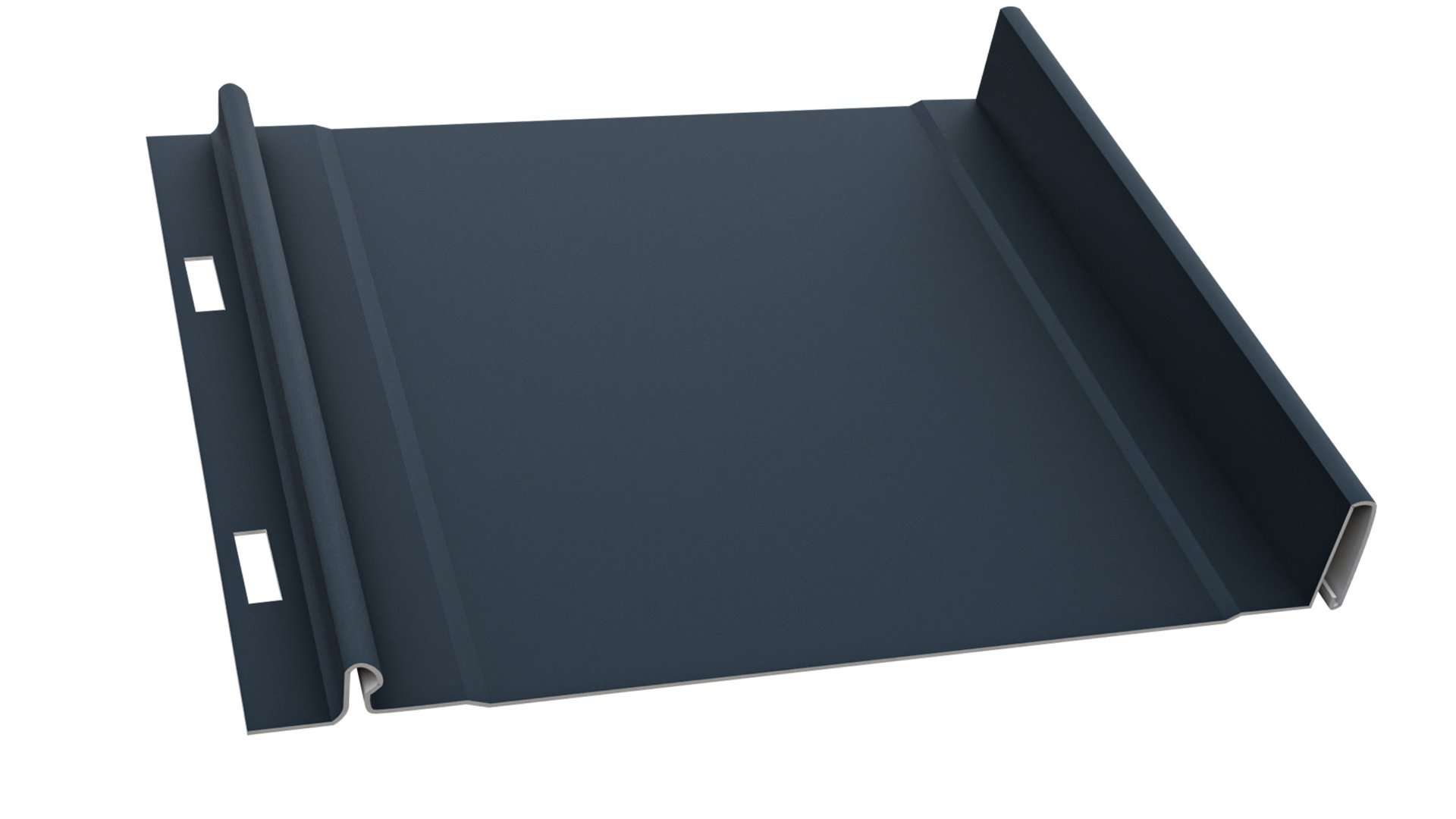

1.5" Nail Strip Standing Seam Roofing

Western Seam®-1.5

Nail strip roofing panels have the advantage of concealed fasteners, a streamlined appearance, and a less complicated and costly installation. The key difference with the nail strip system is that it eliminates the use of clips. This creates some major shortcomings when compared to other types of standing seam panels. Nail strip may  not be the best fit for every roofing project.

Although we sell this type of standing seam panel, we recommend that you use a clip system panel whenever possible.

Nail Strip Pros

  • Concealed Fasteners
  • Easier & Faster Installation
  • Cost Savings - About $.50/sq. ft. less than a clip system panel

Nail Strip Cons

  • Pinned Panels
  • Oil Canning Is More Likely
  • Additional Panel Seam - 30' maximum sheet lengths
  • Rarely Used On Commercial Buildings



1.5" Nail Strip - Western Seam®-1.5 Standing Seam

Dimensions

Western Seam® Nail Strip Standing Seam With 1.5

Material Type: Nail Strip Standing Seam

Rib Height: 1.5"

Overall Width:
Standard: 18"
Custom Widths Available: 12"-20"

Finishes: PVDF Resin Based

Panel Length: 30' Maximum Length


Product Data

Material Type: Nail Strip Standing Seam

Available Gauges:
24/Standard
22/Custom Ordered

Substrate:
AZ50 Minimum (aka Galvalume®/Zincalume®)

Fasteners: Concealed

Recommended Minimum Roof Slope: 3/12

Clip Relief: Included on all panels

Striations, stiffening ribs, or pencil ribs are available upon request.

Installation:
Installation over a solid substrate with an underlayment between the panel and the substrate.

Product Documents

Installation Videos

CAD Details (Coming Soon!)

Care & Maintenance

Class A Fire Rating

Clip Relief & Striations

Field Cutting & Touch Up Paint

Paint Warranties

Product Specifications

Solar Reflectivity Index

UL Report

More Than 100 colors to choose from in standing seam metal

Standing Seam Metal Roofing Colors

Besides the typical solid colors found almost everywhere else, we are best known for our specialty paint prints. These are colors that have been painted repeatedly giving the finish depth, texture, and a one of a kind design. The drop down menu has grouped these metal roofing colors and styles into categories - making it easier for you to find.



Quick Links

Color Charts

Color Visualizer

Metal Color Samples

Metal Roofing Color Guide

Color Charts

Standard Colors (PVDF)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Regal Blue Image
  • Royal Blue Image
  • Slate Blue Image
  • Regal Red Image
  • Colonial Red Image
  • Terra Cotta Image
  • Classic Green Image
  • Matte Black Image
  • Dark Bronze Image
  • Medium Bronze Image
  • Mansard Brown Image
  • Burnished Slate Image
  • Silver Metallic† Image
  • Zinc Metallic† Image
  • Charcoal Gray Image
  • Gun Metal Gray Image
  • Slate Gray Image
  • Dolphin Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Copper Penny† Image
  • Desert Tan Image
  • Champagne† Image
  • Sandstone Image
  • Almond Image
  • Bone White Image
  • Regal White Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Matte Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

*Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Matte Regal White* Image
  • Matte Sandstone* Image
  • Matte Desert Tan* Image
  • Matte Slate Gray* Image
  • Matte Musket Gray Image
  • Matte Zinc Metallic Image
  • Matte Patina Image
  • Matte Charcoal Gray Image
  • Matte Burnished Slate* Image
  • Matte Mansard Brown* Image
  • Matte Medium Bronze* Image
  • Matte Dark Bronze Image
  • Matte Midnight Black Image
  • Matte Black Image
  • Matte Classic Green* Image
  • Matte Colonial Red* Image
  • Matte Orange* Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Special Order Colors (500 Sq. Ft. Minimum)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Solar White Image
  • Stone White Image
  • Surrey Beige Image
  • Sierra Tan Image
  • Aged Patina Image
  • Sage Green Image
  • Hemlock Green Image
  • Hartford Green Image
  • Evergreen Image
  • Burgundy Image
  • Pre-Weathered Galvalume Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Additional Finishes

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Galvalume®/ Zincalume® Image
  • Galvanized G90 Image
  • A606-4 (aka Corten®) Image
  • Bare Cold Rolled Image
  • Bonderized Image
  • Black Phosphate® Image
  • Rezibond® Image
  • Copper Image
  • Stainless Steel Image
  • Aluminum - Mill Finish Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Available Panels

Black Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Black Zinc Matte® Image
  • Black Ore Matte® Image
  • Matte Black Image
  • Matte Midnight Black Image
  • Dark Bronze Image
  • Matte Dark Bronze Image
  • Medium Bronze Image
  • Blackened Steel Matte® Image
  • Speckled Blackened Rust® Image
  • Blackened Copper® Image
  • Vintage® Image
  • Burnt Wood® Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Copper Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Speckled Copper® Image
  • Speckled Blue Copper® Image
  • Copper Patina® Image
  • Green Copper® Image
  • Aged Copper® Image
  • Black Copper Matte® Image
  • Speckled Blackened Copper® Image
  • Blackened Copper® Image
  • Burnished Slate Image
  • Weathered Metallic® Image
  • Copper Penny† Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Gray Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

* Not A Paint Finish

** Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Burnished Slate Image
  • Charcoal Gray Image
  • Gun Metal Gray Image
  • Patina Image
  • Slate Gray Image
  • Dolphin Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Matte Burnished Slate** Image
  • Matte Charcoal Gray Image
  • Matte Patina Image
  • Matte Zinc Metallic Image
  • Matte Musket Gray Image
  • Matte Slate Gray** Image
  • Silver Metallic† Image
  • Zinc Metallic† Image
  • Vintage® Image
  • Black Zinc Matte® Image
  • Gray Zinc Matte® Image
  • Silver Zinc Matte® Image
  • Blue Zinc Matte® Image
  • Bonder-Paint® Light Image
  • Bonder-Paint® Dark Image
  • Bonderized* Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Rusted Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Speckled Rust® Image
  • Fresh Rust® Image
  • Corten AZP Raw® Image
  • Rustic Rawhide® Image
  • Weathered Rustic® Image
  • Weathered Metallic® Image
  • Reclaimed Metal Rust® Image
  • Speckled Galvanized Rust® Image
  • Speckled Blackened Copper® Image
  • Blackened Copper® Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Available Panels
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Zinc Series

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Gray Zinc Matte® Image
  • Silver Zinc Matte® Image
  • Blue Zinc Matte® Image
  • Black Zinc Matte® Image
  • Vintage® Image
  • Zinc Patina® Image
  • Zinc Metallic†® Image
  • Matte Musket Gray® Image
  • Bonder-Paint® Light Image
  • Bonder-Paint® Dark Image
  • Bonderized®* Image
  • Rezibond®* Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Aluminum (Standard Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Aluminum - Mill Finish Image
  • Matte Black Image
  • Dark Bronze Image
  • Charcoal Gray Image
  • Almond Image
  • Regal White Image
  • Fresh Rust® Image
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels

Aluminum (Special Order Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Regal Blue Image
  • Slate Blue Image
  • Regal Red Image
  • Colonial Red Image
  • Terra Cotta Image
  • Aged Patina Image
  • Evergreen Image
  • Hartford Green Image
  • Medium Bronze Image
  • Mansard Brown Image
  • Slate Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Pre-Weathered Galvalume Image
  • Sierra Tan Image
  • Surrey Beige Image
  • Sandstone Image
  • Solar White Image
  • Stone White Image
  • Copper Metallic† Image
  • Silver Metallic† Image
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels

Copper (20oz/16oz)

Real Copper

Click the dropdown menu to explore more color options for this panel type.

Download Color Card





Hide List of Colors Show Colors as List

  • Copper Image
Image View Color Page

Ordering Information

JUST IN CASE YOU FORGOT ABOUT THESE

ITEMS THAT YOU WILL NEED


Roofing Underlayment

Is your metal roofing being installed over wood? If so, you will need roofing underlayment.

Synthetic underlayment provides an extra barrier of protection from water penetration and will protect your home from the elements.

  • Sharkskin Comp
  • Sharkskin Ultra
  • Sharkskin Ultra SA

Learn More


Accessories

  • Fasteners/Clips
  • Foam Closures
  • Fiberglass Panels
  • Galvanized Square Tube
  • Trim & Flashings
  • Snow Retention & Solar Systems
  • Much More

Learn More


Metal Purlins and Channel

C Purlins, Z Purlins, and Channel

  • Galvanized
  • Primed - Red
  • 4” to 12” Deep
  • 14 Gauge - In Stock
  • Custom Gauges Upon Request



Learn More

Do You Have Questions about metal roofing? We have the answers.

The Metal Roofing Learning Center

It's a great resource for contractors, architects, and homeowners.

Easy to navigate learning center with videos and blogs that will answer your questions.

  • Installation Videos
  • Panel Comparisons
  • Cost
  • Much More

View Now

metal-roofing-learning-center-02
Articles Direct from the learning center

Everything You Need To Know About Standing Seam


What Is Nail Strip Standing Seam Roofing?

Looking for the most affordable and easiest type of standing seam to install? We go over the pros and cons of nail strip standing seam metal roofing.

Learn More


Types Of Standing Seam: Panels, Stiffening Ribs, And Striations

This article compares the types of standing seam systems and why striations could be a good idea.

  • Mechanically Seamed
  • Snap Lock With Clips
  • Nail Strip Or Nail Flange
  • Stiffening Ribs And Striations

Learn More


What Is Oil Canning?

Have you ever seen a standing seam roof that looks like it's wrinkled? That's referred to as oil canning and it's inherent in metal. It's not a cause for rejection.

  • What Is Oil Canning
  • What Causes Oil Canning
  • Ways To Disguise Oil Canning
  • How To Help Prevent Oil Canning



Learn More

LET YOUR IMAGINATION RUN WILD!

COLOR & PRODUCT VISUALIZER

Choose Different Textures, Colors, Finishes, and Panel Types On Your Home Before You Decide.

Visualize Your Building
