Western Reveal® Metal Siding Panels

Concealed Fastener Metal Wall Panels

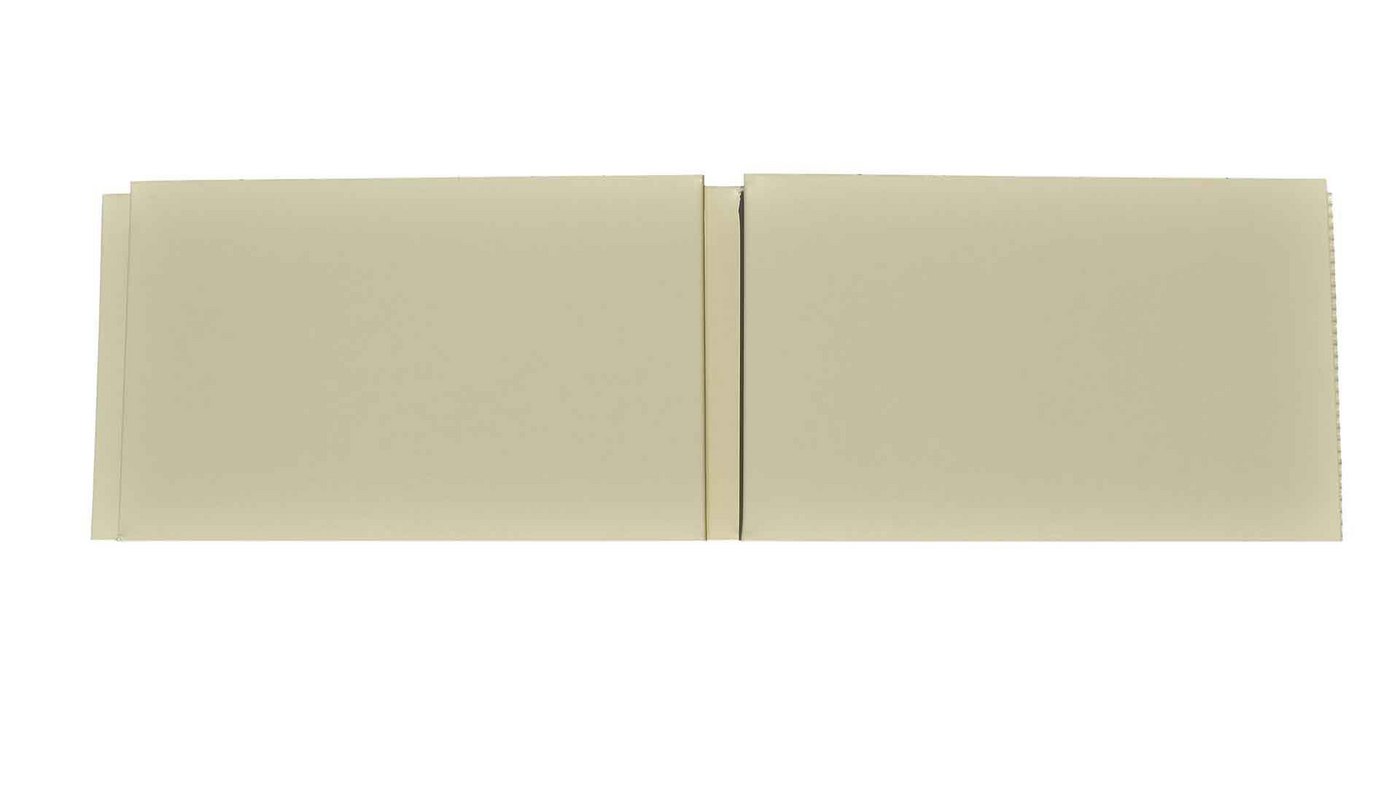

Western Reveal® 1" Reveal Panel
Metal Wall Cladding

Make the interior or exterior walls of your building stand out. These metal wall panels will add texture to an otherwise plain wall. The modern design will attract attention and catch the eye, but will also blend in with the existing architecture.

Western Reveal is stronger and easier to install than using flat sheets. When using flats sheets on a job it is a design build application. Western Reveal has an install guide that has solutions for all of your common metal flashing conditions.

1" gap or reveal between the panel side laps
1.5" deep with concealed fasteners
Mix and match different reveals, face sizes, and widths.
Modern design with 1", 2" or 3" reveals.
12", 14", 16", or 18" Face
For architectural projects that require a flush wall design, Western Reveal is also available in a "No Reveal" option.
Horizontal or vertical installation.

western-reveal-one-inch-metal-siding-panels

Dimensions

Download Dimensions

Product Data

Material Type: Western Reveal® - 1.0
Metal Fascia, Soffit, And Wall Panel

Available Gauges: 22, 24

Fastening Type: Concealed

Overall Coverage: 13"-19"

Panel Face Sizes: 12", 14", 16", 18”

Panel Length: 1' to 45' max

Reveal: 1"

Rib Height: 1.5"

Substrate: AZ50 Minimum (AKA Galvalume®/Zincalume®)

Stiffening Ribs or Pencil Ribs: Available Upon Request

Single or Double Vent Strips: Available Upon Request

Installation: Installation Over A Solid Substrate (Vertical or Horizontal)

Applications: Residential, Commercial, Agricultural, Interior

Product Documents

Trim And Flashings

Installation Guide

Panel Sizes/Line Drawings

Product Data Sheets

CAD Details

Care & Maintenance

Field Cutting & Touch Up Paint

Paint Warranties

Product Specifications

Solar Reflectivity Index

Stiffening Ribs & Vent Strips
