Western Reveal® - 3.0

Metal Fascia, Soffit, And Wall Panels

This versatile metal panel system can be used as a metal soffit and fascia on your house or commercial building. It's also designed to be used as a wall panel system for interior and exterior applications. There is a three inch gap between each panel lap that adds depth and texture. You can mix and match the distance between the panel laps from no reveal, 1", 2", and 3" reveal.

Get A Quote Interactive Color Chart

Discover Western Reveal

Types Of Metal Siding Panels

Find out what your product would look like.

View Product Visualizer

Concealed Fastener Metal Wall Panels

Western Reveal® 3" Reveal Panel
Metal Wall Cladding

Make the interior or exterior walls of your building stand out. These metal wall panels will add texture to an otherwise plain wall. The modern design will attract attention and catch the eye, but will also blend in with the existing architecture.

Western Reveal is stronger and easier to install than using flat sheets. When using flats sheets on a job it is a design build application. Western Reveal has an install guide that has solutions for all of your common metal flashing conditions.

1" gap or reveal between the panel side laps
1.5" deep with concealed fasteners
Mix and match different reveals, face sizes, and widths.
Modern design with 1", 2" or 3" reveals.
12", 14", 16", or 18" Face
For architectural projects that require a flush wall design, Western Reveal is also available in a "No Reveal" option.
Horizontal or vertical installation.

western-reveal-three-inch-metal-siding-panels

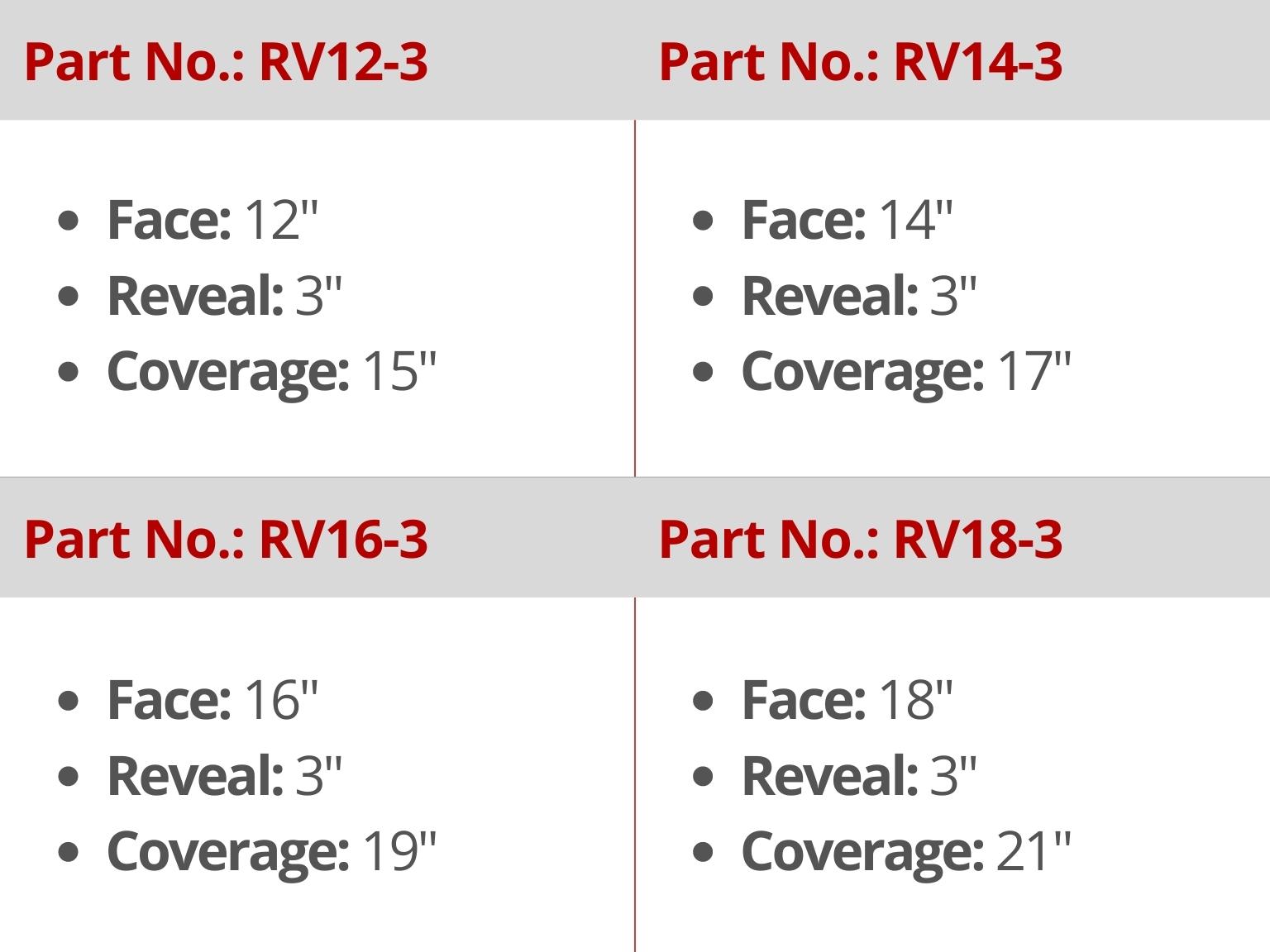

Dimensions

Download Dimensions

Product Data

Material Type:
Western Reveal® - 3.0
Metal Fascia, Soffit, And Wall Panel

Available Gauges: 22, 24

Fastening Type: Concealed

Overall Coverage: 15"-21"

Panel Face Sizes: 12", 14", 16", 18”

Panel Length: 1' to 45' max

Reveal: 3"

Rib Height: 1.5"

Substrate: AZ50 Minimum (AKA Galvalume®/Zincalume®)

Stiffening Ribs or Pencil Ribs: Available Upon Request

Single or Double Vent Strips: Available Upon Request

Installation: Installation Over A Solid Substrate (Vertical or Horizontal)

Applications: Residential, Commercial, Agricultural, Interior

Product Documents

Trim And Flashings

Installation Guide

Panel Sizes/Line Drawings

Product Data Sheets

CAD Details

Care & Maintenance

Field Cutting & Touch Up Paint

Paint Warranties

Product Specifications

Solar Reflectivity Index

Stiffening Ribs & Vent Strips

More Than 100 colors to choose from in Western Reveal metal

Western Reveal Metal Panel Colors

Besides the typical solid colors found almost everywhere else, we are best known for our specialty paint prints. These are colors that have been painted repeatedly giving the finish depth, texture, and a one of a kind design. The drop down menu has grouped these metal roofing colors and styles into categories - making it easier for you to find.
