MS2® MECHANICALLY SEAMED ROOFING

Fixed Ridge Cap With Hems - Part #WS-128

Fixed ridge cap means that the standing seam panels will be pinned in place at the ridge. If you have a fixed point at the ridge, you will need a floating connection at the other end of the standing seam panel. In most instances, this will mean using an eave with a bullnose drip edge or eave with a joggle cleat.

This is our most common non-vented ridge cap detail.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/ms2-wsd-w20.jpg

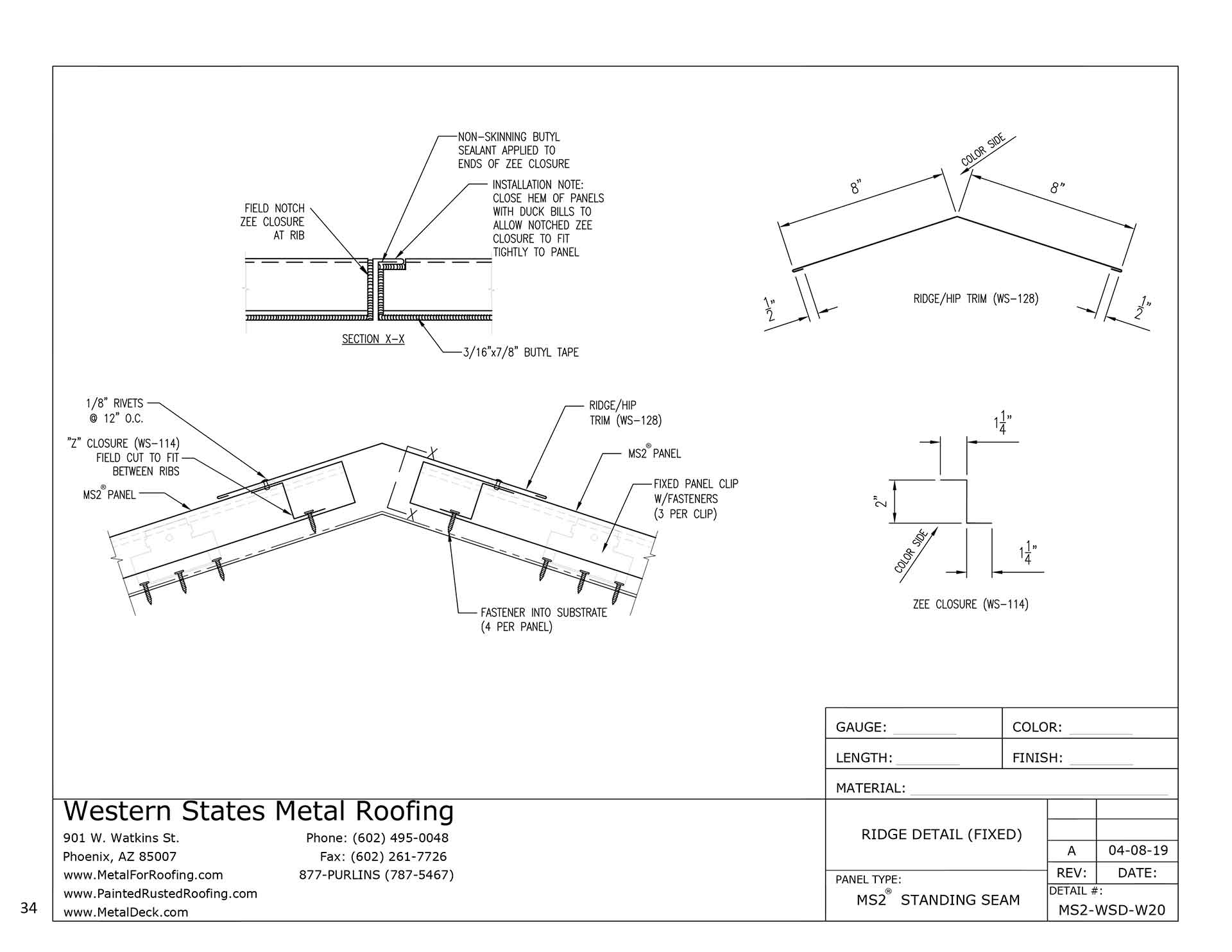

WS-128 Fixed Ridge Cap Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-128-1.jpg

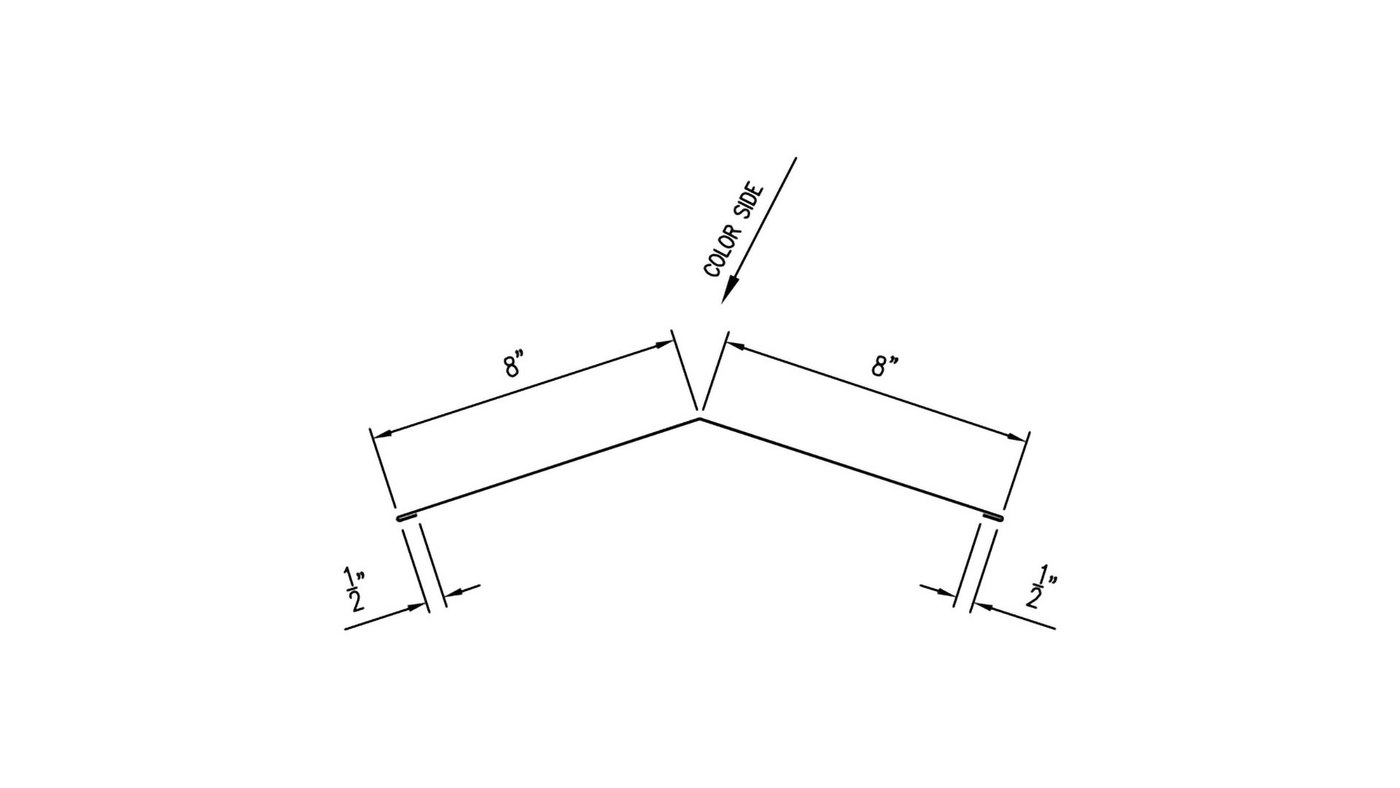

WS-128 Fixed Ridge Cap Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-114-1.jpg

WS-114 Zee Closure Dimensions

For every 10' of ridge cap, you will need 20' of zee closures.

Click To Enlarge

WS-128 - FIXED RIDGE CAP - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

1 Piece Ridge Cap Trim - WS-128
Roof Pitch Required
2 Pieces Zee Closure - WS-114
56 Pancake Head Screws (#10X1") NO Washer
Verify Metal To Wood
28 Rivets
40 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
2 1/4 Tubes Of Butyl Sealant
1/4 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.
