MS2® MECHANICALLY SEAMED ROOFING

Eave Trim With Bullnose Drip Edge - Part #WS-130

Eave trim with a bullnose drip edge is an easier and faster installation than eave trim with a joggle cleat. There are less parts to install. Bullnose drip edge should not be installed on roof pitches that are greater than 6" in 12"

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/ms2-wsd-w23.jpg

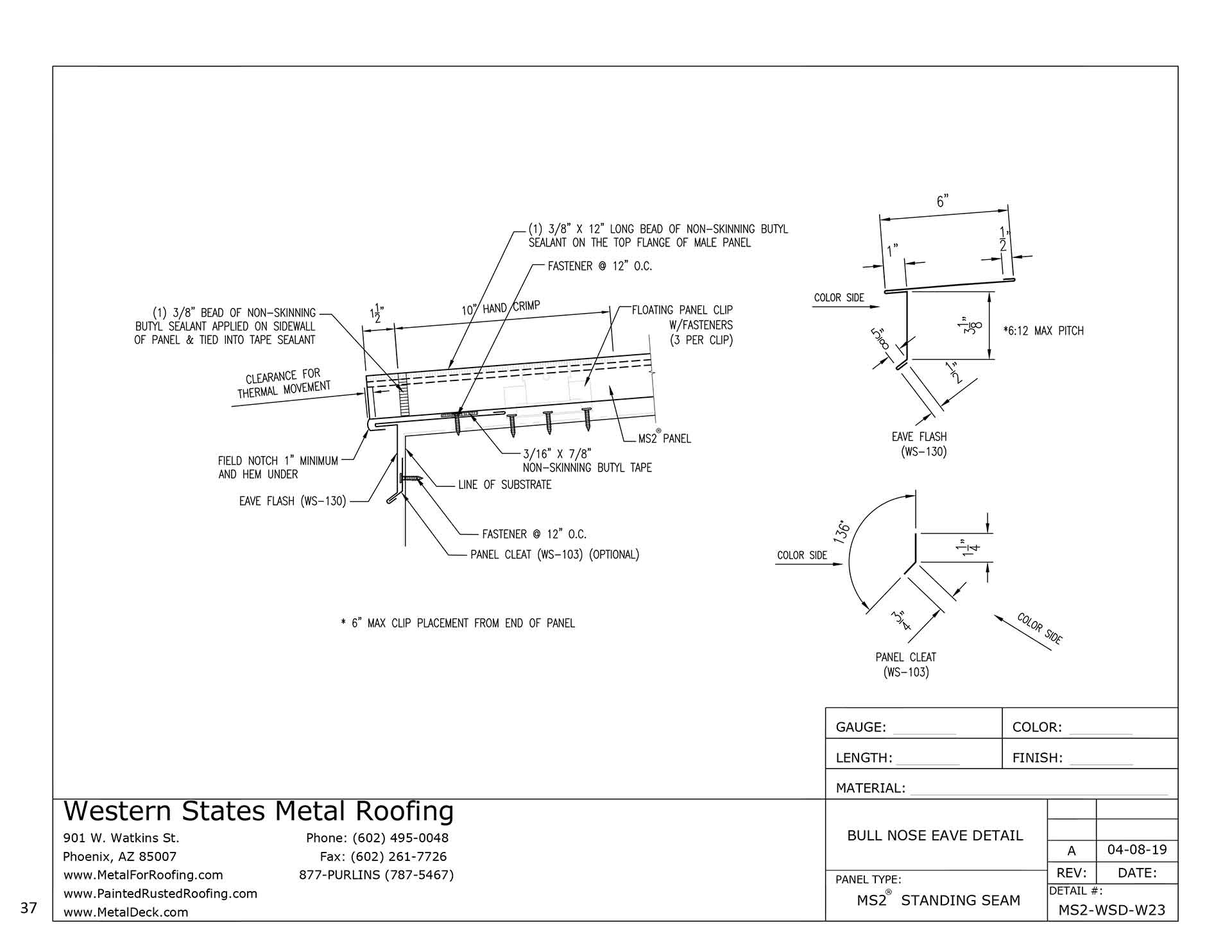

WS-130 Eave Trim With Bullnose Drip Edge Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-130-1.jpg

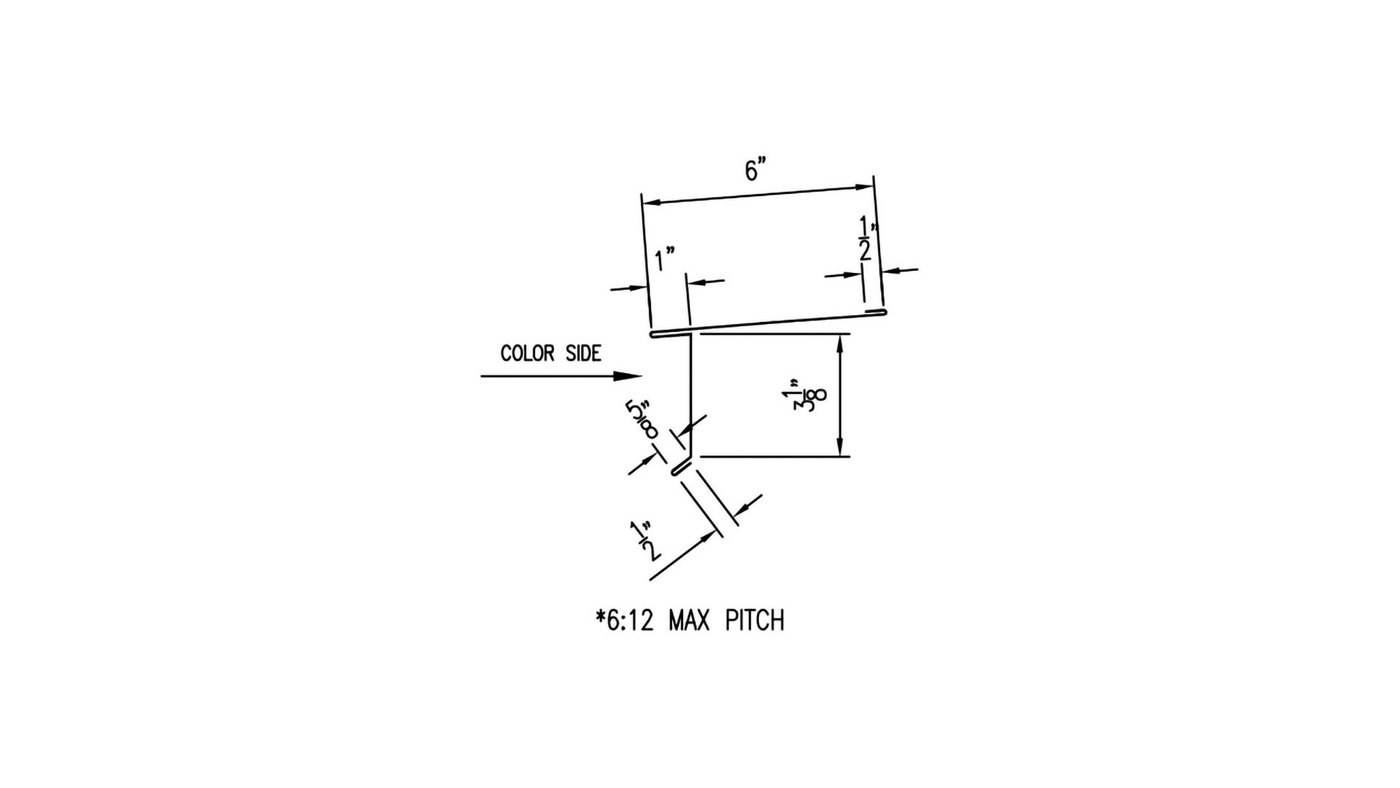

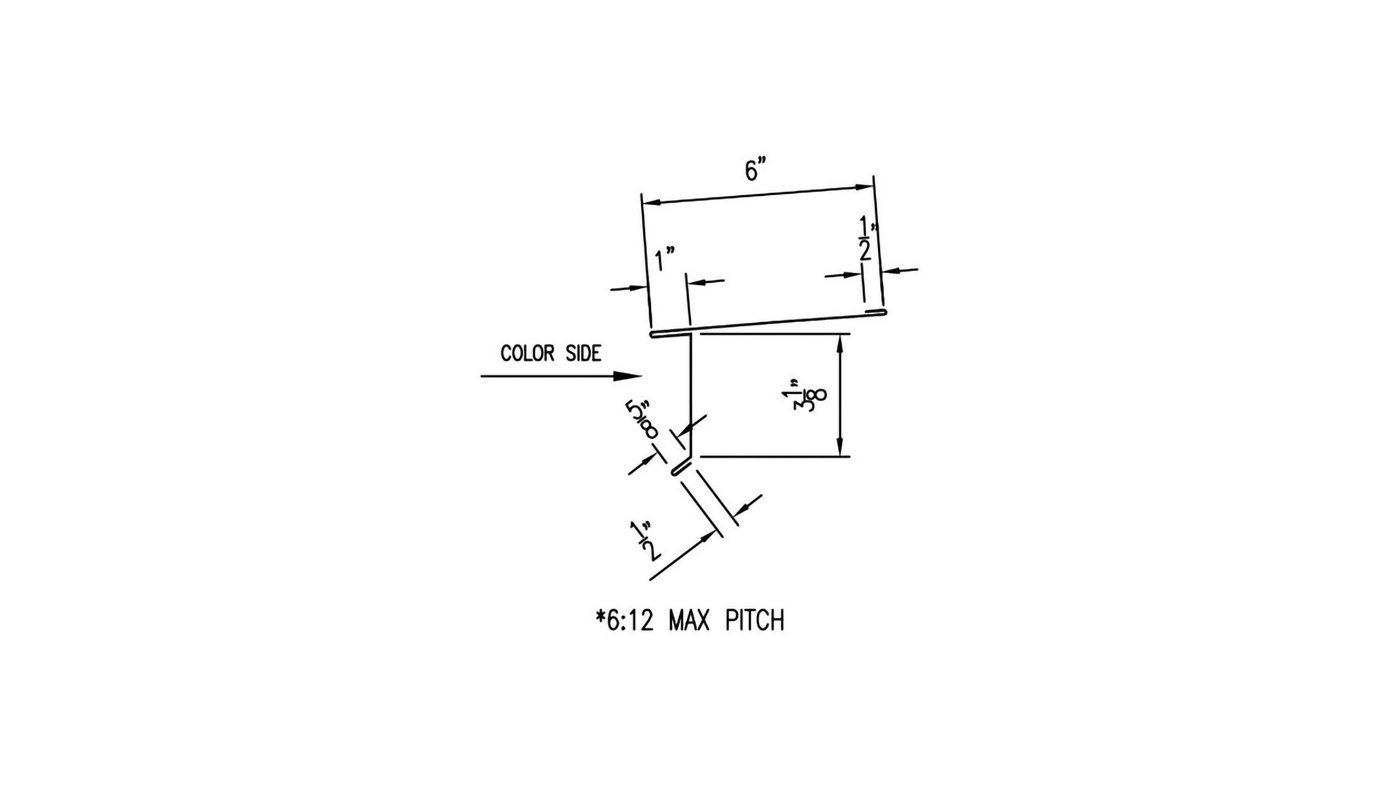

WS-130 Bullnose Eave Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-103-1.jpg

WS-103 Trim/Panel Cleat Dimensions

For every 10' of eave trim, you will need 10' of trim cleat.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/Panel-Hem-MS2.jpg

Eave Hem

Click To Enlarge

WS-130 - EAVE TRIM WITH BULLNOSE DRIP EDGE - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

  • 1 Piece Eave Trim - WS-130
    Roof Pitch Required
  • 1 Piece Panel Cleat - WS-103
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
  • 3/4 Tube Butyl Sealant
  • 1/4 Tube Silicone Sealant
  • 10 Linear Feet Of 8" Wide Sharkskin Ultra SA - Self Adhesive Roofing Underlayment

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.
