MS2® MECHANICALLY SEAMED ROOFING

Floating Ridge Cap - Part #WS-127

Floating ridge cap means that the standing seam panels aren't pinned in place at the ridge. This allows for expansion and contraction. If you have a floating ridge, you will need a fixed connection at the other end of the standing seam panel.

Most of the jobs that we supply have a fixed ridge and a floating eave. This detail is not used that often.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/ms2-wsd-w19.jpg

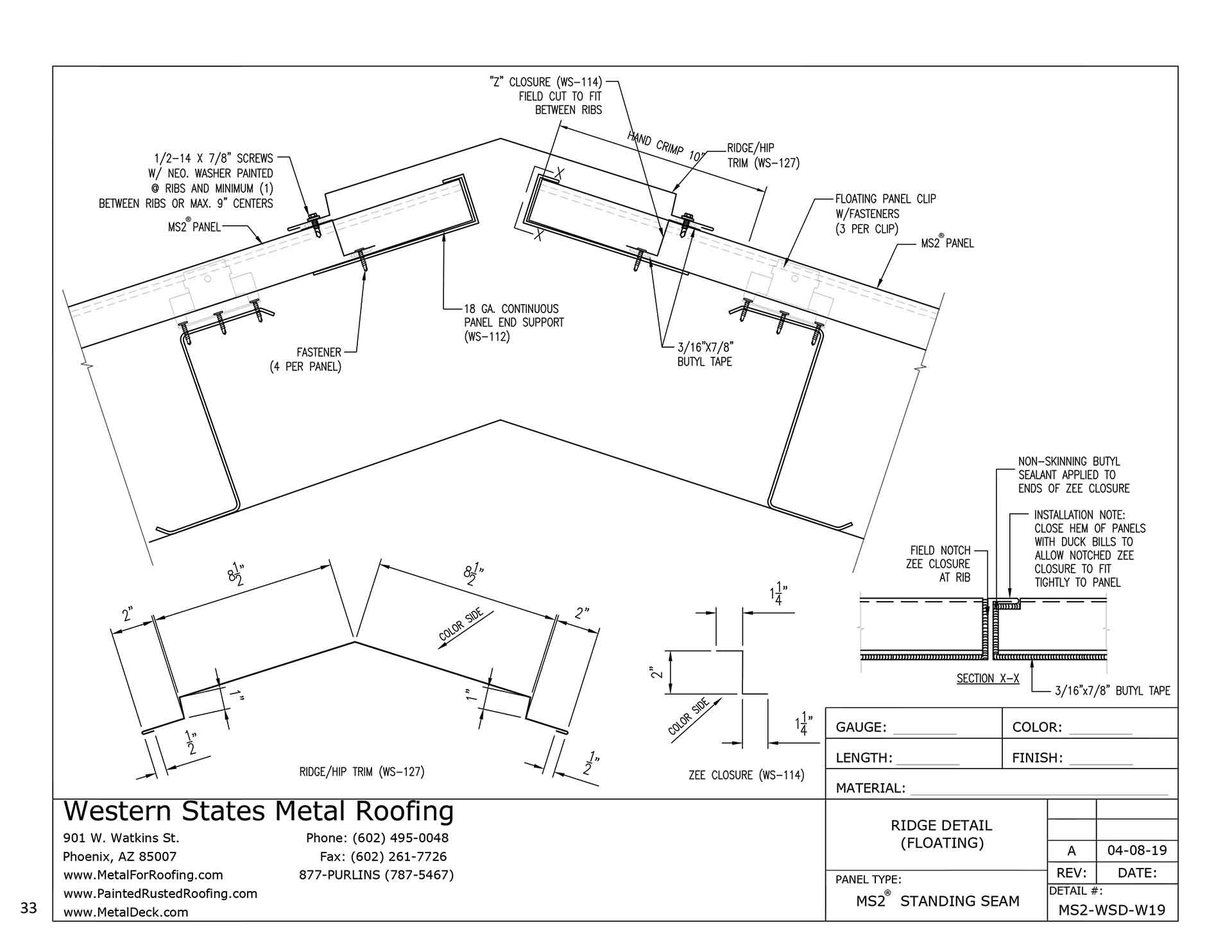

WS-127 Floating Ridge Cap Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-127-1.jpg

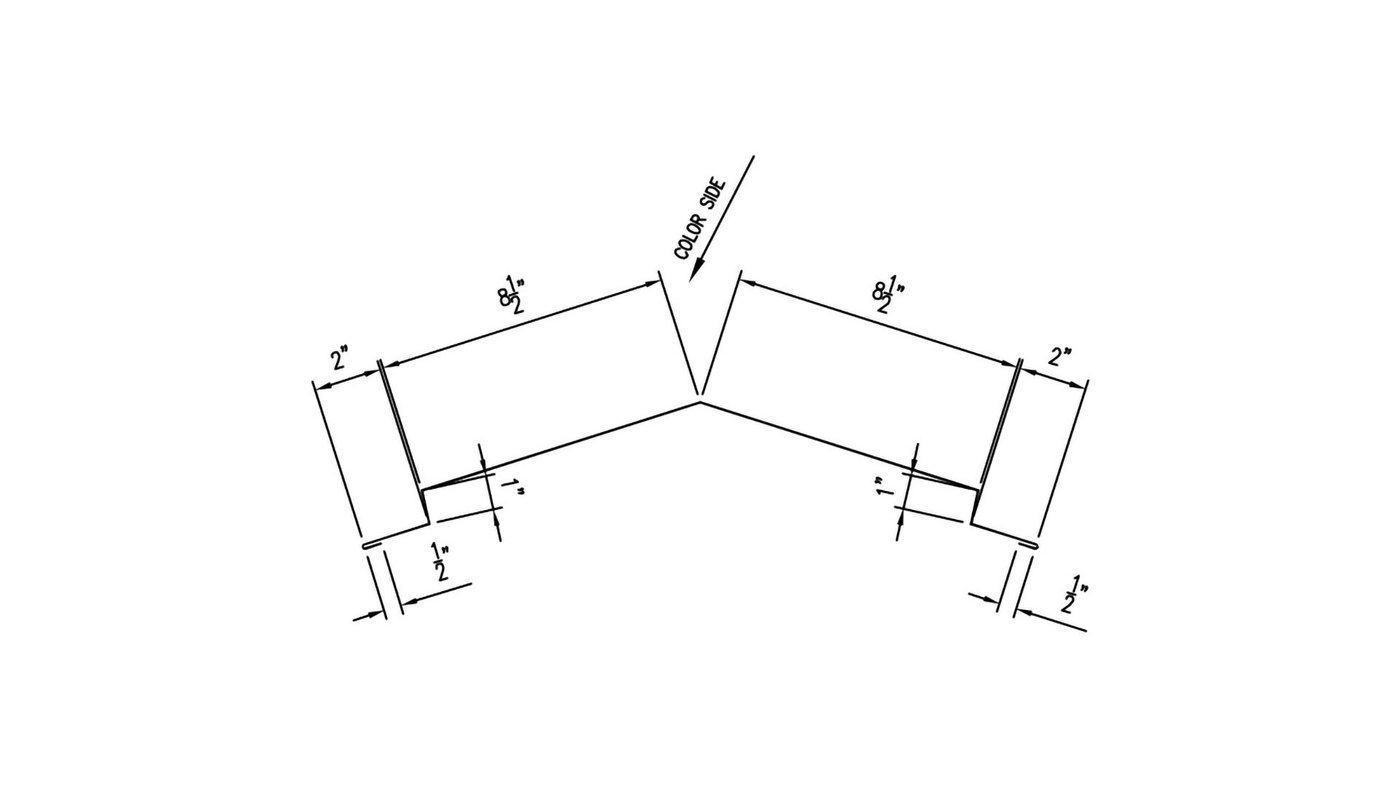

WS-127 Floating Ridge Cap Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-114-1.jpg

WS-114 Zee Closure Dimensions

For every 10' of ridge cap, you will need 20' of zee closures.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-112-1.jpg

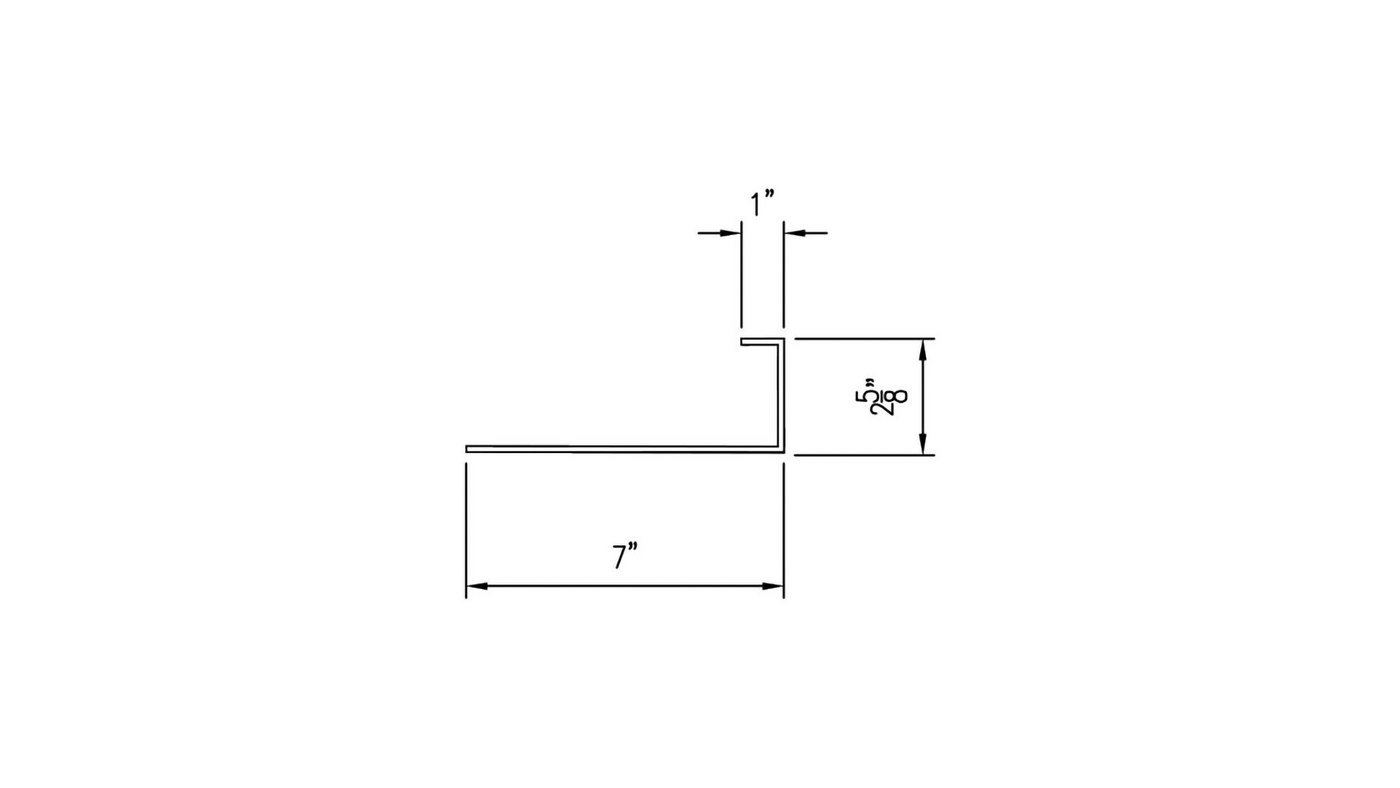

WS-112 Panel End Support Dimensions

For every 10' of ridge cap, you will need 20' of panel end support.

Click To Enlarge

WS-127 - FLOATING RIDGE CAP - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

1 Piece Ridge Cap Trim - WS-127
Roof Pitch Required
2 Pieces Zee Closure - WS-114
2 Pieces Panel End Support - WS-112
14 Metal To Metal Lap Screws With Sealing Washer
56 Pancake Head Screws (#10X1") NO Washer
Verify Metal To Wood
56 Rivets
40 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
2 1/4 Tubes Of Butyl Sealant
1/4 Tube Silicone Sealant
