WESTERN LOCK® STANDING SEAM METAL ROOFING

Fixed Eave Trim - Part #WS-404

Fixed eave trim is the easiest eave detail to install, but we don't recommend using it. Eave with a bullnose or joggle cleat are better eave details.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d2.jpg

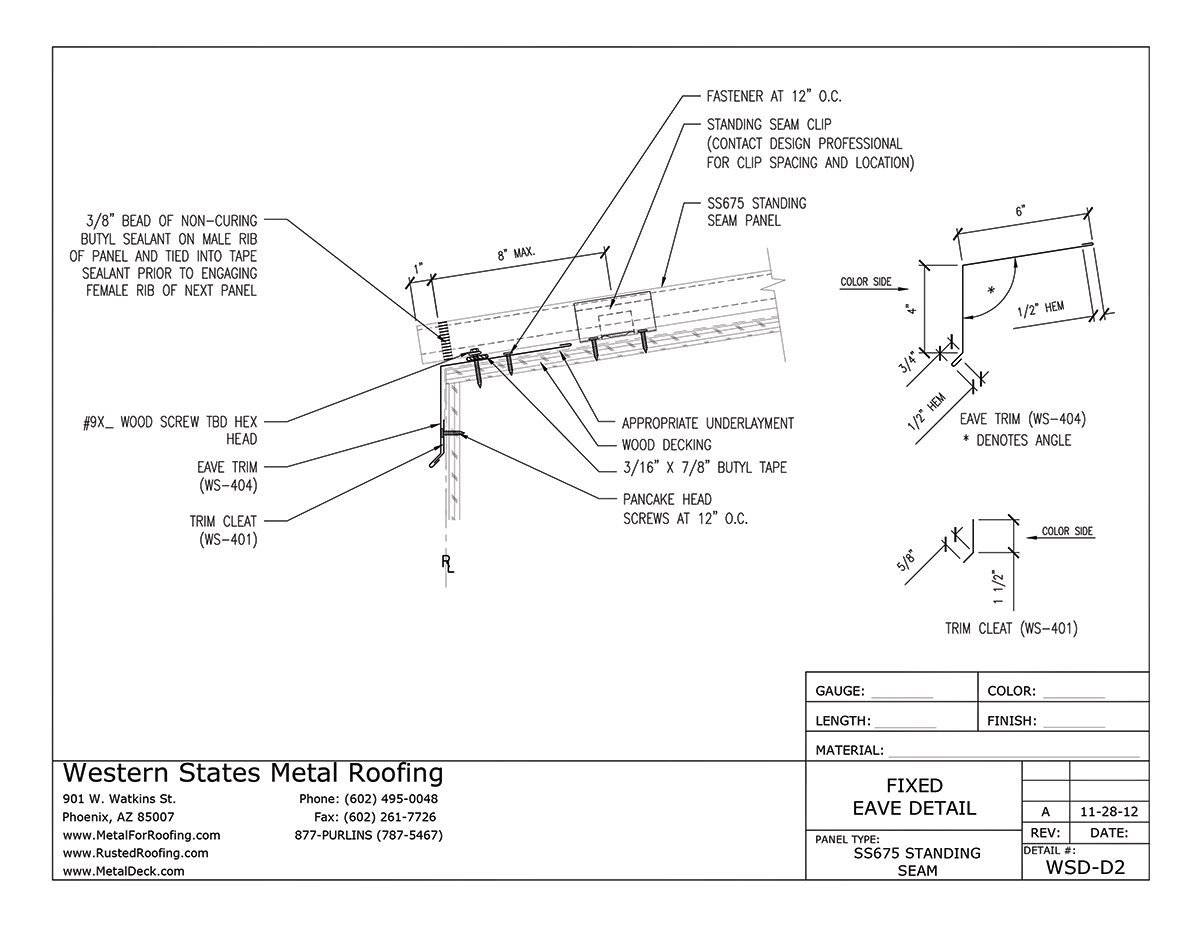

WS-404 Fixed Eave Trim Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-404-standard-eave-trim-1.jpg

WS-404 Fixed Eave Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-401-trim-cleat-1.jpg

WS-401 Trim Cleat Dimensions

For every 10' of eave trim, you will need 10' of trim cleat.

Click To Enlarge

WS-404 - FIXED EAVE TRIM - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

  • 1 Piece Eave Trim - WS-404
    Roof Pitch Required
  • 1 Piece Trim Cleat - WS-401
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Screws With Sealant Washer
    Verify Metal To Wood
  • 10 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
  • 1/4 Tube Butyl Sealant
  • 1/4 Tube Silicone Sealant
  • 10 Linear Feet Of 8" Wide Sharkskin Ultra SA - Self Adhesive Roofing Underlayment

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.

We recommend:

DOWNLOAD INSTALLATION GUIDE
