7/8" Corrugated - Zinc Metallic®

2-Zinc-Metallic-Corrugated-and-Copper-Patina-Brown

7/8" Corrugated - Zinc Metallic® & Copper Patina Brown®

01-Zinc-Metallic-Custom-Standing-Seam-Panel

Custom Standing Seam - Zinc Metallic®

PBR Panel® - Zinc Metallic®

Standing Seam - Zinc Metallic®

Standing Seam - Zinc Metallic®

Standing Seam - Zinc Metallic®

Exposed Fastener Metal Roofing Panels

7/8" CORRUGATED - ZINC METALLIC®

Zinc Metallic® is a pre-painted metal that is designed to look like an old and weathered zinc® or galvanized roof. The aged metallic color creates a visually stunning corrugated roofing panel. It is a good alternative to real zinc or Steelscape Vintage® at a fraction of the price. Zinc Metallic® has a paint warranty and looks excellent from BOTH up close and from a distance.

Get a quote

7/8" Corrugated Flashing Details & Trim Part Numbers

View Now

Product Data

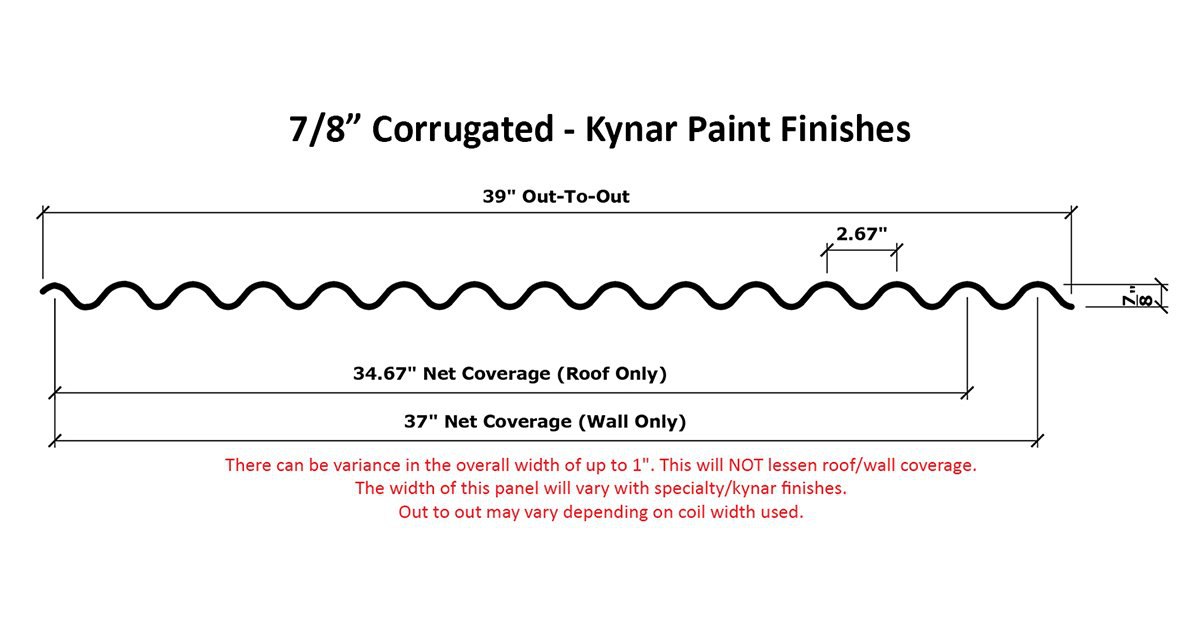

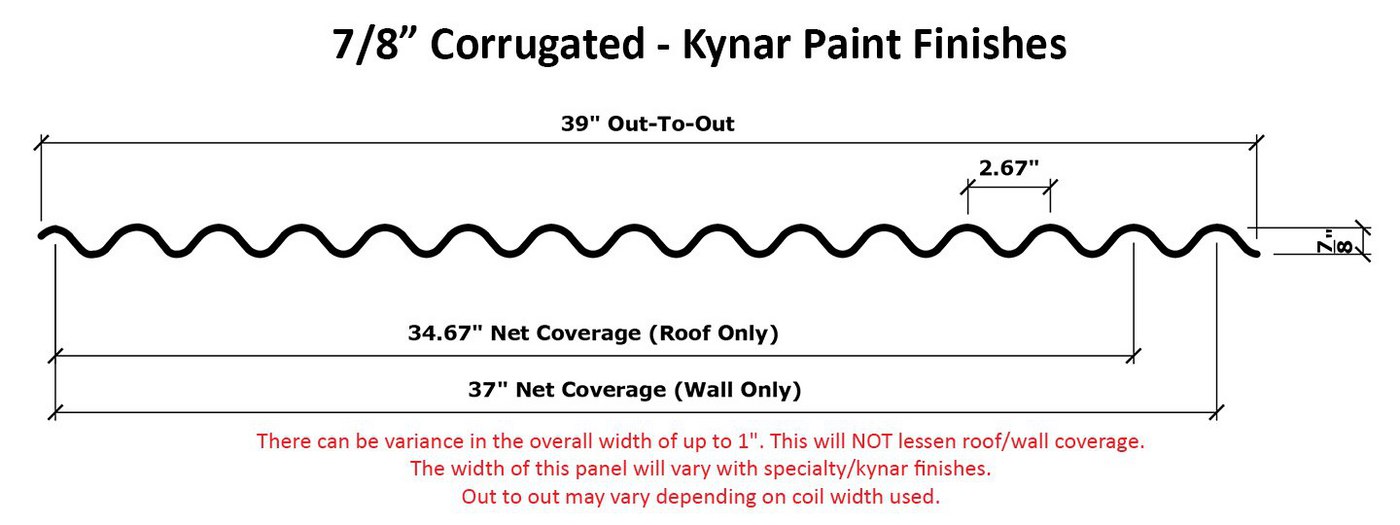

Material Type: 7/8" Corrugated

Rib Distance (Pitch): 2.67" Pitch

Rib Height: 7/8"

Available Gauges: 20, 22, 24, 26

Substrate: AZ50 Minimum (Galvalume®/Zincalume®)

Fasteners: Exposed

Panel Length: 1' to 52'

Recommended Minimum
Roof Slope: 3/12

Installation
Can be installed over an open purlin system or a solid substrate.
Use bead mastic on the overlap if used for a roofing application.

Overall Width
37" Typical for Standard Solid Colors in SMP and PVDF Paint Finishes
Specialty Paint Prints and Finishes Vary. See Graph.

Coverage Area (Roof)
32" Typical for Standard Solid Colors in SMP and PVDF Paint Finishes
Specialty Paint Prints and Finishes Vary. See Graph.

Coverage Area (Wall)
34.67" Typical for Standard Solid Colors in SMP and PVDF Paint Finishes
Specialty Paint Prints and Finishes Vary. See Graph.

Applications
Residential
Commercial
Agricultural
Interior

7.8 Corrugated - Bone White Line Drawing

PRODUCT DOCUMENTS

Product Specifications

Solar Reflectivity Index

Paint Warranties

CAD Details

Field Cutting & Touch Up Paint

Care & Maintenance

See How These Colors Will Look On Your Building

Try Color Visualizer

Standard Colors (PVDF)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Regal Blue
Royal Blue
Slate Blue
Regal Red
Colonial Red
Terra Cotta
Classic Green
Matte Black
Dark Bronze
Medium Bronze
Mansard Brown
Burnished Slate
Silver Metallic†
Zinc Metallic†
Charcoal Gray
Gun Metal Gray
Slate Gray
Dolphin Gray
Dove Gray
Ash Gray
Copper Penny†
Desert Tan
Champagne†
Sandstone
Almond
Bone White
Regal White

View Color Page

Matte Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

*Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Matte Regal White*
Matte Sandstone*
Matte Desert Tan*
Matte Slate Gray*
Matte Musket Gray
Matte Zinc Metallic
Matte Patina
Matte Charcoal Gray
Matte Burnished Slate*
Matte Mansard Brown*
Matte Medium Bronze*
Matte Dark Bronze
Matte Midnight Black
Matte Black
Matte Classic Green*
Matte Colonial Red*
Matte Orange*

View Color Page

SMP Paint Finish

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Polar White
Light Stone
Sahara Tan
Desert Beige
Light Gray
Koko Brown
Emerald Green
Country Red
Steel Gray
Antique Rustic®

View Color Page

Special Order Colors (500 Sq. Ft. Minimum)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Solar White
Stone White
Surrey Beige
Sierra Tan
Aged Patina
Sage Green
Hemlock Green
Hartford Green
Evergreen
Burgundy
Pre-Weathered Galvalume

View Color Page

Additional Finishes

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Galvalume®/ Zincalume®
Galvanized G90
A606-4 (aka Corten®)
Bare Cold Rolled
Bonderized
Black Phosphate®
Rezibond®
Copper
Stainless Steel
Aluminum - Mill Finish

View Color Page

View Available Panels

Black Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Black Zinc Matte®
Black Ore Matte®
Matte Black
Matte Midnight Black
Dark Bronze
Matte Dark Bronze
Medium Bronze
Blackened Steel Matte®
Speckled Blackened Rust®
Streaked Blackened Rust®
Blackened Copper®
Vintage®
Burnt Wood®

View Color Page

Copper Colors

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Streaked Copper®
Speckled Copper®
Streaked Blue Copper®
Speckled Blue Copper®
Copper Patina®
Green Copper®
Aged Copper®
Streaked Blackened Copper®
Black Copper Matte®
Speckled Blackened Copper®
Blackened Copper®
Burnished Slate
Weathered Metallic®
Copper Penny†

View Color Page

Gray Colors

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Burnished Slate
Charcoal Gray
Gun Metal Gray
Patina
Slate Gray
Dolphin Gray
Dove Gray
Ash Gray
Matte Burnished Slate**
Matte Charcoal Gray
Matte Patina
Matte Zinc Metallic
Matte Musket Gray
Matte Slate Gray**
Silver Metallic†
Zinc Metallic†
Vintage®
Black Zinc Matte®
Gray Zinc Matte®
Silver Zinc Matte®
Blue Zinc Matte®
Bonder-Paint® Light
Bonder-Paint® Dark
Bonderized*

View Color Page

Rusted Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Streaked Rust®
Speckled Rust®
Fresh Rust®
Corten AZP Raw®
Rustic Rawhide®
Weathered Rustic®
Weathered Metallic®
Iron Rust®
Antique Rustic®
Reclaimed Metal Rust®
Streaked Galvanized Rust®
Speckled Galvanized Rust®
Speckled Blackened Copper®
Blackened Copper®

View Color Page

View Available Panels

View Color Page

Streaked Series®

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Streaked Rust®
Streaked Blackened Copper®
Streaked Blue Copper®
Streaked Copper®
Streaked Blackened Rust®
Streaked Galvanized Rust®

View Color Page

Zinc Series

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Gray Zinc Matte®
Silver Zinc Matte®
Blue Zinc Matte®
Black Zinc Matte®
Vintage®
Zinc Patina®
Zinc Metallic†®
Matte Musket Gray®
Bonder-Paint® Light
Bonder-Paint® Dark
Bonderized®*
Rezibond®*

View Color Page

Aluminum (Standard Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Aluminum - Mill Finish
Matte Black
Dark Bronze
Charcoal Gray
Almond
Regal White
Fresh Rust®

View Available Panels

Aluminum (Special Order Colors)

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Regal Blue
Slate Blue
Regal Red
Colonial Red
Terra Cotta
Aged Patina
Evergreen
Hartford Green
Medium Bronze
Mansard Brown
Slate Gray
Dove Gray
Ash Gray
Pre-Weathered Galvalume
Sierra Tan
Surrey Beige
Sandstone
Solar White
Stone White
Copper Metallic†
Silver Metallic†

View Available Panels

Copper (20oz/16oz)

Real Copper

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Copper

View Color Page

Product Info

7-8in-corrugated-dims

The roof is arguably the most important surface of any structure. It is under constant assault by the sun, wind, rain, and snow. But choosing the correct corrugated metal roofing or metal siding material for your home, agricultural and industrial building projects should offer more than just protection from the natural elements. It should also offer protection for the environment. Our environmentally friendly 7/8" Corrugated metal roofing panels are now available in several finishes, custom-fit sizes, and premium specialty finishes.

These corrugated roofing panels are as versatile as they are stylish. However, they are not limited to just roofing applications or industrial projects. They can also be used in commercial projects such as metal siding, metal roofing, and for restaurant walls and bar toe kicks. For home improvement projects, suggested uses also include privacy fencing, covered patios, car ports, kitchen island siding, and interior ceilings.

7-8in-corrugated-dims

Color Charts

Trim and Flashing

Ordering Information

matte black corrugated roof walls

Our goal is to earn your trust and provide excellent service at a factory direct price. Check out our Google reviews.

When you place your order with Western States Metal Roofing you can expect the following:

Made to Order Panels - We cut your metal roofing and metal siding panels to the exact lengths needed.
Fast Turnaround - 1 to 3 week lead time.
Shipping Convenience - Inexpensive delivery throughout the USA, Canada, and Mexico
Knowledgeable Sales Associates - Helpful and friendly sales associates that will answer all of your questions.

Get a quote

matte black corrugated roof walls
