The Streaked Series: Painted Corrugated Panels That Look Like Aged Metal

Free download

LOOKING FOR CORRUGATED METAL ROOFING INSTALLATION VIDEOS?

Install Like A Pro

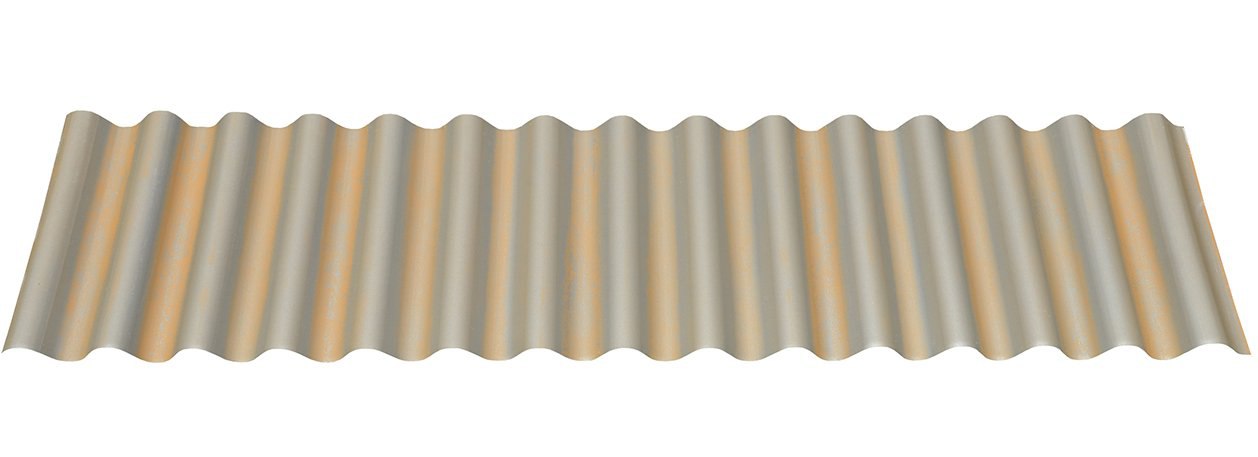

7/8" Corrugated - Streaked Galvanized Rust®

7/8" Corrugated Rustwall Siding - Streaked Galvanized Rust®

7/8" Corrugated - Streaked Galvanized Rust®

7/8" Corrugated - Streaked Galvanized Rust®

Exposed Fastener Metal Roofing Panels

Streaked Galvanized Rust® - 7/8" Corrugated

7/8" Corrugated - Streaked Galvanized Rust®

Streaked Galvanized Rust® is a painted version of an old galvanized corrugated metal roof that has begun to rust. The highs of the corrugations look like a dull and weathered galvanized. The lows of the corrugations are painted to look like orange/brown rust streaks.

Streaked Galvanized Rust® is specifically designed for 7/8" Corrugated. There are different shades of paint within the highs and in the lows of the corrugations. This creates depth and it creates a very realistic paint print. Streaked Galvanized Rust® looks excellent from BOTH up close and from a distance.

Note: Available Panel Profiles: 7/8" Corrugated Only.
Trim and Flashing/Flat Sheets for Streaked Galvanized Rust® are done in the color of Speckled Rust®.

7/8" Corrugated Flashing Details & Trim Part Numbers

View Now

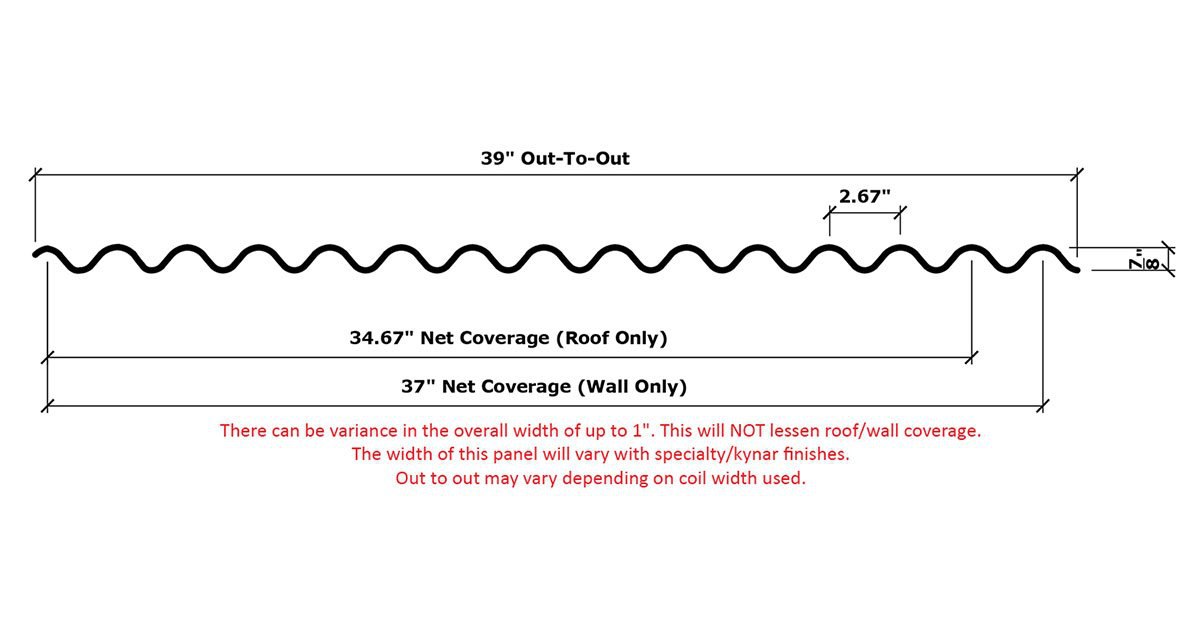

Dimensions

Download Dimensions

Specifications

Material Type: 7/8" Corrugated

Rib Height: 7/8"

Rib Distance (Pitch): 2.67" Pitch

Overall Width: 39" Out to Out may vary depending on coil width used.

Coverage Area (Roof): 34.67"

Coverage Area (Wall): 37"

Available Gauges: 24

Substrate: AZ50 Minimum (Galvalume®/Zincalume®)

Finishes: PVDF Resin Based

Fasteners: Exposed

Panel Length: 1' to 52'

Recommended Minimum Roof Slope: 3/12

Installation:
Can be installed over an open purlin system or a solid substrate. Use bead mastic on the overlap if used for a roofing application.

Product Documents

Product Specifications

Solar Reflectivity Index

Paint Warranties

CAD Details

Field Cutting & Touch Up Paint

Care & Maintenance

See How These Colors Will Look On Your Building

Try Color Visualizer

Standard Colors (PVDF)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Regal Blue
Royal Blue
Slate Blue
Regal Red
Colonial Red
Terra Cotta
Classic Green
Matte Black
Dark Bronze
Medium Bronze
Mansard Brown
Burnished Slate
Silver Metallic†
Zinc Metallic†
Charcoal Gray
Gun Metal Gray
Slate Gray
Dolphin Gray
Dove Gray
Ash Gray
Copper Penny†
Desert Tan
Champagne†
Sandstone
Almond
Bone White
Regal White

View Color Page

Matte Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

*Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Matte Regal White*
Matte Sandstone*
Matte Desert Tan*
Matte Slate Gray*
Matte Musket Gray
Matte Zinc Metallic
Matte Patina
Matte Charcoal Gray
Matte Burnished Slate*
Matte Mansard Brown*
Matte Medium Bronze*
Matte Dark Bronze
Matte Midnight Black
Matte Black
Matte Classic Green*
Matte Colonial Red*
Matte Orange*

View Color Page

SMP Paint Finish

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Polar White
Light Stone
Sahara Tan
Desert Beige
Light Gray
Koko Brown
Emerald Green
Country Red
Steel Gray
Antique Rustic®

View Color Page

Special Order Colors (500 Sq. Ft. Minimum)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Solar White
Stone White
Surrey Beige
Sierra Tan
Aged Patina
Sage Green
Hemlock Green
Hartford Green
Evergreen
Burgundy
Pre-Weathered Galvalume

View Color Page

Additional Finishes

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Galvalume®/ Zincalume®
Galvanized G90
A606-4 (aka Corten®)
Bare Cold Rolled
Bonderized
Black Phosphate®
Rezibond®
Copper
Stainless Steel
Aluminum - Mill Finish

View Color Page

View Available Panels

Black Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Black Zinc Matte®
Black Ore Matte®
Matte Black
Matte Midnight Black
Dark Bronze
Matte Dark Bronze
Medium Bronze
Blackened Steel Matte®
Speckled Blackened Rust®
Streaked Blackened Rust®
Blackened Copper®
Vintage®
Burnt Wood®

View Color Page

Copper Colors

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Streaked Copper®
Speckled Copper®
Streaked Blue Copper®
Speckled Blue Copper®
Copper Patina®
Green Copper®
Aged Copper®
Streaked Blackened Copper®
Black Copper Matte®
Speckled Blackened Copper®
Blackened Copper®
Burnished Slate
Weathered Metallic®
Copper Penny†

View Color Page

Gray Colors

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Burnished Slate
Charcoal Gray
Gun Metal Gray
Patina
Slate Gray
Dolphin Gray
Dove Gray
Ash Gray
Matte Burnished Slate**
Matte Charcoal Gray
Matte Patina
Matte Zinc Metallic
Matte Musket Gray
Matte Slate Gray**
Silver Metallic†
Zinc Metallic†
Vintage®
Black Zinc Matte®
Gray Zinc Matte®
Silver Zinc Matte®
Blue Zinc Matte®
Bonder-Paint® Light
Bonder-Paint® Dark
Bonderized*

View Color Page

Rusted Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Streaked Rust®
Speckled Rust®
Fresh Rust®
Corten AZP Raw®
Rustic Rawhide®
Weathered Rustic®
Weathered Metallic®
Iron Rust®
Antique Rustic®
Reclaimed Metal Rust®
Streaked Galvanized Rust®
Speckled Galvanized Rust®
Speckled Blackened Copper®
Blackened Copper®

View Color Page

View Available Panels

View Color Page

Streaked Series®

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Streaked Rust®
Streaked Blackened Copper®
Streaked Blue Copper®
Streaked Copper®
Streaked Blackened Rust®
Streaked Galvanized Rust®

View Color Page

Zinc Series

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Gray Zinc Matte®
Silver Zinc Matte®
Blue Zinc Matte®
Black Zinc Matte®
Vintage®
Zinc Patina®
Zinc Metallic†®
Matte Musket Gray®
Bonder-Paint® Light
Bonder-Paint® Dark
Bonderized®*
Rezibond®*

View Color Page

Aluminum (Standard Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Aluminum - Mill Finish
Matte Black
Dark Bronze
Charcoal Gray
Almond
Regal White
Fresh Rust®

View Available Panels

Aluminum (Special Order Colors)

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Regal Blue
Slate Blue
Regal Red
Colonial Red
Terra Cotta
Aged Patina
Evergreen
Hartford Green
Medium Bronze
Mansard Brown
Slate Gray
Dove Gray
Ash Gray
Pre-Weathered Galvalume
Sierra Tan
Surrey Beige
Sandstone
Solar White
Stone White
Copper Metallic†
Silver Metallic†

View Available Panels

Copper (20oz/16oz)

Real Copper

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Copper

View Color Page

Product Info

The three main advantages in using Streaked Galvanized Rust® when compared to real rusted roofing are:

Streaked Galvanized Rust® arrives looking weathered. You don NOT have to wait for it to weather.
Real rust will have rust run off and rust stains. Streaked Galvanized Rust® is a painted product so you will NOT have these problems.
Standard Paint Warranty With Streaked Galvanized®. Real Rusted Steel in Corten or Bare Cold Rolled does NOT have a WARRANTY.

Streaked Galvanized Rust® can be used in exterior or interior applications. It is a perfect solution for an interior application as it arrives looking weathered. With real Corten you would have to pre-rust it and than seal it. This takes time and money. You eliminate all of these problems by using Streaked Galvanized Rust® instead of real rusted roofing.

If you are interested in this color I would highly recommend requesting a 7/8" Corrugated sample panel in Streaked Galvanized Rust®. You really need to see this panel up close to appreciate the beauty and authenticity of this paint finish.

Color Charts

Trim and Flashing

Ordering Information

matte black corrugated roof walls

Our goal is to earn your trust and provide excellent service at a factory direct price. Check out our Google reviews.

When you place your order with Western States Metal Roofing you can expect the following:

Made to Order Panels - We cut your metal roofing and metal siding panels to the exact lengths needed.
Fast Turnaround - 1 to 3 week lead time.
Shipping Convenience - Inexpensive delivery throughout the USA, Canada, and Mexico
Knowledgeable Sales Associates - Helpful and friendly sales associates that will answer all of your questions.

Get A Quote

matte black corrugated roof walls

JUST IN CASE YOU FORGOT ABOUT THESE

ITEMS YOU WILL NEED

Roofing Underlayment

Is your metal roofing being installed over wood? If so, you will need roofing underlayment.

Synthetic underlayment provides an extra barrier of protection from water penetration and will protect your home from the elements.

Sharkskin Comp
Sharkskin Ultra
Sharkskin Ultra SA

Learn More

Accessories

Fasteners/Clips
Foam Closures
Fiberglass Panels
Galvanized Square Tube
Trim & Flashings
Snow Retention & Solar Systems
Much More

Learn More

Metal Purlins and Channel

C Purlins, Z Purlins, and Channel

Galvanized
Primed - Red
4” to 12” Deep
14 Gauge - In Stock
Custom Gauges Upon Request

Learn More

Corrugated metal roofing installation videos

EASY Step-By-Step Videos That Will Help You Install 7/8" Corrugated Roofing.

Install like a pro

Do You Have Questions about metal roofing? We have the answers.

The Metal Roofing Learning Center

It's a great resource for contractors, architects, and homeowners.

Easy to navigate learning center with videos and blogs that will answer your questions.

Installation Videos
Panel Comparisons
Cost
Much More

visit now

The Homeowner's Ultimate Guide

Corrugated Metal Roofing

You have lots of questions about corrugated metal roofing. Instead of going through several different articles, we’ve created a comprehensive guide with all the answers in one spot.

Learn more

Articles Direct from the learning center

Which Metal Roofing Panel Is Right For You?

Let your imagination run wild!

Choose Different Textures, Colors, Finishes, and Panel Types On Your Home Before You Decide.

VISUALIZE YOUR BUILDING

Streaked Galvanized Rust® - Corrugated Metal Roofing & Siding

LOOKING FOR CORRUGATED METAL ROOFING INSTALLATION VIDEOS?

Exposed Fastener Metal Roofing Panels

Streaked Galvanized Rust® - 7/8" Corrugated

7/8" Corrugated - Streaked Galvanized Rust®

7/8" Corrugated Flashing Details & Trim Part Numbers

Dimensions

Specifications

Product Documents

See How These Colors Will Look On Your Building

Standard Colors (PVDF)

Matte Colors

SMP Paint Finish

Special Order Colors (500 Sq. Ft. Minimum)

Additional Finishes

Black Colors

Copper Colors

Gray Colors

Rusted Colors

Streaked Series®

Zinc Series

Aluminum (Standard Colors)

Aluminum (Special Order Colors)

Copper (20oz/16oz)

Product Info

Color Charts

Trim and Flashing

Ordering Information

JUST IN CASE YOU FORGOT ABOUT THESE

ITEMS YOU WILL NEED

Corrugated metal roofing installation videos

7/8" Corrugated Metal Roofing Installation

The Metal Roofing Learning Center

Corrugated Metal Roofing

Articles Direct from the learning center

Which Metal Roofing Panel Is Right For You?

Let your imagination run wild!

COLOR & PRODUCT VISUALIZER
