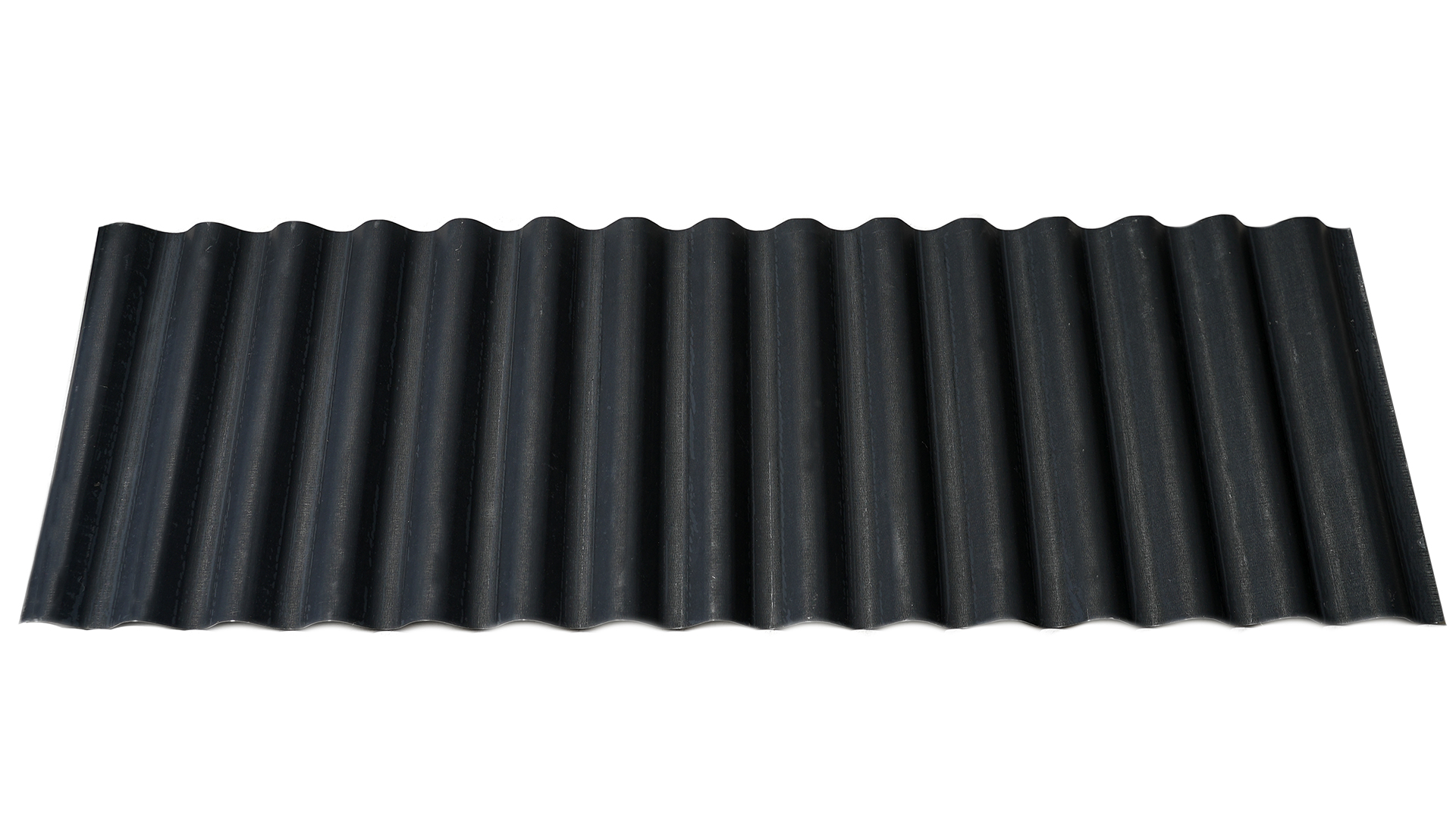

Black Phosphate®
7/8" Corrugated Metal Roofing Sheets

Corrugated metal roofing is both attractive and affordable. It's perfect for your residential or commercial building. Over 100 colors to choose from. Buy 7/8" corrugated roofing sheets directly from the manufacturer and save.

Product Data Available Colors

Is Corrugated Roofing Right For You?

Metal Roof Color Visualizer

Ambiente Hotel in Sedona, Arizona Features T-Groove® metal wall panels in Matte Midnight Black and Corrugated wainscoting in Weathered Rustic®

Ambiente Hotel in Sedona, Arizona Features T-Groove® metal wall panels in Matte Midnight Black and Corrugated wainscoting in Weathered Rustic®

Ambiente Hotel in Sedona, Arizona Features T-Groove® metal wall panels in Matte Midnight Black and Corrugated wainscoting in Weathered Rustic®

Ambiente Hotel in Sedona, Arizona Features T-Groove® metal wall panels in Matte Midnight Black and Corrugated wainscoting in Weathered Rustic®

Ambiente Landscape Hotel Patio Fencing in Corrugated Weathered Rustic®

7/8" Corrugated Cool Ash Gray

7/8" Corrugated Rezibond®, Copper Penny, Light Stone

Matte Black Corrugated

7/8" Corrugated Roofing, Streaked Rust®

7/8" Corrugated Roofing, Rezibond®

7/8" Corrugated Roofing, Weathered Metallic®

7/8" Corrugated Roofing, Galv-Ten Robust®

7/8" Corrugated Roofing, Bonderized®

7/8" Corrugated Roofing, A606-4 (aka Corten)

7/8" Corrugated Siding, Antique Rustic®

Exposed Fastener Metal Roofing Panels

CORRUGATED METAL ROOFING

7/8" Corrugated panel is an old school roofing panel that still has a modern and stylish look. The deep wavy corrugations provide a bold aesthetic and shadow like effect. Corrugated metal sheeting is affordable and it’s easy to install. It’s perfect for both commercial and residential metal roofing and siding projects.

Trim and flashing details installation videos

Quick Links

Color Charts

Installation Guide

Product Data Sheets

Product Specifications

Trim & Flashings

Product Specifications

7/8" Corrugated Metal Roofing Panel

Dimensions

View Panel Dimensions Installation Details

Rib Height: 7/8"

Rib Distance (Pitch): 2.67"

Overall Width:

39" Typical For PVDF Paint Finishes
37” Typical For SMP Paint Finishes

Coverage Area (Roof)

34.67" Typical For PVDF Paint Finishes
32” Typical For SMP Paint Finishes

Coverage Area (Wall)

37" Typical For PVDF Paint Finishes
34.67” Typical For SMP Paint Finishes

Panel Length: 1' to 52'

Product Data

Material Type:

7/8" Corrugated Metal Roofing and Siding

Available Gauges:

20, 22, 24, 26

Installation

Corrugated metal can be installed over an open purlin system or a solid substrate. Use bead mastic on the overlap if used for a roofing application.

Minimum Roof Slope:

3/12

Fasteners:

Exposed Fasteners

Applications:

Residential
Commercial
Agricultural
Interior

Product Documents

Field Cutting & Touch Up Paint

Product Specifications

Solar Reflectivity Index

UL Report

Uplift Charts

More Than 100 colors to choose from in corrugated metal

Available Colors for
Corrugated Metal Roofing and Wall Panels

Besides the typical solid colors found almost everywhere else, we are best known for our specialty paint prints. These are colors that have been painted repeatedly giving the finish depth, texture, and a one of a kind design.

The drop down menu below groups these metal roofing colors and styles into categories - making it easier for you to find.

Standard Colors (PVDF)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Regal Blue
Royal Blue
Slate Blue
Regal Red
Colonial Red
Terra Cotta
Classic Green
Matte Black
Dark Bronze
Medium Bronze
Mansard Brown
Burnished Slate
Silver Metallic†
Zinc Metallic†
Charcoal Gray
Gun Metal Gray
Slate Gray
Dolphin Gray
Dove Gray
Ash Gray
Copper Penny†
Desert Tan
Champagne†
Sandstone
Almond
Bone White
Regal White

View Color Page

Matte Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

*Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Matte Regal White*
Matte Sandstone*
Matte Desert Tan*
Matte Slate Gray*
Matte Musket Gray
Matte Zinc Metallic
Matte Patina
Matte Charcoal Gray
Matte Burnished Slate*
Matte Mansard Brown*
Matte Medium Bronze*
Matte Dark Bronze
Matte Midnight Black
Matte Black
Matte Classic Green*
Matte Colonial Red*
Matte Orange*

View Color Page

SMP Paint Finish

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Polar White
Light Stone
Sahara Tan
Desert Beige
Light Gray
Koko Brown
Emerald Green
Country Red
Steel Gray
Antique Rustic®

View Color Page

Special Order Colors (500 Sq. Ft. Minimum)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Solar White
Stone White
Surrey Beige
Sierra Tan
Aged Patina
Sage Green
Hemlock Green
Hartford Green
Evergreen
Burgundy
Pre-Weathered Galvalume

View Color Page

Additional Finishes

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Galvalume®/ Zincalume®
Galvanized G90
A606-4 (aka Corten®)
Bare Cold Rolled
Bonderized
Black Phosphate®
Rezibond®
Copper
Stainless Steel
Aluminum - Mill Finish

View Color Page

View Available Panels

Black Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Black Zinc Matte®
Black Ore Matte®
Matte Black
Matte Midnight Black
Dark Bronze
Matte Dark Bronze
Medium Bronze
Blackened Steel Matte®
Speckled Blackened Rust®
Streaked Blackened Rust®
Blackened Copper®
Vintage®
Burnt Wood®

View Color Page

Copper Colors

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Streaked Copper®
Speckled Copper®
Streaked Blue Copper®
Speckled Blue Copper®
Copper Patina®
Green Copper®
Aged Copper®
Streaked Blackened Copper®
Black Copper Matte®
Speckled Blackened Copper®
Blackened Copper®
Burnished Slate
Weathered Metallic®
Copper Penny†

View Color Page

Gray Colors

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Burnished Slate
Charcoal Gray
Gun Metal Gray
Patina
Slate Gray
Dolphin Gray
Dove Gray
Ash Gray
Matte Burnished Slate**
Matte Charcoal Gray
Matte Patina
Matte Zinc Metallic
Matte Musket Gray
Matte Slate Gray**
Silver Metallic†
Zinc Metallic†
Vintage®
Black Zinc Matte®
Gray Zinc Matte®
Silver Zinc Matte®
Blue Zinc Matte®
Bonder-Paint® Light
Bonder-Paint® Dark
Bonderized*

View Color Page

Rusted Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Streaked Rust®
Speckled Rust®
Fresh Rust®
Corten AZP Raw®
Rustic Rawhide®
Weathered Rustic®
Weathered Metallic®
Iron Rust®
Antique Rustic®
Reclaimed Metal Rust®
Streaked Galvanized Rust®
Speckled Galvanized Rust®
Speckled Blackened Copper®
Blackened Copper®

View Color Page

View Available Panels

View Color Page

Streaked Series®

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Streaked Rust®
Streaked Blackened Copper®
Streaked Blue Copper®
Streaked Copper®
Streaked Blackened Rust®
Streaked Galvanized Rust®

View Color Page

Zinc Series

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Gray Zinc Matte®
Silver Zinc Matte®
Blue Zinc Matte®
Black Zinc Matte®
Vintage®
Zinc Patina®
Zinc Metallic†®
Matte Musket Gray®
Bonder-Paint® Light
Bonder-Paint® Dark
Bonderized®*
Rezibond®*

View Color Page

Aluminum (Standard Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Aluminum - Mill Finish
Matte Black
Dark Bronze
Charcoal Gray
Almond
Regal White
Fresh Rust®

View Available Panels

Aluminum (Special Order Colors)

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Regal Blue
Slate Blue
Regal Red
Colonial Red
Terra Cotta
Aged Patina
Evergreen
Hartford Green
Medium Bronze
Mansard Brown
Slate Gray
Dove Gray
Ash Gray
Pre-Weathered Galvalume
Sierra Tan
Surrey Beige
Sandstone
Solar White
Stone White
Copper Metallic†
Silver Metallic†

View Available Panels

Copper (20oz/16oz)

Real Copper

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Copper

View Color Page

Ordering Information

Our goal is to earn your trust and provide excellent service at a factory direct price. Check out our Google reviews.

When you place your order with Western States Metal Roofing you can expect the following:

Made to Order Panels - We cut your metal roofing and metal siding panels to the exact lengths needed.
Fast Turnaround - 1 to 3 week lead time.
Shipping Convenience - Inexpensive delivery throughout the USA, Canada, and Mexico
Knowledgeable Sales Associates - Helpful and friendly sales associates that will answer all of your questions.

Get A Quote

Corrugated Metal Roofing FAQs

If you have questions about corrugated metal roofing, then we have the answers. Check out the Metal Roofing Learning Center or these FAQ's

What Is Corrugated Metal Roofing?

How Long Does A Corrugated Metal Roof Last?

What Is The Price Of Corrugated Metal?

Are Corrugated Metal Roofs Expensive?

Is Corrugated Metal Good For Roofing?

How Is A Corrugated Metal Roof Installed?

Is It OK To Overlap Metal Roofing?

What Is The Minimum Pitch For A Corrugated Metal Roof?

Can You Bend Corrugated Metal Roofing?

What Gauge Metal Is Used For Corrugated Metal Roofing?

Does Corrugated Metal Rust?

How Is A Corrugated Metal Roof Different Than A Standing Seam Metal Roof?

Can A Corrugated Metal Panel Be Used For Corrugated Siding?

How Does R Panel Compare to 7/8" Corrugated?

The Homeowner's Ultimate Guide

Corrugated Metal Roofing

You have lots of questions about corrugated metal roofs. Instead of going through several different articles, we’ve created a comprehensive guide with all the answers in one spot.

Claim Your Free Copy Today!

Watch This Video

More Ways To Use Corrugated Metal Panels

Corrugated roofs are a low cost, easy to install roofing material. At half the cost of standing seam metal roofing and a lifespan that is 2-3 times as long as an asphalt shingle roof, a corrugated metal roof brings exceptional value.

Besides corrugated metal panels being a great choice for roofing, you can now find corrugated metal being used in popular design styles of today like farmhouse and industrial. The grooves of the corrugations on the panels add texture while the color choices are abundant, making design possibilities nearly endless.

Corrugated steel panels or corrugated sheet can be used on a ceiling, fence, wainscoting, or as a metal siding or accent wall panel.

Play Video

Articles Direct from the learning center

Which Metal Roofing Panel Is Right For You?

Is A Corrugated Metal Roof Right For Your House?

Corrugated metal roofing is a popular choice for residential homes, but it's not right for everyone.

An in depth video that explains the pros and cons of corrugated metal roofing. By the end of this video you will know if it's a good or bad fit for your project.

View Now
