Exposed Fastener Metal Roofing Panels

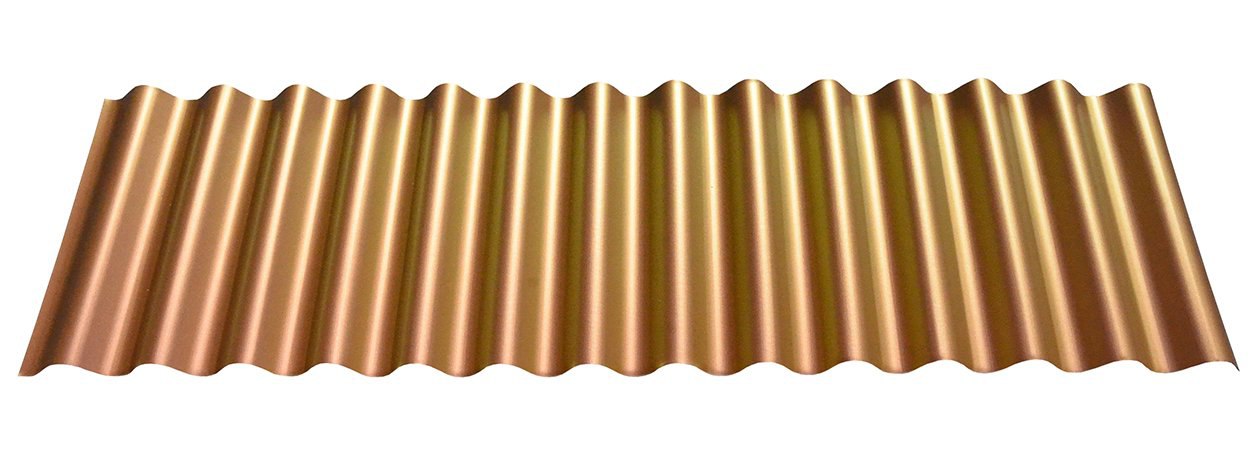

7/8" CORRUGATED - MESA SUNRISE

Imagine a roof or wall whose color shifts subtly from rich red/blue copper to green gold, and finally to gold brown. That's Vari-Cool's Mesa Sunrise in action. Good in stock so there are no minimum ordering requirements. Available in coil, flats, metal roofing and metal wall panels.

get a quote

7/8" Corrugated Flashing Details & Trim Part Numbers

View Now

Product Data

Material Type: 7/8" Corrugated

Rib Height: 7/8"

Rib Distance (Pitch): 2.67" Pitch

Overall Width: 39" Out to Out may vary depending on coil width used.

Coverage Area (Roof): 34.67"

Coverage Area (Wall): 37"

Available Gauges: 24

Substrate: AZ50 Minimum (Galvalume®/Zincalume®)

Finishes: PVDF Resin Based

Fasteners: Exposed

Panel Length: 1' to 52'

Recommended Minimum Roof Slope: 3/12

Installation:
Can be installed over an open purlin system or a solid substrate. Use bead mastic on the overlap if used for a roofing application.
