Corrugated Metal Roofing & Siding - Galvalume® AZ50

Get a Quote Free Metal Samples

Is Corrugated Roofing Right For You?
How Much Does Corrugated Cost?

LOOKING FOR CORRUGATED METAL ROOFING INSTALLATION VIDEOS?

install like a pro

Exposed Fastener Metal Roofing Panels

7/8" CORRUGATED - GALVALUME® AZ50

get a quote

7/8" Corrugated Flashing Details & Trim Part Numbers

view now

Product Data

Material Type: 7/8" Corrugated

Rib Distance (Pitch): 2.67" Pitch

Rib Height: 7/8"

Available Gauges: 20, 22, 24, 26

Substrate: AZ50 Minimum (Galvalume®/Zincalume®)

Fasteners: Exposed

Panel Length: 1' to 52'

Recommended Minimum
Roof Slope: 3/12

Installation
Can be installed over an open purlin system or a solid substrate.
Use bead mastic on the overlap if used for a roofing application.

Overall Width
37" Typical for Standard Solid Colors in SMP and PVDF Paint Finishes
Specialty Paint Prints and Finishes Vary. See Graph.

Coverage Area (Roof)
32" Typical for Standard Solid Colors in SMP and PVDF Paint Finishes
Specialty Paint Prints and Finishes Vary. See Graph.

Coverage Area (Wall)
34.67" Typical for Standard Solid Colors in SMP and PVDF Paint Finishes
Specialty Paint Prints and Finishes Vary. See Graph.

Applications
Residential
Commercial
Agricultural
Interior

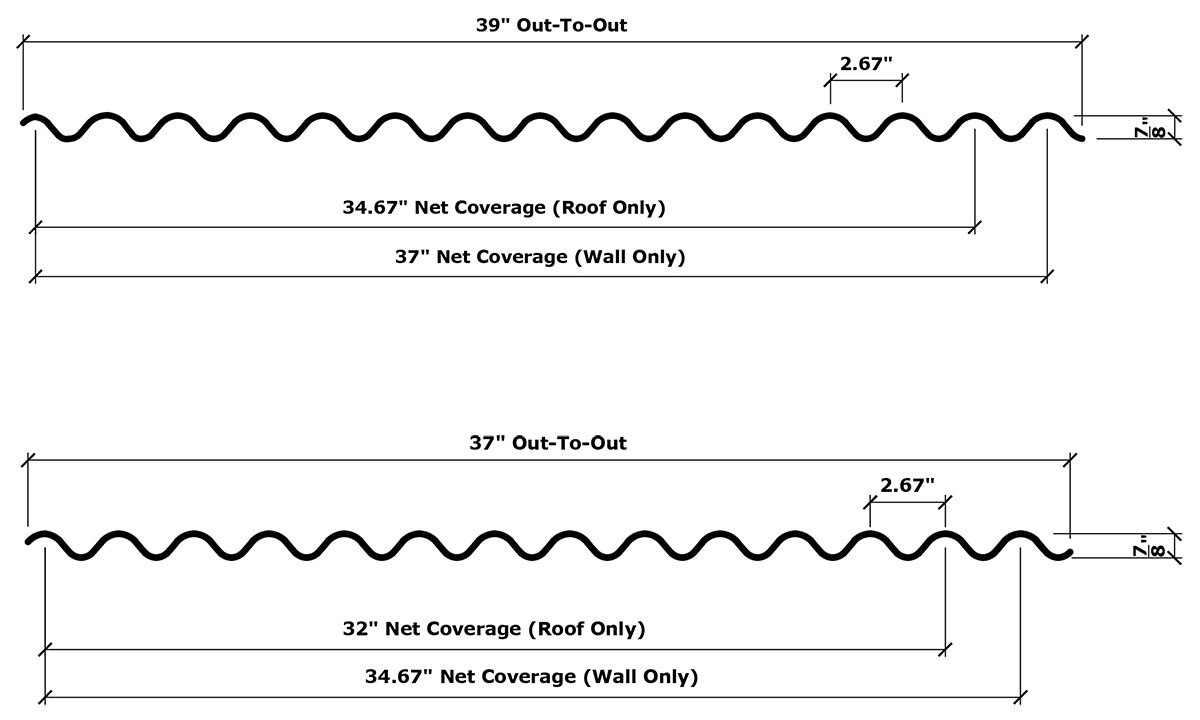

corrugated-line-drawing-39-37

PRODUCT DOCUMENTS

Installation Guide

Fastener Placement

Product Data Sheets

UL Report

Load Charts

Uplift Charts

Class A Fire Rating

Product Specifications

Solar Reflectivity Index

Paint Warranties

CAD Details

Field Cutting & Touch Up Paint

Care & Maintenance

See How These Colors Will Look On Your Building

try color visualizer

Standard Colors (PVDF)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Regal Blue Image
  • Royal Blue Image
  • Slate Blue Image
  • Regal Red Image
  • Colonial Red Image
  • Terra Cotta Image
  • Classic Green Image
  • Matte Black Image
  • Dark Bronze Image
  • Medium Bronze Image
  • Mansard Brown Image
  • Burnished Slate Image
  • Silver Metallic† Image
  • Zinc Metallic† Image
  • Charcoal Gray Image
  • Gun Metal Gray Image
  • Slate Gray Image
  • Dolphin Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Copper Penny† Image
  • Desert Tan Image
  • Champagne† Image
  • Sandstone Image
  • Almond Image
  • Bone White Image
  • Regal White Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Matte Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

*Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Matte Regal White* Image
  • Matte Sandstone* Image
  • Matte Desert Tan* Image
  • Matte Slate Gray* Image
  • Matte Musket Gray Image
  • Matte Zinc Metallic Image
  • Matte Patina Image
  • Matte Charcoal Gray Image
  • Matte Burnished Slate* Image
  • Matte Mansard Brown* Image
  • Matte Medium Bronze* Image
  • Matte Dark Bronze Image
  • Matte Midnight Black Image
  • Matte Black Image
  • Matte Classic Green* Image
  • Matte Colonial Red* Image
  • Matte Orange* Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

SMP Paint Finish

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Polar White Image
  • Light Stone Image
  • Sahara Tan Image
  • Desert Beige Image
  • Light Gray Image
  • Koko Brown Image
  • Emerald Green Image
  • Country Red Image
  • Steel Gray Image
  • Antique Rustic® Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Special Order Colors (500 Sq. Ft. Minimum)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Solar White Image
  • Stone White Image
  • Surrey Beige Image
  • Sierra Tan Image
  • Aged Patina Image
  • Sage Green Image
  • Hemlock Green Image
  • Hartford Green Image
  • Evergreen Image
  • Burgundy Image
  • Pre-Weathered Galvalume Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Additional Finishes

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Galvalume®/ Zincalume® Image
  • Galvanized G90 Image
  • A606-4 (aka Corten®) Image
  • Bare Cold Rolled Image
  • Bonderized Image
  • Black Phosphate® Image
  • Rezibond® Image
  • Copper Image
  • Stainless Steel Image
  • Aluminum - Mill Finish Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Available Panels

Black Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Black Zinc Matte® Image
  • Black Ore Matte® Image
  • Matte Black Image
  • Matte Midnight Black Image
  • Dark Bronze Image
  • Matte Dark Bronze Image
  • Medium Bronze Image
  • Blackened Steel Matte® Image
  • Speckled Blackened Rust® Image
  • Streaked Blackened Rust® Image
  • Blackened Copper® Image
  • Vintage® Image
  • Burnt Wood® Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Copper Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Streaked Copper® Image
  • Speckled Copper® Image
  • Streaked Blue Copper® Image
  • Speckled Blue Copper® Image
  • Copper Patina® Image
  • Green Copper® Image
  • Aged Copper® Image
  • Streaked Blackened Copper® Image
  • Black Copper Matte® Image
  • Speckled Blackened Copper® Image
  • Blackened Copper® Image
  • Burnished Slate Image
  • Weathered Metallic® Image
  • Copper Penny† Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Gray Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

* Not A Paint Finish

** Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Burnished Slate Image
  • Charcoal Gray Image
  • Gun Metal Gray Image
  • Patina Image
  • Slate Gray Image
  • Dolphin Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Matte Burnished Slate** Image
  • Matte Charcoal Gray Image
  • Matte Patina Image
  • Matte Zinc Metallic Image
  • Matte Musket Gray Image
  • Matte Slate Gray** Image
  • Silver Metallic† Image
  • Zinc Metallic† Image
  • Vintage® Image
  • Black Zinc Matte® Image
  • Gray Zinc Matte® Image
  • Silver Zinc Matte® Image
  • Blue Zinc Matte® Image
  • Bonder-Paint® Light Image
  • Bonder-Paint® Dark Image
  • Bonderized* Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Rusted Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Streaked Rust® Image
  • Speckled Rust® Image
  • Fresh Rust® Image
  • Corten AZP Raw® Image
  • Rustic Rawhide® Image
  • Weathered Rustic® Image
  • Weathered Metallic® Image
  • Iron Rust® Image
  • Antique Rustic® Image
  • Reclaimed Metal Rust® Image
  • Streaked Galvanized Rust® Image
  • Speckled Galvanized Rust® Image
  • Speckled Blackened Copper® Image
  • Blackened Copper® Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Available Panels
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Streaked Series®

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Streaked Rust® Image
  • Streaked Blackened Copper® Image
  • Streaked Blue Copper® Image
  • Streaked Copper® Image
  • Streaked Blackened Rust® Image
  • Streaked Galvanized Rust® Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Zinc Series

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Gray Zinc Matte® Image
  • Silver Zinc Matte® Image
  • Blue Zinc Matte® Image
  • Black Zinc Matte® Image
  • Vintage® Image
  • Zinc Patina® Image
  • Zinc Metallic†® Image
  • Matte Musket Gray® Image
  • Bonder-Paint® Light Image
  • Bonder-Paint® Dark Image
  • Bonderized®* Image
  • Rezibond®* Image
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page
Image View Color Page

Aluminum (Standard Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Aluminum - Mill Finish Image
  • Matte Black Image
  • Dark Bronze Image
  • Charcoal Gray Image
  • Almond Image
  • Regal White Image
  • Fresh Rust® Image
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels

Aluminum (Special Order Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card



Hide List of Colors Show Colors as List

  • Regal Blue Image
  • Slate Blue Image
  • Regal Red Image
  • Colonial Red Image
  • Terra Cotta Image
  • Aged Patina Image
  • Evergreen Image
  • Hartford Green Image
  • Medium Bronze Image
  • Mansard Brown Image
  • Slate Gray Image
  • Dove Gray Image
  • Ash Gray Image
  • Pre-Weathered Galvalume Image
  • Sierra Tan Image
  • Surrey Beige Image
  • Sandstone Image
  • Solar White Image
  • Stone White Image
  • Copper Metallic† Image
  • Silver Metallic† Image
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels
Image View Available Panels

Copper (20oz/16oz)

Real Copper

Click the dropdown menu to explore more color options for this panel type.

Download Color Card





Hide List of Colors Show Colors as List

  • Copper Image
Image View Color Page

Product Info

galvalume-corrugated

The roof is arguably the most important surface of any structure. It is under constant assault by the sun, wind, rain, and snow. But choosing the correct corrugated metal roofing or metal siding material for your home, agricultural and industrial building projects should offer more than just protection from the natural elements. It should also offer protection for the environment. Our environmentally friendly 7/8" Corrugated metal roofing panels are now available in several finishes, custom-fit sizes, and premium specialty finishes.

These corrugated roofing panels are as versatile as they are stylish. However, they are not limited to just roofing applications or industrial projects. They can also be used in commercial projects such as metal siding, metal roofing, and for restaurant walls and bar toe kicks. For home improvement projects, suggested uses also include privacy fencing, covered patios, car ports, kitchen island siding, and interior ceilings.

galvalume-corrugated

Color Charts

Trim and Flashing

Ordering Information

matte black corrugated roof walls

Our goal is to earn your trust and provide excellent service at a factory direct price. Check out our Google reviews.

When you place your order with Western States Metal Roofing you can expect the following:

  • Made to Order Panels - We cut your metal roofing and metal siding panels to the exact lengths needed.
  • Fast Turnaround - 1 to 3 week lead time.
  • Shipping Convenience - Inexpensive delivery throughout the USA, Canada, and Mexico
  • Knowledgeable Sales Associates - Helpful and friendly sales associates that will answer all of your questions.

get a quote

matte black corrugated roof walls

JUST IN CASE YOU FORGOT ABOUT THESE

ITEMS THAT YOU WILL NEED


Roofing Underlayment

Is your metal roofing being installed over wood? If so, you will need roofing underlayment.

Synthetic underlayment provides an extra barrier of protection from water penetration and will protect your home from the elements.

  • Sharkskin Comp
  • Sharkskin Ultra
  • Sharkskin Ultra SA

Learn More


Accessories

  • Fasteners/Clips
  • Foam Closures
  • Fiberglass Panels
  • Galvanized Square Tube
  • Trim & Flashings
  • Snow Retention & Solar Systems
  • Much More

Learn More


Metal Purlins and Channel

C Purlins, Z Purlins, and Channel

  • Galvanized
  • Primed - Red
  • 4” to 12” Deep
  • 14 Gauge - In Stock
  • Custom Gauges Upon Request

Learn More

Corrugated metal roofing installation videos

7/8" Corrugated Metal Roofing Installation

EASY Step-By-Step Videos That Will Help You Install 7/8" Corrugated Roofing.

Install like a pro

Do You Have Questions about metal roofing? We have the answers.

The Metal Roofing Learning Center

It's a great resource for contractors, architects, and homeowners.

Easy to navigate learning center with videos and blogs that will answer your questions.

  • Installation Videos
  • Panel Comparisons
  • Cost
  • Much More

visit now

metal-roofing-learning-center
The Homeowner's Ultimate Guide

Corrugated Metal Roofing

You have lots of questions about corrugated metal roofing. Instead of going through several different articles, we’ve created a comprehensive guide with all the answers in one spot.

Learn more

corrugated-guide
Articles Direct from the learning center

Which Metal Roofing Panel Is Right For You?


Corrugated Metal Roofing v. Standing Seam (Advantages & Disadvantages)

Deciding between a corrugated or standing seam metal roof? We discuss the pros and cons of both panel types including cost, appearance, and performance.

Learn More


Corrugated Metal Roofing v. R-Panel (PBR): The Key Differences

Are you deciding between corrugated or r-panel for your metal roof? We discuss the pros and cons of the panels including cost, appearance, and performance.

Learn More


⅞” Corrugated vs ½” Corrugated: Which Metal Roofing Panel Is Best?

What is the difference between ⅞” corrugated and ½” corrugated metal roofing? A comparison of cost, panel strength, installation, color, and panel lengths.

Learn More


What Gauge Metal Roofing Should I Use For My Corrugated Roof?

Looking for the correct gauge for your corrugated metal roof? We discuss how metal gauge affects installation and compare the different gauges.

Learn More


Best Paint For My Metal Roof Panels: SMP Paint v PVDF

Deciding on a paint finish for your metal roof? We compare SMP and PVDF paint systems for metal roofing based on cost, warranty, performance, and more.

Learn More


Metal Roofing Colors: 5 Tips To Pick The Best Metal Roofing Color

We discuss 5 tips for picking the best metal roofing color including panel type, choosing PVDF or SMP paint systems, available finishes, and much more.

Learn More

Let your imagination run wild!

COLOR & PRODUCT VISUALIZER

Choose Different Textures, Colors, Finishes, and Panel Types On Your Home Before You Decide.

VISUALIZE YOUR BUILDING
