7/8" CORRUGATED - ANTIQUE RUSTIC®

Antique Rustic® Is The Least Expensive Painted Version Of Rust. This is accomplished by supplying the steel in 26 gauge instead of 24 gauge. In addition, this panel is an SMP paint finish instead of a PVDF paint finish. We use a high quality SMP paint with a limited 25 year paint warranty. In most applications the 26 gauge material has plenty of strength also. This is the perfect panel for the job with a tight budget. Typical cost savings of appx. 50 % vs. a PVDF paint print in 24 gauge. Antique Rustic® is designed to look like an old and rusty roof that has orange and brown rust spots. Available in metal roofing/siding, flats and coil.

get a quote

7/8" Corrugated Flashing Details & Trim Part Numbers

View Now

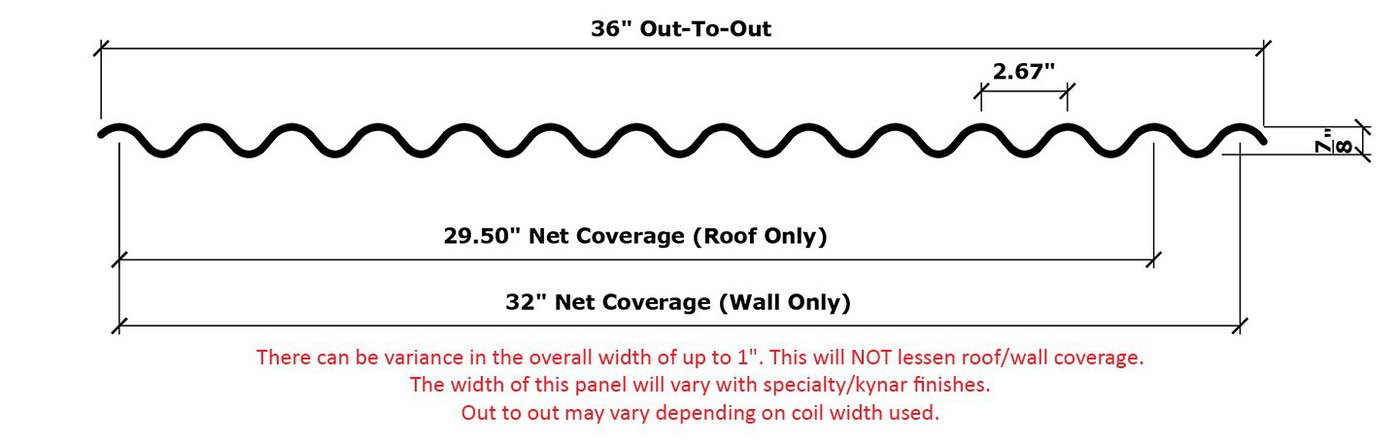

Product Data

Material Type: 7/8" Corrugated Metal Roofing and Siding

Rib Distance (Pitch): 2.67" Pitch

Rib Height: 7/8"

Available Gauges: 26

Fasteners: Exposed

Panel Length: 1' to 52'

Recommended Minimum Roof Slope: 3/12

Installation:
Can be installed over an open purlin system or a solid substrate. Use bead mastic on the overlap if used for a roofing application.

Overall Width: 34.75" Out to Out may vary depending on coil width used.

Coverage Area (Roof): 29.5"

Coverage Area (Wall): 32"

Substrate: AZ50 Minimum (Galvalume®/Zincalume®)

Finishes: SMP Paint Finish

Applications
Residential
Commercial
Agricultural
Interior

PRODUCT DOCUMENTS

Product Specifications

Solar Reflectivity Index

Paint Warranty

CAD Details

Field Cutting & Touch Up Paint

Care & Maintenance

See How These Colors Will Look On Your Building

Try Color Visualizer

Standard Colors (PVDF)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Regal Blue
Royal Blue
Slate Blue
Regal Red
Colonial Red
Terra Cotta
Classic Green
Matte Black
Dark Bronze
Medium Bronze
Mansard Brown
Burnished Slate
Silver Metallic†
Zinc Metallic†
Charcoal Gray
Gun Metal Gray
Slate Gray
Dolphin Gray
Dove Gray
Ash Gray
Copper Penny†
Desert Tan
Champagne†
Sandstone
Almond
Bone White
Regal White

View Color Page

Matte Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

*Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Matte Regal White*
Matte Sandstone*
Matte Desert Tan*
Matte Slate Gray*
Matte Musket Gray
Matte Zinc Metallic
Matte Patina
Matte Charcoal Gray
Matte Burnished Slate*
Matte Mansard Brown*
Matte Medium Bronze*
Matte Dark Bronze
Matte Midnight Black
Matte Black
Matte Classic Green*
Matte Colonial Red*
Matte Orange*

View Color Page

SMP Paint Finish

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Polar White
Light Stone
Sahara Tan
Desert Beige
Light Gray
Koko Brown
Emerald Green
Country Red
Steel Gray
Antique Rustic®

View Color Page

Special Order Colors (500 Sq. Ft. Minimum)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Solar White
Stone White
Surrey Beige
Sierra Tan
Aged Patina
Sage Green
Hemlock Green
Hartford Green
Evergreen
Burgundy
Pre-Weathered Galvalume

View Color Page

Additional Finishes

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Galvalume®/ Zincalume®
Galvanized G90
A606-4 (aka Corten®)
Bare Cold Rolled
Bonderized
Black Phosphate®
Rezibond®
Copper
Stainless Steel
Aluminum - Mill Finish

View Color Page

View Available Panels

Black Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Black Zinc Matte®
Black Ore Matte®
Matte Black
Matte Midnight Black
Dark Bronze
Matte Dark Bronze
Medium Bronze
Blackened Steel Matte®
Speckled Blackened Rust®
Streaked Blackened Rust®
Blackened Copper®
Vintage®
Burnt Wood®

View Color Page

Copper Colors

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Streaked Copper®
Speckled Copper®
Streaked Blue Copper®
Speckled Blue Copper®
Copper Patina®
Green Copper®
Aged Copper®
Streaked Blackened Copper®
Black Copper Matte®
Speckled Blackened Copper®
Blackened Copper®
Burnished Slate
Weathered Metallic®
Copper Penny†

View Color Page

Gray Colors

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Burnished Slate
Charcoal Gray
Gun Metal Gray
Patina
Slate Gray
Dolphin Gray
Dove Gray
Ash Gray
Matte Burnished Slate**
Matte Charcoal Gray
Matte Patina
Matte Zinc Metallic
Matte Musket Gray
Matte Slate Gray**
Silver Metallic†
Zinc Metallic†
Vintage®
Black Zinc Matte®
Gray Zinc Matte®
Silver Zinc Matte®
Blue Zinc Matte®
Bonder-Paint® Light
Bonder-Paint® Dark
Bonderized*

View Color Page

Rusted Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Streaked Rust®
Speckled Rust®
Fresh Rust®
Corten AZP Raw®
Rustic Rawhide®
Weathered Rustic®
Weathered Metallic®
Iron Rust®
Antique Rustic®
Reclaimed Metal Rust®
Streaked Galvanized Rust®
Speckled Galvanized Rust®
Speckled Blackened Copper®
Blackened Copper®

View Color Page

View Available Panels

View Color Page

Streaked Series®

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Streaked Rust®
Streaked Blackened Copper®
Streaked Blue Copper®
Streaked Copper®
Streaked Blackened Rust®
Streaked Galvanized Rust®

View Color Page

Zinc Series

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Gray Zinc Matte®
Silver Zinc Matte®
Blue Zinc Matte®
Black Zinc Matte®
Vintage®
Zinc Patina®
Zinc Metallic†®
Matte Musket Gray®
Bonder-Paint® Light
Bonder-Paint® Dark
Bonderized®*
Rezibond®*

View Color Page

Aluminum (Standard Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Aluminum - Mill Finish
Matte Black
Dark Bronze
Charcoal Gray
Almond
Regal White
Fresh Rust®

View Available Panels

Aluminum (Special Order Colors)

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Regal Blue
Slate Blue
Regal Red
Colonial Red
Terra Cotta
Aged Patina
Evergreen
Hartford Green
Medium Bronze
Mansard Brown
Slate Gray
Dove Gray
Ash Gray
Pre-Weathered Galvalume
Sierra Tan
Surrey Beige
Sandstone
Solar White
Stone White
Copper Metallic†
Silver Metallic†

View Available Panels

Copper (20oz/16oz)

Real Copper

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Copper

View Color Page

Product Info

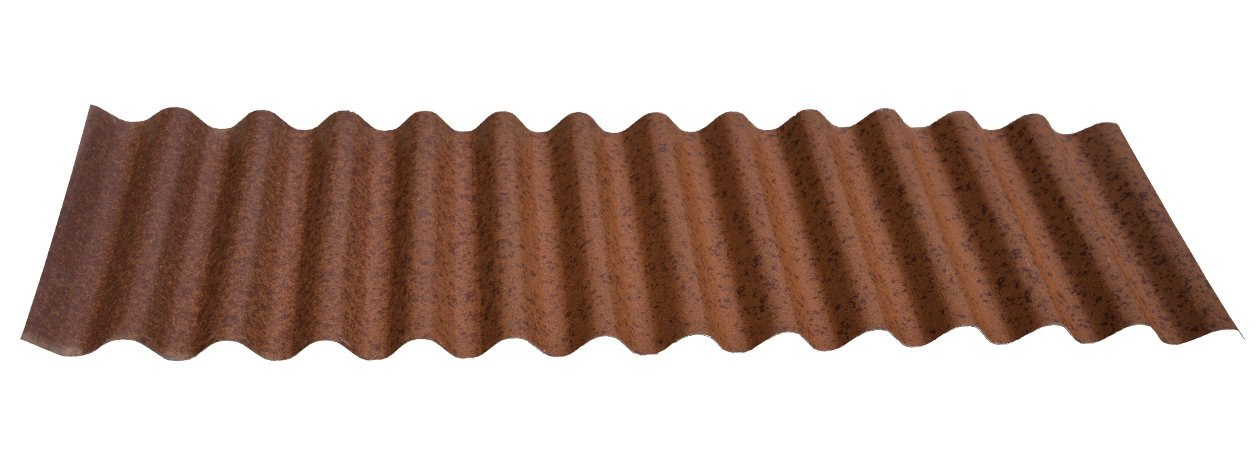

78-corrugated-antique-rustic-panel-profile_b

The three main advantages in using Antique Rustic® when compared to real rusted roofing are:

Antique Rustic® arrives looking weathered. You don NOT have to wait for it to weather like real corten.
Real Corten will have rust run off and rust stains. Antique Rustic® is a painted product so you will NOT have these problems.
Standard Paint Warranty With Antique Rustic ®. Real Rusted Steel in Corten or Bare Cold Rolled does NOT have a WARRANTY.

Antique Rustic® can be used in exterior or interior applications. It is a perfect solution for an interior application as it arrives looking weathered. With real Corten you would have to pre-rust it and than seal it. This takes time and money. You eliminate all of these problems by using Antique Rustic ® instead of Corten.

If you are interested in this color I would highly recommend requesting a 7/8" Corrugated sample panel in Antique Rustic®. You really need to see this panel up close to appreciate the beauty and authenticity of this paint finish.

78-corrugated-antique-rustic-panel-profile_b

Color Charts

Trim and Flashing

Ordering Information

matte black corrugated roof walls

Our goal is to earn your trust and provide excellent service at a factory direct price. Check out our Google reviews.

When you place your order with Western States Metal Roofing you can expect the following:

Made to Order Panels - We cut your metal roofing and metal siding panels to the exact lengths needed.
Fast Turnaround - 1 to 3 week lead time.
Shipping Convenience - Inexpensive delivery throughout the USA, Canada, and Mexico
Knowledgeable Sales Associates - Helpful and friendly sales associates that will answer all of your questions.

get a quote

matte black corrugated roof walls
