Standing Seam - Bonderized®

Western Lock® Standing Seam - Bonderized®

Standing Seam - Bonderized®

Standing Seam - Bonderized®

4-Bonderized-Corrugated-Vintage-Standing-Seam

Standing Seam - Bonderized®

Standing Seam - Bonderized®

Western Rib® - Bonderized®

7/8" Corrugated - Bonderized®

7/8" Corrugated - Bonderized®

7/8" Corrugated - Bonderized®

7/8" Corrugated - Bonderized®

7/8" Corrugated - Bonderized®

7/8" Corrugated - Bonderized®

7/8" Corrugated - Bonderized®

7/8" Corrugated - Bonderized®

7/8" Corrugated - Bonderized®

11-Bonderized-Corrugated-Vintage-Standing-Seam

7/8" Corrugated - Bonderized®

7/8" Corrugated - Bonderized®

7/8" Corrugated - Bonderized®

Snap Lock Panels With Clips & Concealed Fasteners

Western Lock® Standing Seam - Bonderized®

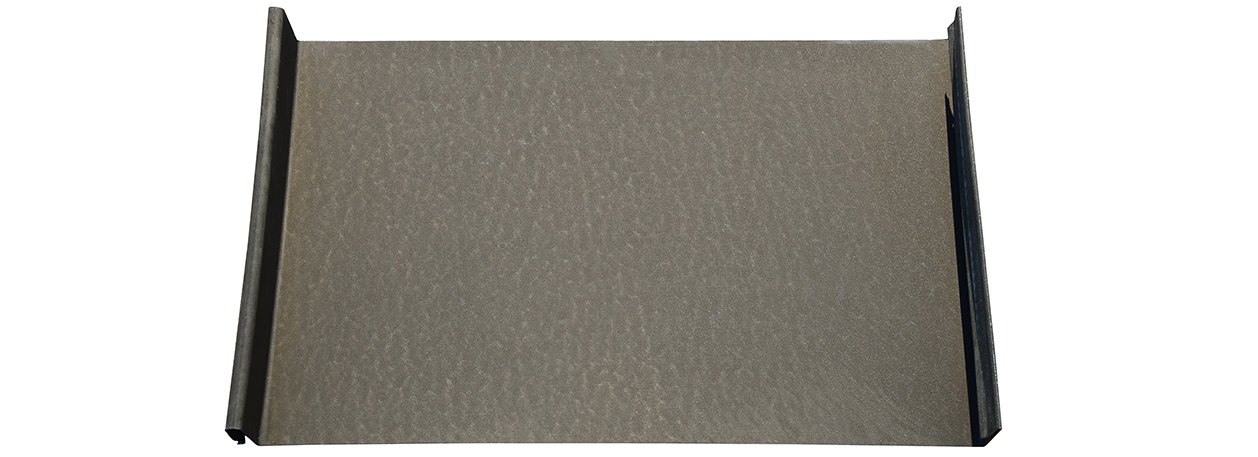

standing-seam-bonderized-panel

Bonderized has a similar appearance to weathered zinc or an old galvanized standing seam roof. It was developed because it is easier to paint than galvanized and many other finishes. However, in recent years architects have used Bonderized for roofing and siding without applying a paint to the steel. This is done to achieve a beautiful dull gray weathered look. Bonderized is NOT a paint finish and there is no paint warranty.

Bonderized can be used in exterior or interior applications. It is a perfect solution for an interior application as it arrives looking patina'd.

View this panel now by downloading your free E-Sample & 3D Texture!

Standing Seam Flashing Details & Trim Part Numbers

View Now

Product Data

Material Type: Standing Seam Metal Panels

Rib Height: 1.75"

Overall Width:
Standard: 18"
Custom Widths Available: 12"-20"

Available Gauges: 24/Standard
22/Custom Ordered

Substrate: Galvanized G-90

Finishes: Bonderized

Fasteners: Concealed

Panel Length: 1' to 52'

Recommended Minimum Roof Slope: 3/12

Installation:
Installation over a solid substrate with an underlayment between the panel and the substrate.

Applications
Residential
Commercial
Agricultural
Interior

PRODUCT DOCUMENTS

Product Specifications

Solar Reflectivity Index

Paint Warranties

CAD Details

Field Cutting & Touch Up Paint

Care & Maintenance

Bonderized Disclaimer

See How These Colors Will Look On Your Building

Try Color Visualizer

Standard Colors (PVDF)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Regal Blue
Royal Blue
Slate Blue
Regal Red
Colonial Red
Terra Cotta
Classic Green
Matte Black
Dark Bronze
Medium Bronze
Mansard Brown
Burnished Slate
Silver Metallic†
Zinc Metallic†
Charcoal Gray
Gun Metal Gray
Slate Gray
Dolphin Gray
Dove Gray
Ash Gray
Copper Penny†
Desert Tan
Champagne†
Sandstone
Almond
Bone White
Regal White

View Color Page

Matte Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

*Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Matte Regal White*
Matte Sandstone*
Matte Desert Tan*
Matte Slate Gray*
Matte Musket Gray
Matte Zinc Metallic
Matte Patina
Matte Charcoal Gray
Matte Burnished Slate*
Matte Mansard Brown*
Matte Medium Bronze*
Matte Dark Bronze
Matte Midnight Black
Matte Black
Matte Classic Green*
Matte Colonial Red*
Matte Orange*

View Color Page

Special Order Colors (500 Sq. Ft. Minimum)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Solar White
Stone White
Surrey Beige
Sierra Tan
Aged Patina
Sage Green
Hemlock Green
Hartford Green
Evergreen
Burgundy
Pre-Weathered Galvalume

View Color Page

Additional Finishes

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Galvalume®/ Zincalume®
Galvanized G90
A606-4 (aka Corten®)
Bare Cold Rolled
Bonderized
Black Phosphate®
Rezibond®
Copper
Stainless Steel
Aluminum - Mill Finish

View Color Page

View Available Panels

Black Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Black Zinc Matte®
Black Ore Matte®
Matte Black
Matte Midnight Black
Dark Bronze
Matte Dark Bronze
Medium Bronze
Blackened Steel Matte®
Speckled Blackened Rust®
Blackened Copper®
Vintage®
Burnt Wood®

View Color Page

Copper Colors

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Speckled Copper®
Speckled Blue Copper®
Copper Patina®
Green Copper®
Aged Copper®
Black Copper Matte®
Speckled Blackened Copper®
Blackened Copper®
Burnished Slate
Weathered Metallic®
Copper Penny†

View Color Page

Gray Colors

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Burnished Slate
Charcoal Gray
Gun Metal Gray
Patina
Slate Gray
Dolphin Gray
Dove Gray
Ash Gray
Matte Burnished Slate**
Matte Charcoal Gray
Matte Patina
Matte Zinc Metallic
Matte Musket Gray
Matte Slate Gray**
Silver Metallic†
Zinc Metallic†
Vintage®
Black Zinc Matte®
Gray Zinc Matte®
Silver Zinc Matte®
Blue Zinc Matte®
Bonder-Paint® Light
Bonder-Paint® Dark
Bonderized*

View Color Page

Rusted Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Speckled Rust®
Fresh Rust®
Corten AZP Raw®
Rustic Rawhide®
Weathered Rustic®
Weathered Metallic®
Reclaimed Metal Rust®
Speckled Galvanized Rust®
Speckled Blackened Copper®
Blackened Copper®

View Color Page

View Available Panels

View Color Page

Zinc Series

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Gray Zinc Matte®
Silver Zinc Matte®
Blue Zinc Matte®
Black Zinc Matte®
Vintage®
Zinc Patina®
Zinc Metallic†®
Matte Musket Gray®
Bonder-Paint® Light
Bonder-Paint® Dark
Bonderized®*
Rezibond®*

View Color Page

Aluminum (Standard Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Aluminum - Mill Finish
Matte Black
Dark Bronze
Charcoal Gray
Almond
Regal White
Fresh Rust®

View Available Panels

Aluminum (Special Order Colors)

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Regal Blue
Slate Blue
Regal Red
Colonial Red
Terra Cotta
Aged Patina
Evergreen
Hartford Green
Medium Bronze
Mansard Brown
Slate Gray
Dove Gray
Ash Gray
Pre-Weathered Galvalume
Sierra Tan
Surrey Beige
Sandstone
Solar White
Stone White
Copper Metallic†
Silver Metallic†

View Available Panels

Copper (20oz/16oz)

Real Copper

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Copper

View Color Page

About Bonderized

standing-seam-bonderized-panel

The two main advantages in using Bonderized when compared to Zinc or Galvanized are:

Bonderized arrives looking weathered. You don NOT have to wait for it to look dull and weathered.
Significant cost savings when compared to Steelscape Vintage or zinc finishes.

There are some things to be cautious of when using Bonderized for metal roofing and siding:

NO WARRANTY
Material may develop white rust after installation.
When the material arrives on the jobsite it cannot get wet. Whether that moisture is from rain and/or condensation from a cold to hot day. If moisture gets into a tightly stacked bundle and sits there it will cause white rust.
Scratches easily.

If any of the above concerns are a problem than we would recommend that you look at Patina or Vintage. Both are painted products designed to look like a dull gray weathered product. See the home page of this website for more info.
