Rosewood
Metal Board And Batten

Rosewood captures the essence of rich, deep wood tones. This exquisite color brings the warm, rich tones of natural hardwood to life, creating a harmonious fusion of aesthetics and durability.

Board & Batten Catalog 3D Textures & E-Samples

Watch How Rosewood Can Transform Your Building
Watch To Learn About Our Board & Batten Metal Panels

Download our Board & Batten Metal Siding Catalog!

View Now

Board & Batten - Rosewood

Metal Siding That Looks Like Real Rosewood

board-and-batten-panel-profile-rosewood





One of the most striking applications of board and batten panels is on the exterior of homes. When used as siding, they can transform a plain exterior into a visually stunning masterpiece. The alternating pattern of wide boards and narrow battens creates a subtle interplay of light and shadow, adding depth and dimension to the surface. This effect not only enhances the visual appeal but also highlights the craftsmanship of the installation.

Rosewood replicates lumber wood with detailed grains designs that have warm, earthy tones. Exterior metal siding that looks like wood is better because:

  • No maintenance. No need to stain, paint, or seal metal.
  • Authentic appearance from both up close and from a distance.
  • Cost savings when compared to real rosewood.
  • Easier to install when compared to real wood board and batten siding.
  • Vertical or horizontal installation.
  • Interior or exterior applications.

NOTE: YOU WILL GET AN EQUAL MIX OF PATTERN A-D. MIXING AND MATCHING ELIMINATES THE PATTERNS IN THE PAINT PRINT.


Pattern A


Pattern B


Pattern C


Pattern D

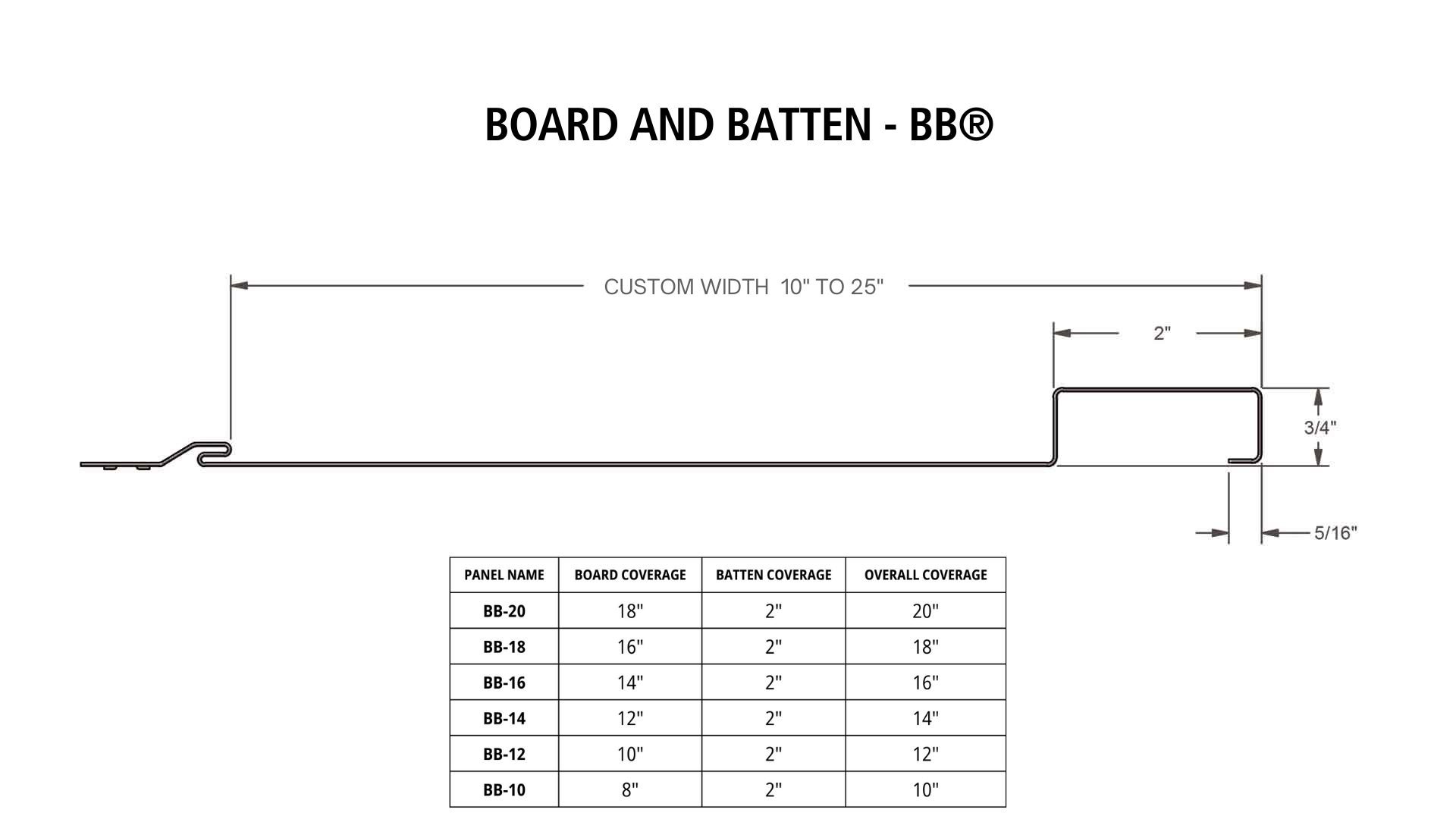

Dimensions

bb12-board-and-batten-metal-siding-line-drawing Download Dimensions



Product Data

Material Type: BB-12.0
Board And Batten Metal Siding

Available Gauges:

  • 24 Gauge Steel

Panel Width:

  • Standard: 12" Coverage
  • Special Order: 10"-25" Coverage

Panel Height: 3/4"

Batten Width: 2"

Panel Length: 30' Maximum

Substrate:

  • AZ50 (aka Galvalume®/Zincalume®)

Finishes:

  • PVDF Resin Based

Fasteners: Concealed fastener system

Installation: Horizontal or Vertical Installation

Product Documents

Board & Batten Catalog

Trim and Flashings

CAD Details

Care & Maintenance

Field Cutting & Touch Up Paint

Installation Guide

Paint Warranties

Product Data Sheets

Product Specifications

Solar Reflectivity Index

More Than 100 colors to choose from in Board And Batten Steel Siding

Board and Batten Metal Siding Colors

Besides the typical solid colors found almost everywhere else, we are best known for our specialty paint prints. These are colors that have been painted repeatedly giving the finish depth, texture, and a one of a kind design. The drop down menu has grouped these metal roofing colors and styles into categories - making it easier for you to find.



Quick Links

Color Charts

Color Visualizer

Metal Color Samples

Metal Siding Color Guide

Paint Warranties

Standard Colors (PVDF)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.
