Z Metal - # WS-806

Zee closure is used when metal trim needs to be attached to the top of the T-Groove® panel. The zee closures provides the trim with something to attach to and creates a fixed point of contact. Our standard Z metal is 2" X 1" X 2", we also carry a smaller Z metal.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-reveal/western-reveal-z-metal-trim-ws-806-1.jpg

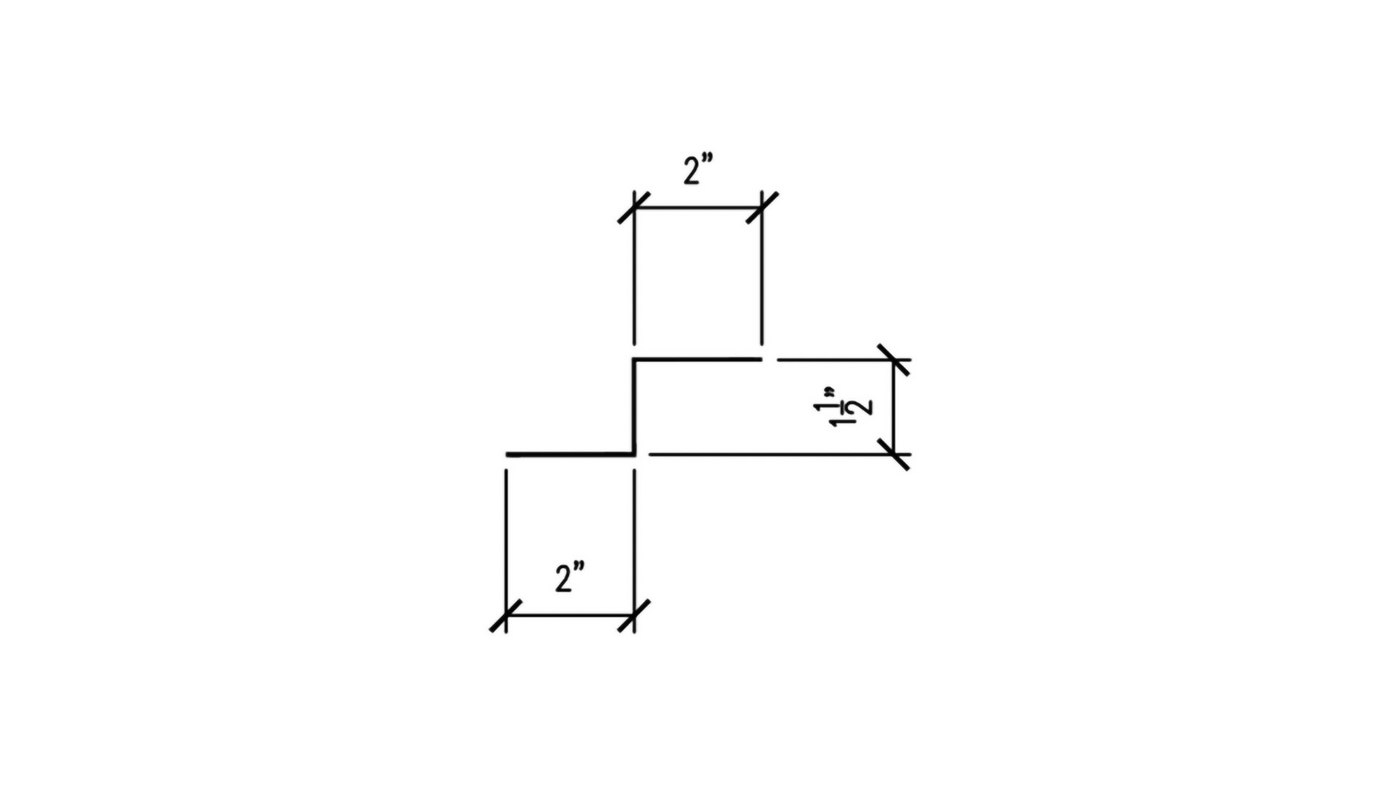

WS-806 Z Metal Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-reveal/wr-wsd-w12.jpg

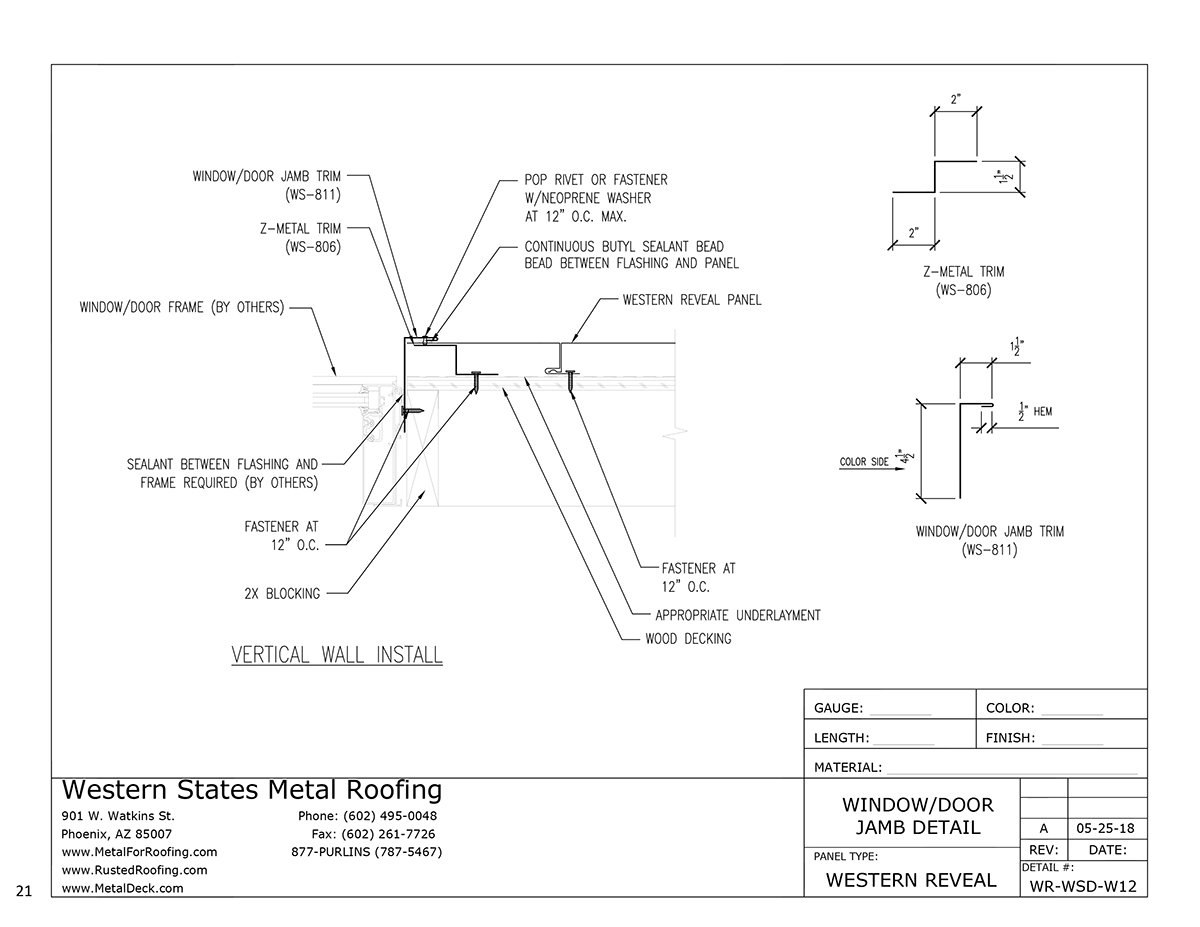

Window/Door Jamb Detail - Vertical Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-reveal/wr-wsd-w14.jpg

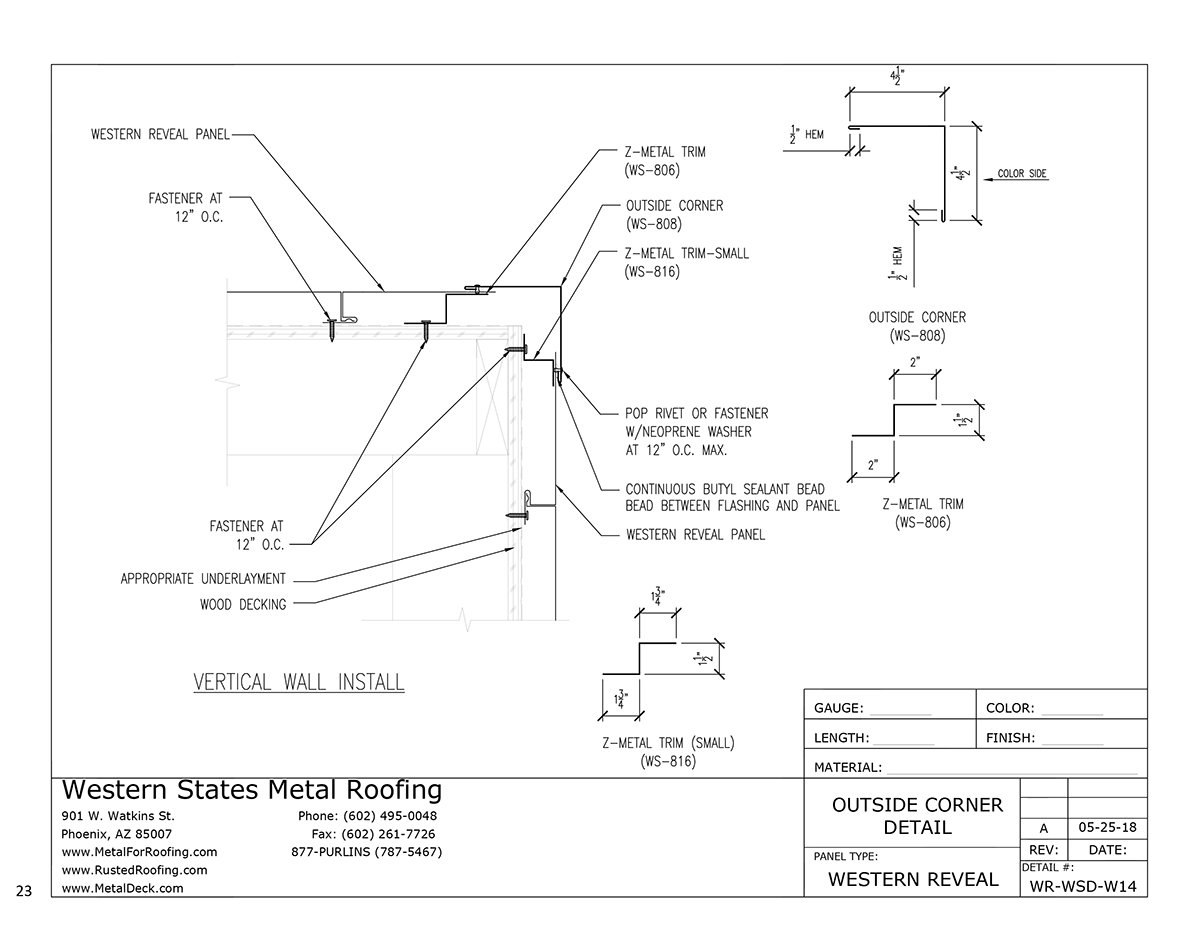

Outside Corner Detail - Vertical Installation

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-reveal/wr-wsd-w15.jpg

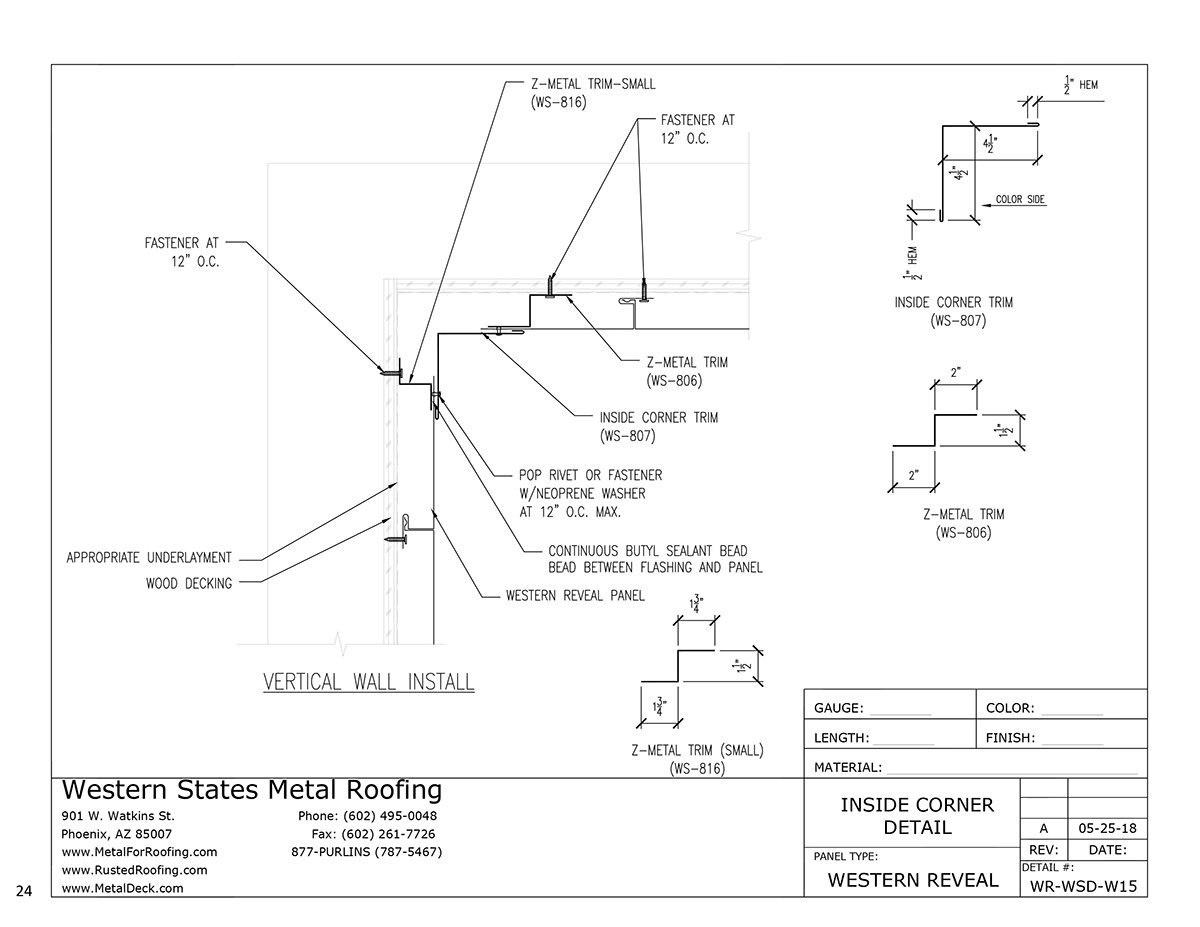

Inside Corner Detail - Vertical Installation

Click To Enlarge
