Soffit To Horizontal Wall Installation

Detail # WP-WSD-W18

You will need to use this detail when you have vertical metal wall panels and metal soffit panels. This is the flashing that's used where the two panels intersect. There are two sill flashings shown on this detail. Choose the one that has the most desirable aesthetic for your job as both will work equally well.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-w18-soffit-to-wall-horizontal-detail.jpg

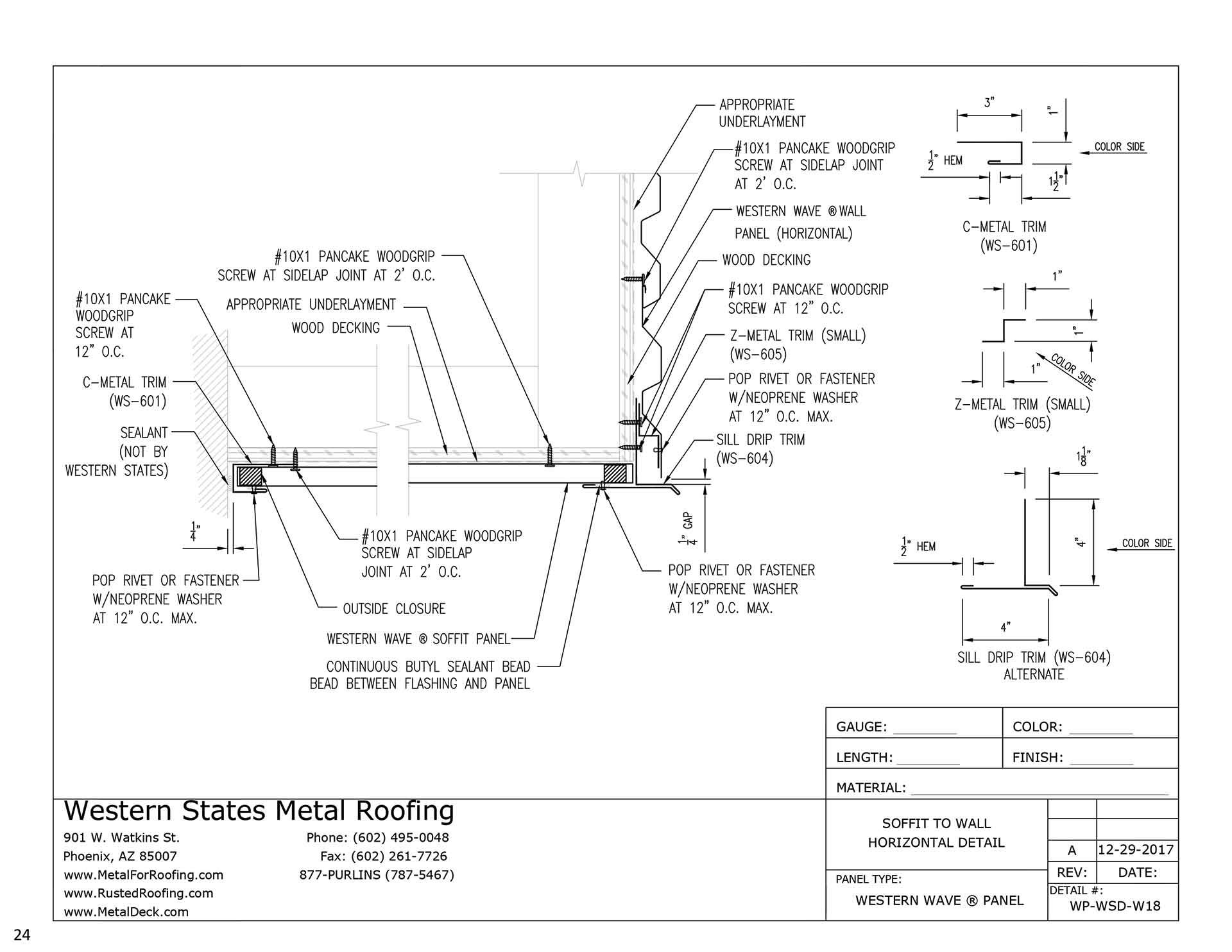

Soffit To Horizontal Wall - Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/alternate-sill-drip-trim-ws-604-western-wave-panel-trim-flashing-1.jpg

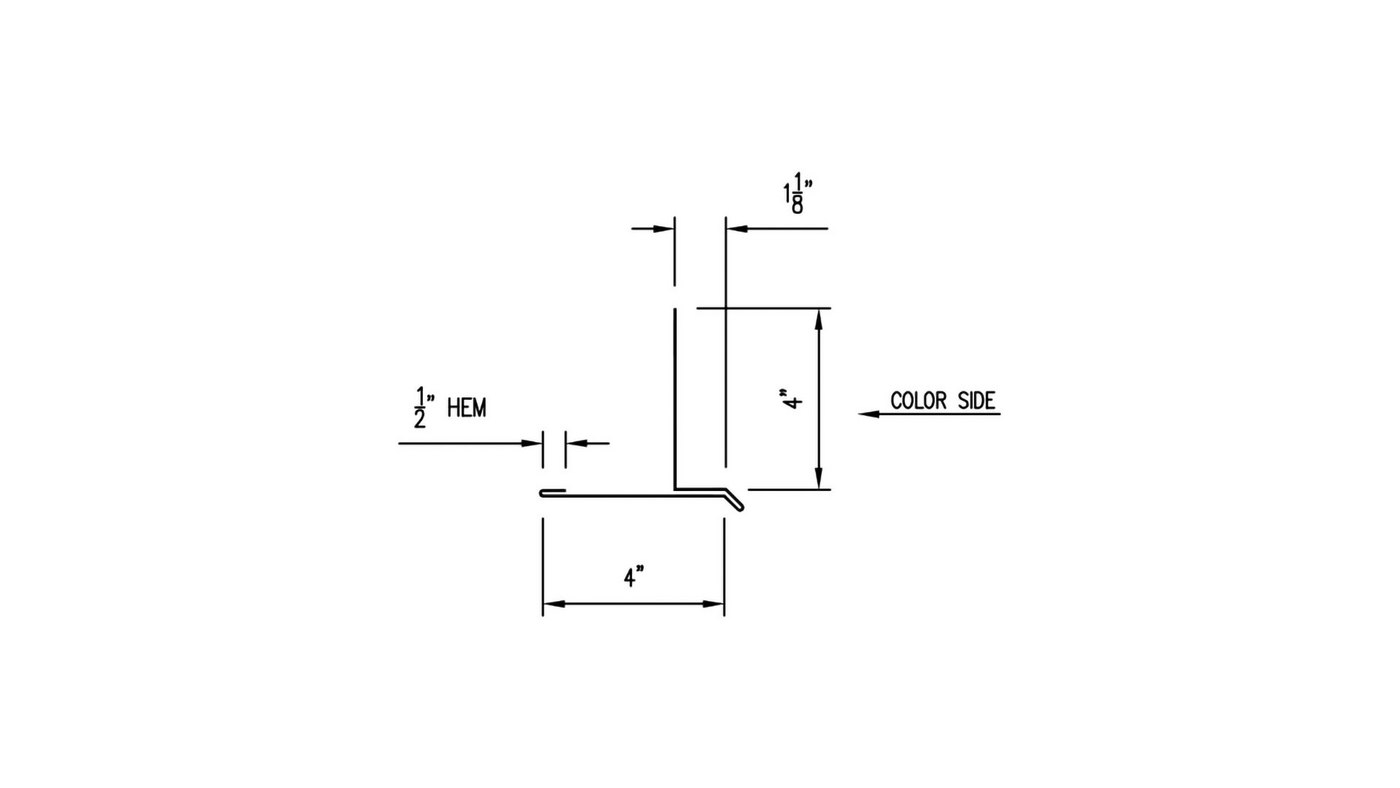

WS-604 Sill Trim Dimensions

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/c-metal-j-trim-ws-601-western-wave-panel-trim-flashing-1.jpg

WS-601 C-Metal Trim Dimensions

For every 10' of sill trim, you will need 10' of C-Metal.

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/z-metal-trim-ws-605-western-wave-panel-trim-flashing-1.jpg

WS-605 Z-Metal Dimensions

For every 10' of sill trim, you will need 10' of Z-metal trim.

Click To Enlarge

SOFFIT TO HORIZONTAL WALL DETAIL - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Sill Trim - WS-604
  • 1 Piece C-Metal Trim - WS-601
  • 1 Piece Z-Metal Trim - WS-605
  • 30 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 20 Rivets
  • 8 Pieces Of Outside Foam Closures
  • 2 Tubes Of Butyl Sealant

DOWNLOAD INSTALLATION GUIDE
