C-Metal Trim - # WS-601

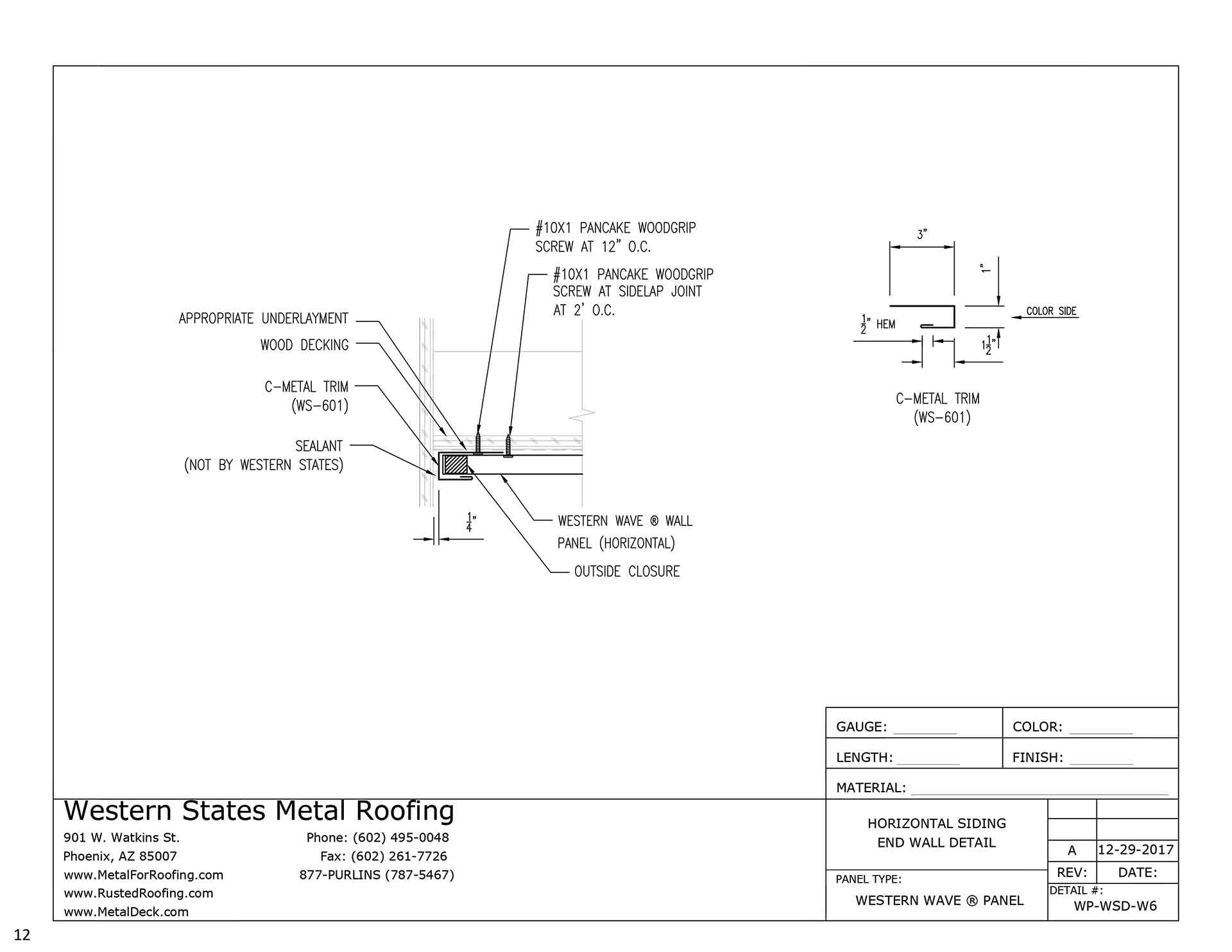

End Wall For Western Wave® Panels - Horizontal Installation

Detail # WP-WSD-W6

You will need to use this detail when your metal siding panels end at an end wall. This installation detail is for a horizontal metal wall panel only. It should not be used for metal soffit panels.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-w6-horizontal-siding-end-wall-detail.jpg

End Wall For Wall Panels - Horizontal Installation - Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/c-metal-j-trim-ws-601-western-wave-panel-trim-flashing-1.jpg

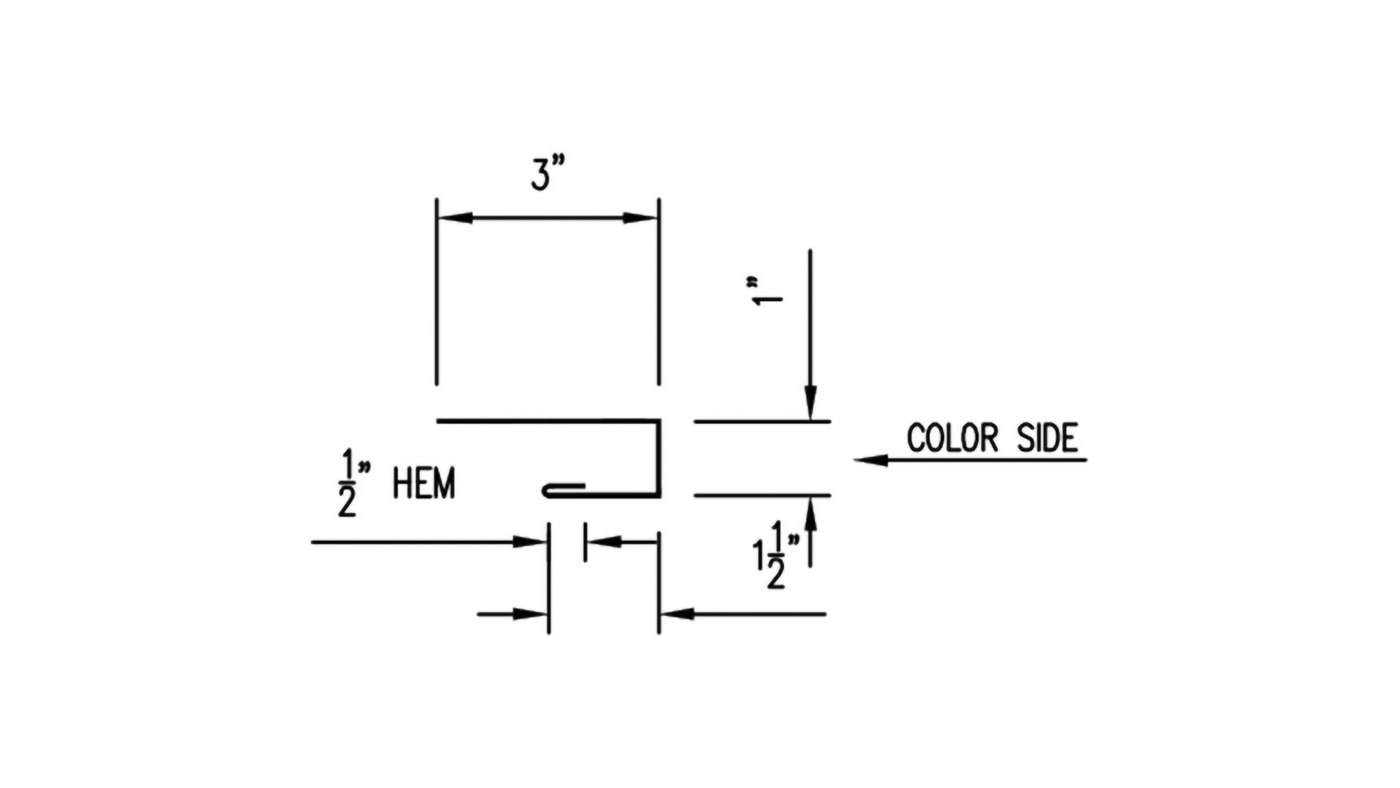

WS-601 C-Metal Trim Dimensions

CLICK TO ENLARGE

END WALL DETAIL - WALL PANELS - HORIZONTAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece C-Metal Trim - WS-601
  • 10 Rivets
  • 10 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 4 Pieces Of Outside Foam Closure
  • 1/4 Tube Of Silicone Sealant

DOWNLOAD INSTALLATION GUIDE
