Base Trim - # WS-614/WS-617

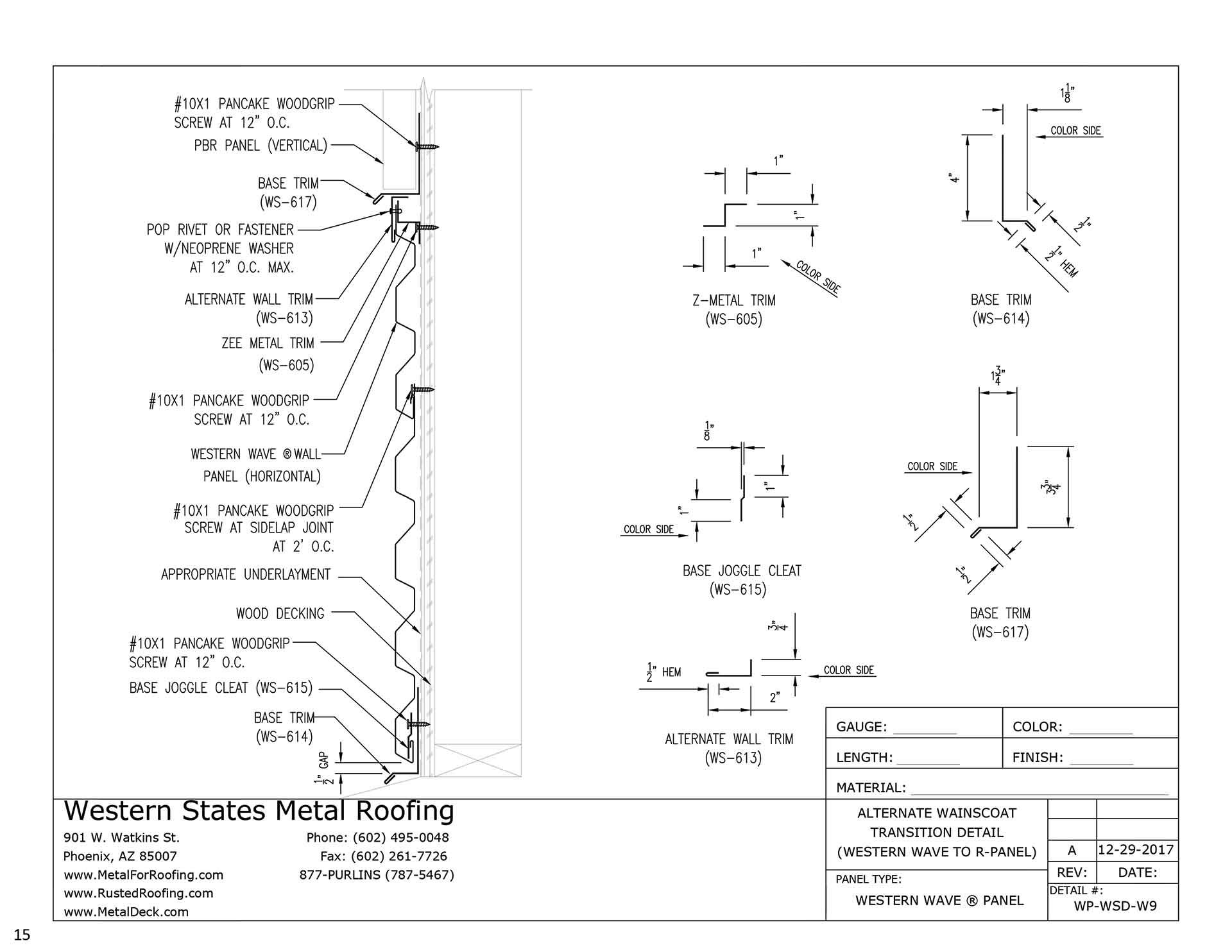

Wainscoting Transition - Western Wave® To R Panel - Horizontal Installation

Detail #WP-WSD-W9

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-w9-alternate-wainscoat-transition-detail.jpg

R Panel To Western Wave® - Horizontal Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-trim-ws-617-western-wave-panel-trim-flashing-1.jpg

WS-617 Base Trim Dimensions

You will need both types of base trim for this detail. 1 Piece Of WS-614 & WS-617

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-trim-ws-614-western-wave-panel-trim-flashing-1.jpg

WS-614 Base Trim Dimensions

You will need both types of base trim for this detail. 1 Piece Of WS-614 & WS-617

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-joggle-cleat-ws-615-western-wave-panel-trim-flashing-1.jpg

WS-615 Base Joggle Cleat Trim Dimensions

For every 10' of base trim, you will need 10' of base joggle cleat

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/alternate-wall-trim-ws-613-western-wave-panel-trim-flashing-1.jpg

WS-613 Alternate Wall Trim Dimensions

For every 10' of base trim, you will need 10' of alternate wall trim.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/z-metal-trim-ws-605-western-wave-panel-trim-flashing-1.jpg

WS-605 Z Metal Dimensions

For every 10' of base trim, you will need 10' of z-metal

Click To Enlarge

WAINSCOTING TRANSITION TRIM DETAIL - HORIZONTAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Transition Trim - WS-617
  • 1 Piece Base Trim - WS-614
  • 1 Piece Base Joggle Cleat - WS-615
  • 1 Piece Alternate Wall Trim - WS-613
  • 1 Piece Z Metal - WS-605
  • 30 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Rivets
  • 1/4 Tube Of Silicone Sealant

DOWNLOAD INSTALLATION GUIDE
