Jamb Trim - # WS-811

Window/Door Jamb Trim - Vertical Installation

Detail #WR-WSD-W12

Jamb trim will be installed along both sides of a window or door opening. This installation detail is different when the panels are installed horizontally versus vertically. This installation detail is for a vertical wall panel only.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-reveal/wr-wsd-w12.jpg

Window/Door Jamb Trim Detail - Vertical Installation

CLICK TO ENLARGE

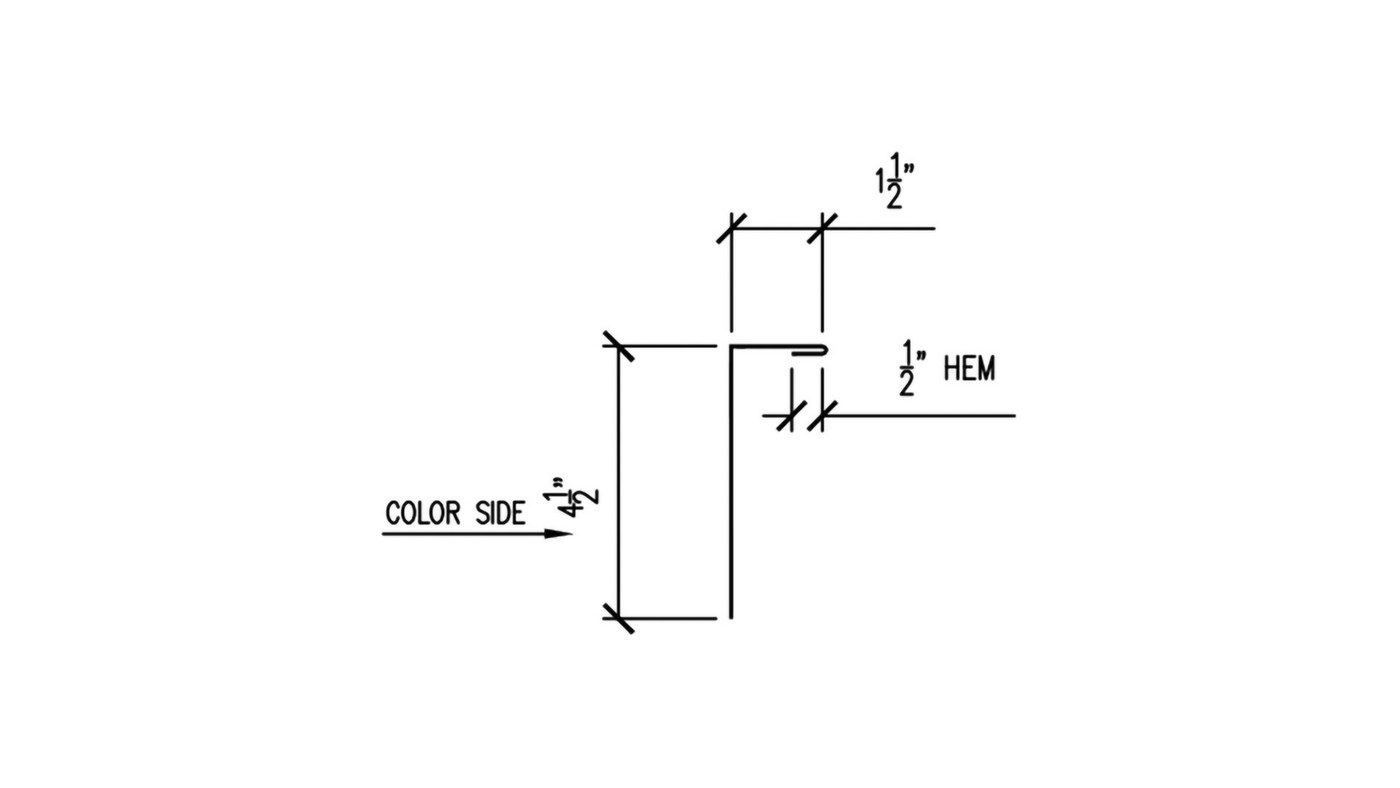

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-reveal/western-reveal-door-window-jamb-trim-ws-811-1.jpg

WS-811 Jamb Trim Dimensions

CLICK TO ENLARGE

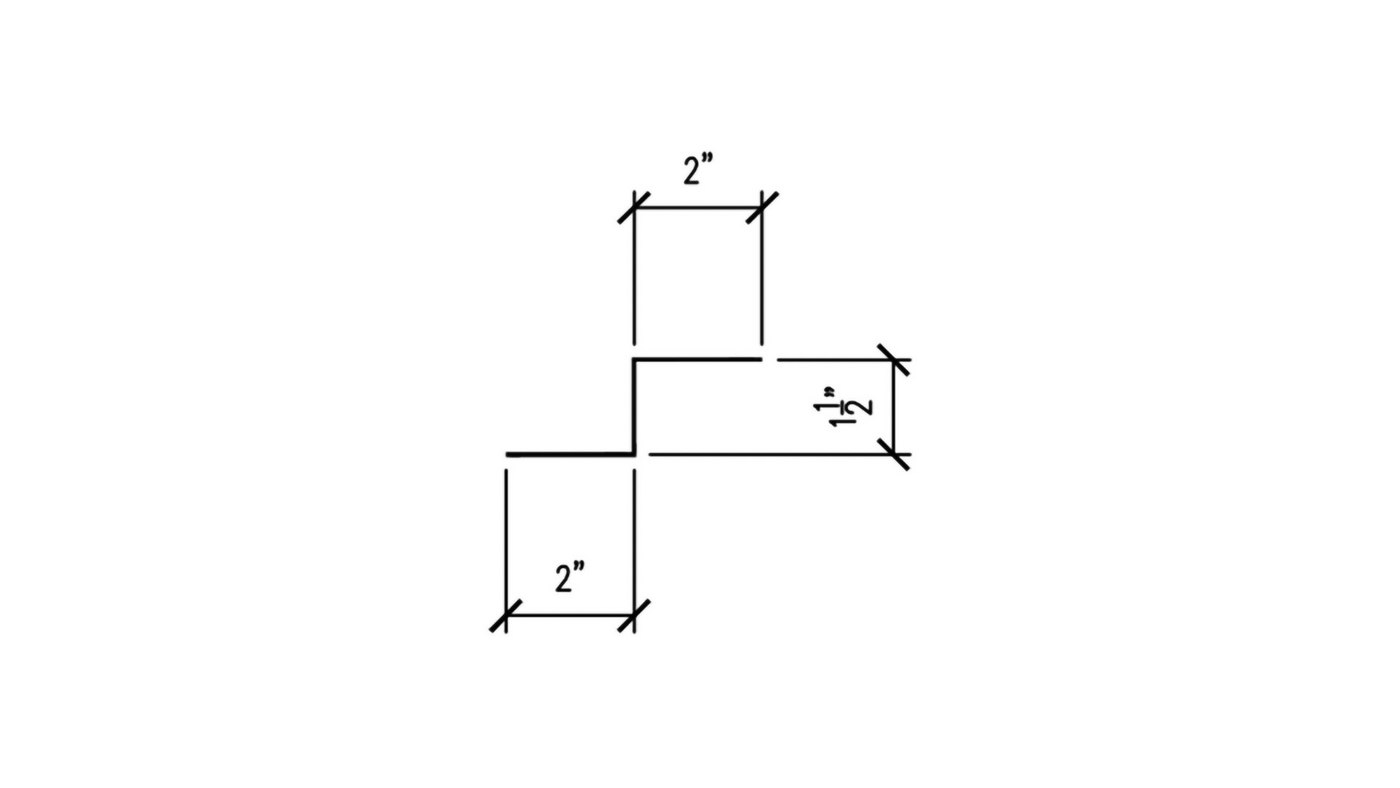

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-reveal/western-reveal-z-metal-trim-ws-806-1.jpg

WS-806 Z-Metal Dimensions

For every 10' of jamb trim, you will need 10' of Z-metal

Click To Enlarge

JAMB TRIM DETAIL - VERTICAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Jamb Trim - WS-811
  • 1 Piece Z-Metal - WS-806
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Rivets
  • 1 Tube Of Butyl Sealant

DOWNLOAD INSTALLATION GUIDE

Just in case you forgot

ADDITIONAL ITEMS YOU MAY NEED...


Fasteners

Fasteners for metal roofing and wall panels.

  • Metal To Wood
  • Metal To Metal
  • Lap Screws
  • Rivets
  • Clips

Learn More
