Base Trim - # WS-614

Base Trim - Vertical Installation

Detail #WP-WSD-W10/W21

Base trim creates a barrier between the bottom of the metal wall panels and the floor. The base trim detail is different when the panels are installed horizontally versus horizontally. This installation detail is for a vertical wall panel only.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-w10-base-detail.jpg

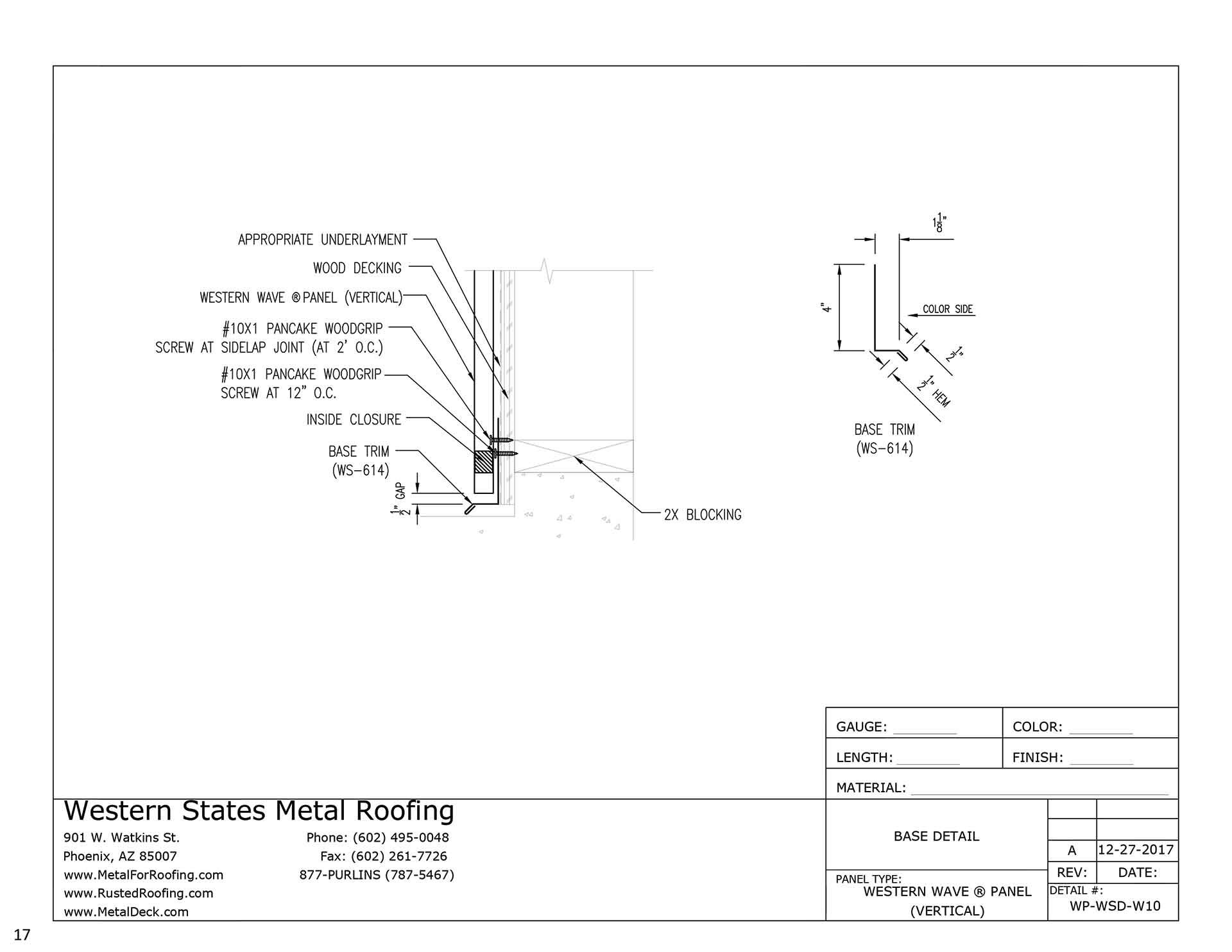

Base Trim Detail - Vertical Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-w21-alternate-base-vertical-detail.jpg

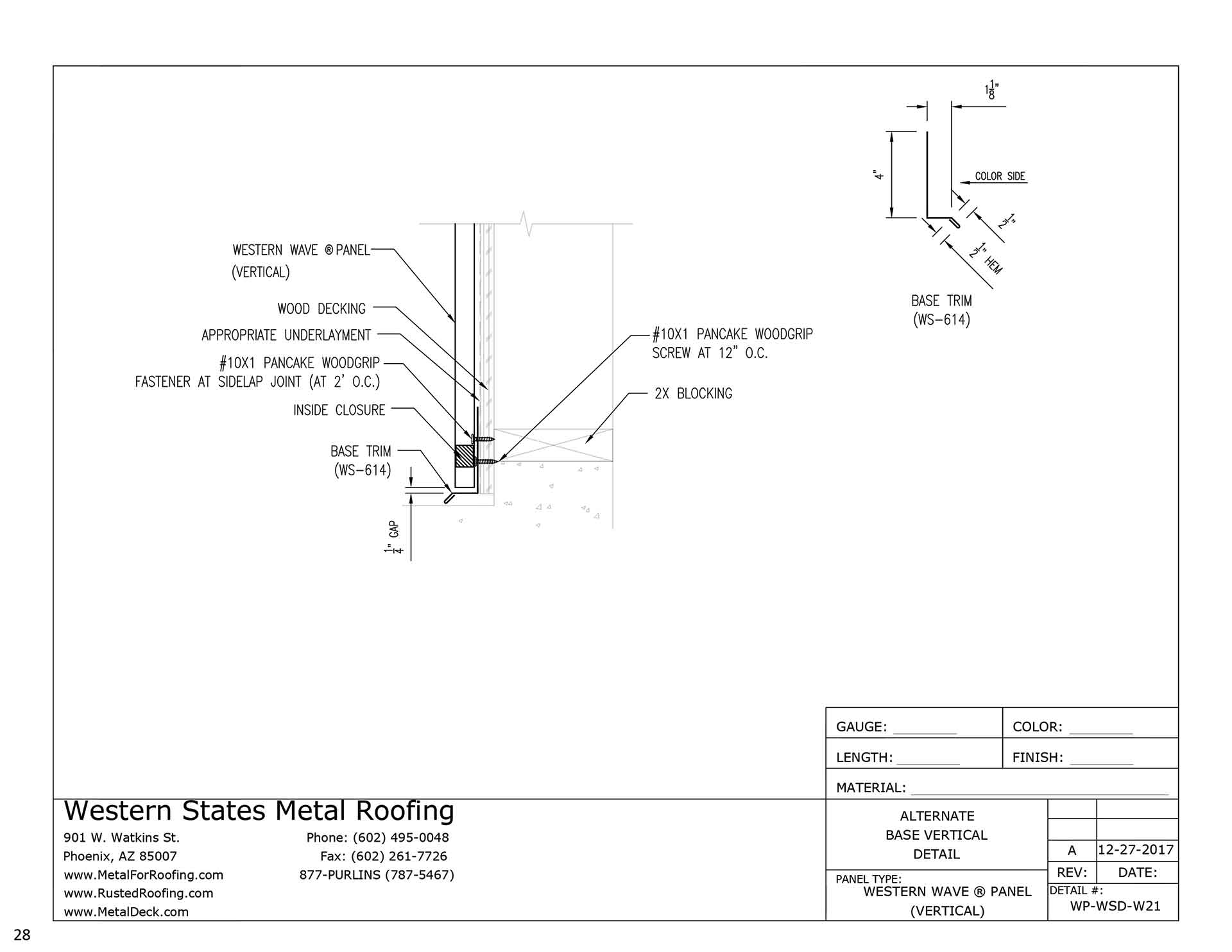

Alternate Base Trim Detail - Vertical Installation

Alternate Detail

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-trim-ws-614-western-wave-panel-trim-flashing-1.jpg

WS-614 Base Trim Dimensions

CLICK TO ENLARGE

BASE TRIM DETAIL - VERTICAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Base Trim - WS-614
  • 10 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 4 Pieces Of Inside Foam Closures

DOWNLOAD INSTALLATION GUIDE


Base Trim Installation For Metal Siding Panels

Step by step video that covers installing base trim for metal siding which includes: cutting and finishing the corners, overlapping, and fastening. This video is for installation of an exposed fastener siding panel.

Watch Now


How To Picture Frame A Metal Wall Panel: Base Trim With J Metal Installation

Learn how to install picture frame a metal wall panel with base trim and J-Metal.

Watch Now
