Transition Trim - # WS-619

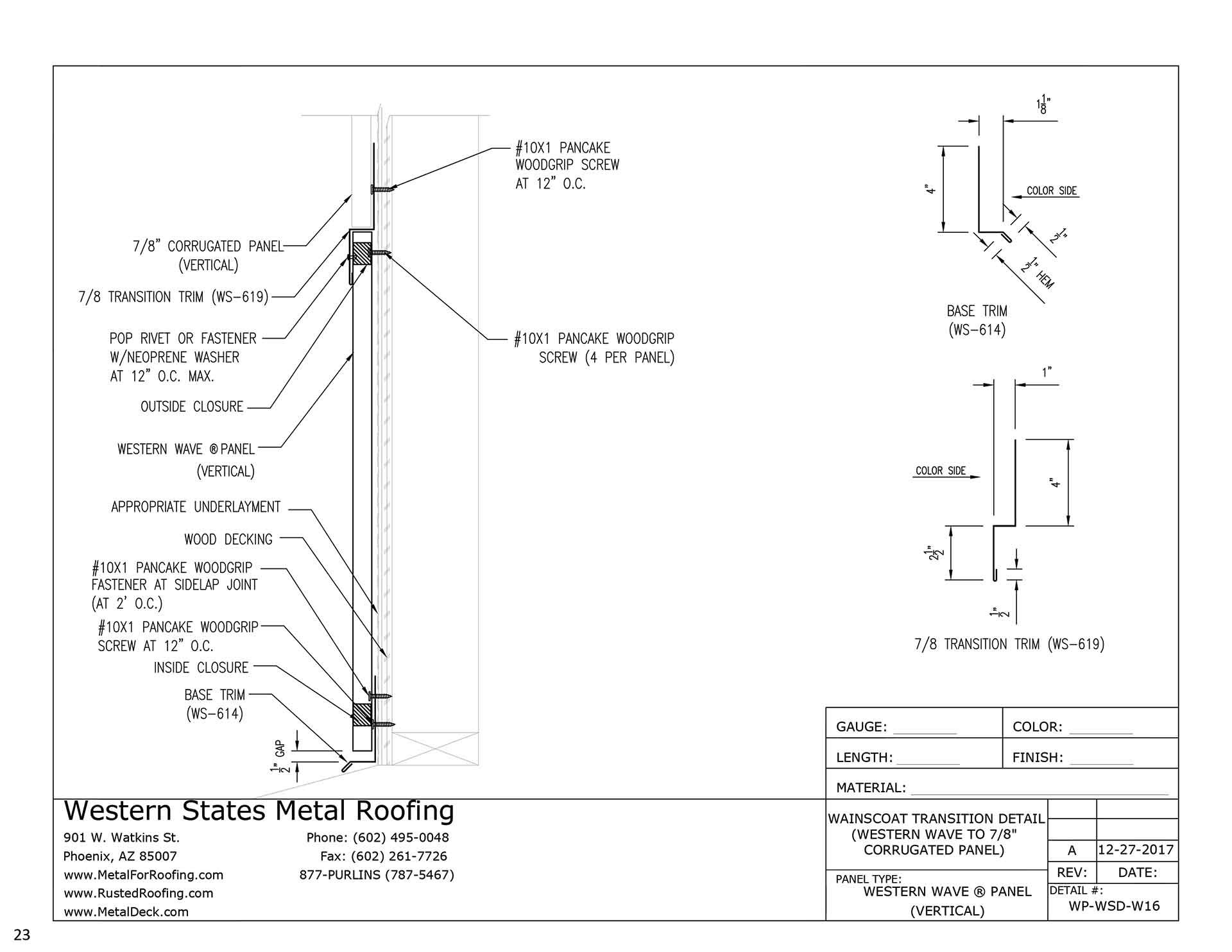

Wainscoting Transition - Western Wave® To 7/8" Corrugated - Vertical Installation

Detail #WP-WSD-W16

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-w16-wainscaot-transition-detail.jpg

Western Wave® To 7/8" Corrugated - Vertical Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/78-transition-trim-ws-619-western-wave-panel-trim-flashing-1.jpg

WS-619 Transition Trim Dimensions

You will need both types of base trim for this detail. 1 Piece Of WS-614 & WS-619

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-trim-ws-614-western-wave-panel-trim-flashing-1.jpg

WS-614 Base Trim Dimensions

You will need both types of base trim for this detail. 1 Piece Of WS-614 & WS-619

CLICK TO ENLARGE

WAINCOTING TRANSITION TRIM DETAIL - VERTICAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Transition Trim - WS-619
  • 1 Piece Base Trim - WS-614
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Rivets
  • 4 Pieces Of Inside Foam Closures
  • 4 Pieces Of Outside Foam Closures
  • 1/4 Tube Of Silicone Sealant

DOWNLOAD INSTALLATION GUIDE
