Trim Cleat - # WS-612

Trim cleat is a continuous piece of metal that's designed to hold the ends of the parapet cap in place. The hem at the drip edge of the parapet cap will hook into the trim cleat.





https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/trim-cleat-ws-612-western-wave-panel-trim-flashing-1.jpg

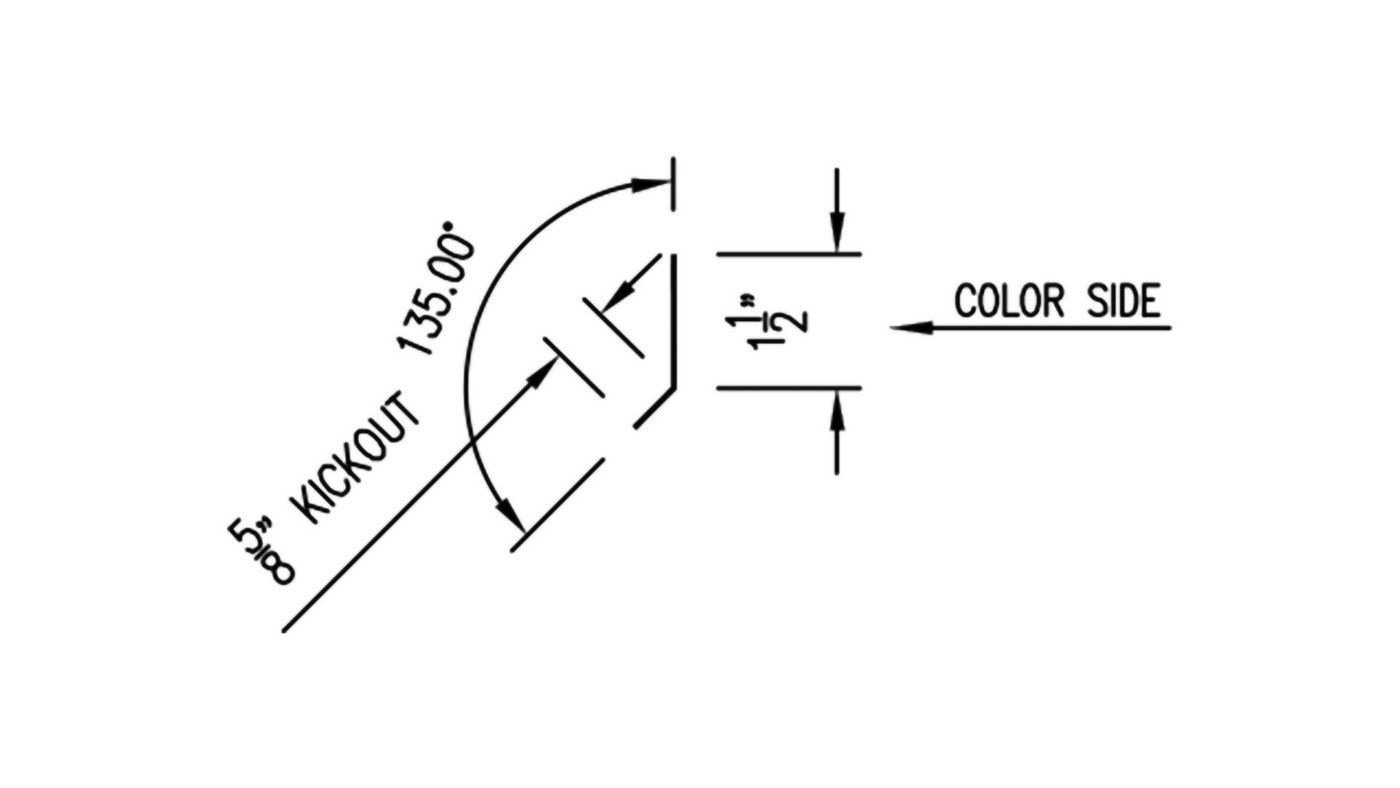

WS-612 Trim Cleat Dimensions

You will need 20' of trim cleat for every 10' of parapet cap.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-sw8-parapet-wall-detail.jpg

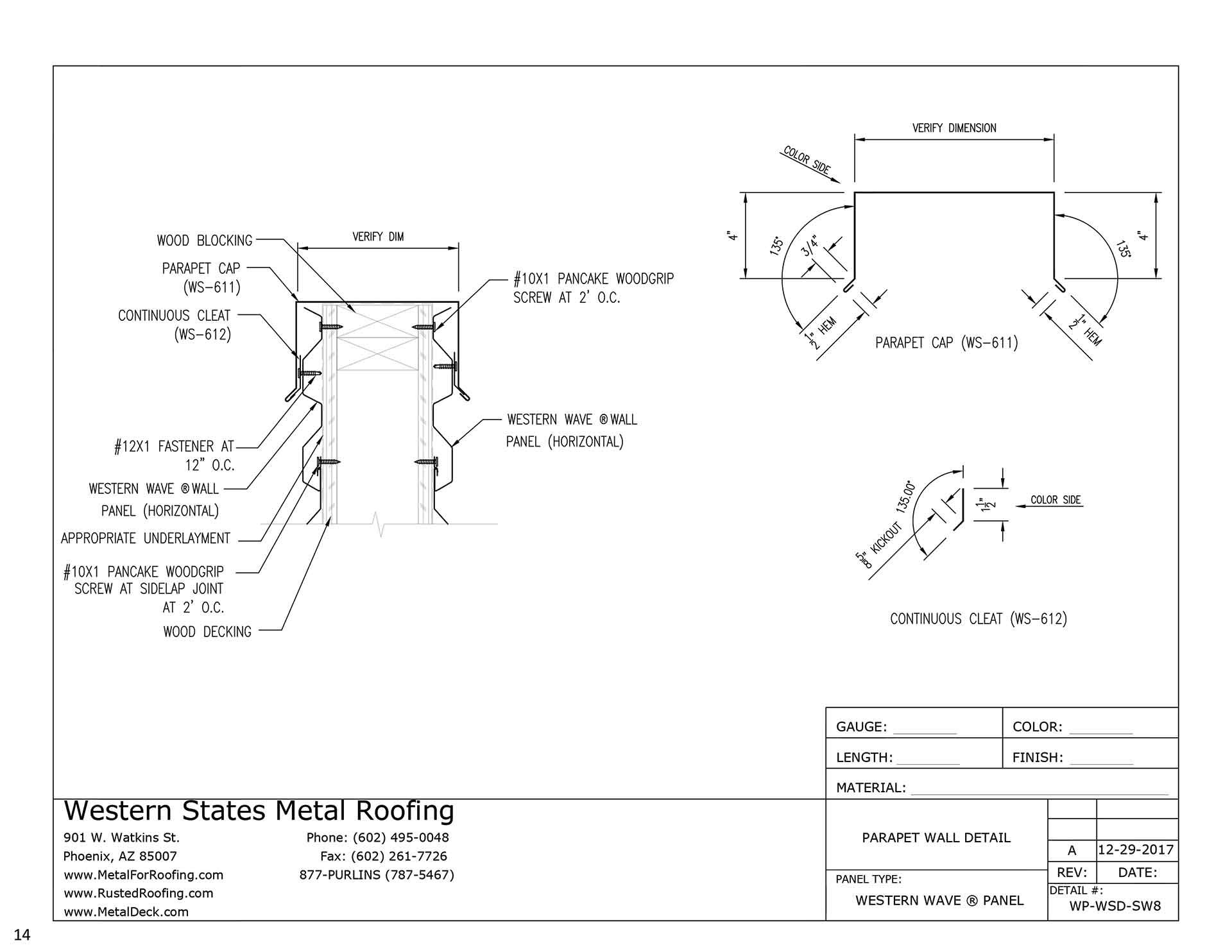

Parapet Wall Detail - Horizontal Installation

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-vertical/v-wp-wsd-sw8-parapet-wall-detail.jpg

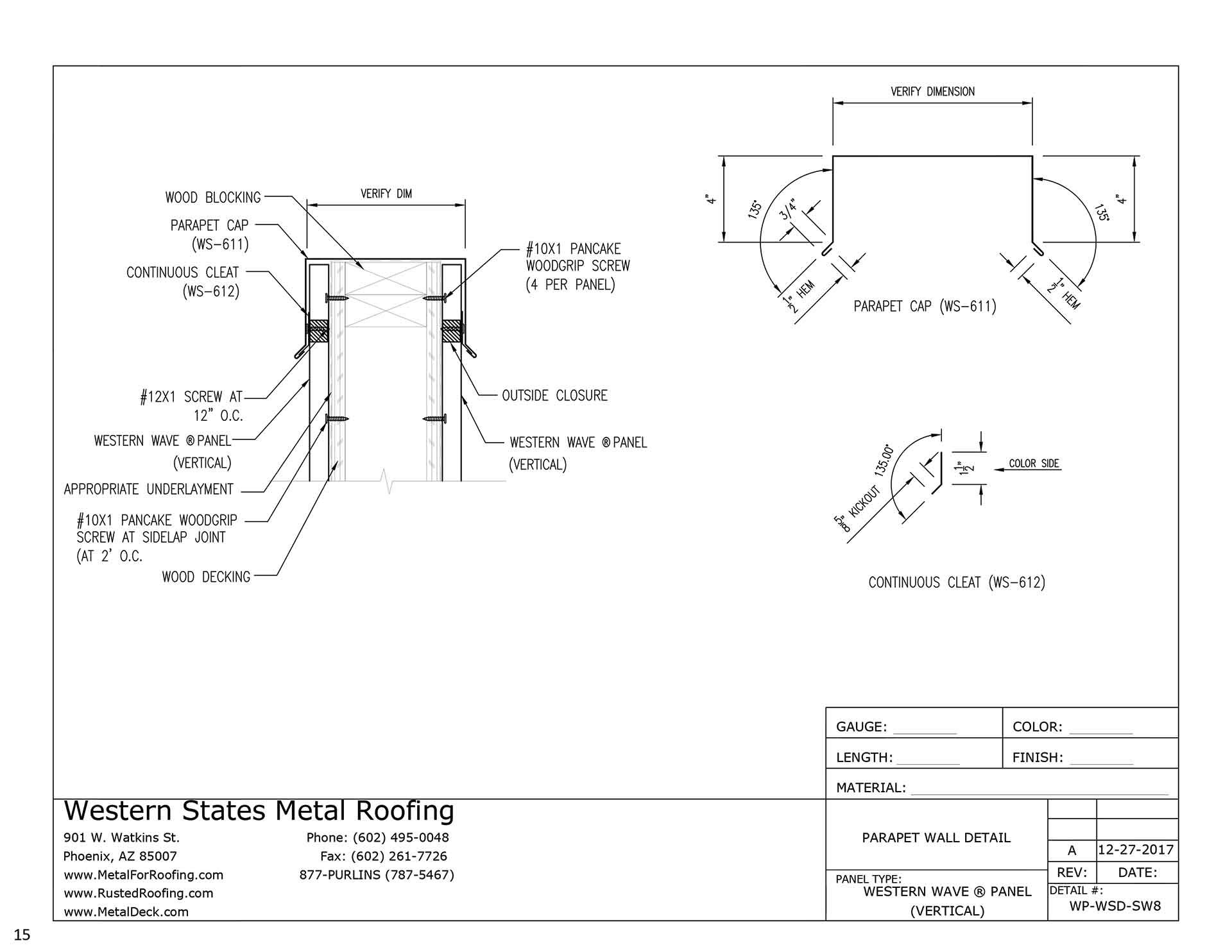

Parapet Wall Detail - Vertical Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/parapet-cap-ws-611-western-wave-panel-trim-flashing-1.jpg

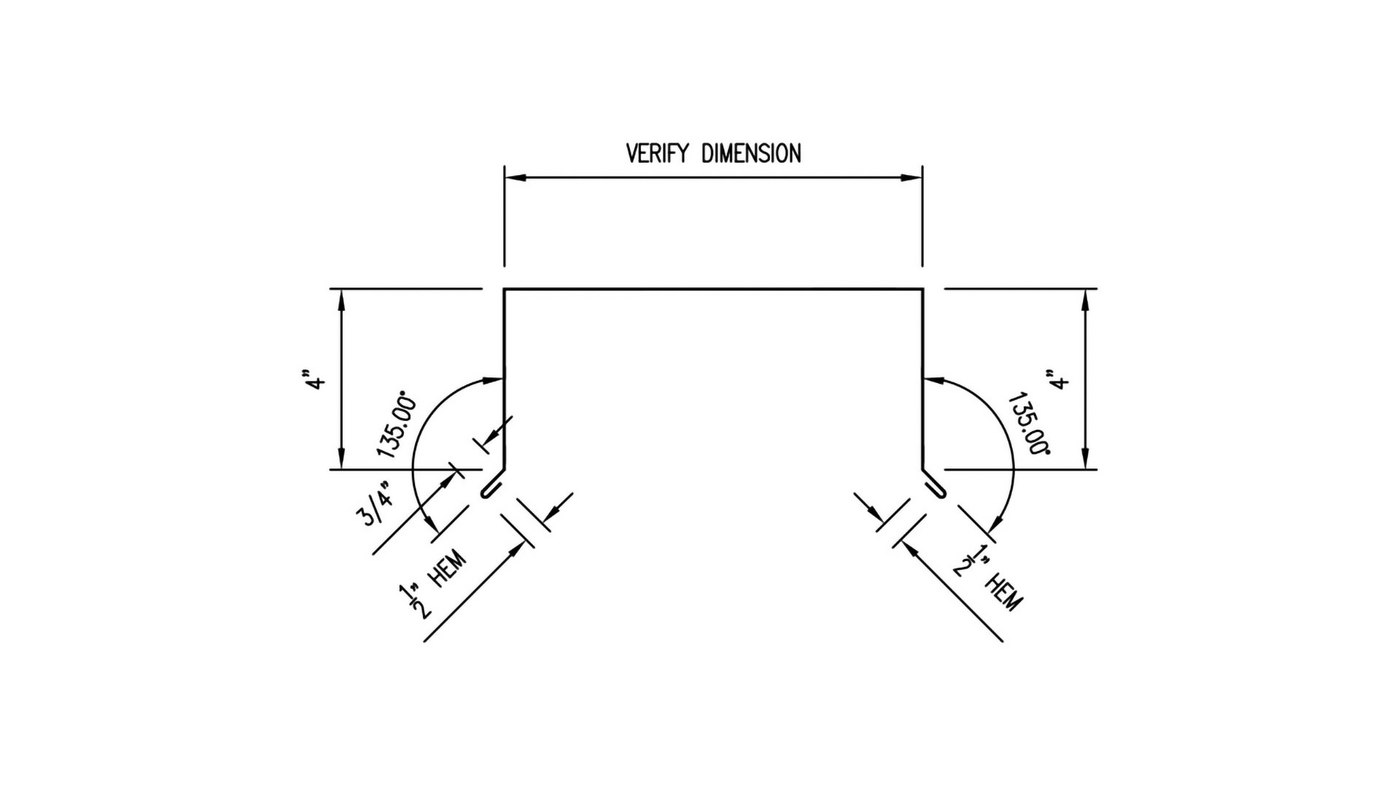

WS-611 Parapet Cap Dimensions

CLICK TO ENLARGE
