Custom Inside Corner Trim - # WS-518

Custom Inside Corner Trim - Vertical Installation

Detail #TG-WSD-W17

This is an extremely difficult corner piece to install. It should only be used by experienced professionals. This corner details requires you to measure and determine the correct measurement for each side of the corner trim. If you calculate wrong it will not fit.

The advantage of this detail is there aren't any seams or exposed rivets. This installation detail is for a vertical wall panel only.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/tg-wsd-w17-custom-inside-corner-detail.jpg

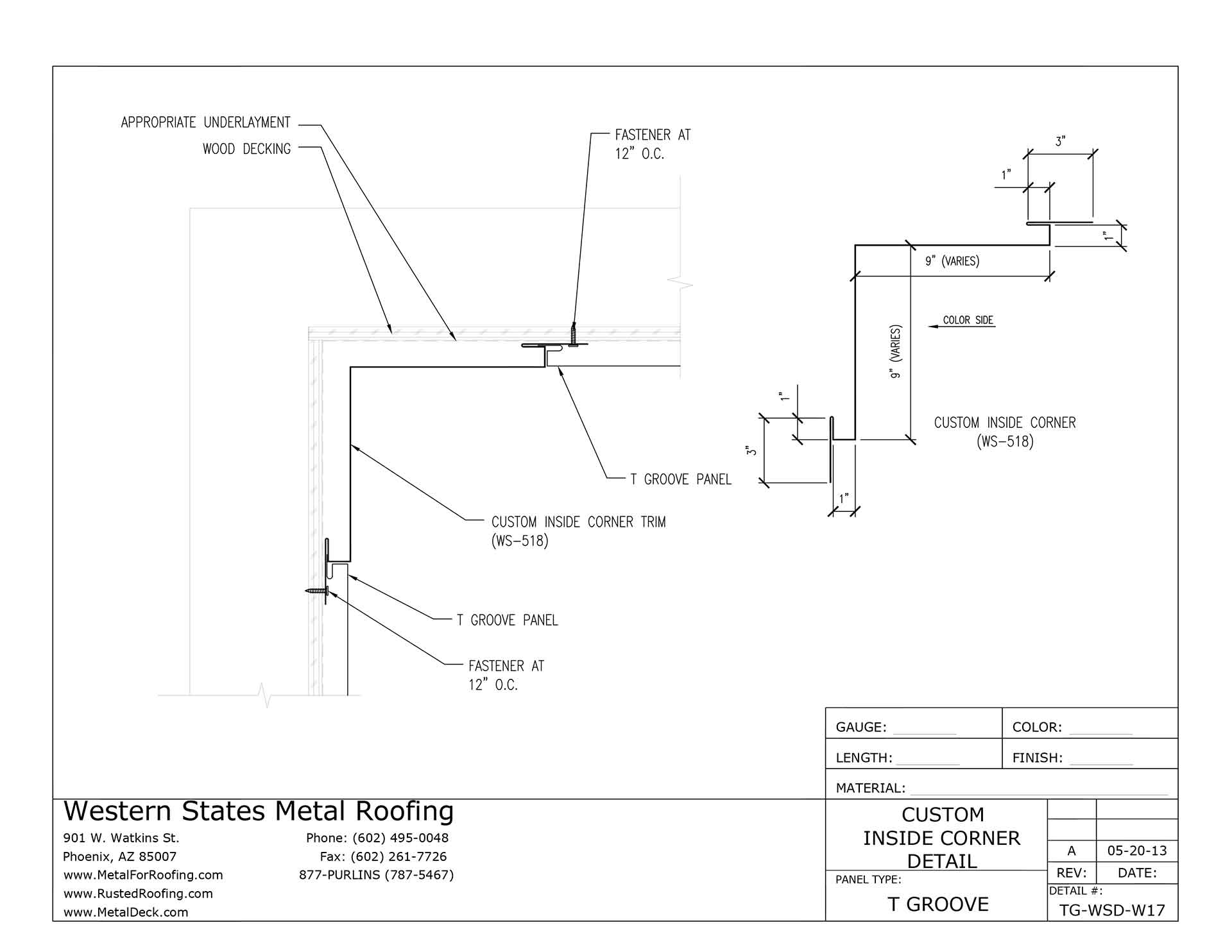

Custom Inside Corner Trim Detail - Vertical Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/part-ws-518-custom-inside-corner-1.jpg

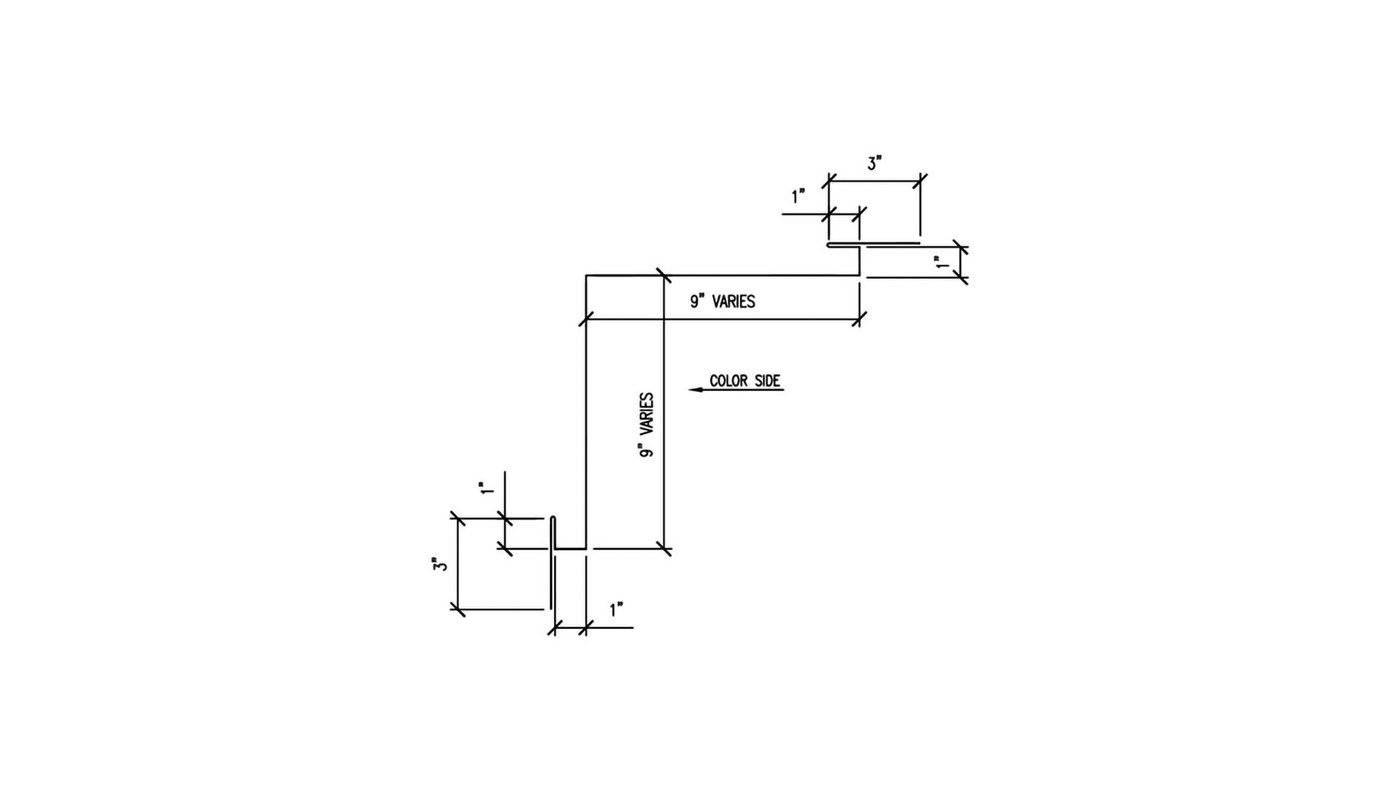

WS-518 Custom Inside Corner Trim Dimensions

CLICK TO ENLARGE

CUSTOM INSIDE CORNER DETAIL - VERTICAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Custom Inside Corner Trim - WS-518
    Customer To Provide Dimensions For Both Sides Of Corner Trim
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood

DOWNLOAD INSTALLATION GUIDE

How To Install Metal Corner Trim

Corner Trim Installation Videos

Corner trim is the typically the last pieces of flashing that's installed for a metal siding job. If the panels are installed horizontally, then it will require foam closure strips. If it's installed vertically foam closure is not required.

Inside Outside Corner Thumb
Vertical Corner Trim Installation

Vertical Inside & Outside Corner Trim

Inside And Outside Corner Trim Installation For Corrugated Metal Siding And Wall Panels. Step By Step Metal Siding Installation Instructions

vertical-metal-trim-installation
