Z Metal - Small - # WS-516

Zee closure is used when metal trim needs to be attached to the top of the T-Groove® panel. The zee closures provides the trim with something to attach to and creates a fixed point of contact. Our small Z metal is 1.75" X 1" X 1.75", we also carry a larger Z metal.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/part-ws-516-z-metal-trim-small-1.jpg

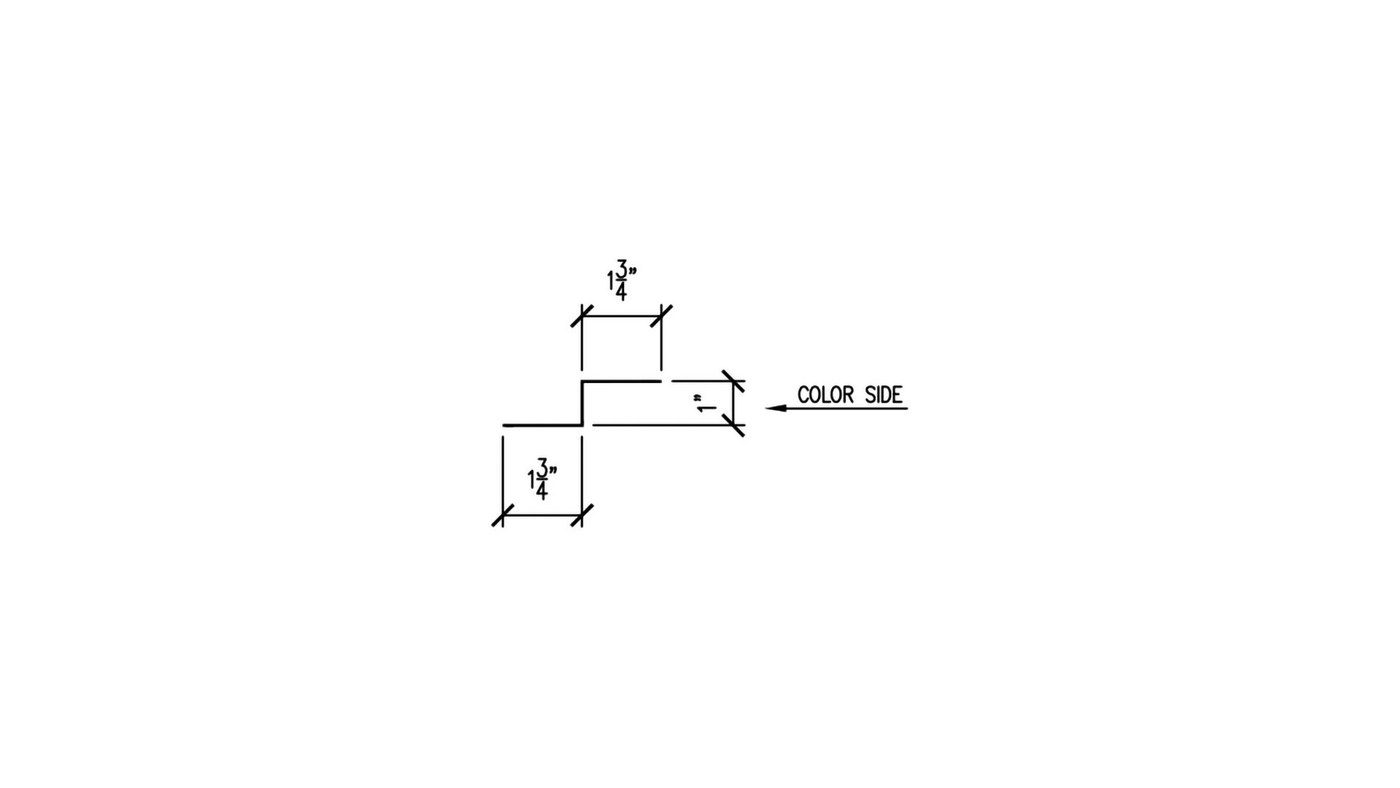

WS-516 Z Metal - Small Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/tg-wsd-w14-outside-corner-detail.jpg

Outside Corner Detail - Vertical Installation

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/tg-wsd-w15-inside-corner-detail.jpg

Inside Corner Detail - Vertical Installation

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/tg-wsd-w18-soffit-wall-horizontal-detail.jpg

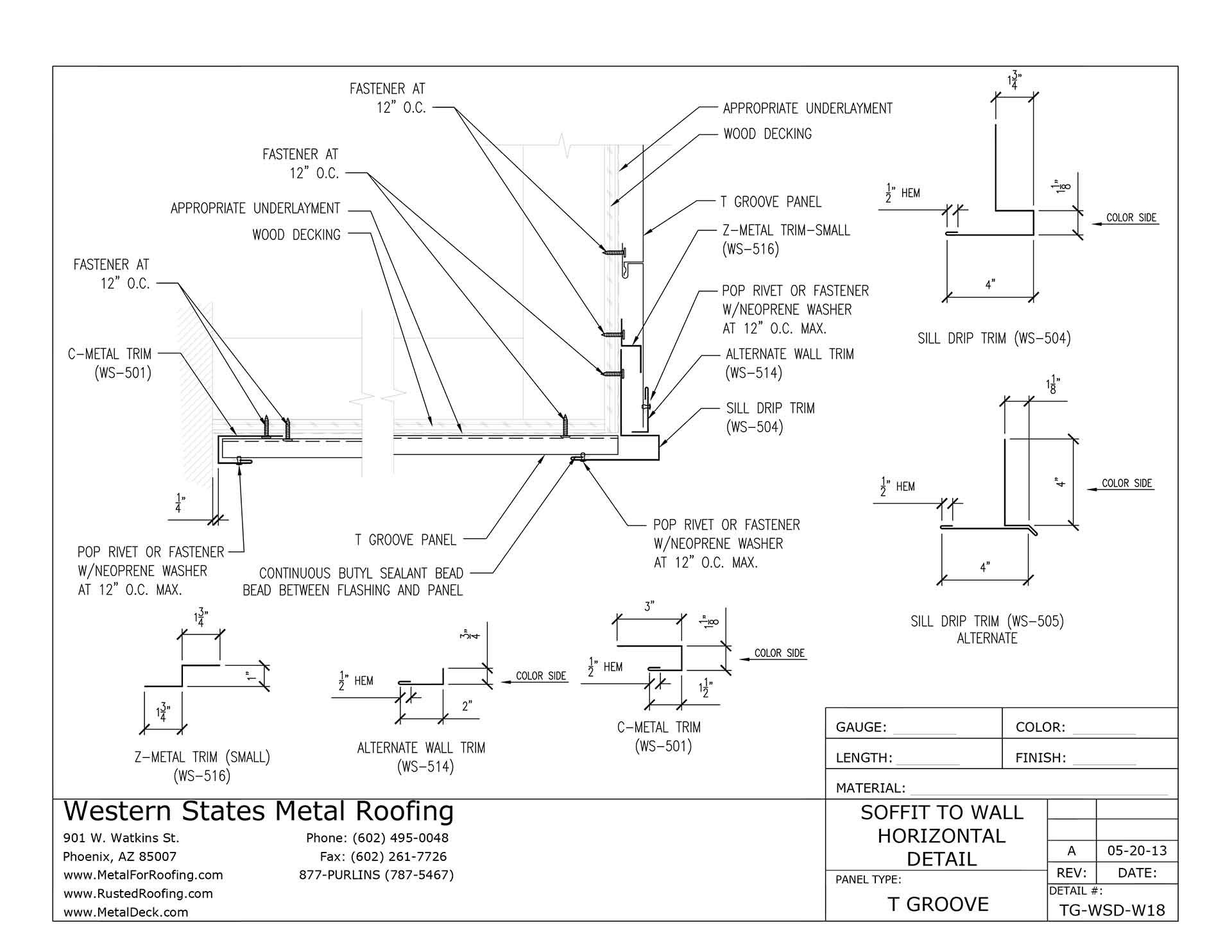

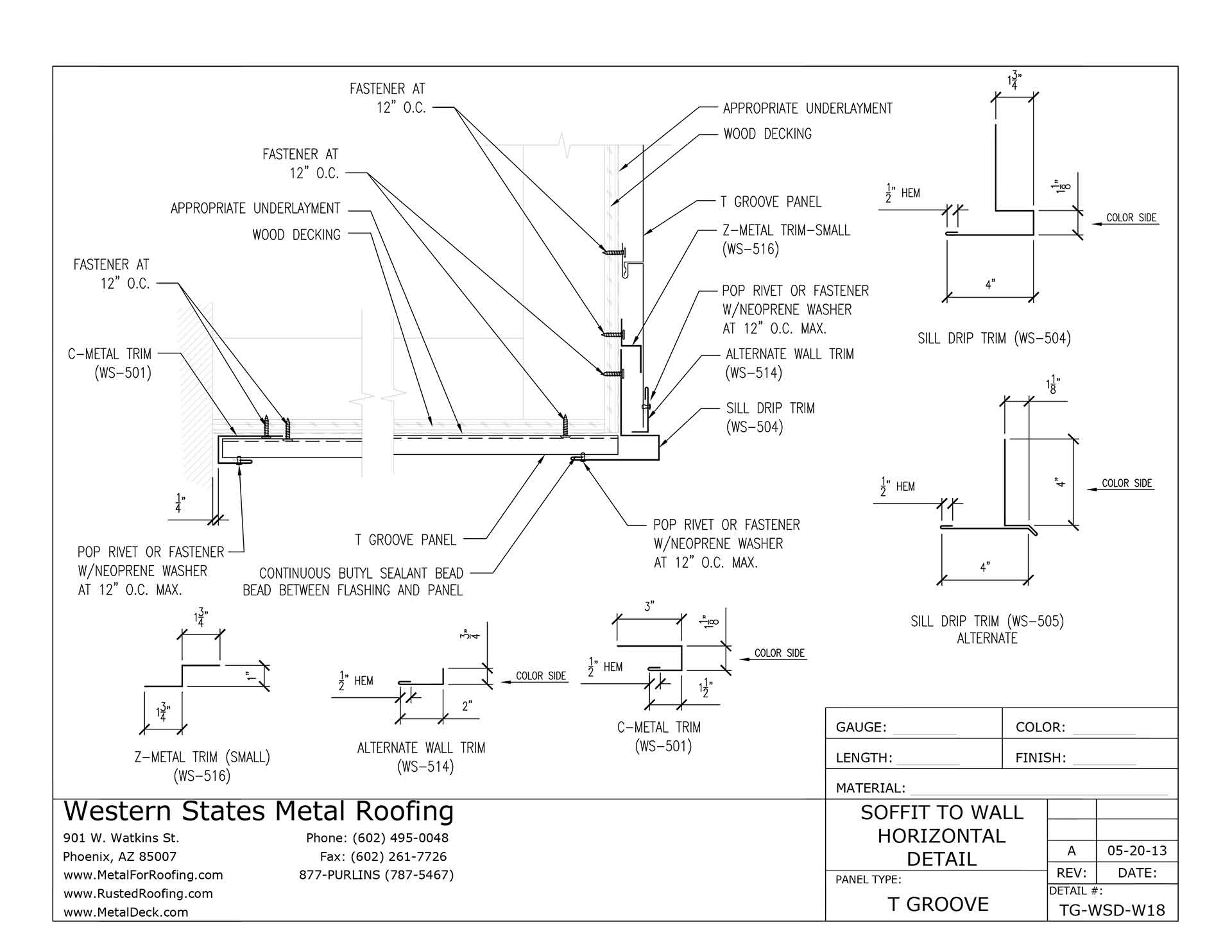

Soffit To Wall Detail - Horizontal Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/tg-wsd-w20-splice-sill-horizontal-detail.jpg

Panel End Splice Detail - Horizontal Installation

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/tg-wsd-w22-window-door-head-horizontal-detail.jpg

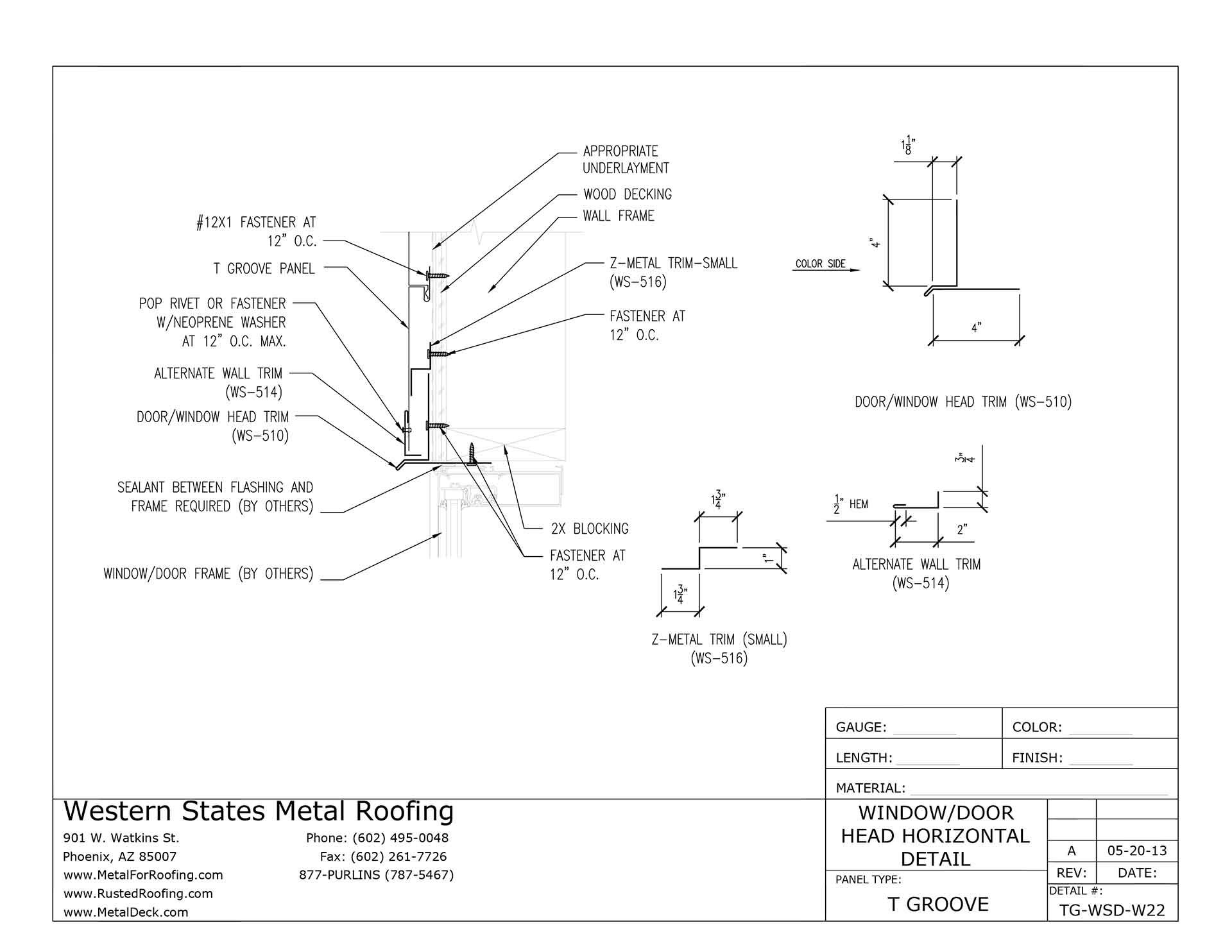

Door/Window Head Trim Detail - Horizontal Installation

Click To Enlarge
