Base Trim - # WS-515

Base Trim - Horizontal Installation

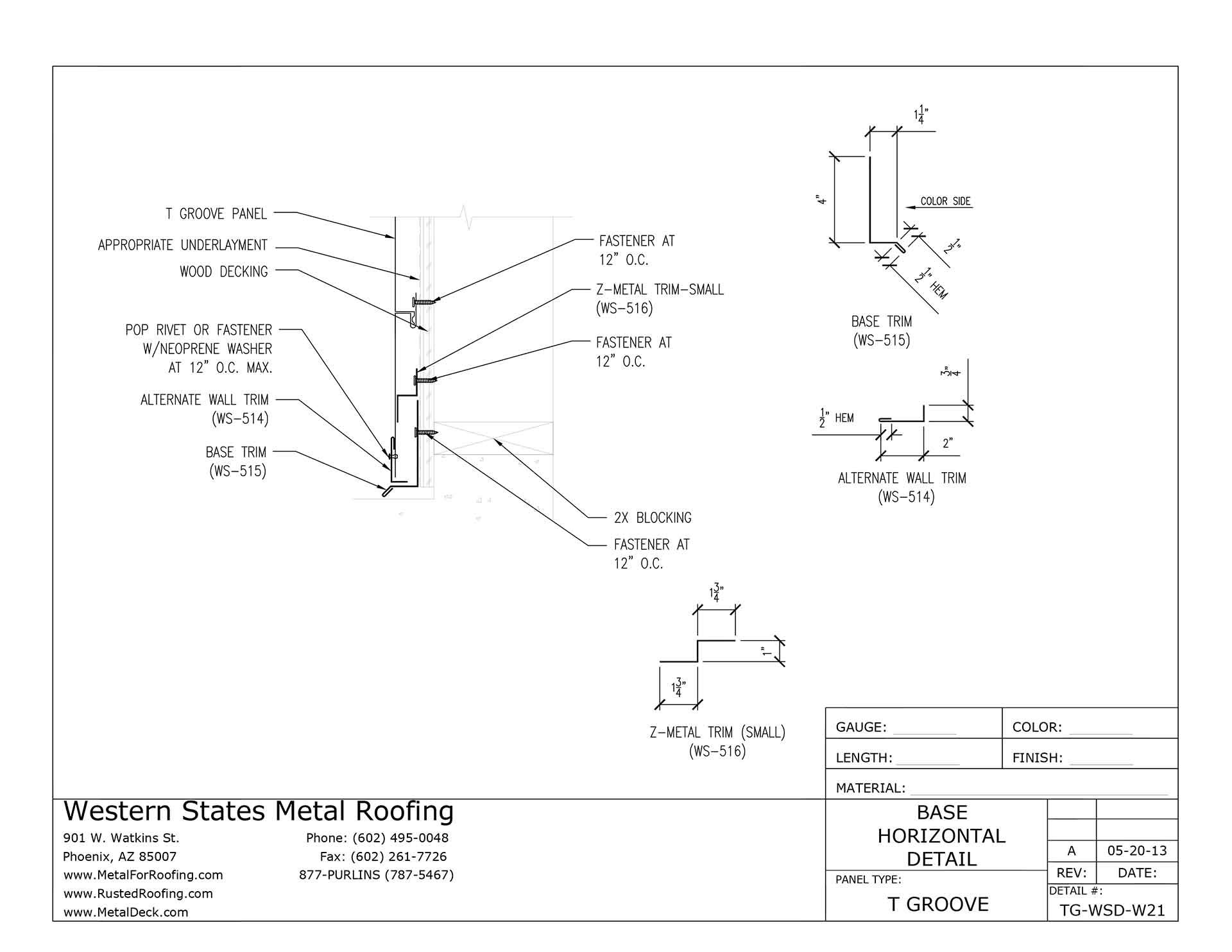

Detail #TG-WSD-W21

Base trim creates a barrier between the bottom of the metal wall panels and the floor. The base trim detail is different when the panels are installed vertically versus horizontally. This installation detail is for a horizontal wall panel only.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/tg-wsd-w21-base-horizontal-detail.jpg

Base Trim Detail - Horizontal Installation

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/part-ws-515-base-trim-1.jpg

WS-515 Base Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/part-ws-514-alternate-wall-trim-1.jpg

WS-514 Alternate Wall Trim Dimensions

For every 10' of base trim, you will need 10' of alternate wall trim

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/part-ws-516-z-metal-trim-small-1.jpg

WS-516 Z-Metal Dimensions

For every 10' of base trim, you will need 10' of Z-metal

Click To Enlarge

BASE TRIM DETAIL - HORIZONTAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.
