Sill Trim - # WS-509

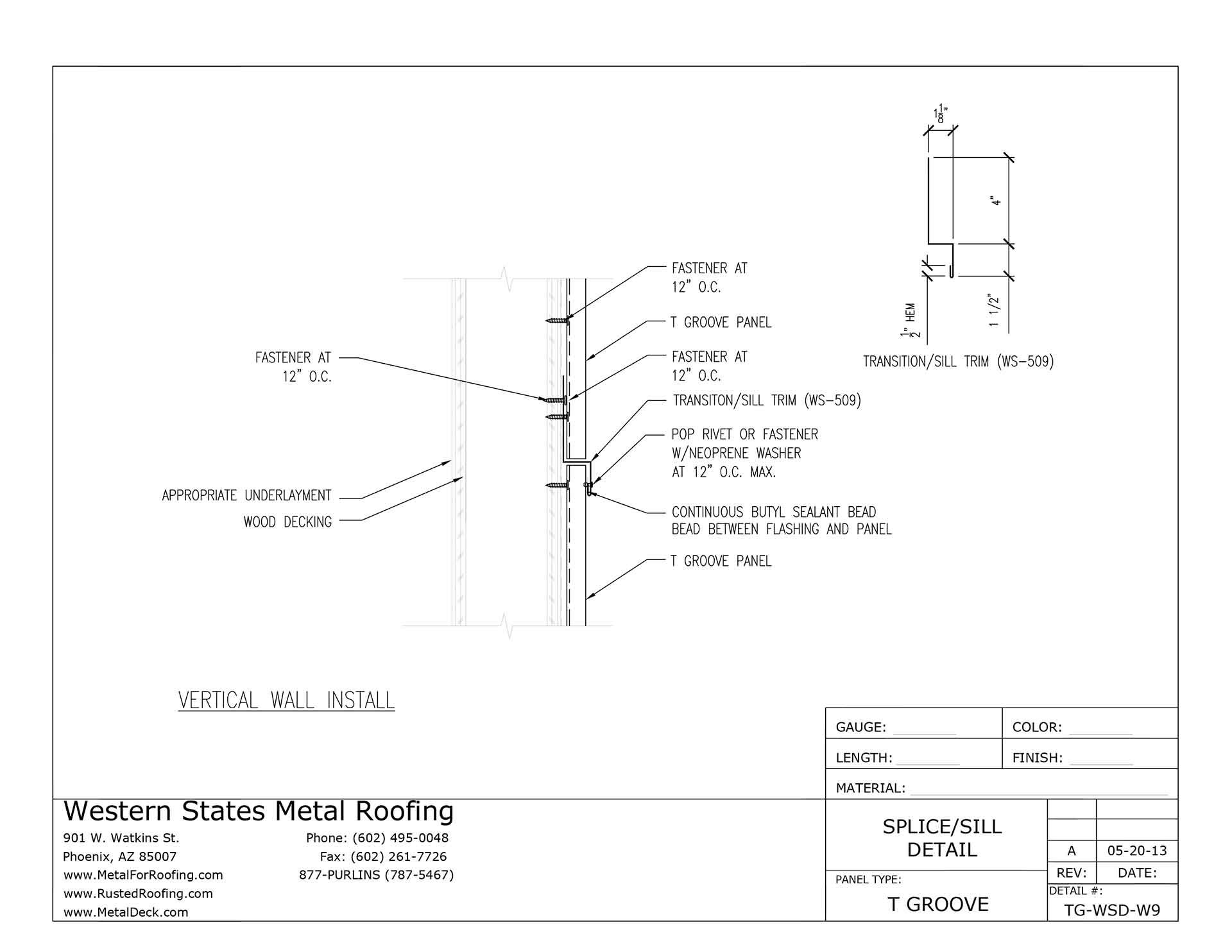

Wall Panel Splice - Vertical Installation

Detail TG-WSD-W9

If you have a wall that's too long for one metal panel, then you will need to use two panels and splice them together. The end splice detail is different when the panels are installed horizontally versus vertically. This installation detail is for a vertical wall panel only.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/tg-wsd-w9-splice-sill-detail.jpg

Wall Splice - Vertical Installation - Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/t-groove/part-ws-509-transition-sill-trim-1.jpg

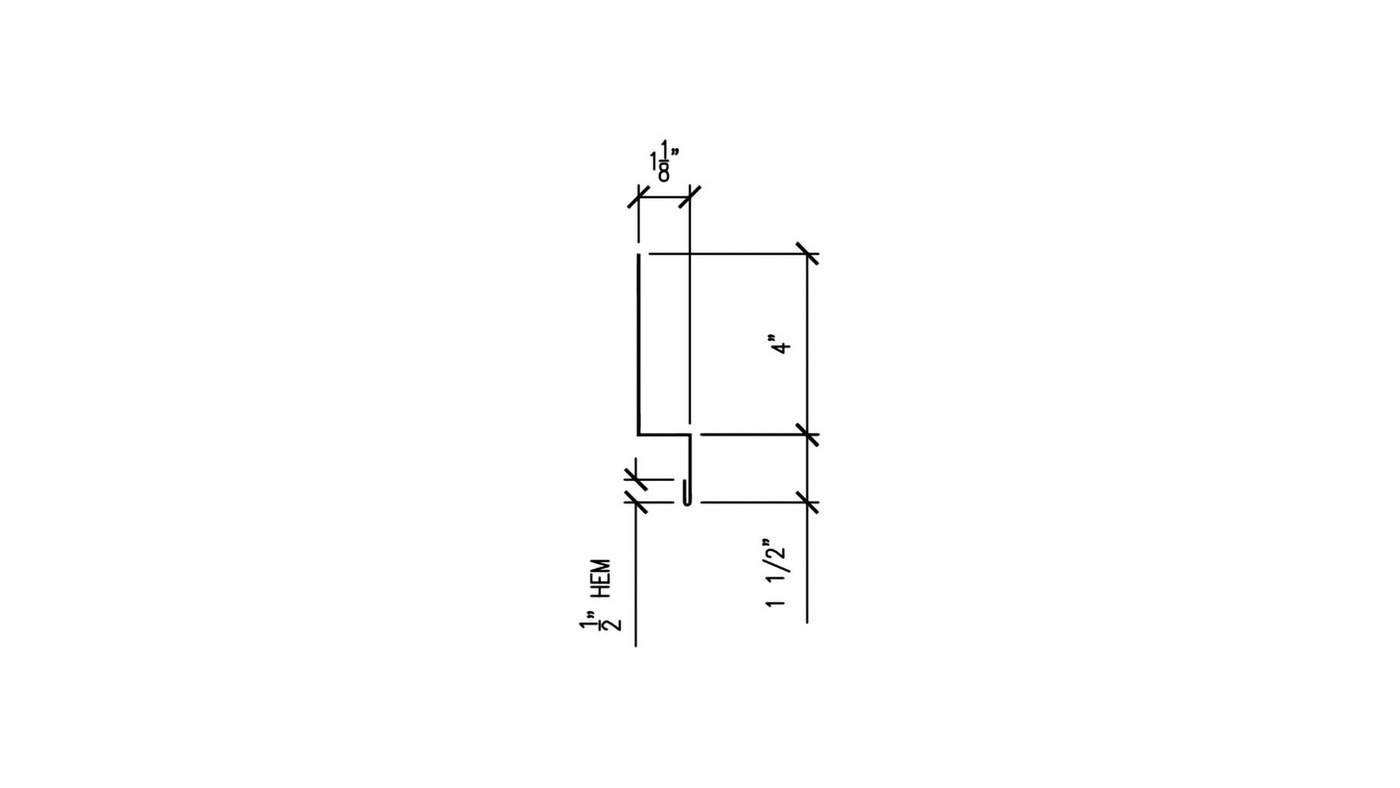

WS-509 Sill Trim Dimensions

CLICK TO ENLARGE

WALL SPLICE DETAIL - VERTICAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Sill Trim - WS-509
  • 10 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Rivets
  • 1 Tube Of Butyl Sealant

DOWNLOAD INSTALLATION GUIDE
