Floating Endwall Detail - Part #WS-458

Floating endwall means that the standing seam panels aren't pinned in place at the endwall. This allows for expansion and contraction. If you have a floating endwall, you will need a fixed connection at the other end of the standing seam panel.

Most of the jobs that we supply have a fixed endwall. This detail is not used that often.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d18.jpg

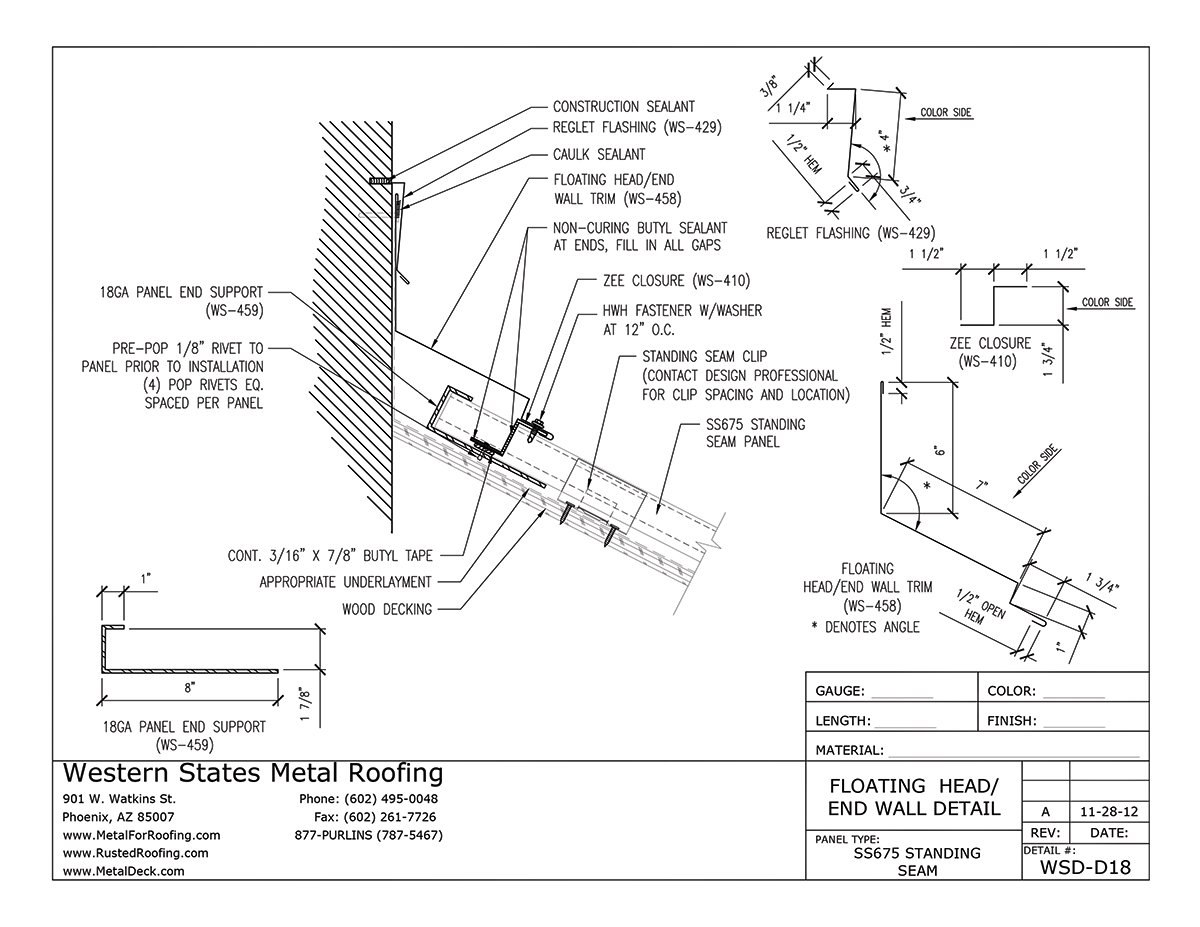

WS-458 - Floating Endwall Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-458-floating-head-end-wall-1.jpg

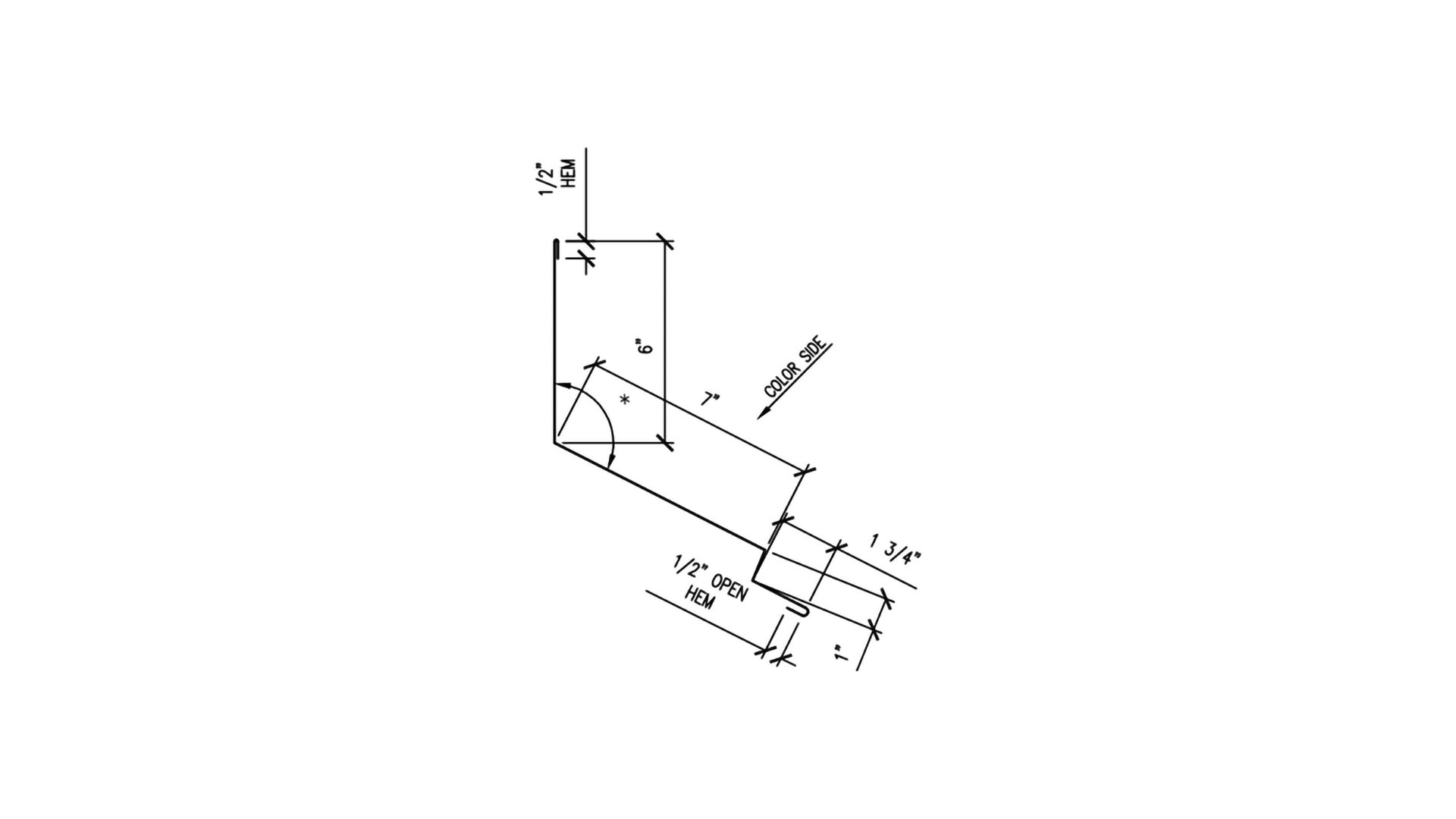

WS-458 Floating Endwall Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-410-zee-closure-1.jpg

WS-410 Zee Closure Dimensions

For every 10' of endwall trim, you will need 10' of zee closure.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-429-reglet-flashing-1.jpg

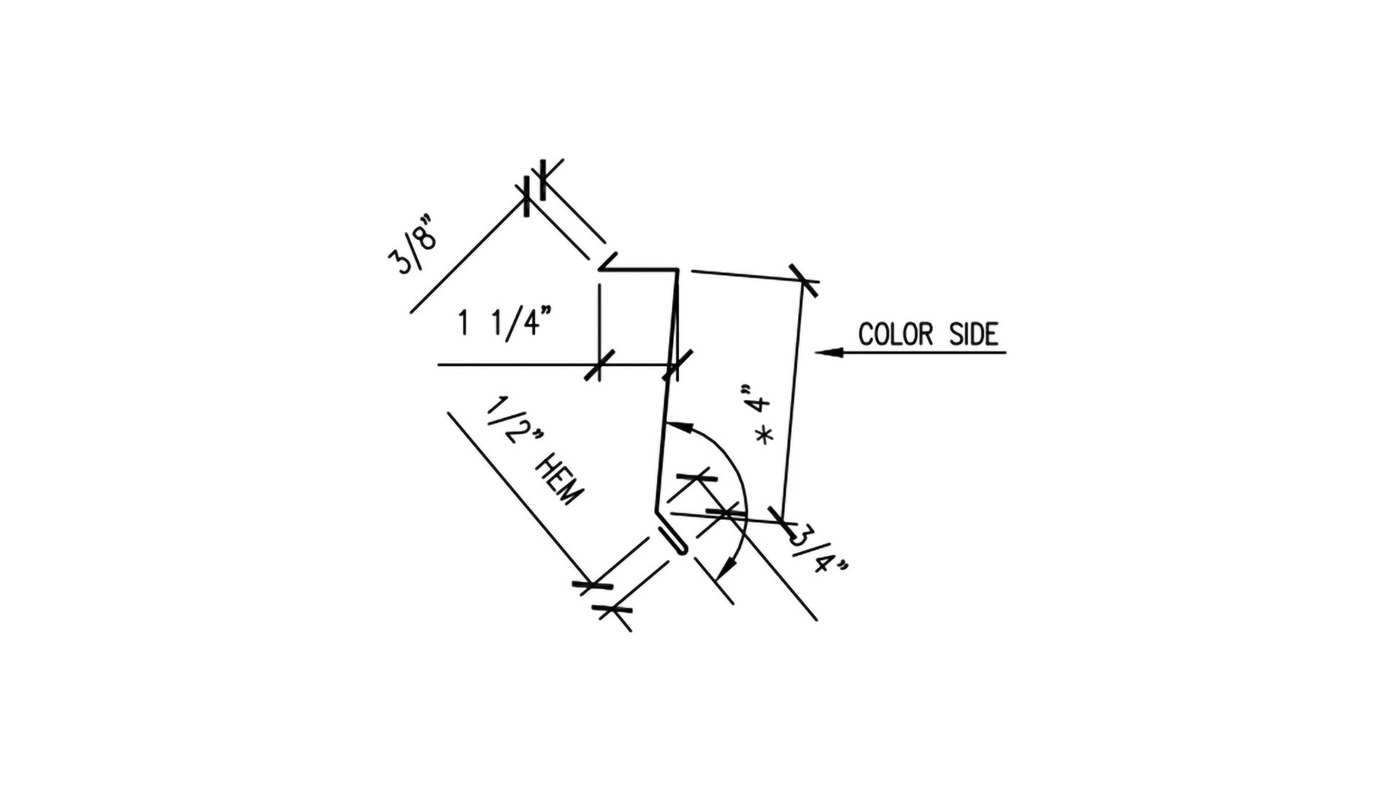

WS-429 Reglet Trim Dimensions

For every 10' of endwall trim, you will need 10' of reglet trim.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-459-18ga-panel-support-1.jpg

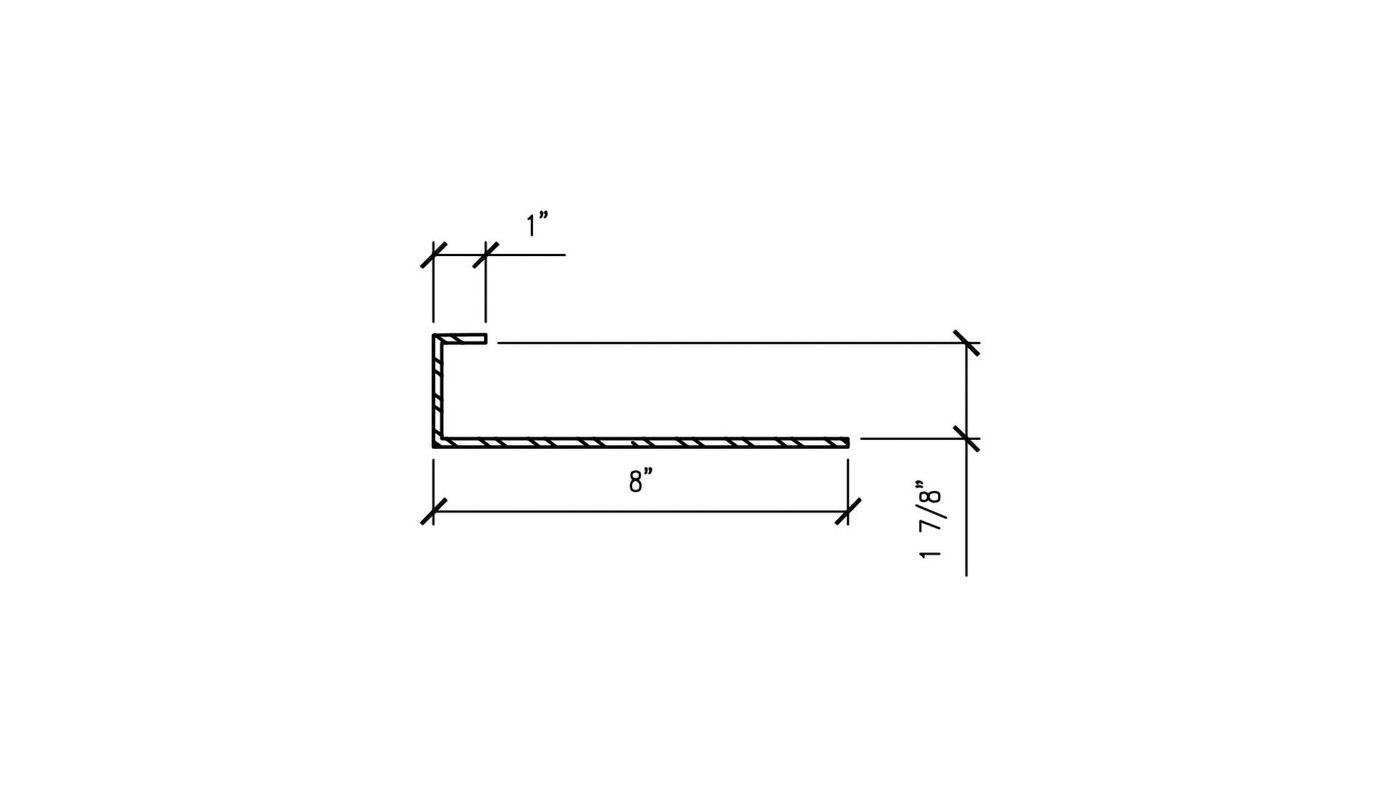

WS-459 Panel End Support Dimensions

For every 10' of endwall trim, you will need 10' of panel end support.

Click To Enlarge

WS-458 - FLOATING ENDWALL DETAIL - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

1 Piece Endwall Trim - WS-458
Roof Pitch Required
1 Piece Reglet Trim - WS-429
1 Piece Zee Closure - WS-410
1 Piece Panel End Support, 18 GA - WS-459
10 Metal To Metal Screw With Sealing Washer
28 Rivets
10 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
2 1/4 Tube Butyl Sealant
1/4 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.

We recommend:

DOWNLOAD INSTALLATION GUIDE

Fixed End Wall/Head Wall Installation Videos

Fixed End Wall & Side Wall Installation

We have not made a video that shows how to install a floating end wall. However, this video will still be helpful as most of the steps are the same. Refer to the printed installation detail for the differences.

We cover all of the steps that are required to install a fixed end wall and a side wall in this 30 minute video.

Watch Now
